Place of Origin Germany
Brand Name Copeland
Model Number D3DS-150 X
Type Refrigeration Compressor
Application Refrigeration Parts
Certification CE
Semi-hermetic DWM Copeland Compressor all models
1,R-22,R134A,R407C,R404A/R507
2,from 5HP to 80HP
3,low price & high quality

Type: Semi-hermetic piston compressors
Producer: Copeland
Series: DISCUS
Model: D3DS-150 X

Technical data

Cylinder count: 3
Displacement [m³/h]: 49,9
Weight [kg]: 178
Oil charge [dm³]: 3,4
Max. operating current [A]: 29
Locked rotor current [A]: 129
Power supply [V/~/Hz]: 380-420V/3/50Hz

Connections


  milimeters inches
Suction line:   1 5/8"
Discharge line:   1 1/8"





Standard equipment
  • oil pump
  • oil sight glass
  • Rotalock valves
  • thermal protections

Optional equipment
  • additional header cooling
  • oil pressure switch
  • crankcase heater
  • unload starting
  • capacity control

Application
  • high, medium and low temperatures
    (R22 from 12,5 ºC to -50 ºC)
    (R404A/R507 from 7 ºC to -50 ºC)
    (R134a from 12,5 ºC to -20 ºC)
    (R407A from 7 ºC to -45 ºC)

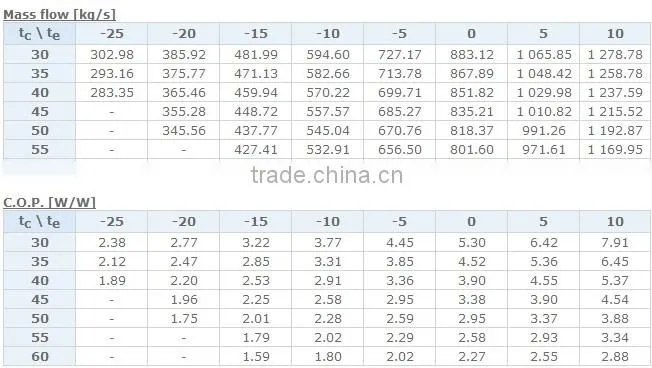

Capacity : R22, R134A,R407C,R404A/R507

DWM Copeland Compressor all models D3DS-150 X,D3DS-1500DWM Copeland Compressor all models D3DS-150 X,D3DS-1500DWM Copeland Compressor all models D3DS-150 X,D3DS-1500



Dimensions:
DWM Copeland Compressor all models D3DS-150 X,D3DS-1500
L 710 mm
B 370 mm
H 490 mm



Pictures:
DWM Copeland Compressor all models D3DS-150 X,D3DS-1500DWM Copeland Compressor all models D3DS-150 X,D3DS-1500DWM Copeland Compressor all models D3DS-150 X,D3DS-1500




DWM Copeland Compressor all models D3DS-150 X,D3DS-1500DWM Copeland Compressor all models D3DS-150 X,D3DS-1500DWM Copeland Compressor all models D3DS-150 X,D3DS-1500DWM Copeland Compressor all models D3DS-150 X,D3DS-1500DWM Copeland Compressor all models D3DS-150 X,D3DS-1500
