DWM Copeland Compressor for Chiller,chiller Copeland Compressor D8DH-500 X
US$ 4,000 - 10,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Germany
Brand Name:
Copeland
Model Number:
D8DH-500 X
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
60HP Dwm Copeland Compressor D8DJ-600 XUS$ 4,000 - 10,000MOQ: 1 Unit -
60HP DWM Copeland Compressor D8DJ-6000,D8DJ-600XUS$ 4,000 - 10,000MOQ: 1 Unit
-
Copeland Compressor ZRT Series in Tandem ZRT96K3E-TFDUS$ 500 - 2,000MOQ: 1 Unit
-
Copeland Compressor ZRT Series in Tandem ZRT122KCE-TFDUS$ 500 - 2,000MOQ: 1 Unit
-
Copeland Compressor ZRT Tandem Series ZRT144KCE-TFDUS$ 500 - 2,000MOQ: 1 Unit
Place of Origin
Germany
Brand Name
Copeland
Model Number
D8DH-500 X
Type
Refrigeration Compressor
Application
Refrigeration Parts
Certification
CE
Semi-hermetic DWM Copeland Compressor all models
1,R-22,R134A,R407C,R404A/R507
2,from 5HP to 80HP
3,low price & high quality
1,R-22,R134A,R407C,R404A/R507
2,from 5HP to 80HP
3,low price & high quality
Type: Semi-hermetic piston compressors
Producer: Copeland
Series: DISCUS
Model: D8DH-500 X
Technical data
| Cylinder count: | 8 | |
| Displacement [m³/h]: | 151 | |
| Weight [kg]: | 351 | |
| Oil charge [dm³]: | 7,7 | |
| Max. operating current [A]: | 88 | |
| Locked rotor current [A]: | 444 | |
| Power supply [V/~/Hz]: | 380-420V/3/50Hz |
Connections
| milimeters | inches | ||
| Suction line: | 2 5/8" | ||
| Discharge line: | 1 5/8" |
Standard equipment
- oil pump
- oil sight glass
- Rotalock valves
- thermal protections
Optional equipment
- additional header cooling
- oil pressure switch
- crankcase heater
- unload starting
- capacity control

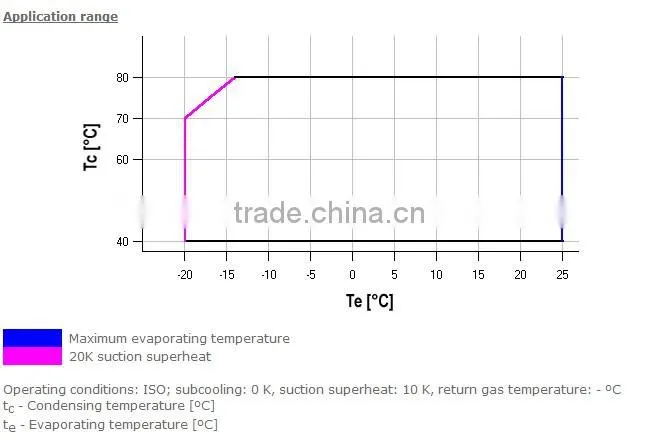

Application
-
high, medium and low temperatures
(R22 from 12,5 ºC to -50 ºC)
(R404A/R507 from 7 ºC to -50 ºC)
(R134a from 12,5 ºC to -20 ºC)
(R407A from 7 ºC to -45 ºC)

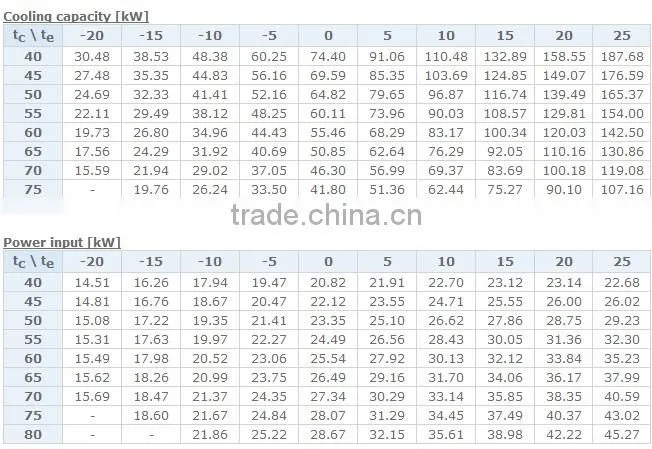

Capacity : R-22,R134A,R407C,R404A/R507
Dimensions:
| L | 835 | mm |
| B | 590 | mm |
| H | 670 | mm |
Pictures:
