Copeland Compressor ZF Series for Sale ZF15K4E-TFD
US$ 200 - 2,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
United States
Brand Name:
Copeland
Model Number:
ZF15K4E-TFD
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Copeland Compressor ZF09K4E,ZF11K4E,ZF13K4E,ZF15K4E,ZF18K4E,ZF24K4E,ZF33K4E,ZF40K4E,ZF48K4EUS$ 200 - 2,000MOQ: 1 Unit -
ZF09K4E,ZF11K4E,ZF13K4E,ZF15K4E,ZF18K4E,ZF24K4E,ZF33K4E,ZF40K4E,ZF48K4E Copeland CompressorUS$ 200 - 2,000MOQ: 1 Unit
-
Copeland Scroll Compressor ZF Series ZF33K4E-TWDUS$ 200 - 2,000MOQ: 1 Unit
-
R404A/R507 Copeland Scroll Compressor ZF48K4E-TWDUS$ 200 - 2,000MOQ: 1 Unit
-
R410a Copeland Scroll Compressor ZP16KSE-PFZUS$ 200 - 2,000MOQ: 1 Unit
Place of Origin
United States
Brand Name
Copeland
Model Number
ZF15K4E-TFD
Type
Other, Refrigeration Compressor, Hermetic Scroll Compressor
Application
Refrigeration Parts
Certification
Other, RoHS
Copeland Hermetic Scroll Compressor ZF Series
1,ZF18K4E,ZF24K4E,ZF33K4E,ZF40K4E,ZF48K4E
2,R404A/R507
3,Low price & Original
1,ZF18K4E,ZF24K4E,ZF33K4E,ZF40K4E,ZF48K4E
2,R404A/R507
3,Low price & Original
Type: Hermetic scroll compressors
Producer: Copeland
Series: ZF
Model: ZF15K4E-TFD
Technical data
| Displacement [m³/h]: | 14,5 | |
| Sound power [dBA]: | 76 | |
| Sound pressure level [dB]: | 65 | |
| Net Weight [kg]: | 39 | |
| Gross Weight [kg]: | 42 | |
| Oil charge [dm³]: | 1,9 | |
| Maximum high pressure [bar]: | 28,8 | |
| Maximum standstill pressure [bar]: | 21 | |
| Maximum lowside temperature [°C]: | 50 | |
| PED category: | 1 |
Electrical data
| Power supply [V/~/Hz]: | 380-420V/3/50Hz | |
| Locked rotor current [A]: | 64 | |
| Max. operating current [A]: | 10 | |
| Winding resistance [Ω]: | 2,8 |
Connections
| inches | |||
| Suction Rotolock valve connection: | 1 1/4" | ||
| Discharge Rotolock valve connection: | 1" |
Standard equipment
- screwed sight glass
- Rotalock connections
- Schraeder connection
- assembly washer
- discharge temperature control
Optional equipment
- Economizer - plate heat exchanger
- current relay
- external crankcase heater (70W)
Application

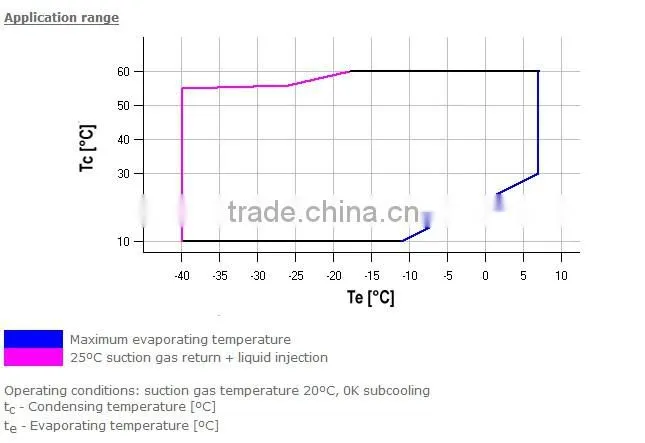

- medium and low temperatures (from 7 ºC to -45 ºC)
- refrigerants R404A/R507

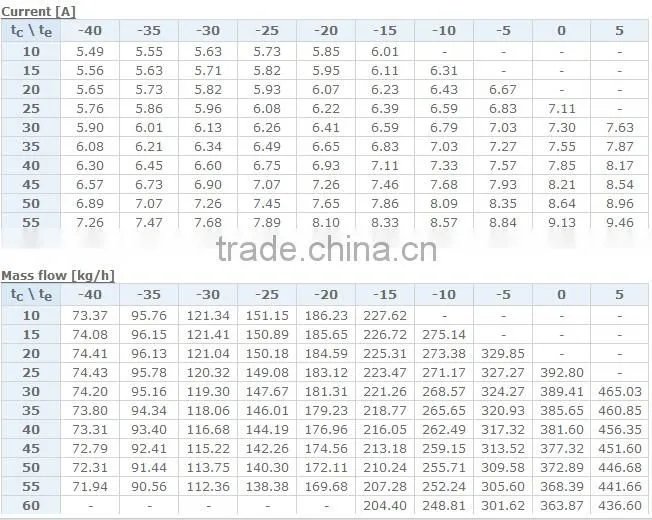

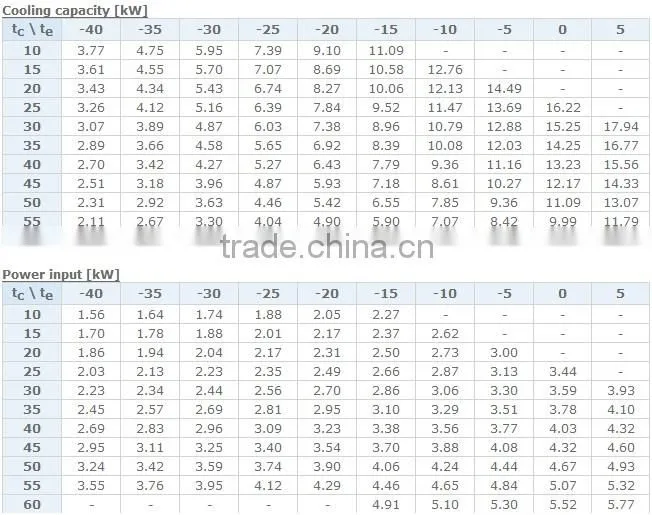

Capacity : R404A/R507

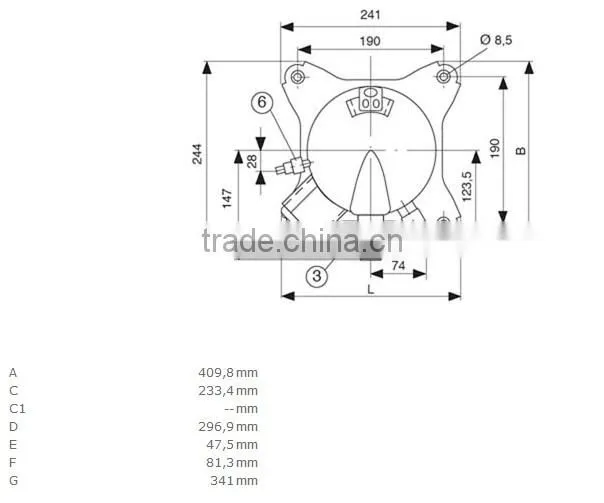

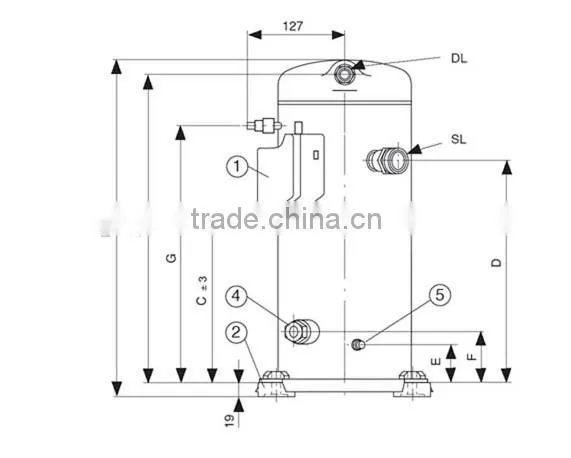

Drawing:
Pictures:
