Specifications
1.HD-SDI telecommunication2.19.4Mb/s to 1.485Gb/s
3.1-ch input,2-ch output
4.FC/PC,0-120km
5.CE FCC RoHS

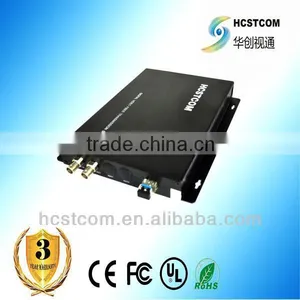

Product name: HC3010 HD-SDI telecommunication
Product category: Digital video HD-SDI fiber optic transmission system
Product introduction
1. Overview
The HC3010 could transmit HD/SD-SDI as per SMPTE 424M-2006, 292 and 259, with or without embedded audio and data, as well as DVB-ASI over one fiber, single mode or multimode. Signals are equalized and re-clocked prior to fiber optic transmission. The transmitter features a re-clocked and equalized SDI loop through; the receiver features two re-clocked and equalized SDI outputs
2. Features
« 1-channel unidirectional HD-SDIwith embedded audio over one fiber
« Range from 19.4Mb/s to 1.485Gb/s
« SMPTE 292M (1.485Gb/s) clock recovery
« Support all SMPTE 295M standard, 143Mb/s - 360Mb/s
« Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard
« Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
« 150m automatic cable equalization, all the 1.485 Gb / s rate below(Belden 1694A)
« Optional network management system
« LED status indicators monitor the critical parameters
« Optional network system
« Support hot swap
« Stand-alone, 1U rack mount and 4U rack mount
3. Specifications
a) Serial TV, BNC input
Signal standard: SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and Telecom/Datacom rate(19.4Mb/s - 1.485Gb/s)
Input number: 1
Reflection loss: >15DB
Equilibrium: 0-150m @1.485Gb/s
Connector: 75Ω BNC
b) Optics
Channel: 1
Type: single-mode (multimode optional)
Wavelength: 1310nm /1550nm
Reflection loss: > 15dB
Dithering: < 0.2UI
Connector: FC/PC (SC/PC optional)
c) Serial TV, BNC output (EO/OE)
Channel: T-2channel loop out, R-2channel output
Signal level: 800mV nominal
Rise/fall time: 200ps indication
Overshoot: < 10% amplitude
Reflection loss: >15dB
Dithering: < 0.2UI
Connector: 75Ω BNC
d) Power and environmental indication
Operating temperature: 0°C~+50°C
Pressure: 1A@12VDC
Power: 12 W
| Average time trouble-free | >100000 hours |
| EMI/RFI | meet FCC Part 15 Class A, EU EMC standard |
| Package | Carton |
| MOQ | 1 Pair |
| Warranty | 3 years |
e) Other
Dimension: 173mm ×276mm ×40.6mm
Weight: 2Kg

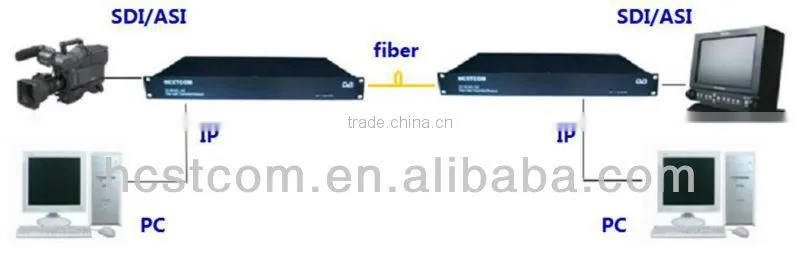

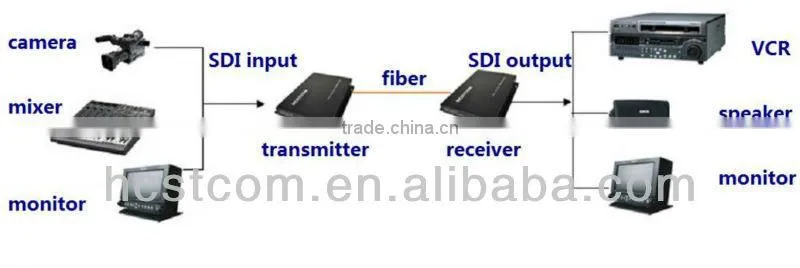

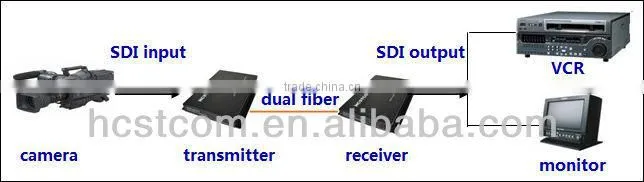

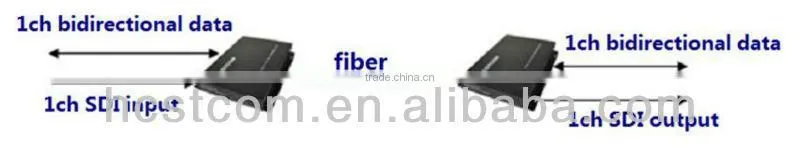

4. Applications

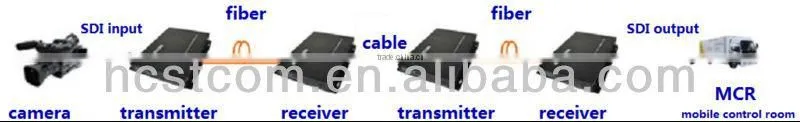

Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links
5. Ordering information
HD-SDI Fiber Optic Transmission
HC3010-T
1-Ch HD-SDI with embedded audio input with looping out over one fiber, single mode, single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
HC3010-R
2-Ch HD-SDI with embedded audio output over one fiber, single mode, single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
