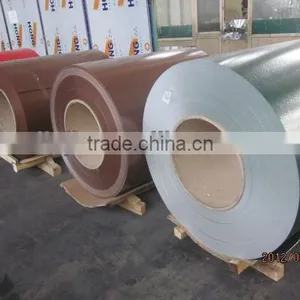

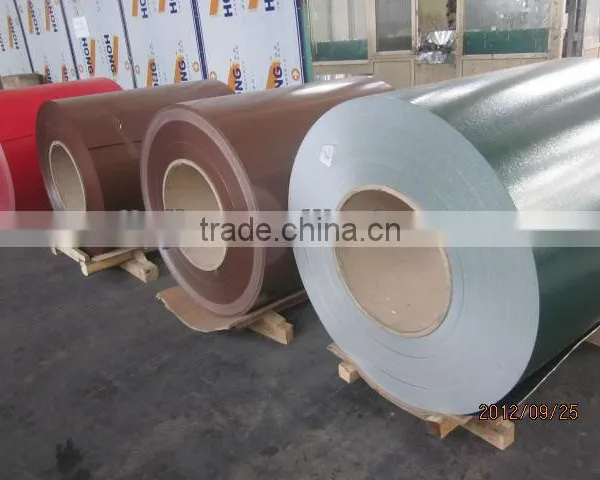

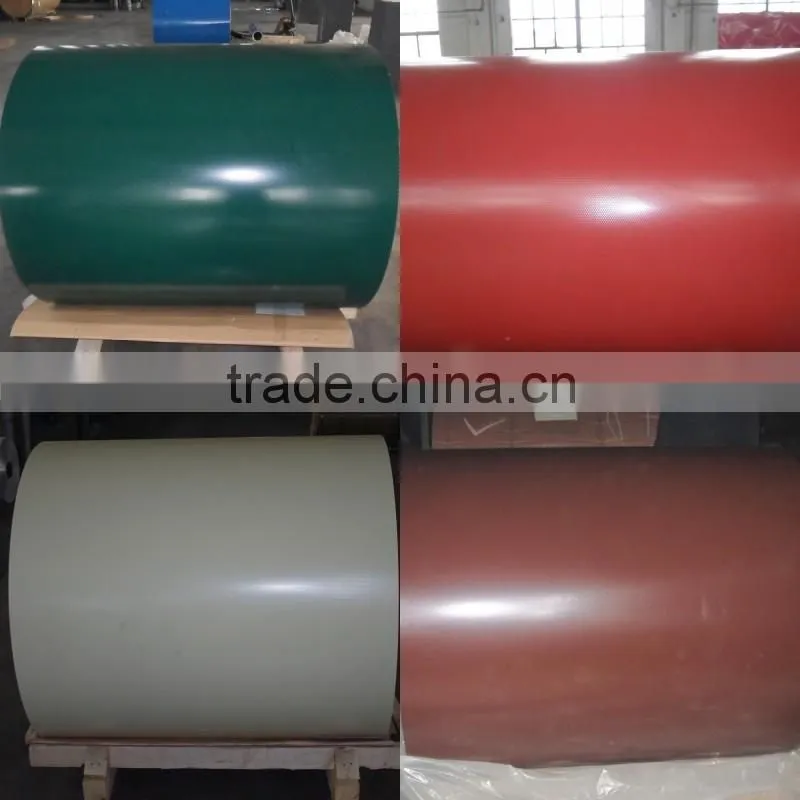

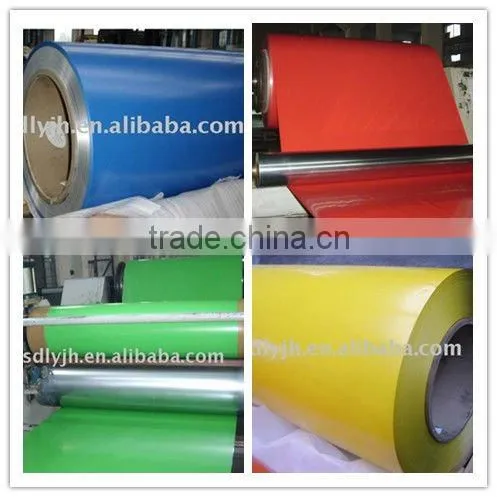

China aluminum product, color coated aluminum coil for roller shutters
We are the biggest manufacture of color coated aluminum coil and stucco-embossed aluminum coil in the North of China .established in 2002. now we have five production line .mainly produce aluminum thickness is from 0.022mm-1.20mm with PVDF , PE AND ACRYLIC coating ,and the max width is 1700mm .stucco-embossed aluminum coil include Gridirion pattern , Diamond pattern ,Indication pattern etc.
Usage: ACP, ROOFING, GUTTERING, CEILING, SHUTTER etc
01) Alloy: A3003 A1100 A8011 etc
02) Aluminum thickness: 0.022mm~1.20mm
03) Aluminum max width:1700mm
Standard width: 1240mm
Special width such as 1300mm, 1520mm, 1570mm, 1595mm are also available
04) Coil's standard diameter: 1200mm
Interior diameter:150mm,405mm or 505mm
05) Weight: 2.5T/coil 3.0 T/coil
06) Coating finish: PVDF, POLYESTER, ACRYLIC
07) Gloss deviation: when gloss below 70, tolerance below 10%
when gloss above 70, tolerance below 5%
08) Total coating thickness
PVDF coating: more than 25 micron
Polyester coating: more than 18 micron
09) Coating hardness (pencil hardness) more than 2H
10) Coating adhesive : no lower than first grade
11) Impact resistance: No cracking and peeling (50kg/cm ,ASTMD-2794:1993)
12) Flexibility (T-bend): 2T
13) MEK resistance: more than 100 times
14) Bottom side aluminum sheet is coated with protective polyester material, thickness more than 6 micron

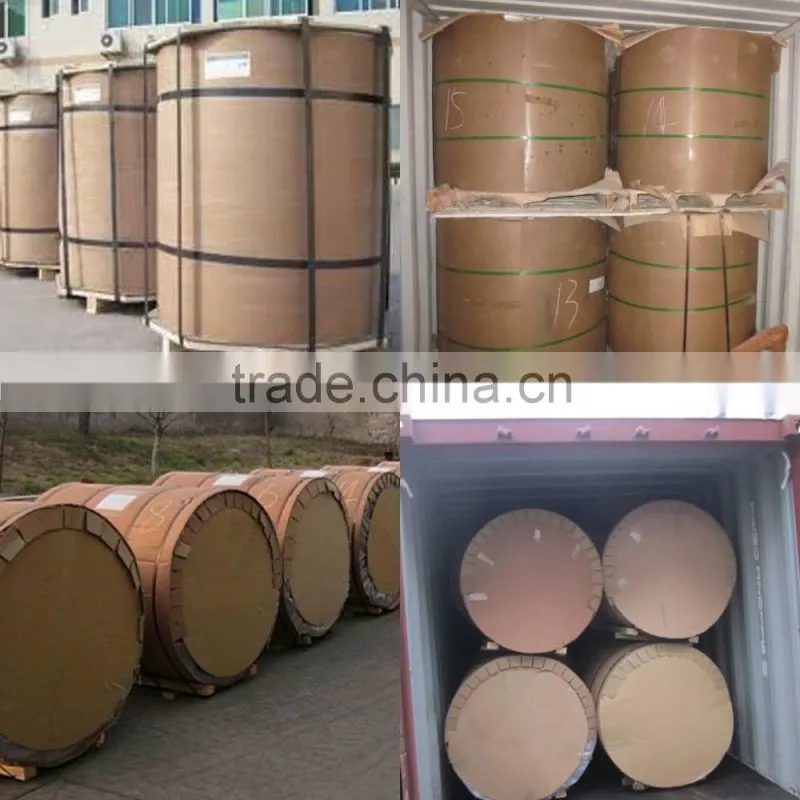

15) Packing: export standard , wooden plate

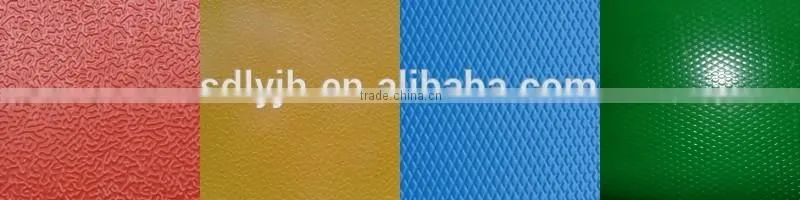

******************************************************Plain Aluminum Coil***************************************************** ****************************************************Embossed Aluminum Coil***********************************************

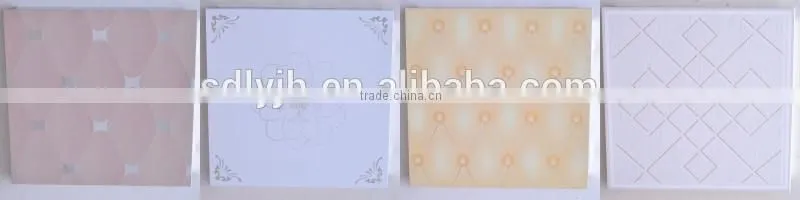

********************************************************Aluminum Ceiling*******************************************************
Ben Hogan Mobile/Whatsapp/Wechat 0086 18005396727
Skyoe: stevevlee777
Mail: ben@

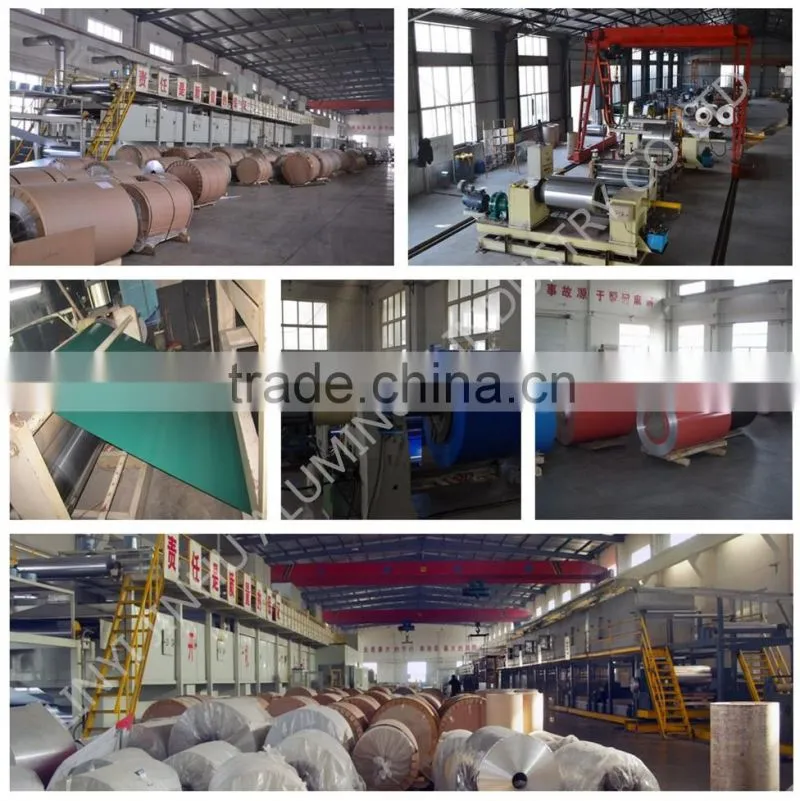

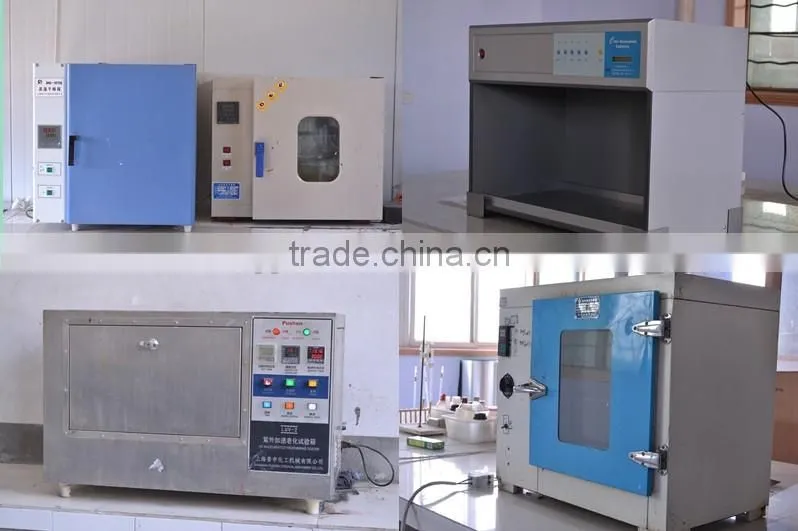

********************************************************Factory Workshop***************************************************** *******************************************************Testing Equipment*****************************************************

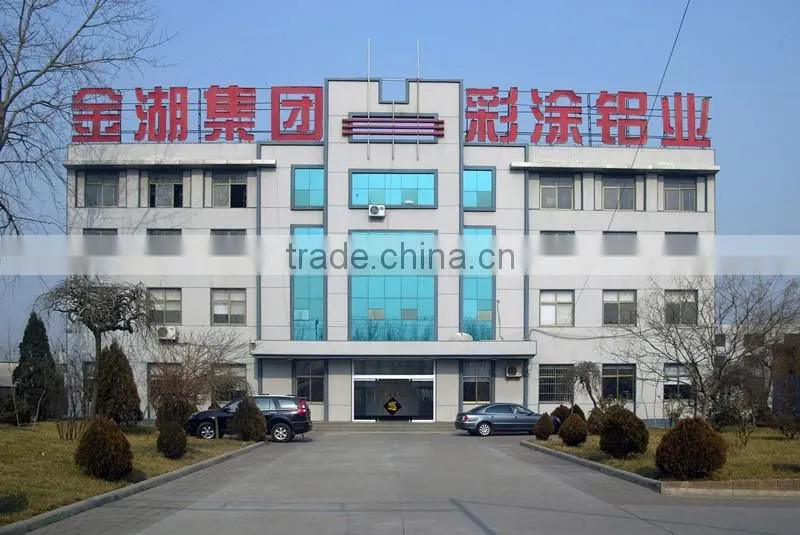

Linyi Jinhu Color Coating Aluminum Industry Co., Ltd was founded in 2003 and has since become one of the largest manufacturers of stone coated metal roofing tiles, color coated aluminum coil, embossed aluminum coil and aluminum composite panel manufacturer in China.
In 2004, the company passed the ISO 9001:2000 International Quality Management System Certificate and the SONCAP Certificate in 2007.Main products include stone coated metal roofing tiles, color coated aluminum coil and embossed aluminum coil. Annual sales exceeded RMB 450 million from exporting, to many countries around the world including Nigeria, the Middle East, India, Southeast Asia, America, Europe and others.
TEL: 0086 539 8030 358 FAX: 0086 539 8030 356
