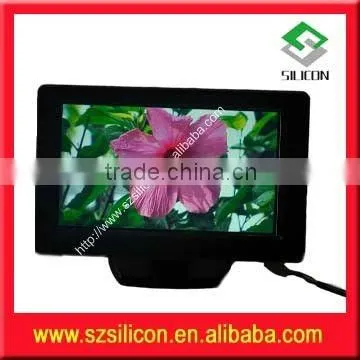

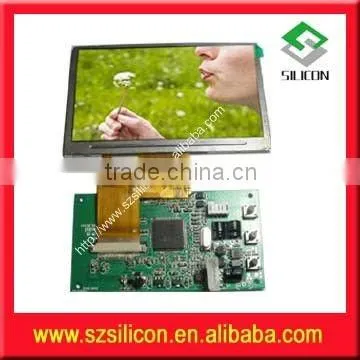

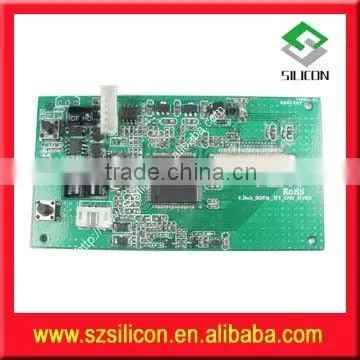

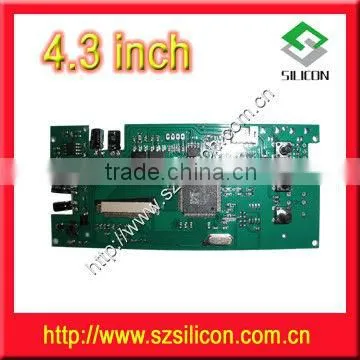

Help Center4.3" TFT-LCD Driver Board With Led Backlight
Related Products
-
HOT 10.1 Inch Control BoardNegotiableMOQ: 1 Piece -
2013 HOE DESIGN Tft Lcd Accurate Control BoardNegotiableMOQ: 1 Piece
-
3.5inch Tft Lcd Video Controller BoardNegotiableMOQ: 1 Piece
-
Electronic Machine 7 Inch Control BoardNegotiableMOQ: 1 Piece
-
7 Inch Lcd Tft Display Control BoardNegotiableMOQ: 1 Piece
Specifications
1. 4.3inch TFT-LCD Driver Board2. Use for display equipment
3. Input signal: CVBS
4. datasheet: yes
1.Application:
Building interphone, car reversing system
Industrial controlling system, medical equipment
Audiovisual equipment Car display, Portable DVD Player
Household Video door bell, Videophone, Digital Camera
2.Feature:
1) Product Name: 4.3"TFT-LCD Driver Board
2) Product number: Silicon-P-004
3) Backlight: LED
4) Resolution:480x(RGB)×272
5) View Angle(up/down/left/right): 50/55/60/60
6) Brightness:> 300Cd/m2
7) Input signal: CVBS
8) System format: PAL/NTSC(Auto switch)
9) Adjust model: Menu adjust
10) Power Supply Input: DC 9V-18V
11) Rated power: 1.2W
12) Display Dimension of LCD (mm):95.04(H)×53.856(V)
13) Overall Dimension of LCD(mm):105.5(W)×67.2(H)×3.6(D)
14) Actuation board size(mm):90(W)×48(H)×6.8(D)
15) Operating Temperature: -20~+70 °C
16) Relative Humidity:5~95% RH
17) Storage Temperature: -30~+80°C
18) Customize: Free for customer ordering starting LOGO, accepts order the CABLE lines
19) Packing: 60pcs/Box
