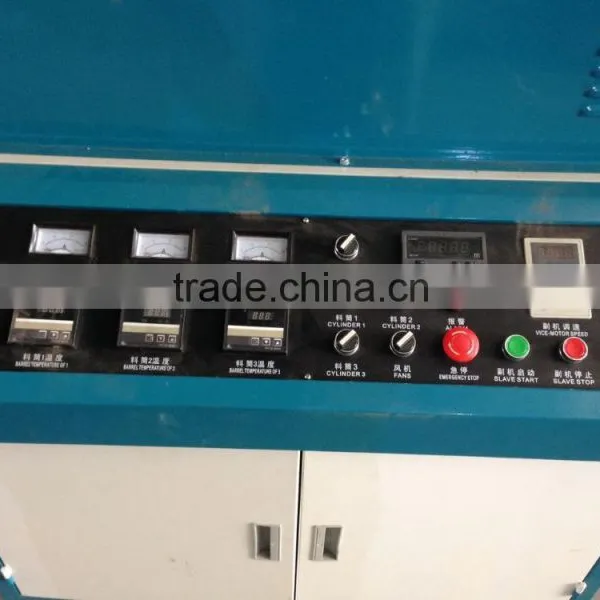

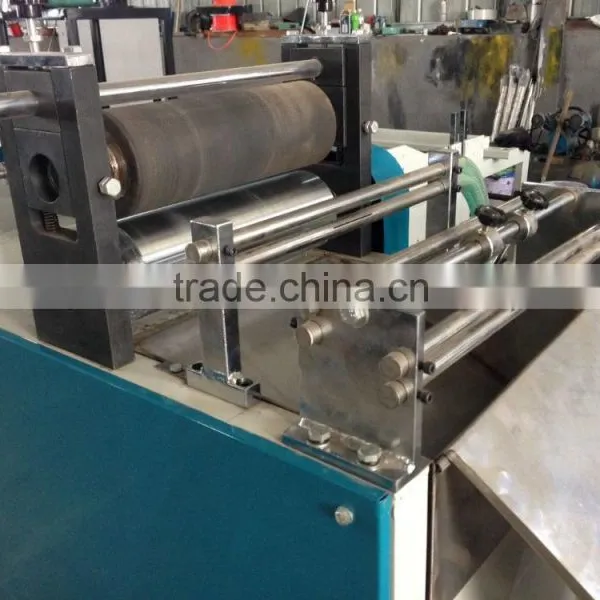

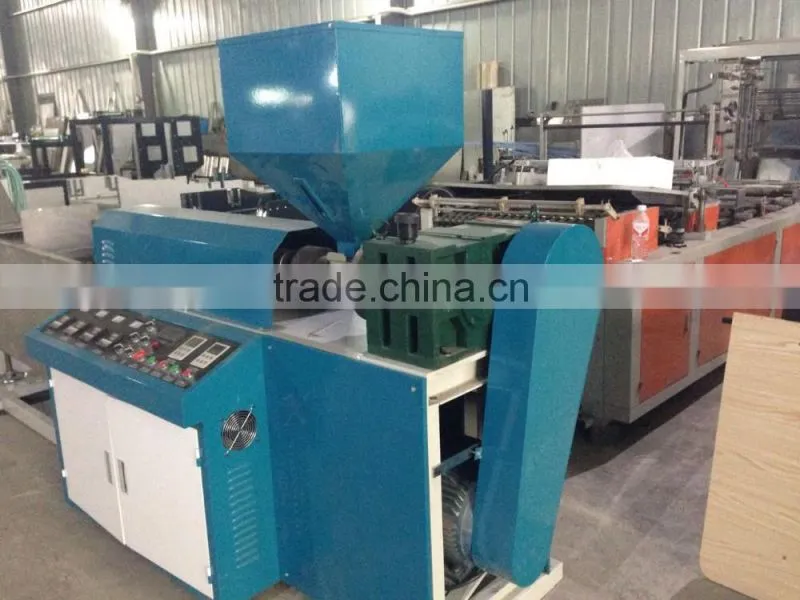

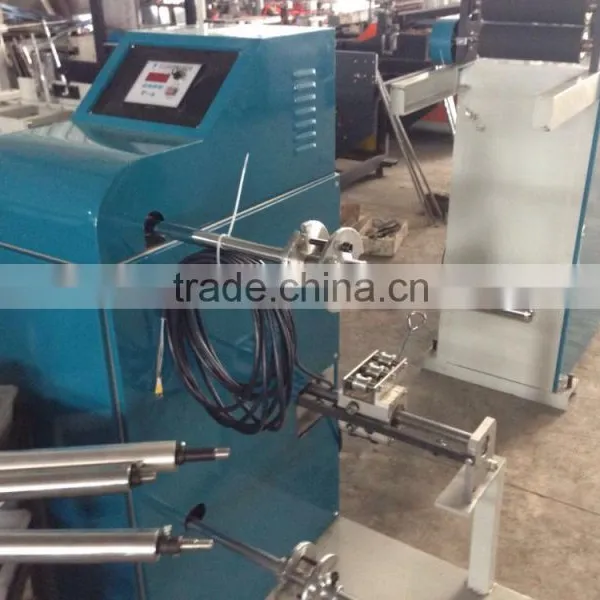

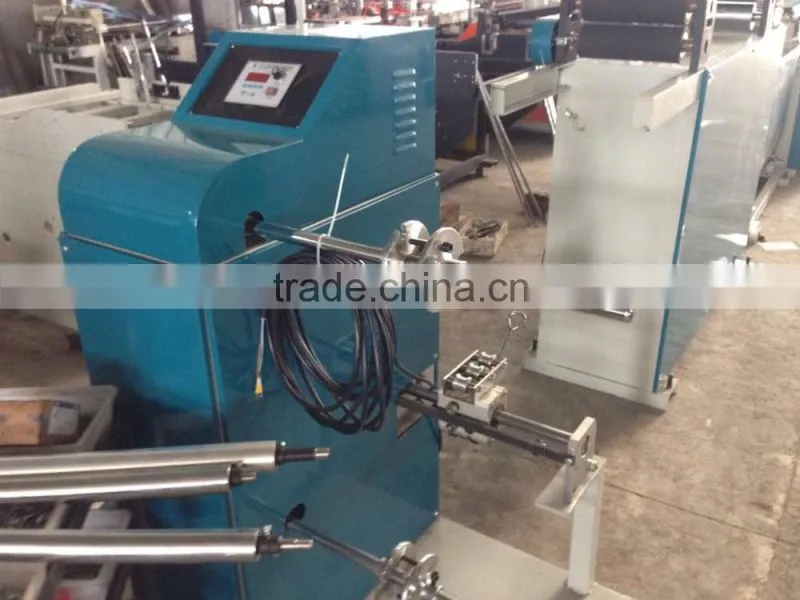

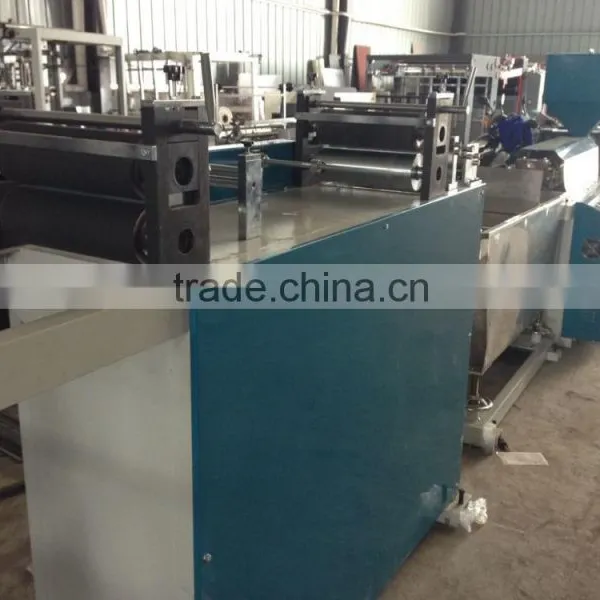

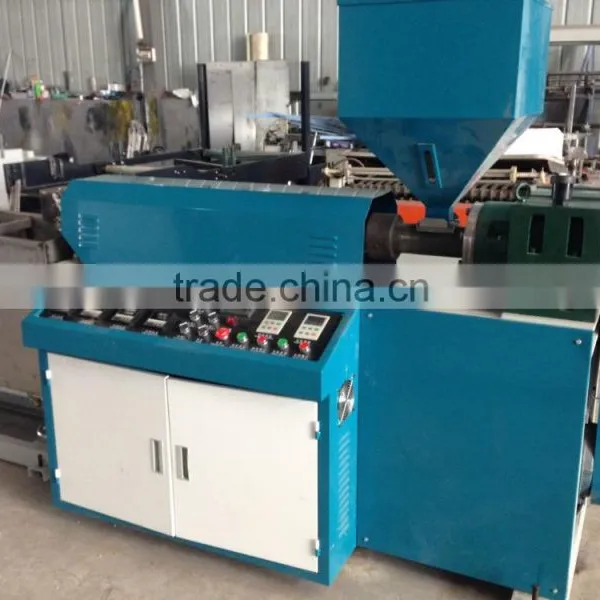

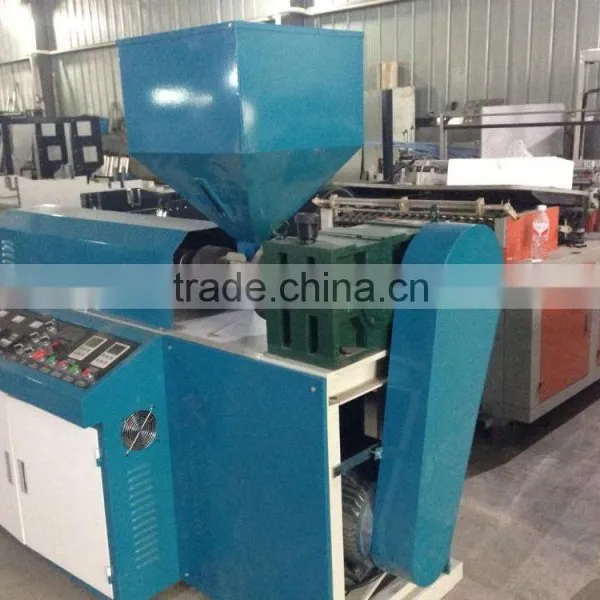

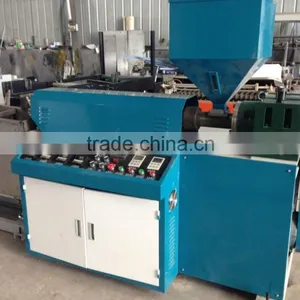

Machine pictures:
Zipper samples by different molds:
The model is simple to operate, and can produce various types of chain with different switches. It consists of the main extruder, mold stereotyping, cooling water constant temperature stereotyping, dewatering devices, dried devices, clip chain heal up devices, automatic display rolling, and so on.
Mold structure is flexible, convenient to load and unload.
Name |
Inside Clip-chain Extruder |
Model |
BC-45 |
Screw Stem |
Φ45 |
Heater |
6.8kw |
Power |
5.5kw |
Water Drying Power |
0.3kw |
Secondary Machine Power |
0.4kw |
Rolling Gathering Device Power |
0.4kw |
Equipment Capacity |
12kw(normal working condition) |
Dimension(L×W×H) |
5300×650×1600 |
Accessories List:
1 |
Frequency Inverter (Main machine) |
5.5kw Huifeng Brand, made in Yantai, China |
2 |
Main Motor |
made in Shanghai |
3 |
Frequency Inverter (Assistant machine) |
0.4kw Huifeng brand, made in Yantai, China |
4 |
Reducer |
Model 133, made in Xiaoshan, Jiangsu Province, China |
5 |
Water Chilling Box |
made of stainless steel |
6 |
Drying Equipment |
1 |
7 |
Digital Temperature Table |
1 |
