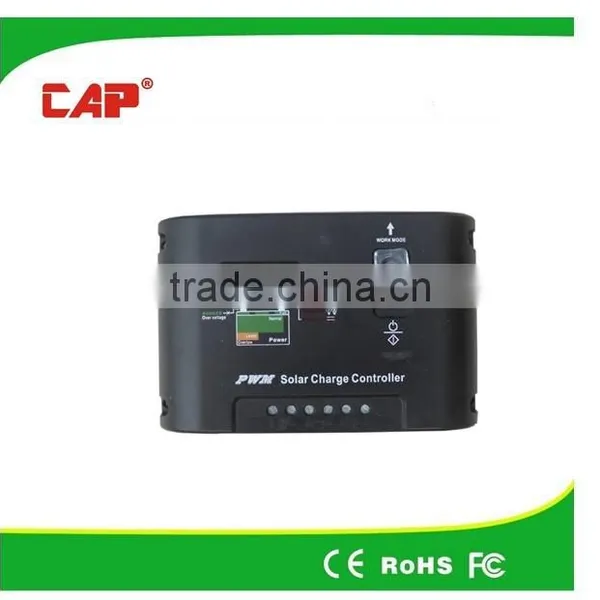

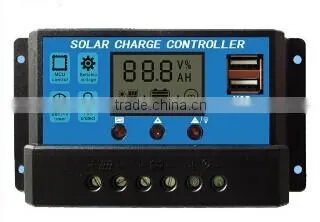

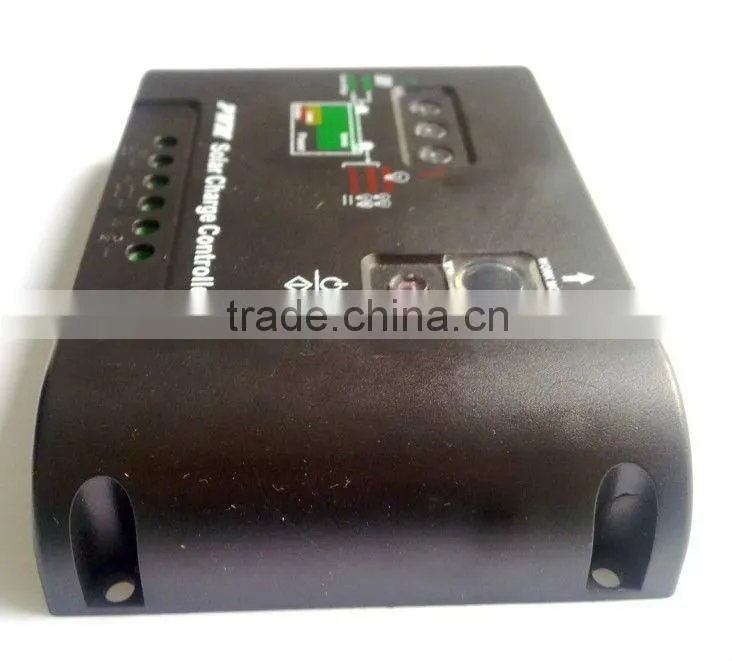

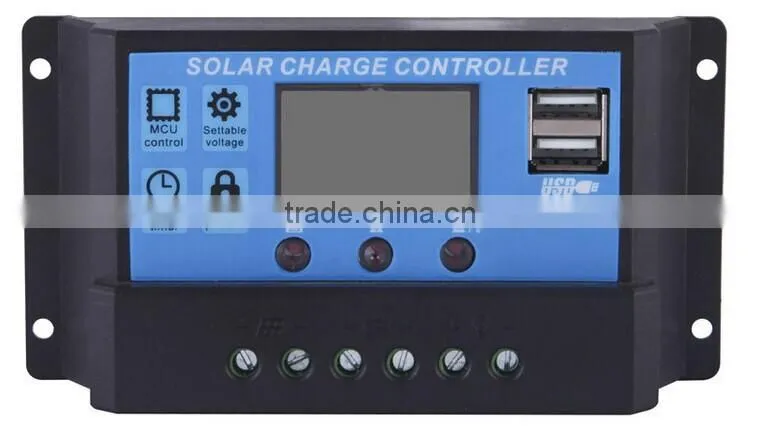

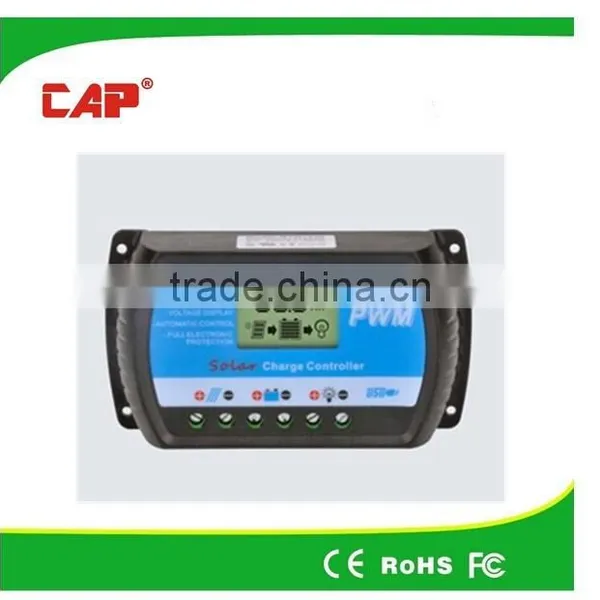

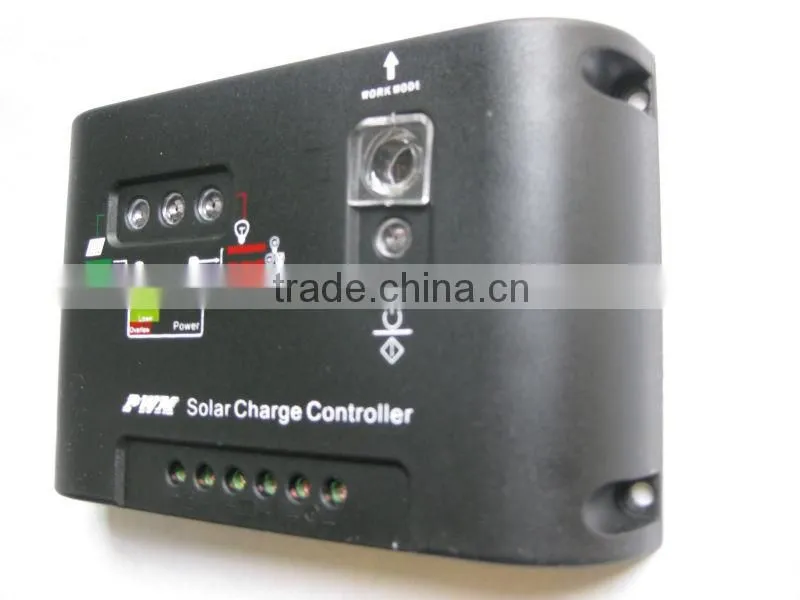

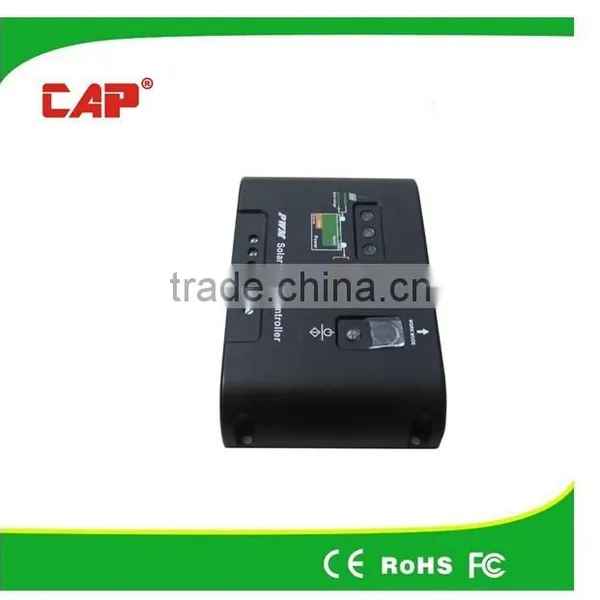

Help Center12v 24v Auto PWM Solar Controller Small Charge Controller 30A
Related Products
-
Regulator 24v 40a 50a 60a 80a Solar ChargerUS$ 105 - 179MOQ: 1 Piece -
12v/24v/48v/96v/120v/240v 50a 60a 80a 100a MPPT ControllerUS$ 105 - 179MOQ: 1 Piece
-
LCD+ MPPT/PWM Solar Charge Controller 40A to 100A 12V24V36V48V72V96VUS$ 49 - 299MOQ: 1 Piece
-
12/24v 20A Pwm Solar Controller With USBUS$ 10.7 - 32MOQ: 1 Piece
-
12/24v 10A Pwm Solar Controller With USBUS$ 10.7 - 32MOQ: 1 Piece
10A 20A 30A 12V24V LCD & LED PWM street light solar charge controller
Feactures:
Solar controller Main features:
1. Intelligent control is realized by using microprocessor and dedicated control calculation.
2. Four load working modes: Pure lighting control, lighting control & timing control, hand operation and debug mode.
3. Scientific management of battery: as it is overcharged, the battery will get booster tension charge.
4. Comparing with the charging loops using diodes, the one that adopts double MOS series circuit control makes the voltage loss dropped by 50%. With the PWM fuzzy control in charging, the charge efficiency is improved a lot.
5. LED screen shows the working state of solar battery, storage battery and load.
All the protections are harmless to any parts and fuse. TVS thunder proof protection is also available. Non wire jumpers design improves the reliability and durability of the products.
6. Various protections include: over-charge, over-discharge and over-load, as well as unique electron short circuit protection and connection-reverse protection
7. Technical grade chips and precision components are adopted for all the controls.
8. Digital LED display and one button setup make the device easy to handle.
9. Discharge rate revision controls: Different discharge rate matches with different cut-off voltage, which is in compliance characters of storage battery.
Technical data:
Model |
01 |
02 |
03 |
Fixed charging current |
10A |
20A |
30A |
Rated load electric current |
10A |
20A |
30A |
System Voltage |
12V,24V,36V,48V |
||
Over-load protection |
1.3 multiple Nominal current,60 seconds or 1.6 Multiple Nominal current,5 seconds,Over-load protection movement |
||
Short circuit protection |
50A |
100A |
150A |
Transient current |
25A |
50A |
75A |
No-load loss |
<5mA |
||
Charge return route pressure drop |
≤0.26V |
||
Electric discharge return route pressure drop |
≤0.15V |
||
Overpressure protection |
17V/12V;34/24V |
||
Operating temperature |
Technical grade:-35C to +55C |
||
Promotion charging voltage |
14.6V;×2/24V;(Maintenance time:10min) |
||
Straight charging voltage |
14.4V;×2/24V;(Maintenance time:10min) |
||
Floating |
13.6V;×2/24V; |
||
Charge returns voltage |
13.2V;×2/24V; |
||
Temperature compensation |
-5mV/C/2V |
||
Undervoltage voltage |
12.0V;×2/24V; |
||
Has put the voltage |
11.2V;×2/24V; |
||
Has put the returns voltage |
12.6V;×2/24V; |
||
Control mode |
The way of PWM Pulse-duration modulation |
||
Size |
140×90.5×28.5mm |
||
Weight |
0.2kg |
||
10a 20a 30a 12v 24v pwm solar charge controller
1. 12/24V auto distinguish
2. PWM control with lighting & timing control
3. CE & RoSH certificate
4. Factory sales, fast delivery

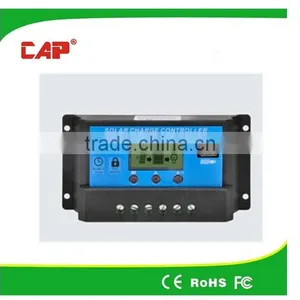

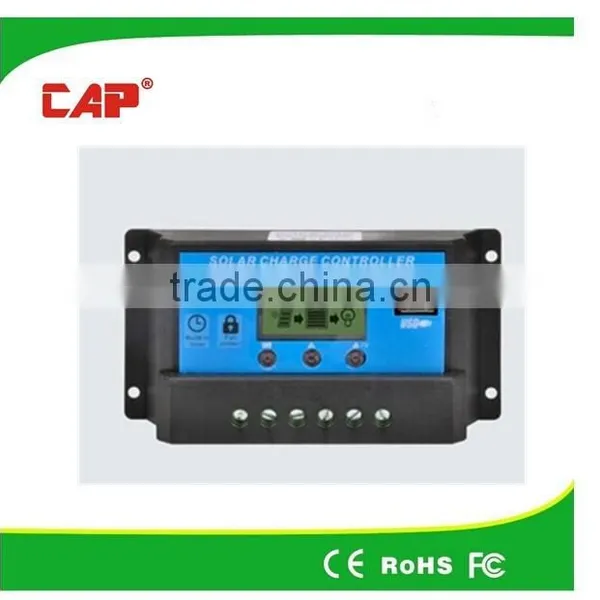

Product detail:

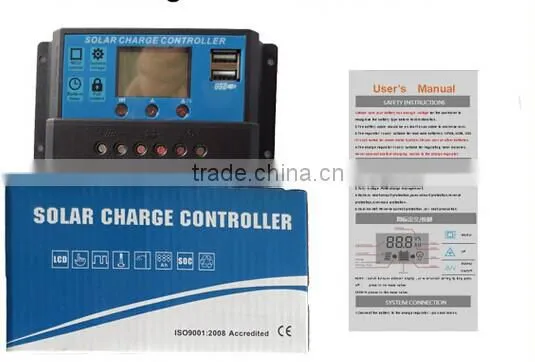

Packing detail:
Our company:
:

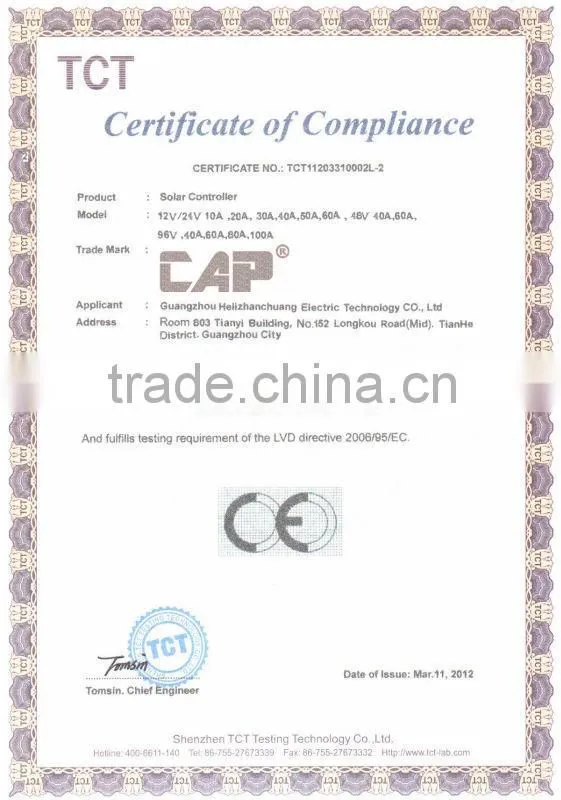

Product certificate:
Why choose us?
How to contact us?
Welcome to inquiry more our MPPT solar charge controller, solar charge controller, solar wind hybrid controller
etc.
