Specifications
1. SDI Standard:3G-SDI, HD-SDI, SD-SDI2. Data Rates: 270Mbps/1.485 Gbps/2.97Gbps
Introduction
PW-SS5104G SD/HD-SDI/3G-SDI 1:2 Repeater& Distribution Amplifier is a 1 to 2 repeater and distribution amplifier with Re-clocking function. It receive one SDI input and perfectly duplicates it. Then it re-transmits two SDI outputs for real time multi-viewing. It is a reliable video device splitting a SDI or HD-SDI video source to two 3G-SDI or HD-SDI or SD-SDI display at the same time and takes one input then re-clocks and equalizes the signal and distributes it to two identical outputs.
Features
- SDI Standard:3G-SDI, HD-SDI, SD-SDI
- Data Rates: 270Mbps/1.485 Gbps/2.97Gbps
- Signal Type: SMPTE 292M, SMPTE 259M,SMPTE424M
- Two separately buffered outputs
- Cable equalization (Beldon 1694A) retiming and signal
- Re-clocking function capability – unlimited repeater connection
- Dual color LED indication of nput locik and rate
- Pass all ancillary data
- 5V~24V DC

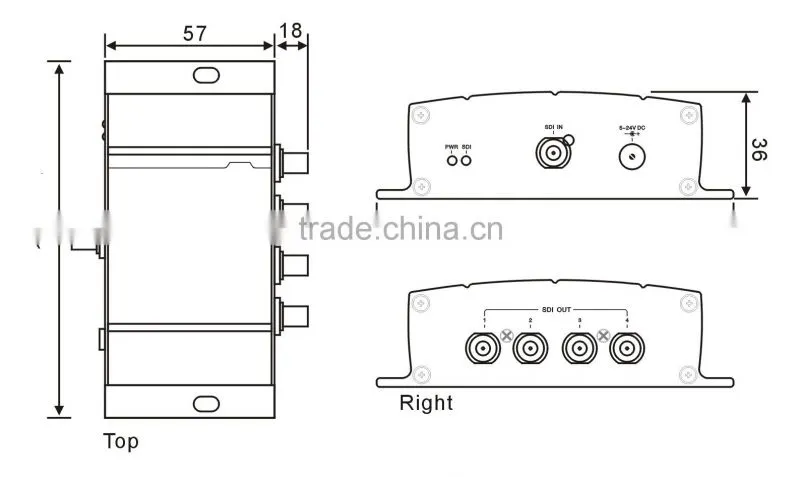

Dimensions
Specifications
Model |
PW-SS5104G |
Re-clocking Function |
Yes |
SDI Standards |
3G-SDI, SD-SDI, HD-SDI |
HD/SD-SDI Detection |
Auto |
Data Rates |
270 / 1483 / 1485 /2970Mbps |
V ideo Support |
SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 23.98/24Hz/25Hz/29.97Hz/30Hz/50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @23.98Hz/24Hz/25Hz/29.97Hz/30Hz 3G:1080p @ 50Hz / 59.94Hz / 60Hz |
SDI Signal Type |
SMPTE-292M, SMPTE-259M, SMPTE-424M |
Output Impedance |
75 ohms |
|
Max. Distance |
Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ;3G-SDI 140m / 450ft |
Audio Support |
Yes |
Input |
1x BNC [SDI] |
Output |
2x BNC [SDI] |
BNC Connector |
75 ohms inter-locked socket |
Power Consumption |
2~4 Watts |
Relative Humidity |
20~90% RH (no condensation) |
Dimension |
92*120*36 |
Weight |
160g |
Application Diagram
