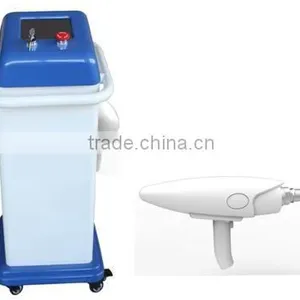

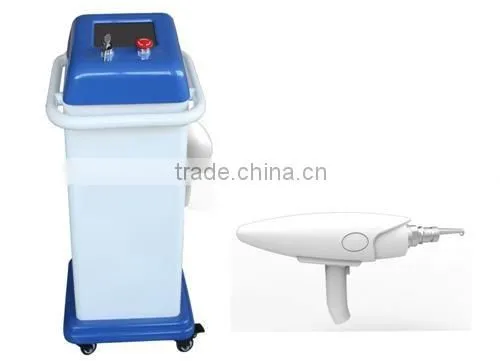

Pigmented Lesions Treatment Endogenous Pigment And Tattoo Removal Machine Q-switched Nd-yag Laser Machine 0.5HZ

Name: Pigmented Lesions Treatment Endogenous Pigment And Tattoo Removal Machine Q-switched Nd-yag Laser Machine 0.5HZ
Brand: NUBWAY
SKU: 135289949

Pigmented Lesions Treatment Endogenous Pigment And Tattoo Removal Machine Q-switched Nd-yag Laser Machine 0.5HZ thumbnail-1

Pigmented Lesions Treatment Endogenous Pigment And Tattoo Removal Machine Q-switched Nd-yag Laser Machine 0.5HZ thumbnail-2

Pigmented Lesions Treatment Endogenous Pigment And Tattoo Removal Machine Q-switched Nd-yag Laser Machine 0.5HZ thumbnail-3

Pigmented Lesions Treatment Endogenous Pigment And Tattoo Removal Machine Q-switched Nd-yag Laser Machine 0.5HZ thumbnail-4

Pigmented Lesions Treatment Endogenous Pigment And Tattoo Removal Machine Q-switched Nd-yag Laser Machine 0.5HZ thumbnail-5

Pigmented Lesions Treatment Endogenous Pigment And Tattoo Removal Machine Q-switched Nd-yag Laser Machine 0.5HZ photo-1

Pigmented Lesions Treatment Endogenous Pigment And Tattoo Removal Machine Q-switched Nd-yag Laser Machine 0.5HZ photo-2

Pigmented Lesions Treatment Endogenous Pigment And Tattoo Removal Machine Q-switched Nd-yag Laser Machine 0.5HZ photo-3

Pigmented Lesions Treatment Endogenous Pigment And Tattoo Removal Machine Q-switched Nd-yag Laser Machine 0.5HZ photo-4

Pigmented Lesions Treatment Endogenous Pigment And Tattoo Removal Machine Q-switched Nd-yag Laser Machine 0.5HZ photo-5

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Q-Switch:

Yes

Style:

Portable

Certification:

CE ISO

Contact Supplier Request Quote Chat Now

Beijing Nubway S & T Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing Airport

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Q-Switch Yes

Style Portable

Certification CE ISO

Place of Origin Beijing, China

Brand Name NUBWAY

Model Number NBW-2000

Feature Pigment Removal, Tattoo Removal, Whitening

Advantages:

Q-switched ND: YAG laser with dual wavelengths (1064nm&532nm).
8ns Pulse Width for ideal results on pigmentation and tattoo removal with reduced pain.
High terminal output energy (up to 1500mj) for more efficient results.
Repetition Rate is up to 6Hz for faster treatment.
Long-life designed laser system.
Multi-spot size 1-7mm is ideal for a wide variety of treatment parameters.
Spot size adjustor is optional.

endogenous pigment and tattoo removal machine Q-switched Nd-yag laser machine

Treatment Principle

NBW-2000B laser skin treatment device treatment principle is that using the Laser selective and adjusting Q-principle laser Blasting, making the precise dose of a specific wavelength of energy aim at a particular structor in a very short period of time---colorradical: derma and epidermis of ink, carbon particles and other exogenous and endogenous pigment granules of melanin pigment cells. Pigment be heated suddenly then occur blasting, the pigment was crushed to become smaller fragments, the crushed fragments was phagocytosed by macrophages, with the macrophage cells goes into the lymphatic circulation then pigment is excreted.

The Main Technical Specifications, Performance index:

Work condition

Environment tempreture:10~30℃;

Relative humidity:≤75%;

atmospheric pressure:860~1060hpa;

Power supply:AC220V,50Hz;

Cooling water:deionized water or distilled water

Basic Parameter

Physical demension(L×W×H,mm):400×380×800

Total weight:25kg;

Consumed power:600W;

creepage protectingrated current

Laser output method:Pulse adjusting Q

working Laser wavelength:1064nm;532nm

Laser pulse wideth:8ns±2ns;

Output frequency:1Hz,2Hz,3hz 4hz 5Hz;6hz

Single pulse max output energy:100-2000mJ;

Harmed eyes distance:NOHD 1km,operated in dense need wear eyeshield!

cooling method:Inlay closed cirlced water

Run Mode:Dwell load-on continuious running

Flare continuious adjusted

Photoelectricity Capability

Arthrosis bottom Output Max Single Pulse energy≥500mJ;

Laser Output enstablity:ST≤±10%;

Output Power reappear:Rp≤±10%;

Output Power and Preset valueshowing error:≤±20%;

Operation FlareDiameter:1-4mm continious adjusting;

Aimming at Laser outputpower Pc::0.1mW≤Pc≤5mW

Laser Wideth 8ns±2ns

Whole machine functions

Single pulse energy degree showing and adjusting

Pulse wavelenth showing and adjusting

Pulse frenquency and showing adjusting

Working condition and showing adjusting

Safety inquiry

1, the electric shock protection: Conforms to GB9706.1-2007 "Medical electrical equipment Part I: General

requirements for safety" in the Class B Type I device regulations.

2, Laser Radiation Protection: Conforms to GB7247-2001 "Radiation safety of laser products, equipment classification, requirements and user's guide", the 4 types of medical laser product radiation safetyrequirements.

Indications

1 Indications

This instrument is mainly used for eliminate some of the clinical exogenous and endogenous skin, blue,black, brown pigment lesions, such as: tattoos, tattoo, nevus of Ota and so on.

2, the treatment interval Two treatment should be about two months apart, so that the pigment particles were crushed have enough time to be absorbed.

Principle

The premium Q-switched Nd:YAG Laser offers the light of single wavelength 1064/532nm with sequential and uniform energy output, which will be on the target tissue directly to shatter pigments cell, not damage any normal tissue. It is very safe and effective treatment procedure for various tattoo and pigment lesions.

By bonding technology, the treatment performance is more effective than previous, it is our newest development with advantages of no light leakage, no need to debug, lower than 1‰ maintenance and much longer life time.

3, number of treatment

Many cases, the treatment generally required to get better results, the number of specific treatment of patients with the concentration of pigment from the affected area, depth, pigment composition, each treatment using the laser dose, patients with macrophages in vivo absorption of pigment granules and other factors. Generally exogenous pigment treatment to be more than 3 times, 5 times the endogenous pigment to be more satisfactory than the treatment effect obtained a small number of patients with repeated treatment effect is not satisfactory.

Contraindications

1. For patients with dark skin, we suggest they take treatments after skin-whitening. Otherwise the skin maybe hurt slightly

2. After the treatment, the skin will become red and swollen or blood infiltrated, if so, patients can ice the treatment skin or apply some ointment against scar

3. Some metal ion such as ferric ion will become chemical substance, if so the skin will be darker after treatment. It is not the problem of machine self.

4, after the treatment skin should be kept clean and dry to avoid infection.

5 Postoperative Results boil, should make it off on their own in order to avoid man-induced scars.

6, Repeating treatment is prohibited in the same area, or tissue will be damaged due to heat accumulation.

Precautions and instructions

The actual components of this product have been tuned and locked, there are components with special requirements need to be sealed at the factory. Users are not allowed to unsealed, dismantling, adjustment and changes the parameters have been locked, otherwise the consequences are due to users.

The radiation shield body, device of remote interlock, key switch, warning device of laser radiation, device of Beam terminated are according to the provision of GB7247-2001. It is set for the safety protection of laser radiation, the users are not allowed to dismantle these devices, so as to affect the protective security.

Laser skin treatment device is the instruments with light, mechanical, electrical and precision in one. Therefore, the operators must be trained. Non-trained personnel are not allowed to operate the machine.

Please read this manual carefully before use, we shall not be held responsible for the medical accidents and disputes which are caused by not read or violate compasses operation.

Please must make laser far away from the non-treatment site during treatment process.

Pictures of before and after

Packaging & Shipping

Packaging Detail: aluminium box for cryolipolysis slimming machine

Delivery Detail:3-5working days for cryolipolysis slimming machine
