Help CenterCase Erector
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Automatic Grade:
Automatic
Driven Type:
Pneumatic
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Automatic Grade
Automatic
Driven Type
Pneumatic
Place of Origin
China
Brand Name
Jialin
Model Number
JTK-09
Certification
ISO9001:2000
Specifications
Carton Erector1) Compact and durable design, easy to operate
2) Bottom belts driven, best suit for light carton

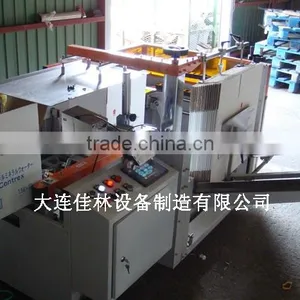

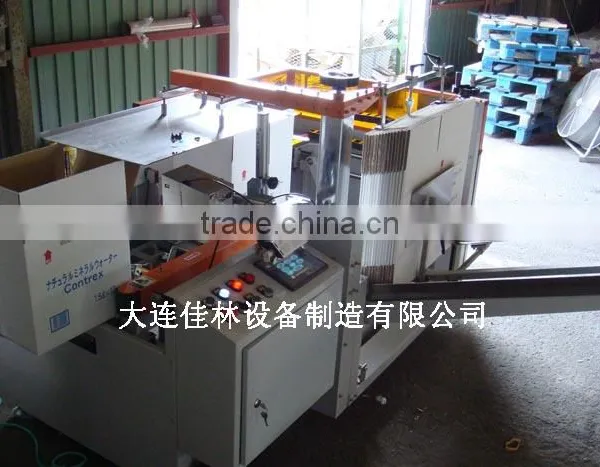

Carton Erector
1) Compact and durable design, easy to operate
2) Bottom belts driven, best suit for light carton
Model: JTK-09
Carton size: (L) 200-450mm, (W) 150-400mm, (H) 100-350mm
Table height: min. 650mm
Working speed: 10-12ctns/min
Machine size: (L) 2,000mm, (W) 1,900mm, (H) 1,200mm
Power: 220/380V, single phase, 50/60Hz or specified by clients
Pneumatic: 5-6kg, 150 Ne/min
Tape width 48mm, 75mm alternative use
Machine net weight: approx. 350kgs
We can design as customer's perticular needs.
