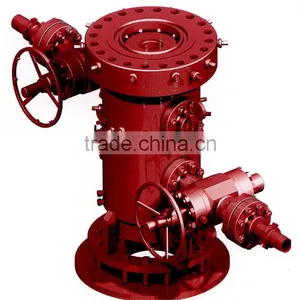

Help CenterIntegral Casing Head
Related Products
Casing head :
- Casing hanger for casing head and casing spool has straight type seat bore and 45°cone of hanging shoulder with fine loading ability.
- If required, it can be designed in integral or split structure.
- The connecting type of casing head and surface casing is weld, thread and slip type.
- The connecting type of side outlet includes thread, bolted flange and flange.
- Matched casing hanger structural type: slip, thread(mandrel).
- In the bottom of casing head and casing spool sets casing secondary seal mechanism and sealing test port.
Main technology parameters:
Casing procedure |
20”—13 3/8”—9 5/8”—7” ,5 1/2” |
|
(3000Psi) Side out connection |
2 1/16”-3 1/8” |
Load |
≤5000KN |
Hanger type |
4” , 5” , 4 1/2” ,5 1/2” , 7”, 9 5/8”, 10 3/4” , 13 3/8” |
Working pressure |
14MPa(2000Psi)~140MPa(20000Psi) |
