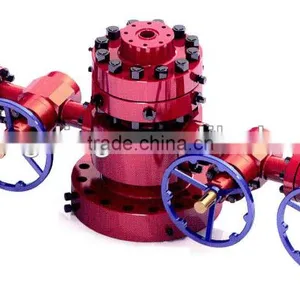

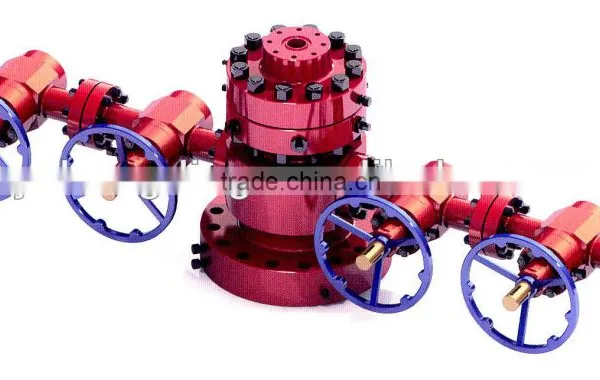

Tubing Head:

Name: Tubing Head:
Brand: Xudong
SKU: 137467031

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Xudong

Machine Type:

Drilling Equipment

Yancheng Hengding Native Products Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Lianyungang

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Xudong

Machine Type Drilling Equipment

Certification API

Material Carbon Steel

Processing Type Forging

Use Well Drilling

- Tubing hanger for tubing head has straight type seat bore and 45°core of hanging shoulder, with strong loading ability.

- The connecting type of side outlet is a bolted flange with VR thread for valve-replacement operation.

- In the bottom flange sets secondary seal mechanism and sealing test port.

- Tubing hanger and tubing head adaptor can be penetrated through by cable or cable penetrator and set with control pipeline interface.

- Tubing hanger can be set with BPV thread as required.

Main technology parameters:

Working pressure	2000Psi	3000Psi	5000psi	10000Psi	15000Psi
Top flange	7 1/16”-13 5/8”	7 1/16”-13 5/8”	7 1/16”-13 5/8”	7 1/16”-13 5/8”	7 1/16”-13 5/8”
Bottom flange	7 1/16”-13 5/8”	7 1/16”-13 5/8”	7 1/16”-13 5/8”	7 1/16”-13 5/8”	7 1/16”-13 5/8”
Side bore	2 1/16”-3 1/8”	2 1/16”-3 1/8”	2 1/16”-3 1/16”	2 1/16”-3 1/16”	2 1/16”-3 1/16”
Tubing hanger thread	2 3/8EU,2 7/8EU , 3 1/2EU or as users' request. 2 3/8EU,2 7/8EU , 3 1/2EUor according to the requirement of users.
Tubing hanger type	Cone hanging or straight hanging
