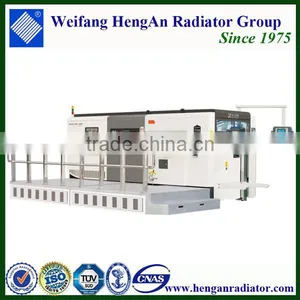

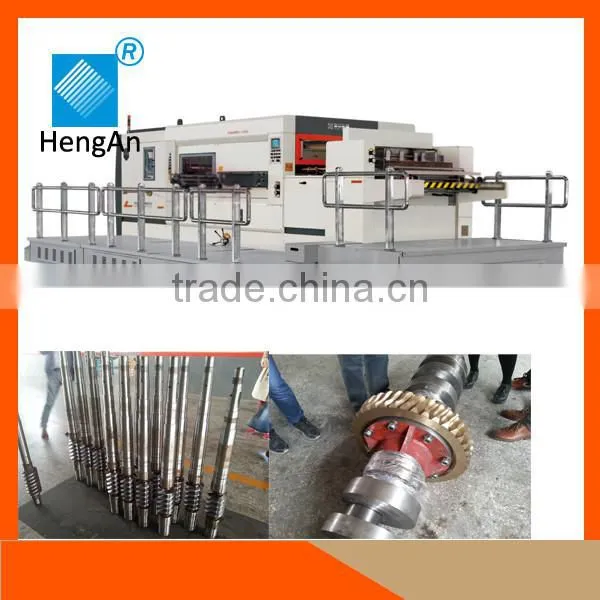

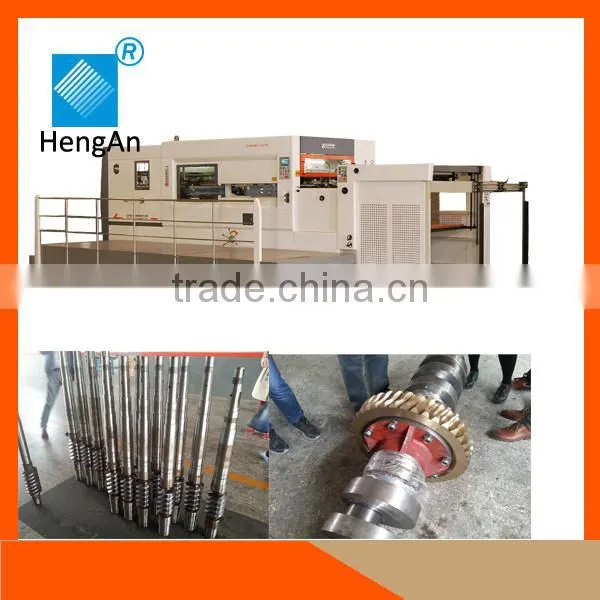

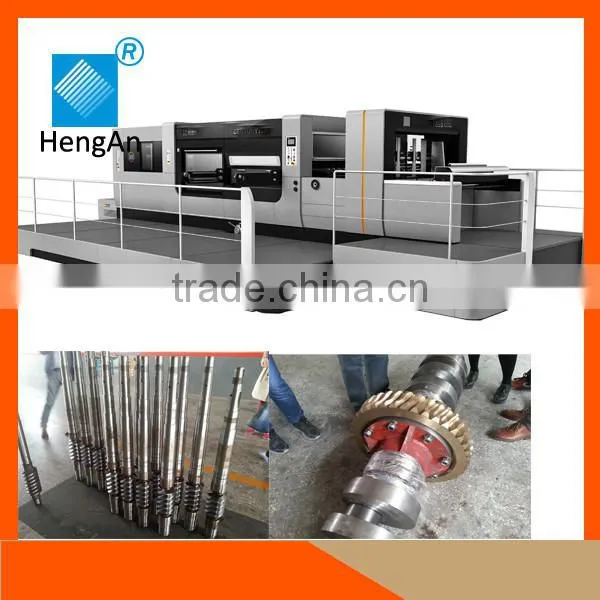

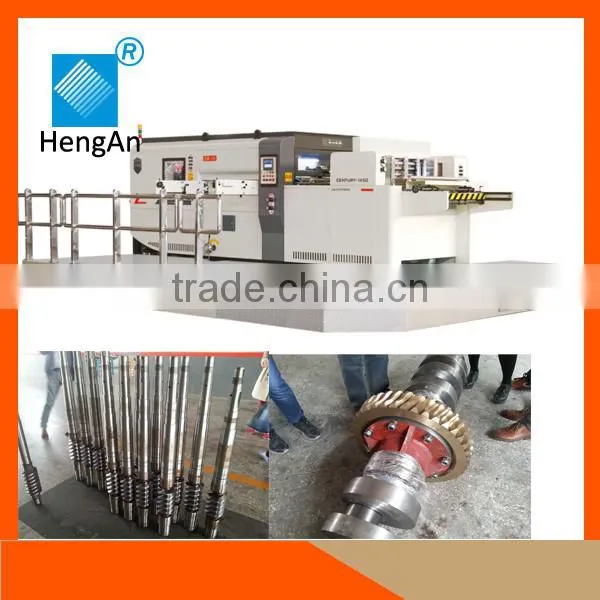

China semi-automatic Corrugated paper die cutting machine MWB1160Q with waste cleanup
1.Semi-automatic die cutting machine advantage
- Front edge paper feeding
-
All clearance of papaer waste
- ISO certificate & CE certificate,China famous brand for more than 20 years
- High speed & automotive waste clearence, 4200 sheet/hour
- Matural production technology and qulitified components
- Long life to use
2.Semi-automatic paper die cutting machine Specifications:
| Type | 1650S | |||||
| Max Paper Feeding Size | 1180*900mm | |||||
| Min Paper Feeding Size | 450*400mm | |||||
| Max Cutting Size | 1160*880mm | |||||
| Max Presser | 200*10000N | |||||
| Paper Application |
Corrugated paper(1-7mm) white board paper > 250g |
|||||
| Cutting Precision | ±0.5mm | |||||
| Efficiency | 4200 sheet/h | |||||
| Knife Height | 23.8mm | |||||
| Min Front Gripper Waste |
teeth style>=8mm needles>=10mm |
|||||
| Max Model Size | 1190*910mm | |||||
| Power | 13kw | |||||
| Dimension |
5610*4300*2285mm (work step included) |
|||||
| Dimension |
3310*2295*2000mm (work step not included ) |
|||||
| Gross Weight | ~12T | |||||
3.Paper Application:

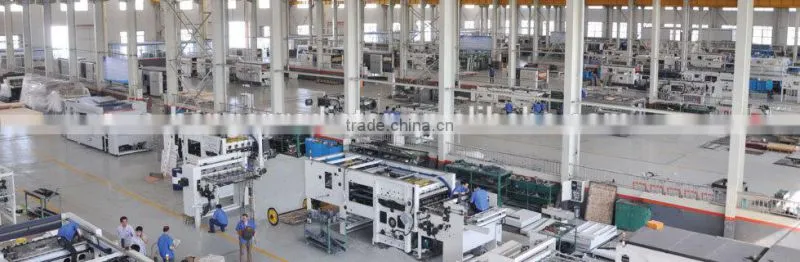

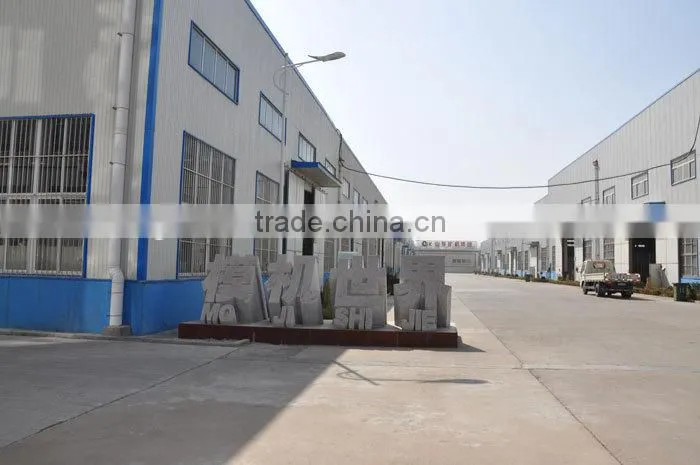

3.More details about Heng An:
Attention: this semi-automatic die-cutting machine also including other three different size: MWB1300Q/1450Q/1620Q. And the detailed information please see our product cataloge.
Contact Us:
Contact: Miss Eva Wang
Phone: 0086 536 6103201
Fax:0086 536 6103202
Skype: Wfhengan07
Add: Weifang City, Shandong Province.
Please feel free to contact us!
