Paint Adhesive Force Testing Device

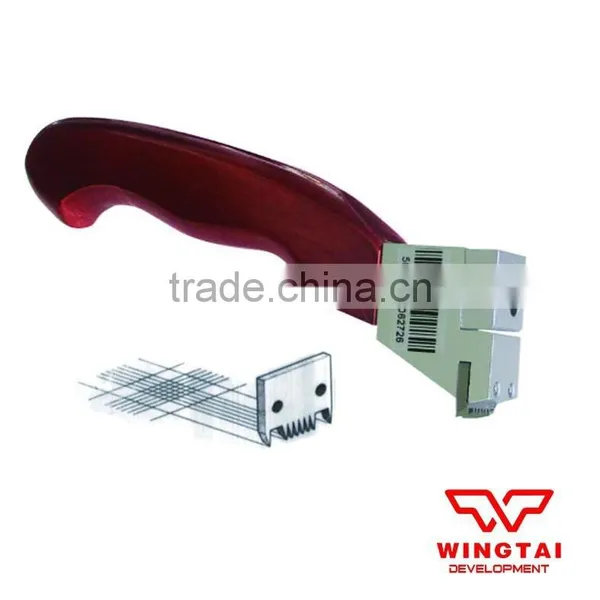

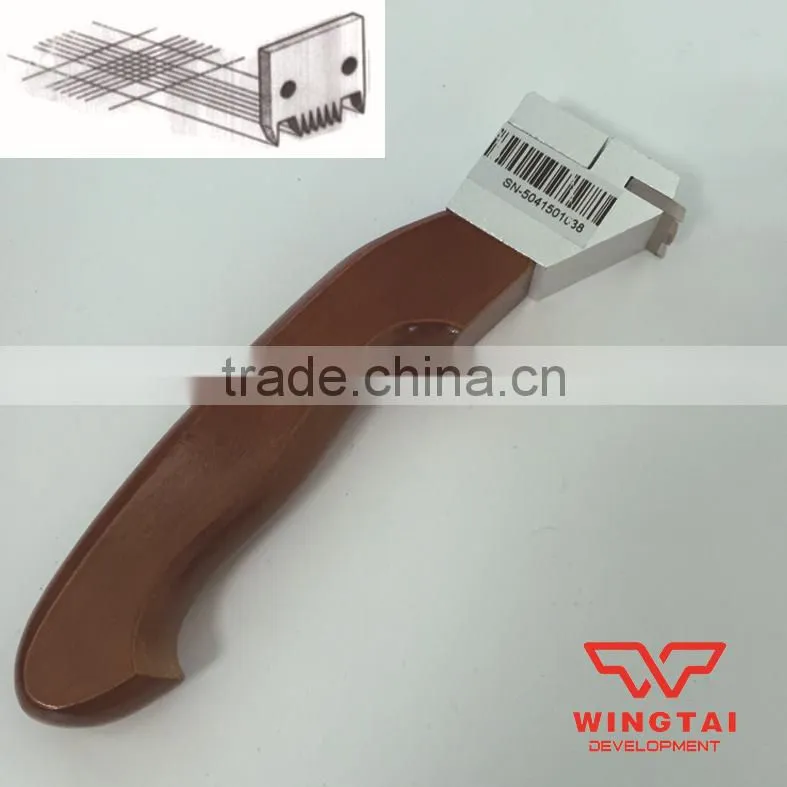

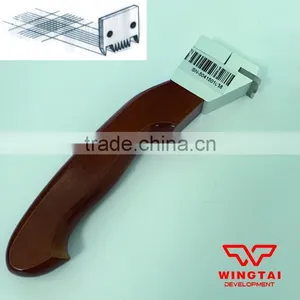

Cross hatch cutter conforms to GB/T 9286, ISO2409, ASTM D 3002 and ASTMD 3359 design standard. For uniformly marking out a certain size of the lattice, through the evaluation of the coating complete degree to assess coating substrate adhesion degree, expressed as a "level". It is mainly used for the determination of organic coating cross cut test for adhesion, not only suitable for laboratory, also can be applied to various conditions of the construction site.

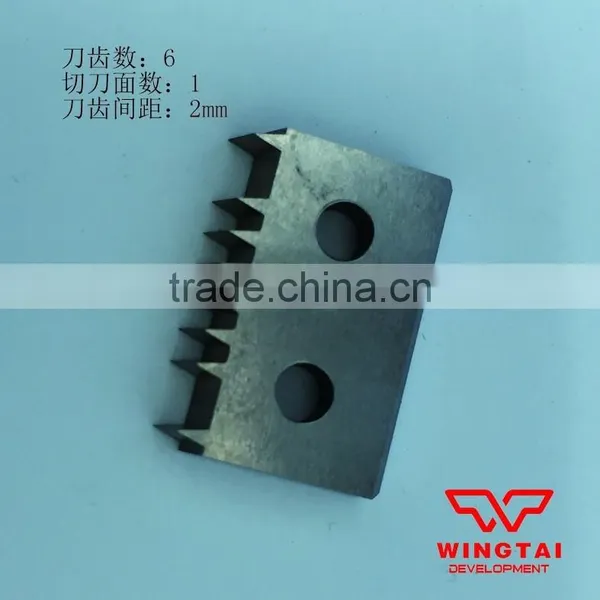

Cutter bit is made of hard alloy steel. Blade size is strictly controlled within the requirements of the standard deviation: Blade addendum width is less than 0.05mm; blade angle of 30 ° ± 1 °. Head of blade design not onlymaintaining the cutter sharpness, but reduced the number of frequent replacement. Each set of cross-cut device which we are equipped with one piece of 600# 3M tape, and a brush, a magnifying glass and a plastic carrying case.
(1) 1mm blade spacing multi-blade cutting knife is suitable for film thickness <60 um hard substrate specimens (Metal)
(2) 2mm blade spacing multi-blade cutting knife is suitable for film thickness 60~120um soft substrate specimens (wood/ plastic)
(3) 3mm blade spacing multi-blade cutting knife is suitable for film thickness 121~250 um hard substrate specimens or soft substrate specimens.

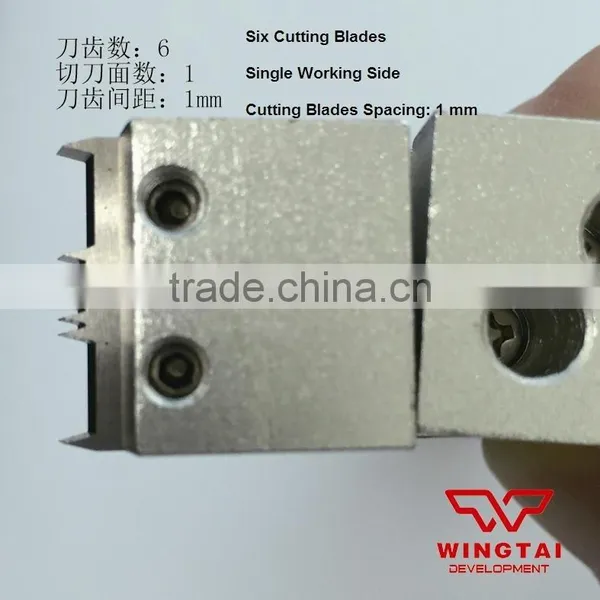

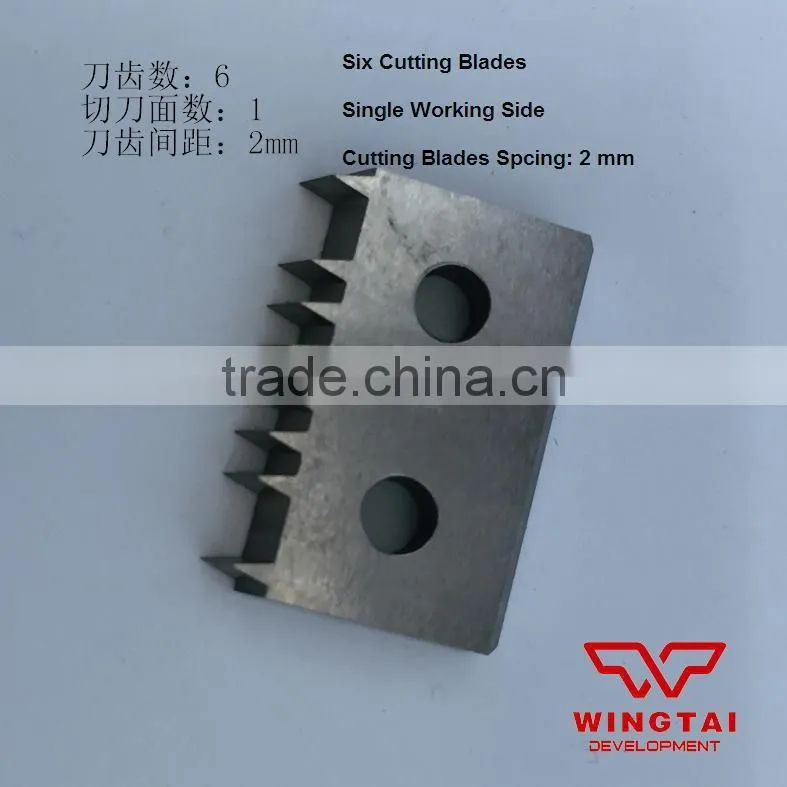

Single working side blades:
Technical Information:
1. Single working side blades: flexible cutting tool carrier, especially suitable for the substrate is not flat.
2. Multi-cutting blades spacing: 1mm/2mm/3mm
3. The number of square: 25 squares/100 squares
4. The blade tip diameter: <0.03mm/ <0.06mm

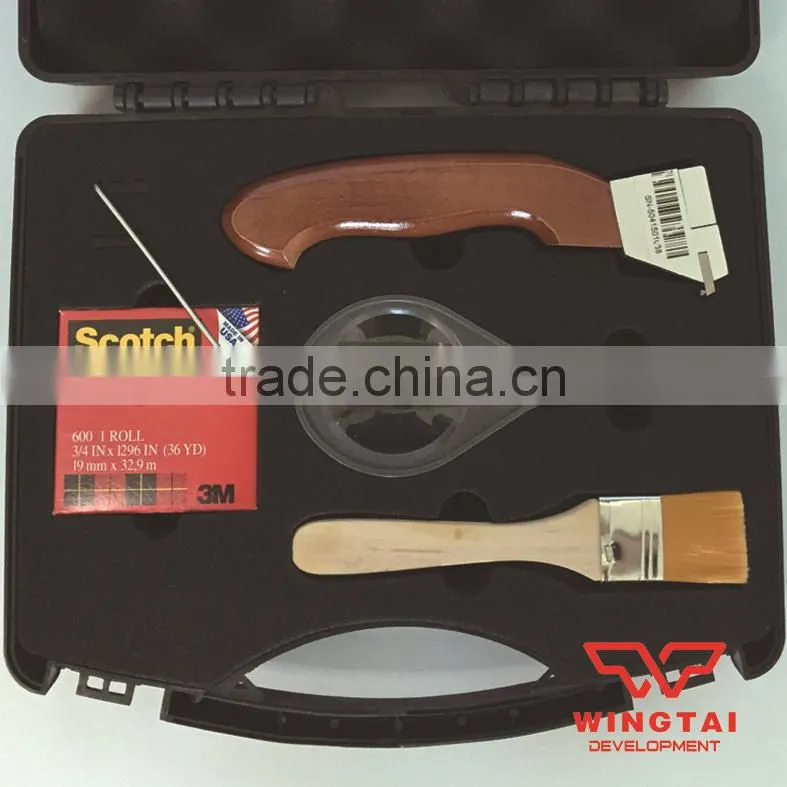

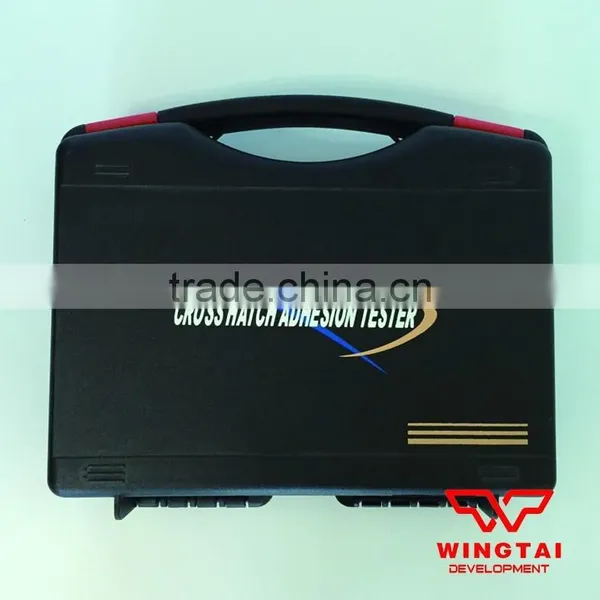

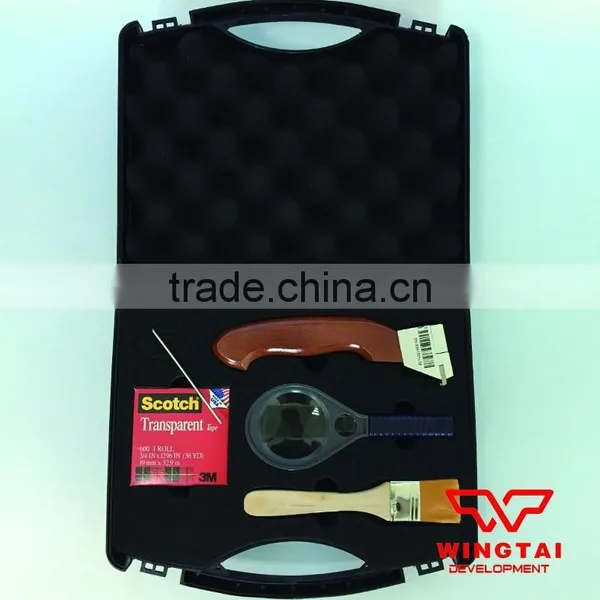

5. Standard configuration: one cross hatch cutter; a roll of 3M (600 type) adhesive tape; a writing brush made of wolf's hair; a magnifying glass; a carrying case.
Single Working Side Cutter Ordering Information:
504/2---- cross hatch cutter (1mm/100squares)
504/3---- cross hatch cutter(1mm/25squares)
504/4---- cross hatch cutter(2mm/100 squares)
504/5---- cross hatch cutter(2mm/25squares)
504/6---- cross hatch cutter(3mm/25 squares)

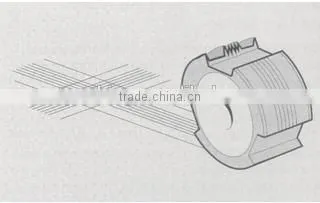

Six working side blades:
Technical Information:
1.Six working side blades(3mm for four sides):When the blade edge is not sharp enough, users can loosen the boat type nut and top thrust screw to rotate it to achieve a new blade.
2.Multi-cutting blades spacing: 1mm/2mm/3mm
3. The number of square: 25 squares/100 squares
4. The blade tip diameter: <0.03mm/ <0.06mm
5. Standard configuration: one cross hatch cutter; a roll of 3M (600 type) adhesive tape; a writing brush made of wolf's hair; a magnifying glass; a carrying case.
Six Working Sides Cutter Cutter Ordering Information:
502/1----Suit type cross hatch cutter (contains one tool bit)
502/2---- cross hatch cutter(1mm/100squares)
502/3---- cross hatch cutter(1mm/25 squares)
502/4----cross hatch cutter(2mm/100 squares)
502/5----cross hatch cutter(2mm/25 squares)
502/6----cross hatch cutter(3mm/25 squares)
