Gold/Copper Ore Separating Equipment

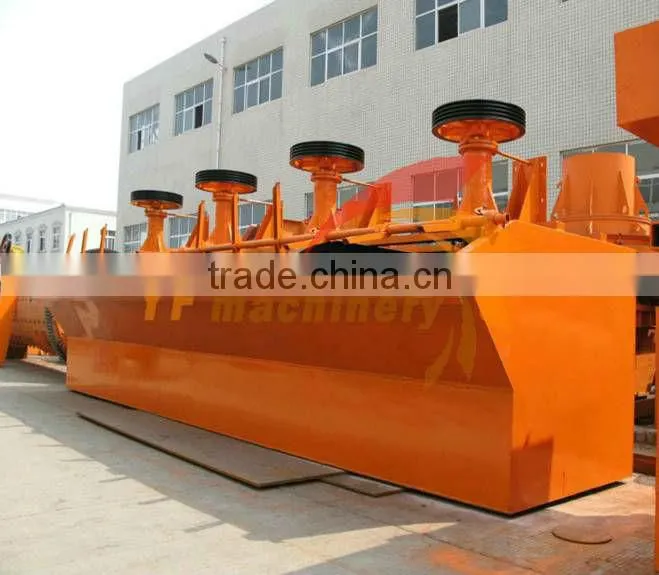

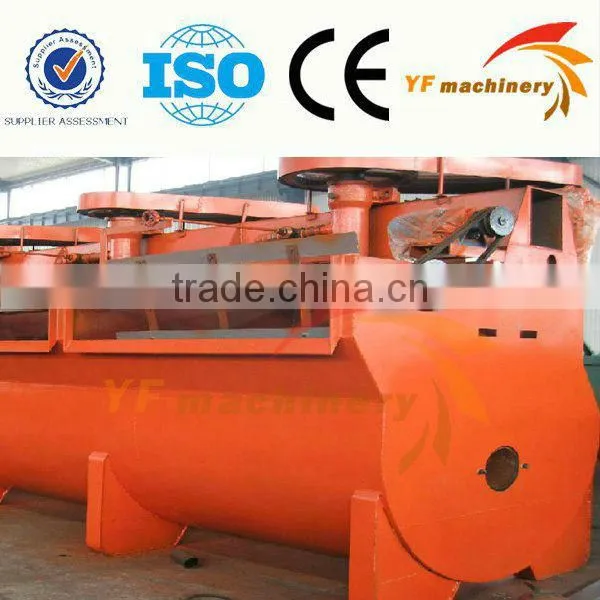

This machine is used for separating ferrous and non-ferrous metals. It can also be used for separating non-metals like coal fluorite and speckstone. The impeller is rotated by vee belt of electric motor and produces centrifugal function resulting in negative pressure. One hand, it sucks into enough air to mix with pulp and fine the foam in order that the mineral can stick on the foam. Then it turns into mineral foam after floating on the pulp. Adjust the height of stopper to control fluid level in order that the available foam can be scrapped out by scrappers.
Feature of Floatation Machine:
1) Easy and safe operation
2) Stable performance
3) Even product size
Technical Parameters of Model SF Flotation Machine:
|
SF0.37 |
SF0.7 |
SF1.2 |
SF2.8 |
SF4 |
|
Tank Volume(m³) |
0.37 |
0.7 |
1.2 |
2.8 |
4 |
|
Impeller Dia(mm) |
300 |
350 |
450 |
550 |
650 |
|
Capacity(m³/min) |
0.2-0.4 |
0.3-0.9 |
0.6-1.2 |
1.5-3.5 |
0.5-4 |
|
Impeller Rotate Speed(m³/min) |
352 |
400 |
312 |
268 |
238 |
|
Motor |
Model |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y180L-6 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
||
Power(Kw) |
1.5 |
3 |
5.5 |
11 |
15 |
|
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
||
Overall Dimension(mm) |
700×700×750 |
900×820×950 |
1100×1100×1100 |
1700×1600×1150 |
1850×2050×1200 |
|
Unit Weight(kg) |
468 |
600 |
1373 |
2338 |
2660 |
|
Technical Parameters of XJK Series Flotation Machinery:
|
XJK-0.35(3A) |
XJK-0.62(4A) |
XJK-1.1(5A) |
XJK-2.8(6A) |
XJK-5.8(7A) |
||
Effective Volume(m³) |
0.35 |
0.62 |
1.1 |
2.8 |
5.8 |
||
Capacity(m³/min) |
0.18~0.4 |
0.3~0.9 |
0.6~1.6 |
1.5~3.5 |
3~7 |
||
Rotate Speed(r/min) |
470 |
400 |
330 |
280 |
240 |
||
Impeller Dia (mm) |
300 |
350 |
500 |
600 |
750 |
||
Motor |
Model |
Rotator |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y200L2-6(Y225M-6) |
Scraper |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
||
Power(Kw) |
Impeller Motor |
1.5 |
3 |
5.5 |
11 |
22(30) |
|
Scraper Motor |
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
||
Weight:(t/Single Tank) |
0.43 |
0.86 |
1.38 |
2.33 |
3.533 |
||
Welcome to China and welcome to visit Yufeng, if you have any other questions, you may contact with us, we will spply you the highest service as soon as quickly. Marcie Liu, Mobile:008618236781826 or skype:driermachine.
...
