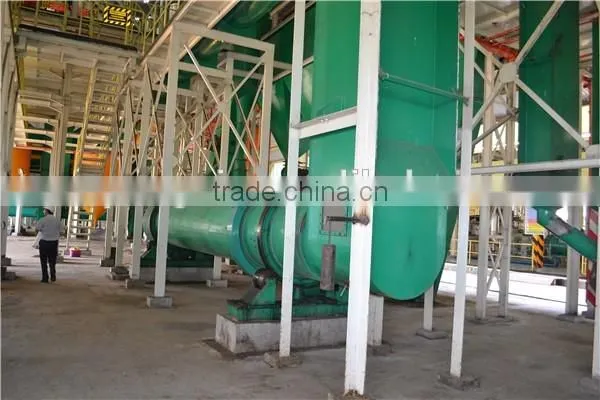

10TPH price palm oil mill plant from China
Price palm oil mill plant from China
Projects we have done:
1TPH palm fruit processing lines
3TPH palm fruit processing lines
5TPH palm fruit processing lines
10TPH palm fruit processing lines
20TPH palm fruit processing lines
30TPH palm fruit processing lines
40TPH palm fruit processing lines
50TPH palm fruit processing lines
60TPH palm fruit processing lines
70TPH palm fruit processing lines
80TPH palm fruit processing lines

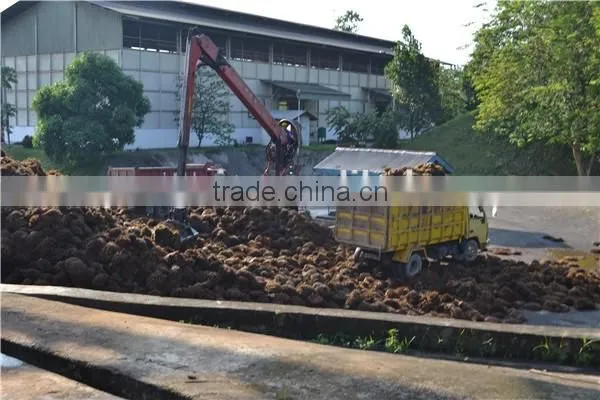

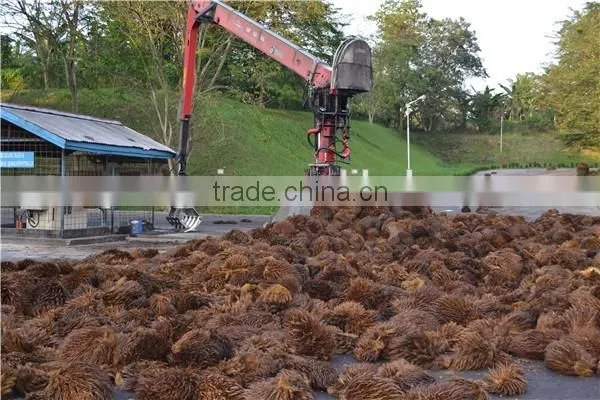

Reception station of price palm oil mill plant
It is used to receipt the palm fruit bunch, and then transport the bunch to the sterilizing tank.The reception adopts hydraulic control system,realizing the automatic operation,which reduces the labor needed a lot.

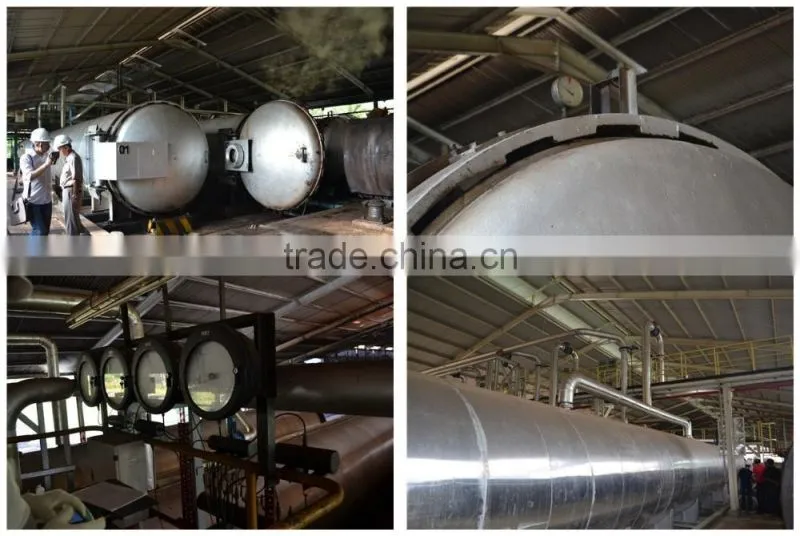

Sterilization station of price palm oil mill plant
The sterilizer works with direct steam, the steam can weaken the activity of the enzyme, prevent it getting rancid, ensure the good quality of the crude oil. At the same time, it is good for the following treshing processing. We have designed both horizontal and vertical sterilizer, for larger and smaller line.

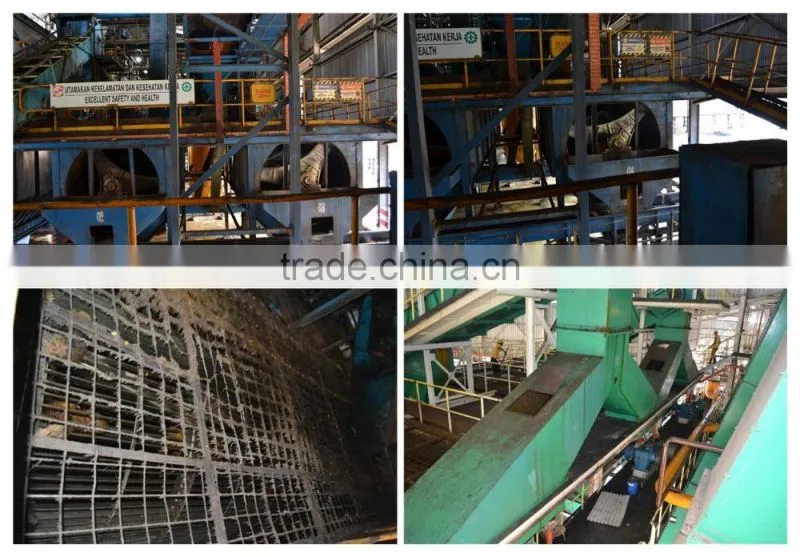

Treshing station of price palm oil mill plant
The rotating of the drum in the tresher can separate the fruit from the bunch. The fruit will be conveyed to the digester through elevator, and the empty bunch will be conveyed to the outside part through scraper conveyor. The spindle adopts once forging technology, which can make the equipment more solider and durable. At the same time, we have already designed the non spindle tresher, which is driven by the link chain. It can save the producing cost in a large scale.

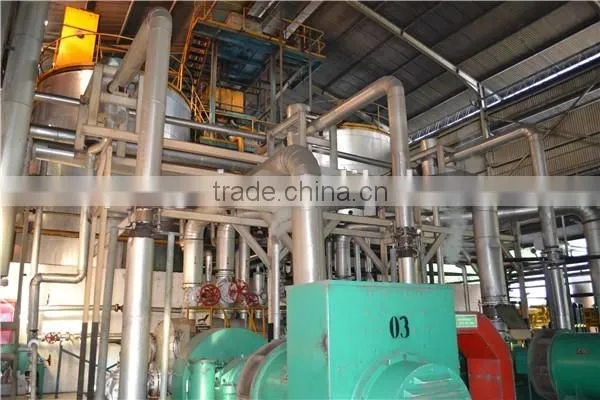

Pressing station of price palm oil mill plant
The digester is used to adjust the moisture and temperature of the fruit,finally it can increase the oil extraction rate. The digester adopts liquid level control system, which can distribute the material all by itself. To realize the automatic working. The presser adopts hydraulic control system to adjust the distance of different pressing worms, it is applicable to different kinds of palm fruits, and it can ensure the high oil extraction rate.
Clarification station of price palm oil mill plant
Using the latest technology, under the condition of ensuring the good quality of the oil, reduce the equipment cost as much as possible, reduce the loss of the oil, in the practical producing ,the new technology can make the loss of oil less than 1.3%.
Kernel recovery station of price palm oil mill plant
We do use air flue system to separate the shell from the kernel. At the same time, we do adopt unique mud bath equipment to do the separating according to the different gravity of the shell and kernel. Which has higher separating rate.

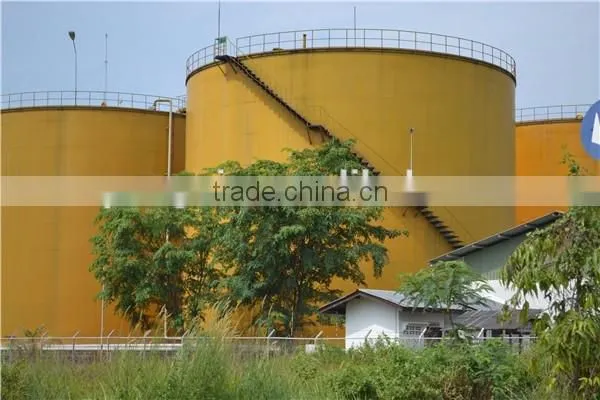

Oil tank of price palm oil mill plant
Water treatment of price palm oil mill plant

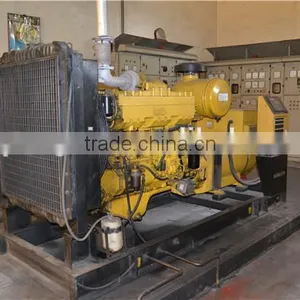

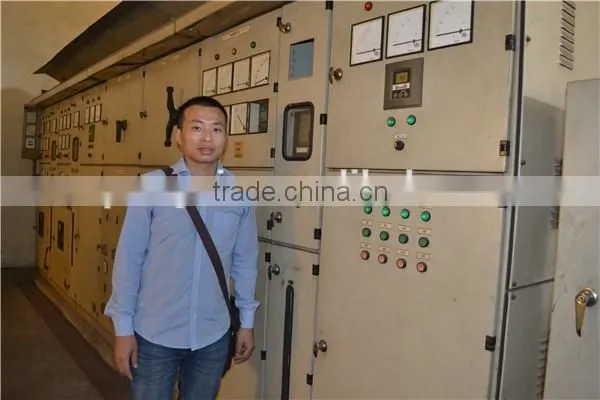

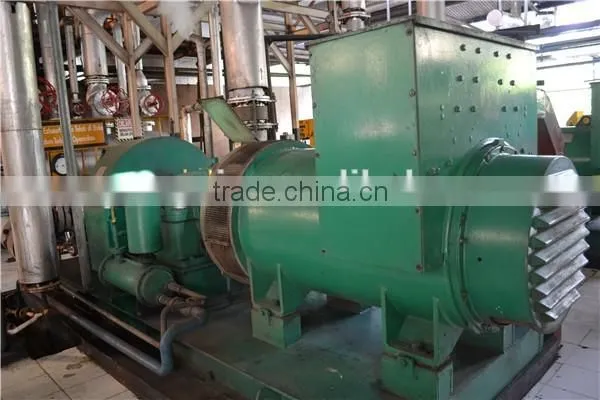

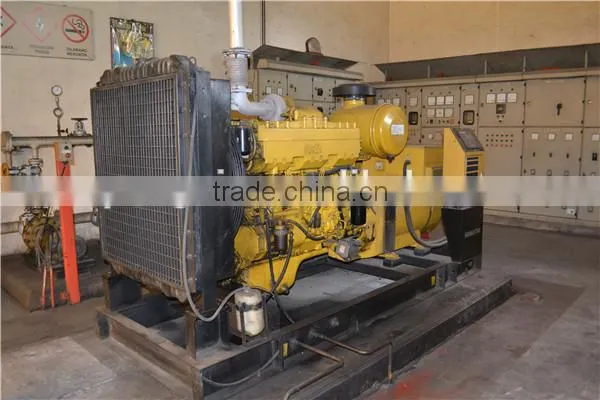

Power station of price palm oil mill plant
Bolier station of price palm oil mill plant
