Geosynthetic Clay Liners (GCLs) Combine Geosynthetics With Sodium Bentonite Clay

Name: Geosynthetic Clay Liners (GCLs) Combine Geosynthetics With Sodium Bentonite Clay
Brand: BPM Geosynthetic Clay Liner
SKU: 139536671

US$ 1.65 - 3.25 MOQ: 2000 Square Meters

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

BPM Geosynthetic Clay Liner

Model Number:

Hot sale Geosynthetic Clay Liners Ldpe Geomembrane

The Best Project Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO or SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name BPM Geosynthetic Clay Liner

Model Number Hot sale Geosynthetic Clay Liners Ldpe Geomembrane

Geosynthetic clay liners (GCLs) combine geosynthetics with sodium bentonite clay

Introduction >>>

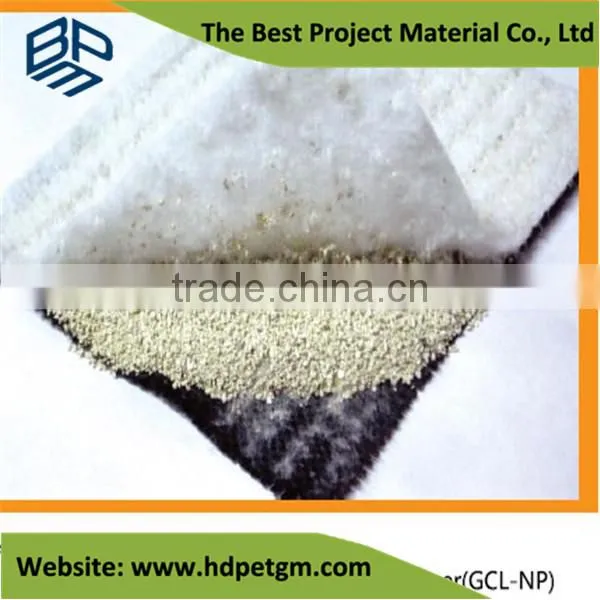

Geosynthetic clay liners (GCL) are high performance needle punched environmental reinforced

composites which combine two durable geotextile outer layers with a uniform core of natural sodium

bentonite clay to form a hydraulic barrier. Fibers from the non-woven geotextile are needle punched

through the layer of bentonite and incorporated into the other geotextile (either a woven or non-woven).

when hydrated under a confining load, the bentonite swells to form a low permeability clay layer with the

equivalent hydraulic protection of several feet of compacted clay.

Application >>>

· Landfills Mud Pits

· Lagoons Canals

· Bund Lining Tank Lining

· Fish Farm Lining Roof Lining

· Waste Water Pits Ponds and Reservoirs

· Dams Floating Covers

· Vertical Cutoff Walls Hydraulic Structure

· Basement Lining Drip Irrigation Pond

Technical Parameter >>>

Items	Testing Method	Required values
Bentonite Swell Coefficient	ASTMD5890	≥ 24mL/2g
Fluid Loss	ASTMD5891	≤ 18mL
Bentonite Weight per unit	ASTMD5993	≥4.8kg/m2
Tensile Strength	ASTMD4632	≥400N
Peeling Strength	ASTMD4632	≥65N
Indicating Flowmeter	ASTMD5887	≤1 × 10-8m3/m2/sec
Permeability Coefficient	ASTMD5887	≤5 × 10-9cm/sec
Tensile Strength after soaking	ASTMD5321	≥24kPa typical
