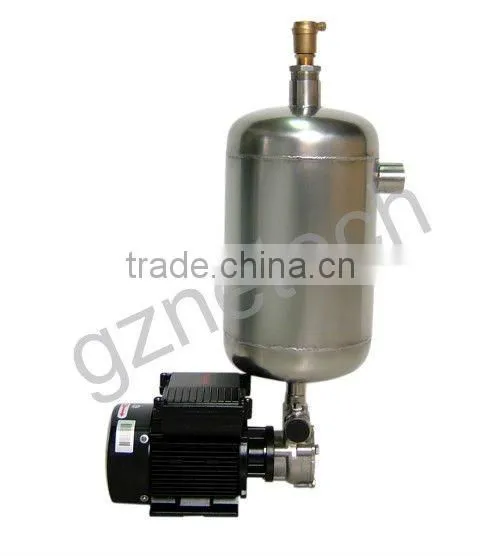

1T-12T high quality gas-liquid mixing pump
Features

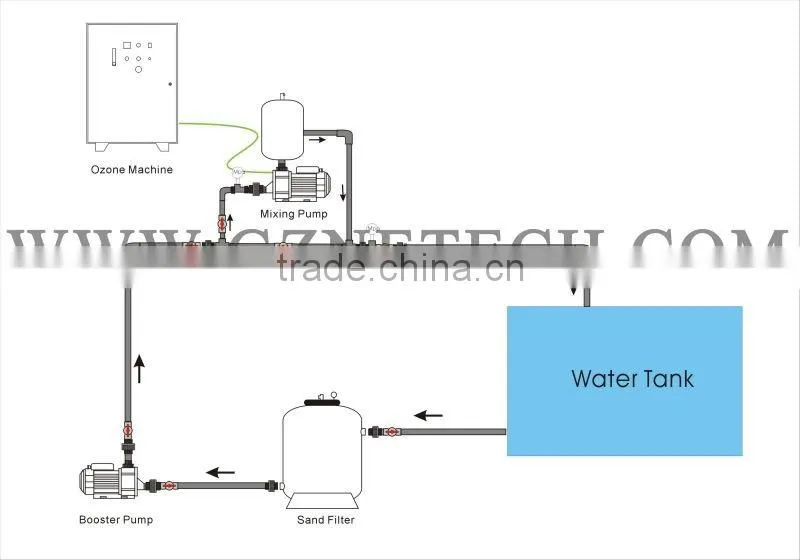

1. Mixing system is simple and it intakes Ozone gas to the pump and mix Ozone with liquid in the pump, while conventional system needs additional equipment like "ejector" and "static mixer" to make ozone water.
2. Ozone dissolution ratio is more than 80~100% in case of out mixing system which is extremely high compared with conventional system. This dissolution ratio varies depending on water temperature, gas concentration, PH concentration etc.
3. NT Mixing pump is most suitable to pressurize the air and liquid, and let the air dissolved into the liquid, compared with any other type of pumps and apparatus like atatic mixer.
4. NT system does not use compressor, pressure dissolve tank, ejector and static mixer, which makes our system small in size and competitive in price. In case of conventional centrifugal pump method, the pump suck the liquid and air, and mix them and transport them.
5. Diameter for micro bubble: 20-30µ
Working conditions:
PH: 3~9
Highest environment temperature: 400C
Liquid temperature:-150C--1200C
Specifications
Item |
20NT-1SS |
20NT-1DS |
25NT-2SS |
25NT-2DS |
40NT-6SS |
50NT-12 |
Head of delivery |
40M |
50M |
||||
Flow rate |
1T/Hr |
2T/Hr |
6T/Hr |
12T/Hr |
||
Water input size |
0.75’’ |
1’’ |
1.5’’ |
2’’ |
||
Water output size |
0.5’’ |
0.75’’ |
1.2’’ |
1.5’’ |
||
Power |
0.55Kw |
1.1Kw |
3Kw |
5.5Kw |
||
Voltage |
380V |
220V |
380V |
220V |
380V |
380V |
Speed |
2900r/min |
|||||
Size of Tank |
Φ200×320mm (3mm thickness) |
Φ273×720mm (3mm thickness) |
||||
