4-6 m3/h TDS625 European Latest Technology Energy Saving Rotary Sand Dryer

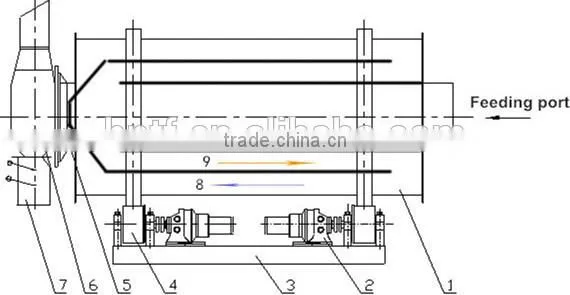

Working Principle of sand dryer
The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the drier is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.
Advantage of sand dyer
1.High technical content, self insulation cylinder body, 80% thermal efficiency (single- cylinder dryer is only 35%), coal saving is 68% than single-cylinder dryer and output increases 100%
2. The length is good for technical layout, 60% shorter than single-cylinder dryer. Also it’s about 20m³area, reducing plant area and saving 40% investment
3.adopt heat resistant and wear resistant steel plate, 4 times wear resistant than the general steel plate, long service time and convenient to maintain.
4. outside cylinder body temperature is below 60°(single cylinder temperature is up to 150°), with low outlet temperature.
5.low outlet temperature is good for keeping long service life.
6.electic consumption reduce 60%
7.adopt roller rotation, without large and small gear
8. hot air stove can support fluidized bed furnace, spray stove, hands burned furnace,applied to below 20mm materials such as lump material, granuler and power materials.
9. output:5-200t/h various specification
Specification of sand dryer
Three Pass Dryer |
TDS625 |
Drying capacity |
4-6 m3/h |
Diameter of drum |
2200mm |
Length |
2500mm |
Motor power |
13.75kw |
Reducer model |
XWD-5 |
Speed of drum rotation |
4-10 r/min |
Moisture of end products |
0.1%-0.8% |
Max. temperature inside |
700-750℃ |
Outlet temperature |
30-60℃ |
Hot-blast Stove dimensions |
2.3m×2m×2.7m |
Furnace door |
450*550 mm |
Quicksand tube |
φ273×1800 mm |
Coal consumption |
7-10 kg/ per ton sand |
Working Site/Sand Drying Line
1)FCL: in nude for standard exporting container
2)LCL: Poly wood case
Wire cables are used for fastening the machine
According to your inquiry, We will reply to you in 24 hours.
Best After-sales: We will send the technical personnel to the site for installation, commissioning and training work.
WARRANTY :12 MONTHS
Warranty period, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.
We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.
