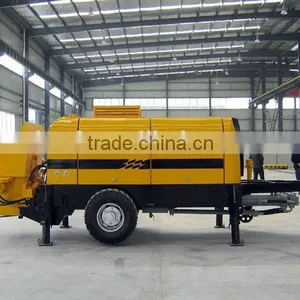

60m3/h Concrete Pump for large scale construction project
Introduction of concrete pump
Concrete pump composed by pump body and carrier pipe, transports concrete along the pipeline consecutively.
Concrete pump divides in two kinds: gate valve concrete pump, S-valve concrete pump.
Application of concrete pump
·Fine stone concrete conveying
·Floor heating construction
·Tunnel and underground construction
·Mortar conveying
·Used as spray pump when Installed with incidental spraying equipment, for concrete, mortar, refractory material and green soil spraying
·HBT60~90 Concrete pumps are applied for high-rise conveying, railway, tunnel, bridge construction and special applications, hydraulic power, mining and national defense.
Specification of concrete pump
Type |
HBTS60.9.75 |
Max conveying capacity (m³/h) |
60 |
Max pump conveying pressure (Mpa) |
9/5 |
Hydraulic system |
Double circuit open system |
Hydraulic system pressure(Mpa) |
32 |
Motor type |
Y280S--4 |
Rotation (r/min) |
1480 |
Power (KW) |
75 |
Main oil pump |
A11Vl190 |
Main oil pump rated flow(L/min) |
281 |
Pumping oil cylinder bore/route(mm) |
ø 125/1400 |
Concrete cylinder bore/route(mm) |
ø 200/1400 |
High &low Voltage switching |
Yes |
Oil Tank Capacity(L) |
500 |
Hopper Capacity(m3) |
0.8 |
Feeding height (mm) |
1430 |
Max conveying distance(m) |
320/1380 |
Concrete slump (mm) |
120~230 |
Out dimension (mm) |
6000×2160×2300 |
Total weight (kg) |
6150 |

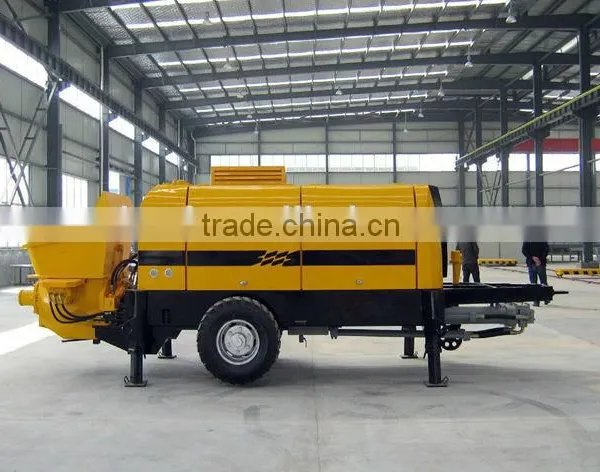

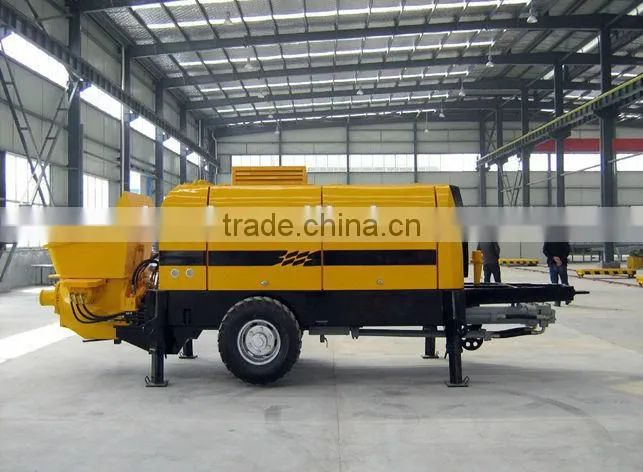

Detail Picture View of concrete pump

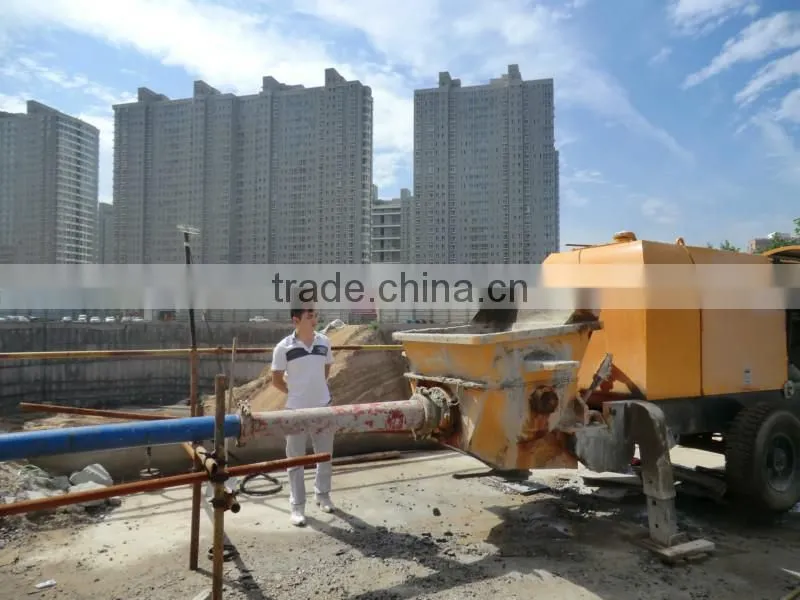

Working Site
1)FCL: in nude for standard exporting container
2)LCL: Poly wood case
Wire cables are used for fastening the machine
Cork wood are placed in front or behind the machine to protect it.
Plastic film is covered on the machine as a rain-roof.
Crane is used during the whole loading.
1.According to your inquiry, We will reply to you in 24 hours.
2.Best After-sales: We will send the technical personnel to the site for installation, commissioning and training work.
3.WARRANTY :12 Months, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.
4.We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.
TENGFEI GROUP since 1958, have been one of the largest Construction Machinery suppliers in China now, located in Zhengzhou, main products are Dry Mortar Production Line, Concrete Batching Plant, Concrete Mixer Machinery, Concrete pump and etc.
