Help Center6 m3 Concret Truck Mixer HNTF6 Concrete Mixer Truck
Related Products
-
HNTF6 Second Hand Concrete Mixer Truck China for SaleUS$ 24,923 - 25,590MOQ: 1 Set -
NEW Concrete Mixer Truck HNTF3 Small Truck Mixer ConcreteUS$ 14,923 - 15,590MOQ: 1 Set
-
HNTF8 Concrete Mixer Truck / Mixer Truck Gear BoxUS$ 24,923 - 25,590MOQ: 1 Set
-
Concrete Mixer Truck HNTF4 Mixer Truck Gear BoxUS$ 24,923 - 29,850MOQ: 1 Set
-
HNTF4 Concrete Mixer Truck Manual TransmissionUS$ 24,923 - 29,850MOQ: 1 Set
Specifications
6 m3 concret truck mixer HNTF61.Rotate speed:0-12r/min
2.Inlet height:3.8m
3.Dimensions:5.28*2*2.5m
4.BV

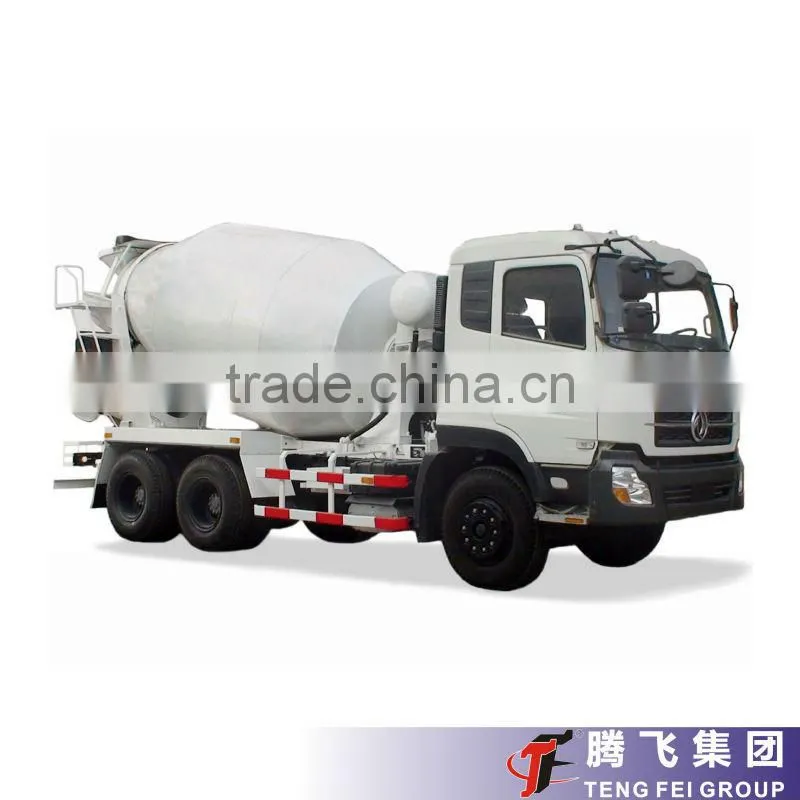

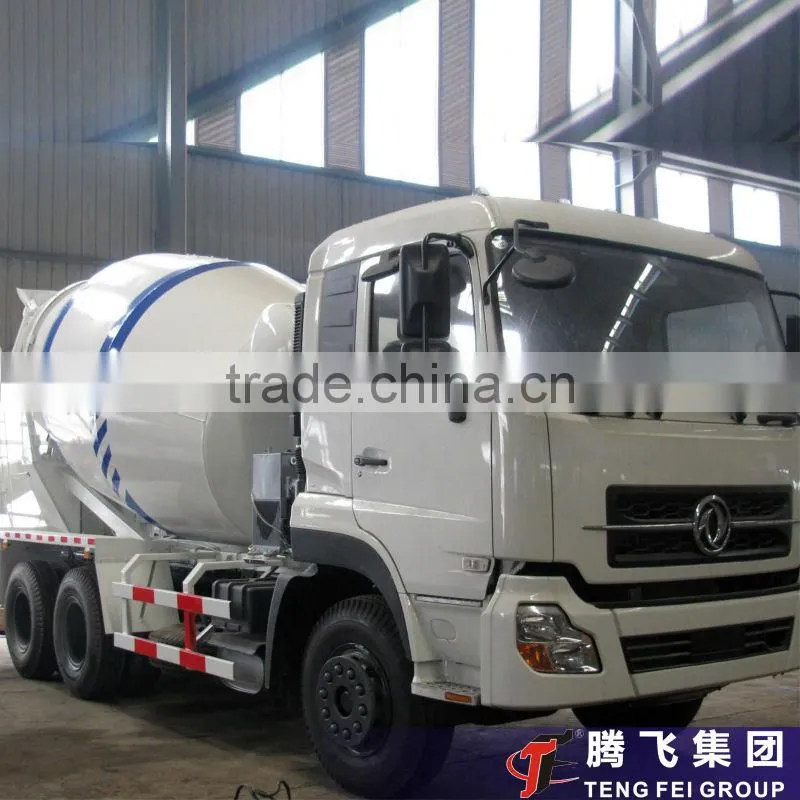

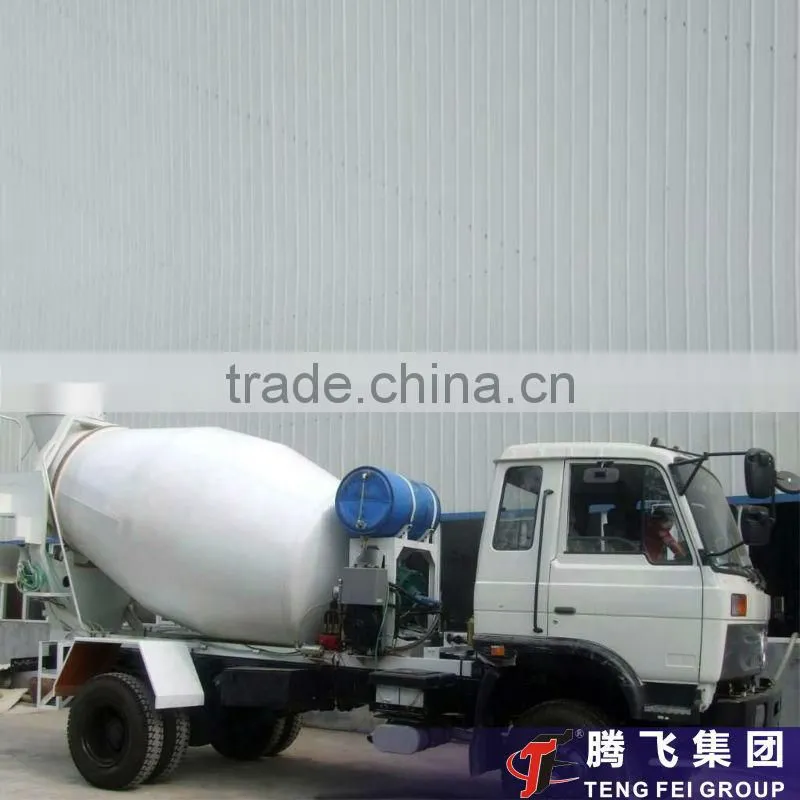

6 m3 concret truck mixer HNTF6 concrete mixer truck
1. Working mechanism of 6 m3 concret truck mixer HNTF6
Car chassis power took out by taking power device drive the variable pump of hydraulic system, in this process, the mechanical energy transforms into hydraulic energy , then pass to quantitative motor. Motor drive the reduction gears, the reduction gears drive churn-dasher, finally the concrete begins mix.
2. Introduction of 6 m3 concret truck mixer HNTF6
HNTF6 Concrete mixer truck is composed by automotive chassis, the second general chassis which provided by vehicle manufacturers and concrete mixing transportation dedicated device which includes power takeoff, before and after stents of the drum, reduction gears, hydraulic system, mixing drum, catanator and cleaning system.
3. Announcements of 6 m3 concret truck mixer HNTF6
1) wash feed port before each loading, ensure feed port moist during loading.
2) Cleaning water tank filled with water during loading.
3) flushing the feed port and discharge chute after loading, then add clean water in the concrete tank within 30-40 L. In the car on the way to keep the concrete drum rotating slowly.
4) Put off sewage in concrete tank before next using.
5) cleaning concrete tank thoroughly, ensure don't lump with cement and concrete
4. Parameters of 6 m3 concret truck mixer HNTF6
Specification |
HNTF6 |
Mixing barrel transmission capacity(m³) |
6 |
The volume of Mixing barrel(m³) |
8.7 |
Loading ratio |
0.67 |
Axis Angle |
16°±15′ |
Rotate speed |
0-12r/min |
Inlet height(m |
3.8 |
Minimum height of discharge(m) |
1 |
Dimensions(m |
5.28*2*2.5 |
1.Pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.
2.On-purchase service: our company can solve professional technical problems and other related issues for you.
3.After-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.
1.Delivery time: 15 days after receipt of your deposit.
2.Payment terms: 30% T/T in advance, the balance is paid (by T/T) before delivery.
3.Package:
1).Wire cables are used for fastening the machine on the trailer or inside the container.
2).Cork wood are placed in front or behind the machine to protect it.
3).Plastic film is covered on the machine as a rain-roof.
4).Crane is used during the whole loading.
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
Teng Fei Group is a manufacturer of construction machine and mine machine, with more than 15 years experience, mainly produce concrete batching plant, AAC block line, stabilized soil mixing plant, dry mortar production line, cement production line, concrete mixer, concrete pump ,concrete truck, cement silo, crusher, ball mill, raymond mill, sand making line and so on.
Why chose Henan Teng Fei?
1.Teng Fei give priority to with construction company, during years of construction equipment, progress in practice and has strong practicability.
2.Our company has years of experience in project negotiation and can provide customers with effective business negotiations guidance to win project
3.in addition to providing equipment and technical training, we also provide free foam concrete project system solutions to help you get maximum benefit.
How long is the warranty?
The warranty period is 12 months.
What services does it provide?
1.pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.
2.on-purchase service: our company can solve professional technical problems and other related issues for you.
3.after-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.
What is the Teng Fei’s basic philosophy?
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
