Specifications
3 cubic meters concrete mixer truck1.high quality
2.low pollution
petitive price
4.high efficiency

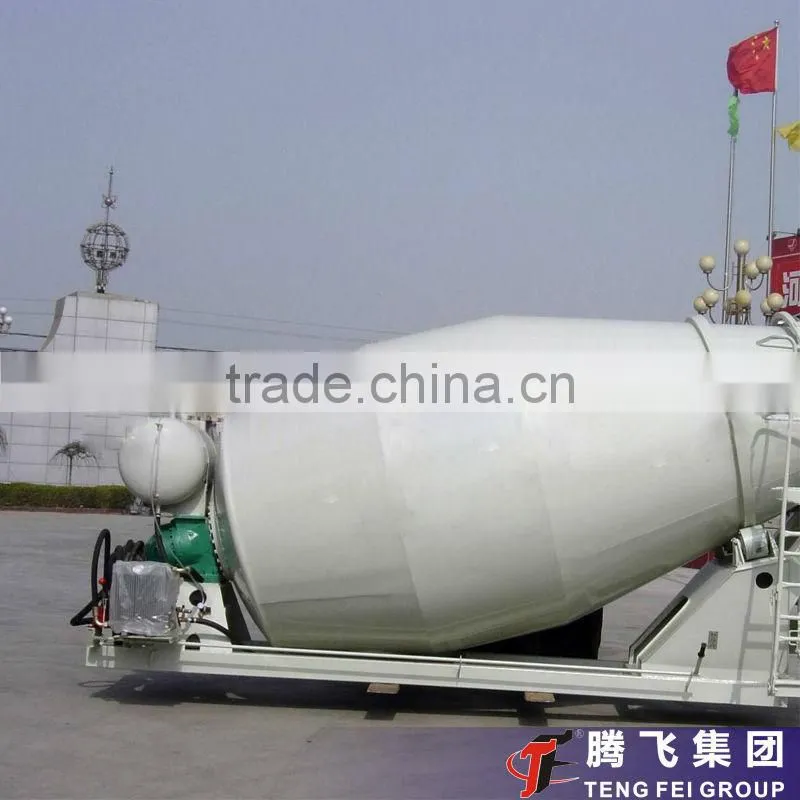

Factory direct-HNTF3 3 cubic meters concrete mixer truck
1. Introduction of HNTF3 3 cubic meters concrete mixer truck
HJC3 concrete mixer truck is composed by automotive chassis, the second general chassis which provided by
vehicle manufacturers and concrete mixing transportation dedicated device which includes power takeoff, before
and after stents of the drum, reduction gears, hydraulic system, mixing drum, catanator and cleaning system.
2. Working mechanism of HNTF3 3 cubic meters concrete mixer truck
Car chassis power took out by taking power device drive the variable pump of hydraulic system, in this process,
the mechanical energy transforms into hydraulic energy , then pass to quantitative motor. Motor drive the
reduction gears, the reduction gears drive churn-dasher, finally the concrete begins mix.
3. Parameters of HNTF3 3 cubic meters concrete mixer truck
Specification |
HNTF3 |
HNTF4 |
HNTF6 |
Mixing barrel transmission capacity(m³) |
3 |
4 |
6 |
The volume of Mixing barrel(m³) |
5.05 |
6.15 |
8.7 |
Loading ratio |
0.67 |
0.67 |
0.67 |
Axis Angle |
16°±15′ |
16°±15′ |
16°±15′ |
Rotate speed |
0-12r/min |
0-12r/min |
0-12r/min |
Inlet height(m) |
3.38 |
3.5 |
3.8 |
Minimum height of discharge(m) |
1 |
1 |
1 |
Dimensions(m) |
3.85*1.9*2 |
4.45*1.9*2 |
5.28*2*2.5 |
3 cubic meters concrete mixer truck
1.pre-sale service: our company can provide technological guidance and formulate suitable equipment
matching program according with your specific production requirements.
2.on-purchase service: our company can solve professional technical problems and other related issues for you.
3.after-sales service: our company provides that engineers available to service machinery overseas and
equipment for life maintenance.
Company advantage
1).Tengfei give priority to with construction company, during years of construction equipment, progress in practice and has strong practicability.
2).Our company has years of experience in project negotiation and can provide customers with effective business negotiations guidance to win project
3).in addition to providing equipment and technical training, we also provide free foam concrete project system solutions to help you get maximum benefit.
1.Delivery time: 15 days after receipt of your deposit.
2.Payment terms: 30% T/T in advance, the left is paid (by T/T) before delivery.
3.Package:
1).Wire cables are used for fastening the machine on the trailer or inside the container.
2).Cork wood are placed in front or behind the machine to protect it.
3).Plastic film is covered on the machine as a rain-roof.
4).Crane is used during the whole loading.
