Tengfei Group provide LSY163
screw conveyor/Sand screw conveyor
1.Brief introduction LSY163 Screw Conveyor :
(1)LSY series screw conveyor is a new type of transporting equipment, which use rotary screw vane to push material continuously in closed
housing with round section.
(2)Main characteristics: compact structure, small cross section, light weight, good seal performance, high transport efficiency, flexible
technological arrangement, and easy to be installed, dismantled and moved, safe operation. It is applicable to transport various kinds
of loose material such as power, granular and small piece material, for example: clay powder, pulverized coal, cement, sand, grain,
small piece of coal, cobble and cast iron filings, etc. it is not applicable to transport material with high viscosity, easy to be curdled.
(3)Screw conveyor has horizontal, inclined form, and it can be used with other transport device, to accomplish combined transport,
separate transport, mixing, blending dehydration, compounding, discharging and stacking, etc. the product is suitable to loose cement
transport from cement warehouse to mixer or form cement warehouse to compounding machine at concrete batching plant.

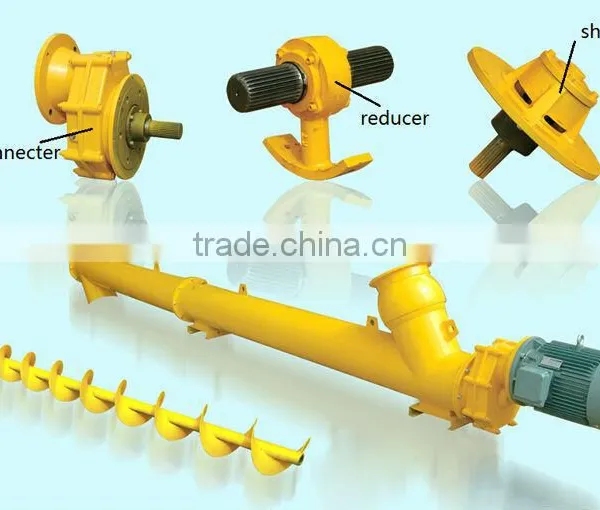

(4)The main parts (speed redactor, vane, middle shaft, gimbals and chrysanthemum sleeve, etc) of LSY series screw conveyor that produced
by our company.
2.Parameters of LSY163 Screw Conveyor:
Model |
LSY163 |
Spiral Diameter(mm) |
163 |
Rotation Speed(r/min) |
310 |
Housing Diameter(mm) |
194x6 |
Carrying Capacity(t/h) |
35 |
Conveying Length(m) |
2-12 |
Working Angle |
0-60 |
Motor Type |
Y132M-4 |
Power(kw) |
7.5 |

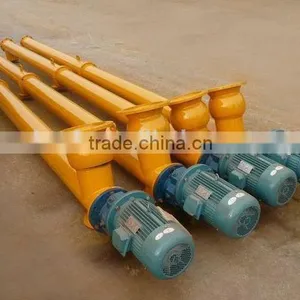

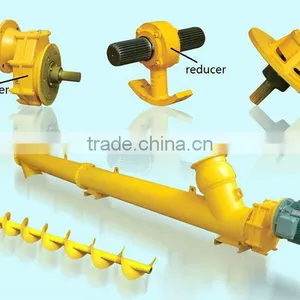

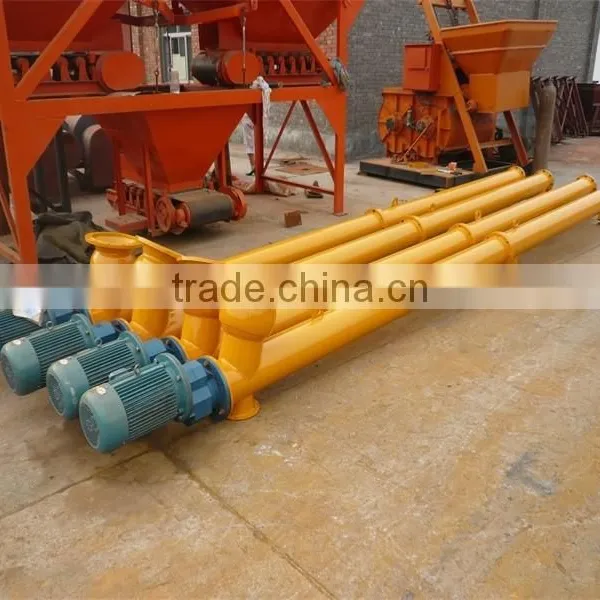

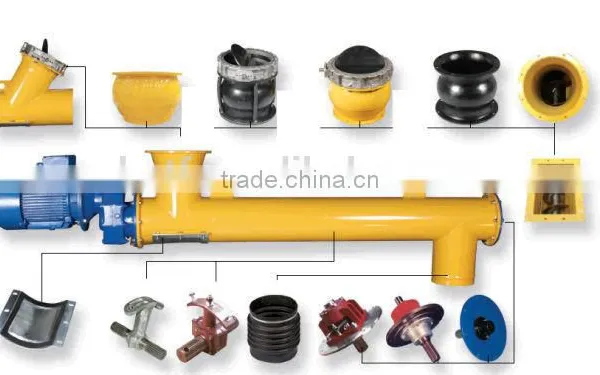

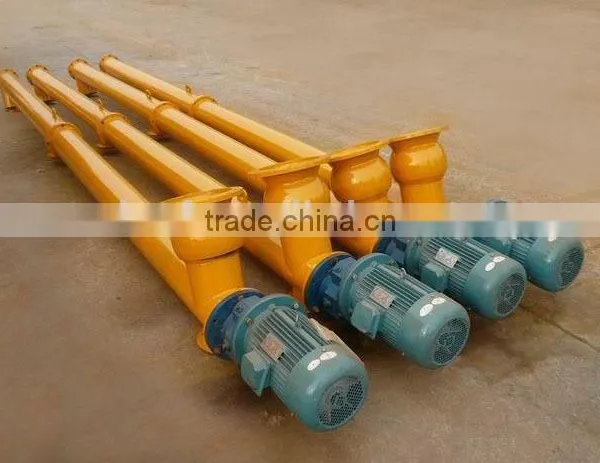

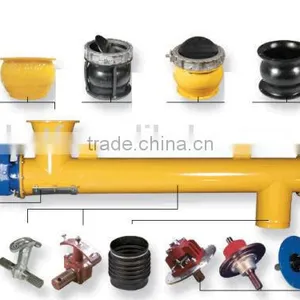

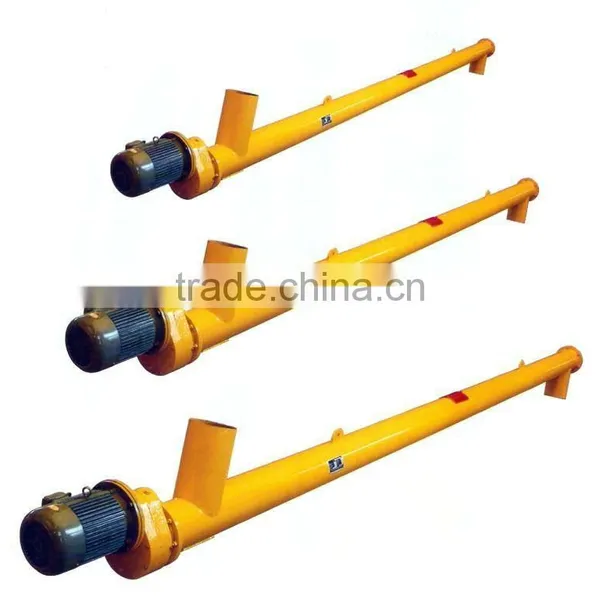

3.Detailed pictures of LSY163 Screw Conveyor:
1)FCL: in nude for standard exporting container
2)LCL: Poly wood case
Wire cables are used for fastening the machine
Cork wood are placed in front or behind the machine to protect it.
Plastic film is covered on the machine as a rain-roof.
Crane is used during the whole loading.
Established in the year of 1958,Henan Tengfei Machine Manufacturing Co.,Ltd.formerly taking Henan Province
Prospecting Machinery Manufacturing Co.,and Henan Kowloon Machinery Manufacturing Co.,Ltd.as its branch
names,is a company group with itsR&D,manufacturing dapartment,sales department offering a variety of large
complete sets of mediumqualty concrete mixing plant of the modern professional company.The products are
exported to more than twenty countries and regions.Located in Zhengzhou Machinery (Processing) Park,With
the annual processing capacity of nearly 500 units.
As a professional exporter,our target is to serve worldwide clients with high-quality products,great reliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects. We will supply you 24 hours a day and 7 days a weekafter-sale services.
