Specifications
three pass dryer TDS62101.Productivity:10-14 stere per hour
2.Total Power: 38.5KW
3.BV

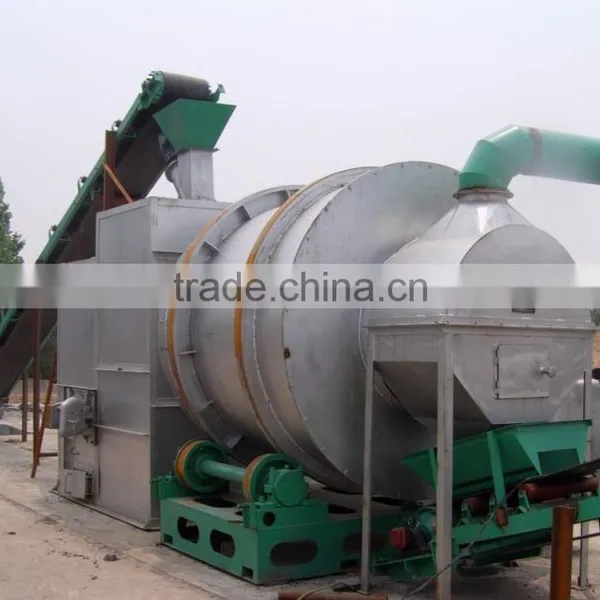

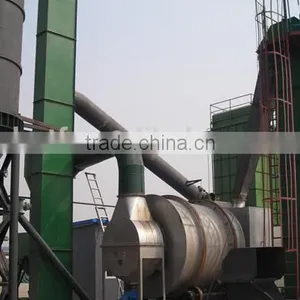

Three pass dryer TDS6210 sand drying production lines
Applications:
Raw material: river sand, yellow sand, coal powder, cement clinker and clay in
Cement Industry, Metallurgy Industry, Chemical Industry and Building Material Industry.
Parameters
Three Pass Dryer |
TSD6210, 1 set |
Drying capacity |
10-14 m3/h |
Diameter of drum |
2500mm |
Length |
2700mm |
Motor power |
4kw*2 |
Reducer model |
XWD-5 |
Speed of drum rotation |
4-10 r/min |
Moisture of end products |
0.1%-0.8% |
Max. temperature inside |
700-750℃ |
Outlet temperature |
30-60℃ |
Hot-blast Stove dimensions |
2.3m×2m×2.7m |
Furnace door |
450*550 mm |
Quicksand tube |
φ300×1800 mm |
Coal consumption |
7-10 kg/ per ton sand |
1 |
Moist-material silo |
7 |
Dedusting system |
2 |
Feeding machine |
8 |
Air blow |
3 |
Belt conveyor |
9 |
Electric closet |
4 |
Hot-blast stove |
10 |
Vibrating screen |
5 |
Dryer |
|
|
6 |
Discharging silo |
|
|
Main parts
dryer
Hot-blast stove
Linear screener
Storage Hopper
base of dryer
