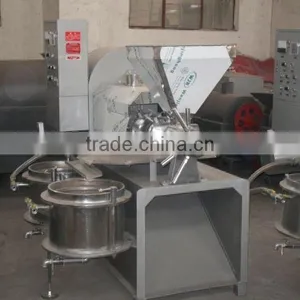

cold pressed organic evening primrose oil machine
Item |
6YL-80 |
6YL-100 |
6YL-120 |
6YL-130 |
|||
Speed of press screw |
30-45r/m |
30-40r/m |
30-40r/m |
28-40r/m |
|||
Gear ratio of gear case |
14/42x19/57=1:6.63 |
15/40x15/55=1:9.78 |
15/34x15/55=1:9.59 |
15/38x19/48=1:7.38 |
|||
Boundary dimension |
1650*1150*1750 |
1950*1300*1900 |
2050*1350*2000 |
2200*1600*2150 |
|||
Handling capacity |
80-150kg/h |
150-250kg/h |
200-300kg/h |
250-400kg/h |
|||
Weight |
760kg |
950kg |
1100kg |
1300kg |
|||
Power |
Main engine |
Y160L-6-5.5KW |
Y160M-6-7.5KW |
Y160L-6-11KW |
Y180L-6-15KW |
||
Vacuum pump |
Y90S-4-0.55KW |
Y90S-4-1.1KW |
Y100L1-4-1.5KW |
Y100L1-4-2.2KW |
|||
Heater |
2KW |
3KW |
3.3KW |
3.8KW |
|||

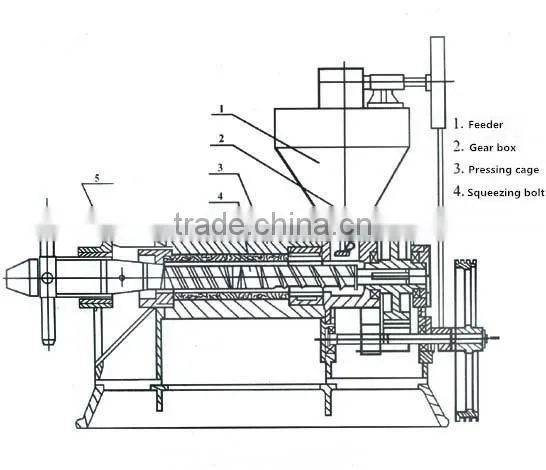

Automatic Spiral oil press machine is composed of such components as electric appliance control, hot pressing, adjustment, driving and vacuum oil filter. The squeezing worm is made of alloy steel treated by carburization to improve its surface hardness and wear resistance; the squeezing bars are grinded by surface grinder to ensure the accuracy of oil thread and improve oil extraction rate; the standard components for power distribution, vacuum and heating are famous brands to optimize machine configuration.
The disadvantage of traditional oil pressing methods: include the original workshop, simple and crude equipment, hulking operation, large floor area, high energy consumption, low oil extraction rate and bad hygienic conditions.Wintone Automatic Spiral oil press machine Advantage: advanced design, reliable performance, simple operation and convenient maintenance.
1. Saving labor : It can save 60% labor for equal output and 40% labor cost per day for one or two people are able to make production.
2. Widely-used: The oil mill machine can be used to completely press more than 20 kinds of crops such as peanuts, sesame, vegetable seeds, soybean, oil sunflower and flax by three stages pressing, low residual oil ratio.
3. Pure oil quality: the vacuum oil filtering is used to remove residue so as to ensure the pure oil quality and meet the standard of health quarantine.
4. Small land-using: Only 10~20 m2 workshop area can meet the demands of oil processing.

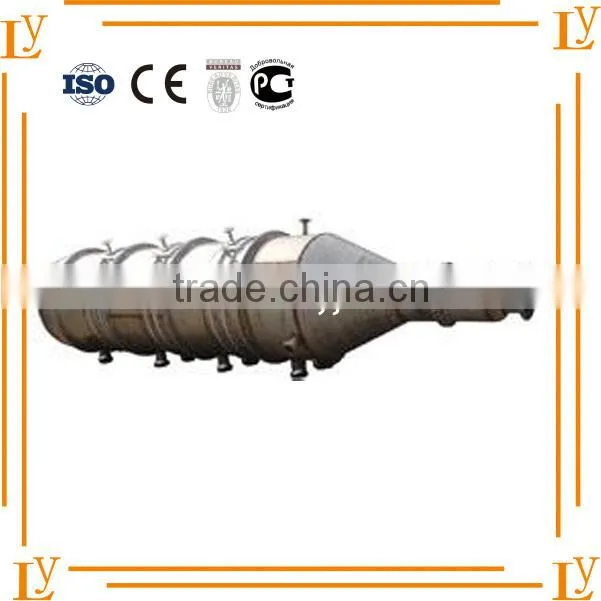

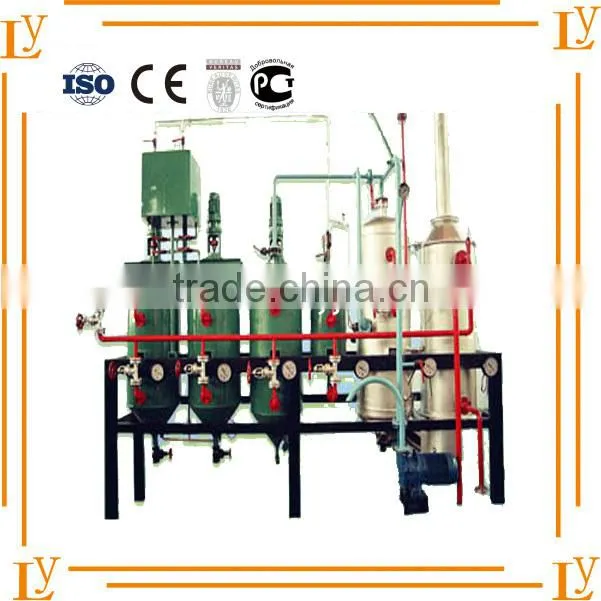

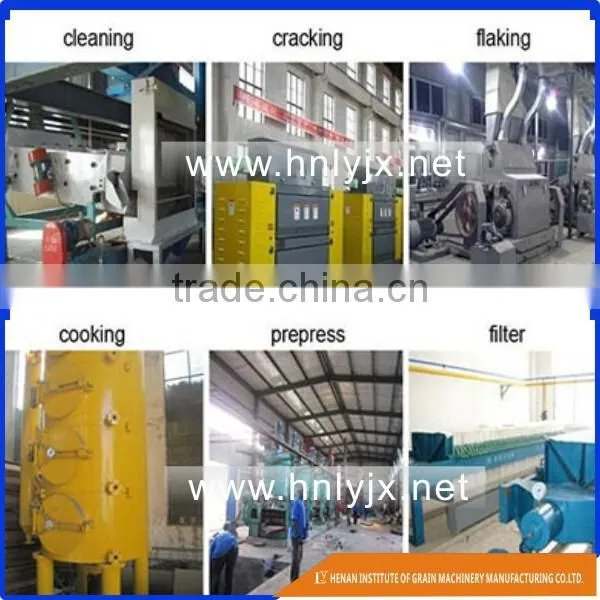

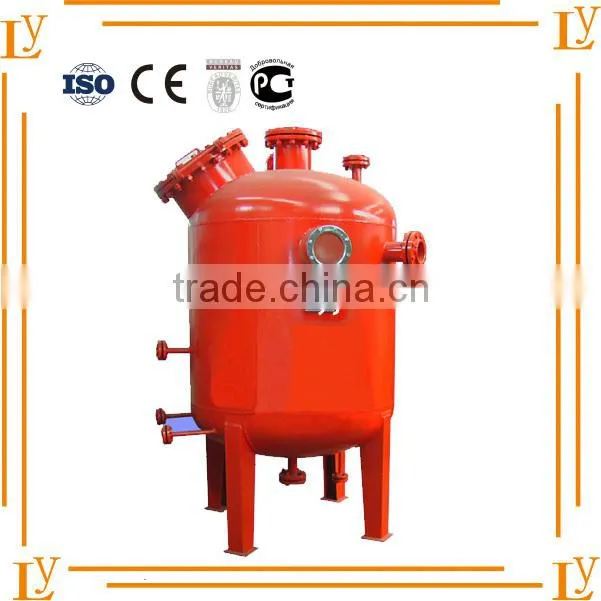

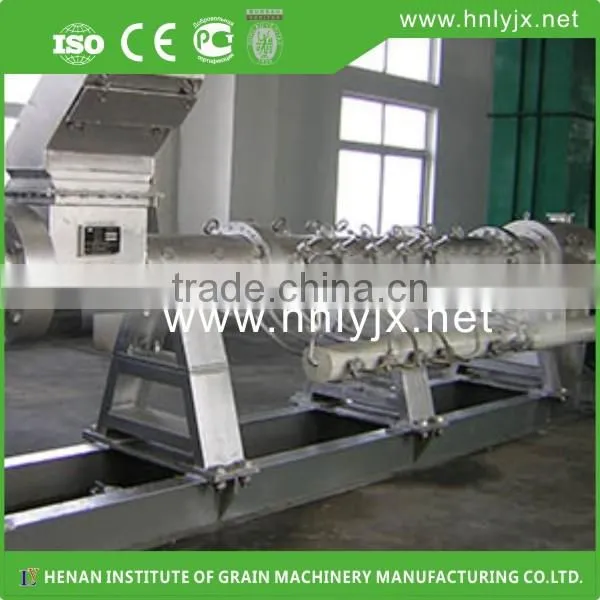

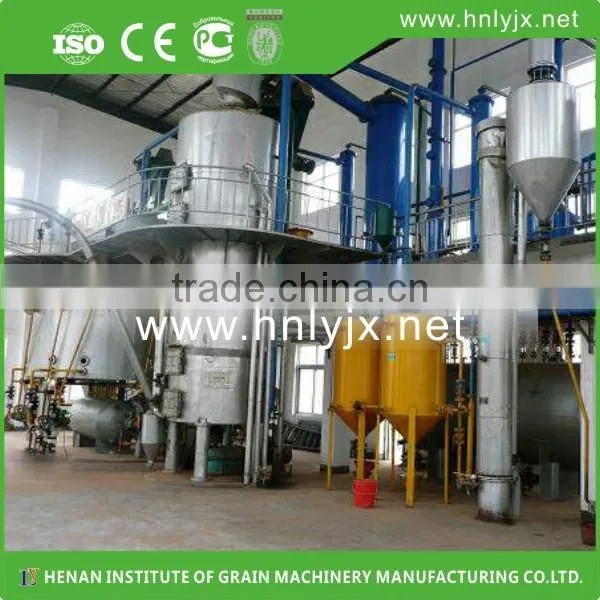

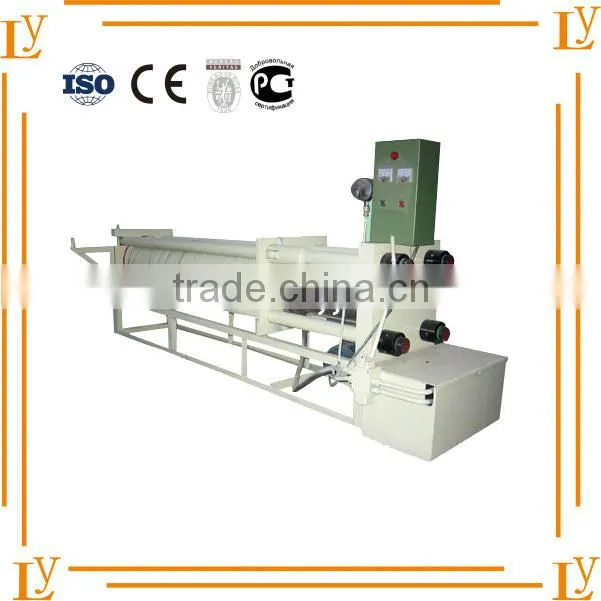

More Relative Machine Images:
We will pack by the protect film inner, water-repellent plastic outside. The wood packing is necessary if send by less than a container. The machine will fixed by steel rope in the container. Make sure it is in good condition when arrived destination.
