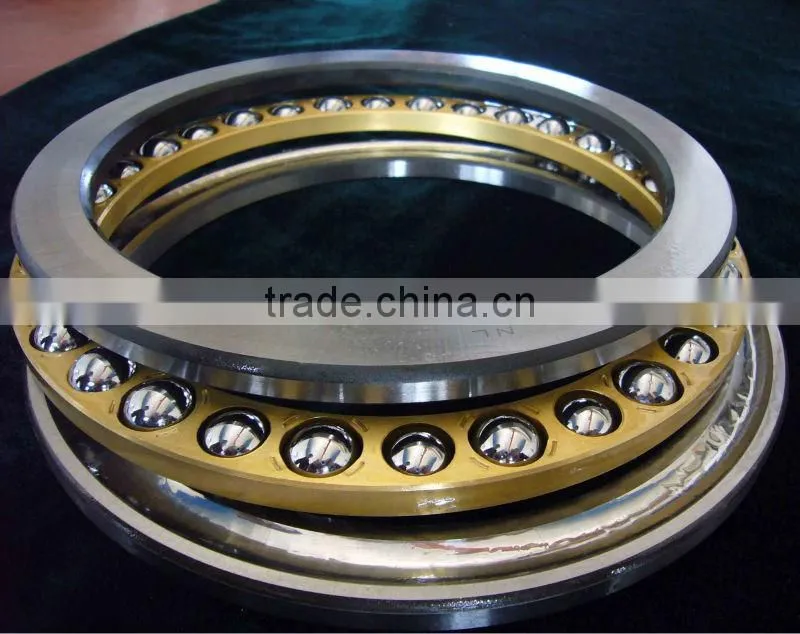

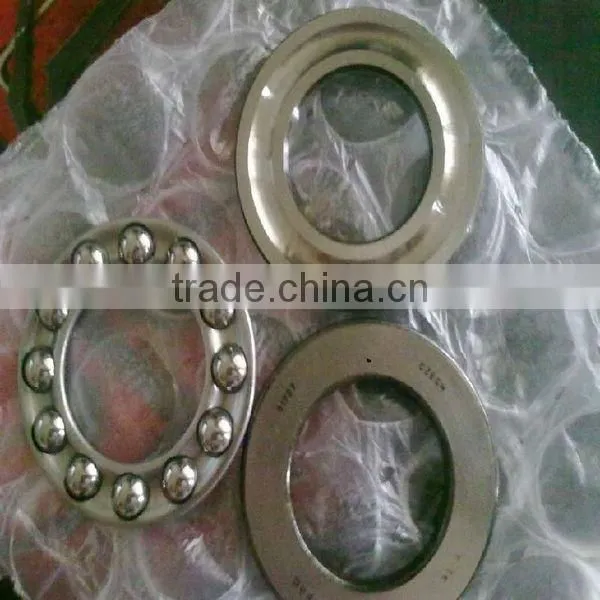

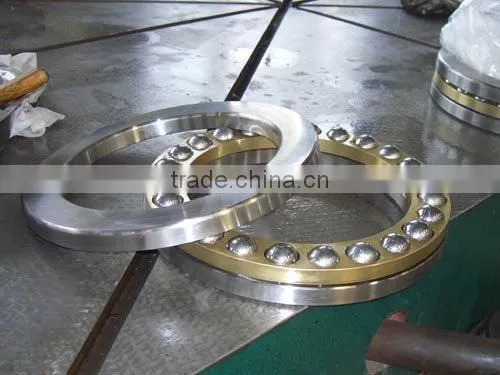

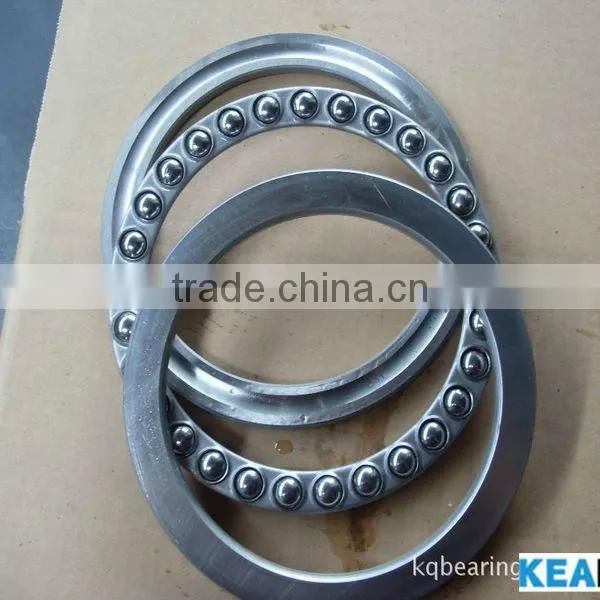

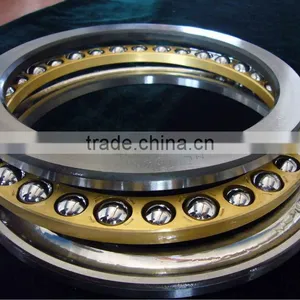

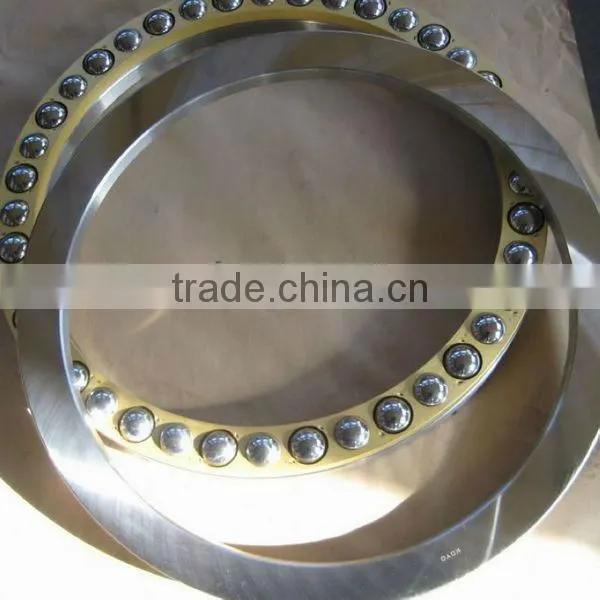

Thrust Ball Bearings Agricultural Pumps Mining Bearing 51205
US$ 1.6 - 1.6
MOQ: 100 Sets
Key Specifications
Get Latest Price
Brand Name:
CLUNT
Bore Size:
25,
Outside Diameter:
47,
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Axial Loads Bearings Thrust Roller Bearing 29480US$ 3,500 - 3,500MOQ: 5 Pieces -
Thrust Roller Bearing 81104US$ 10 - 30MOQ: 50 Pieces
-
All Kinds of Bearings Roller Bearing 29417US$ 15 - 15MOQ: 10 Pieces
-
Japan Original NSK Bearing Agents & Thrust Roller Bearing 29238US$ 260 - 270MOQ: 1 Piece
-
Used in Heavy-duty Machine Thrust Roller Bearing 81210 From China Bearing ManufacturersUS$ 9 - 12MOQ: 100 Pieces
Brand Name
CLUNT
Bore Size
25,
Outside Diameter
47,
Model Number
51205
Precision Rating
P4 p5 p6
Seals Type
as requirement, steel cage
Number of Row
Single Row
Place of Origin
Shandong, China
Specifications
bearing 512051.Double direction thrust ball bearings
2.high quality
petitive price
mpt delivery
Thrust Ball Bearings Agricultural pumps mining bearing 51205
51205 thrust ball bearing is single direction thrust ball bearing. single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage. Single direction thrust ball bearings can support axial loads and locate a shaft axially, in one direction only.
Please check the detailed information:
Inner diameter: 25mm
Outer diameter: 47mm
Thickness: 15mm
Basic dynamic load rating, C: 27.6Kn
Basic static load rating, Co: 55Kn
Pu: 2.04Kn fatigue limit load
Reference speed: 5300r/min
Limiting speed: 7500r/min
Weight: 0.11kg
|
51205 Thrust Ball bearing, this is a popular size that could be used in many application that uses this size 25mm x 47mm x 15mm.51205 Thrust ball bearing is known to high axial or Vertical loads.Bearing is made of Chrome Steel.
|
Popular CLUNT single direction thrust ball bearings are summarized as below:
| BERING NUMBER |
Dimensions (mm) | Radius r |
Basic Load Rating lbf max. |
Speed Limit (RPM) |
||||
| ID d |
OD D |
Width W |
mm | Dynamic (Cr) | Static (Cor) | Grease | Oil | |
| 51200 | 10 | 26 | 11 | 0.6 | 2850 | 3850 | 5500 | 7900 |
| 51201 | 12 | 28 | 11 | 0.6 | 2960 | 4250 | 5300 | 7600 |
| 51202 | 15 | 32 | 12 | 0.6 | 3750 | 5600 | 4800 | 6700 |
| 51203 | 17 | 35 | 12 | 0.6 | 3850 | 6150 | 4600 | 6500 |
| 51204 | 20 | 40 | 14 | 0.6 | 5000 | 8500 | 3900 | 5600 |
| 51205 | 25 | 47 | 15 | 0.6 | 6250 | 11300 | 3500 | 5000 |
| 51206 | 30 | 52 | 16 | 0.6 | 6600 | 13100 | 3200 | 4700 |
| 51207 | 35 | 62 | 18 | 1.0 | 8800 | 17600 | 2800 | 4000 |
| 51208 | 40 | 68 | 19 | 1.0 | 10000 | 22100 | 2600 | 3700 |
| 51209 | 45 | 73 | 20 | 1.0 | 10700 | 23600 | 2500 | 3500 |
| 51210 | 50 | 78 | 22 | 1.0 | 10900 | 25100 | 2300 | 3200 |
| 51211 | 55 | 90 | 25 | 1.0 | 15600 | 35500 | 2000 | 2900 |
| 51212 | 60 | 95 | 26 | 1.0 | 16500 | 40000 | 1900 | 2700 |
| 51213 | 65 | 100 | 27 | 1.0 | 16800 | 42500 | 1800 | 2600 |
| 51214 | 70 | 105 | 27 | 1.0 | 17100 | 44500 | 1700 | 2500 |
| 51215 | 75 | 110 | 27 | 1.0 | 17400 | 47000 | 1700 | 2500 |
| 51216 | 80 | 115 | 28 | 1.0 | 18100 | 48500 | 1600 | 2300 |
| 51217 | 85 | 125 | 31 | 1.0 | 18900 | 49600 | 1500 | 2100 |
| 51218 | 90 | 135 | 35 | 1.1 | 19500 | 53000 | 1300 | 1900 |
| 51100 series | 51100 51101 51102 51103 51104 51105 51106 51107 51108 51109 51110 51111 51112 51113 51114 51115 51116 51117 51118 51119 51120 51122 51124 51126 51128 51130 51132 51134 51136 51138 51140 51144 51148 51152 51159 51160 51164 51168 51172 51180 51184 51188 51192 51196 |
| 51200 series | 51200 51201 51202 51203 51204 51205 51206 51207 51208 51209 51210 51211 51212 51213 51214 51215 51216 51217 51218 51220 51222 51224 51226 51228 51230 51232 51234 51236 51238 51240 51244 51248 51252 51256 51260 51264 51268 51272 51280 51292 |
| 53201 series | 53201 53202 53203 53204 53205 53206 53207 53208 53209 53210 53211 53212 53213 53214 53215 53216 53217 53218 53220 53222 53224 |
| 52201 series | 52201 52202 52203 52204 52205 52206 52207 52208 52209 52210 52211 52212 52213 52214 52215 52216 52217 52218 52220 52224 52228 52232 52236 52238 52240 52244 |
| 51304 series | 51304 51305 51306 51307 51308 51309 51310 51311 51312 51313 51314 51315 51316 51317 51318 51320 51322 51324 51326 51328 51330 51332 51334 51336 51338 51340 51348 51368 |
| 52305 series | 52305 52306 52307 52308 52309 52310 52311 52312 52313 52314 52315 52316 52320 52322 52324 52330 52336 |
| 53306 series | 53306 53307 53308 53309 53310 53311 53312 53313 53314 53315 53316 53320 53322 53324 53330 |
| 51405 series | 51405 51406 51407 51408 51409 51410 51411 51412 51413 51414 51415 51416 51417 51418 51420 51422 51426 51428 51430 |
