Specifications

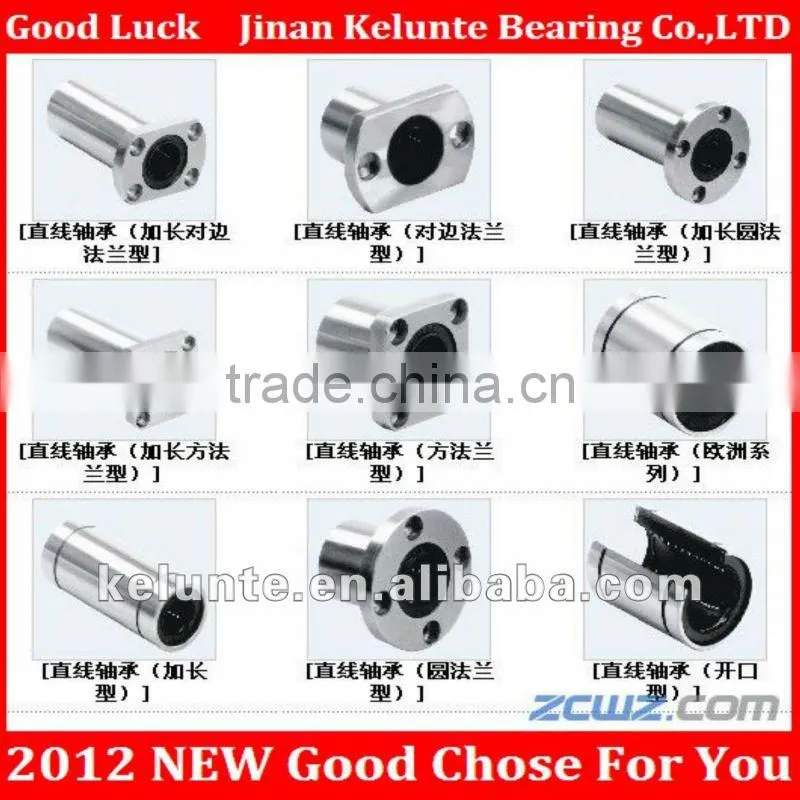

original china linear track bearing distribution1.CLUNT linear bearing

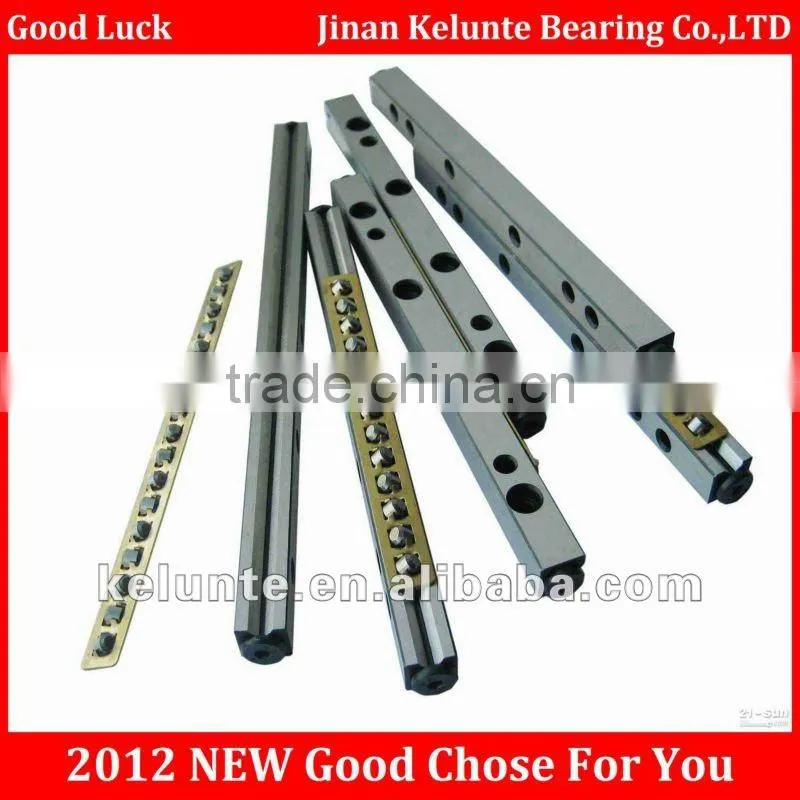

2.Linear guide bearing available
original china linear track bearing distribution
Description
Linear-motion bearing or linear slide is a bearing designed to provide free motion in one dimension. There are many different types of linear motion bearings and this family of products is generally broken down into two sub-categories: rolling-element and plane.
Motorized linear slides such as machine slides, XY tables, roller tables and some dovetail slides are bearings moved by drive mechanisms. Not all linear slides are motorized and non-motorized dovetail slides, ball bearing slides and roller slides provide low-friction linear movement for equipment powered by inertia or by hand. All linear slides provide linear motion based on bearings, whether they are ball bearings, dovetail bearings or linear roller bearings. XY Tables, linear stages, machine slides and other advanced slides use linear motion bearings to provide movement along both X and Y multiple axis.
Linear motion bearings metric and imperial series
standard (LM/LME/LMB.. UU), Diameter Serieng(LM/LME.. UUAJ) and open type (LM/LME.. UUOP);
The accumulation (LM/LME.. LUU);
Flange type (LMF/LMK/LMH.. UU, LMEF/LMEK.. UU),
flange accumulation (LMF/LMK/LMH.. LUU, LMEF/LMEK.. LUU)
middle assembly flange type (LMFC LMKC), take lead end flange (LMF-E/LMK-E),
KH simple type, type, since embellish OB LMC/LMG open the mouth linear slide block, etc.
Types of Linear Bearing:According to the specifications type points
linear bearing are divided into two major series that LM and LME series.Two big series structure characteristics, in addition to different sizes, aperture tolerance is different, its structure roughly the same.Ex 1: LM 203242 UU OP LM said the first line a series of standard 203242 said size structure aperture diameter double seal structure length UU said OP says open the mouth the LME 203245 UU AJ LME said the second straight series standard 203245 said size structure aperture diameter double seal structure length UU said AJ said clearance can be adjusted .
Application:
Linear bearing is currently being more and more extensively applied to electronic, food machinery and packing machinery, medical machines, printing machines, textile machinery, machinery, equipment, robots, machine tools, nc machine tools, automobiles, or special machinery industry in general.
Here are some of our products available for your referance:
| Model | d(mm) | D(mm) | B(mm) | Brand |
| LB 355270 OP | 35 | 52 | 70 | NSK |
| LB 81524 AJ | 8 | 15 | 24 | NSK |
| LB 61219 AJ | 6 | 12 | 19 | NSK |
| LB 254058 | 25 | 40 | 58 | NSK |
| LB 101929 | 10 | 19 | 29 | NSK |
| LB 81524 | 8 | 15 | 24 | NSK |
| LB 6129 | 6 | 12 | 9 | NSK |
| LB 4812 | 4 | 8 | 12 | NSK |
| LB 3710 | 3 | 7 | 10 | NSK |
