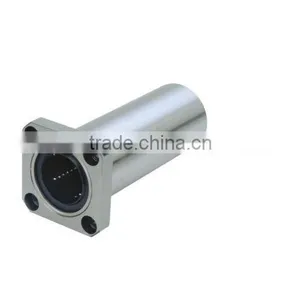

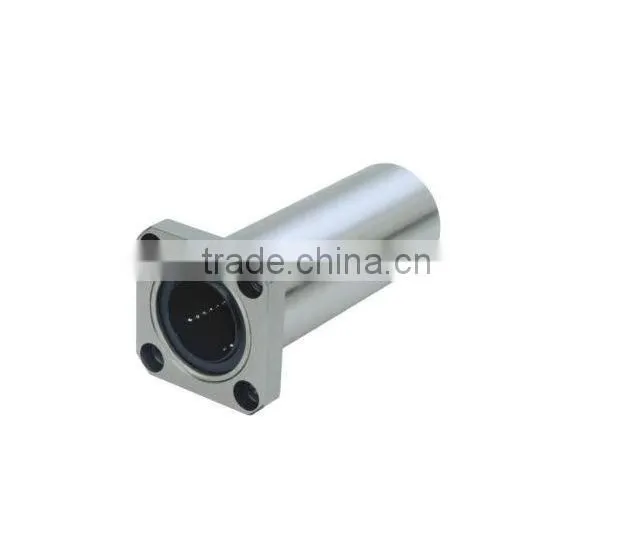

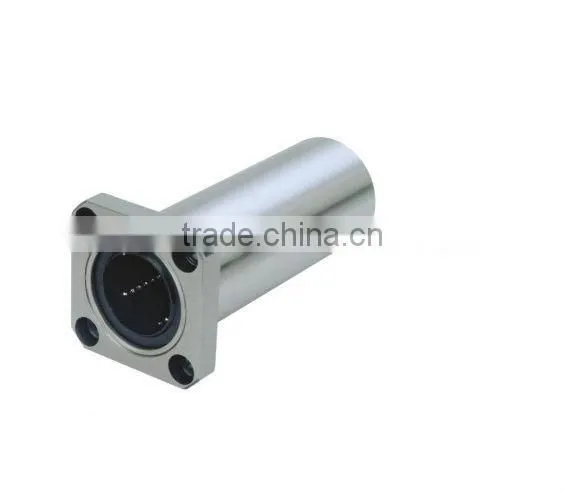

Square flange type electronic equipment linear bearing LMK12UU
Type: Flange linear motion Bearing
Model number: LMK12UU
material: chrome steel
Dimensions:
ID(inner diameter)/Bore=12mm
OD (outer diameter)=21mm
Width/Height/thickness=30mm
Flange linear bearing product LMF---UU LMK----UU (Resin retainer)
This type is a metric dimension series generally used in Asia and other countries
-The ball are circulate endlessly
-Strong in design
-Against high temperature
-High quality&good price
-The balls circulate endlessly.
-Support heavy loads.
Application of the bearing:
Widely used in the defence, guiding, precision machinery, medical instrument, chemical, printing, agriculture, robotic, automatic and production line etc.
| Model Number | Number of ball rows | Main dimension | Flange | Eccentiricity | Basic load rating(n) | Mass(g) | ||||||
| (mm) | ||||||||||||
| FW | D | L | Df | t | P | M | (μm) | Dynamic | Static | |||
| LMK-6 | 4 | 6 | 12 | 19 | 22 | 5 | 20 | M3 | 12 | 200 | 260 | 22 |
| LMK-8 | 4 | 8 | 15 | 24 | 25 | 5 | 25 | M3 | 12 | 260 | 400 | 34 |
| LMK-10 | 4 | 10 | 19 | 29 | 30 | 6 | 29 | M4 | 12 | 370 | 540 | 61 |
| LMK-12 | 4 | 12 | 21 | 30 | 32 | 6 | 32 | M4 | 12 | 410 | 590 | 68 |
| LMK-13 | 4 | 13 | 23 | 32 | 34 | 6 | 33 | M4 | 12 | 500 | 770 | 77 |
| LMK-16 | 5 | 16 | 28 | 37 | 37 | 6 | 38 | M4 | 12 | 770 | 1170 | 110 |
| LMK-20 | 5 | 20 | 32 | 42 | 42 | 8 | 43 | M5 | 15 | 860 | 1370 | 160 |
| LMK-25 | 6 | 25 | 40 | 59 | 50 | 8 | 51 | M5 | 15 | 980 | 1560 | 270 |
| LMK-30 | 6 | 30 | 45 | 64 | 58 | 10 | 60 | M6 | 15 | 1560 | 2740 | 410 |
| LMK-35 | 6 | 35 | 52 | 70 | 64 | 10 | 67 | M6 | 20 | 1660 | 3130 | 560 |
| LMK-40 | 6 | 40 | 60 | 80 | 75 | 13 | 78 | M8 | 20 | 2150 | 4010 | 930 |
Delivery time: a. there is stock for products: 3days
b. no in stock and semi-finished products: 25-35days
Feature:
Condition: 100% Brand New
Item type: Linear slide unit
Item name: Square Flange Linear Bearing
Model: LMK12UU
Shaft ID: 12mm
the picture is just for reference.
Please research the item to ensure it fits your application.
Questions? Please feel free to contact us directly through aliexpress.
Package Included:
50x LMK12UU 12mm Square Flang flange Type Linear Bearing
