Sprag Type One Way Clutch CSK15

Sprag Type One Way Clutch CSK15 thumbnail-1
Sprag Type One Way Clutch CSK15 thumbnail-2
Sprag Type One Way Clutch CSK15 thumbnail-3
Sprag Type One Way Clutch CSK15 thumbnail-4

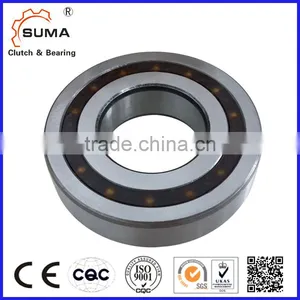

Sprag Type One Way Clutch CSK15 thumbnail-5
Sprag Type One Way Clutch CSK15 thumbnail-6

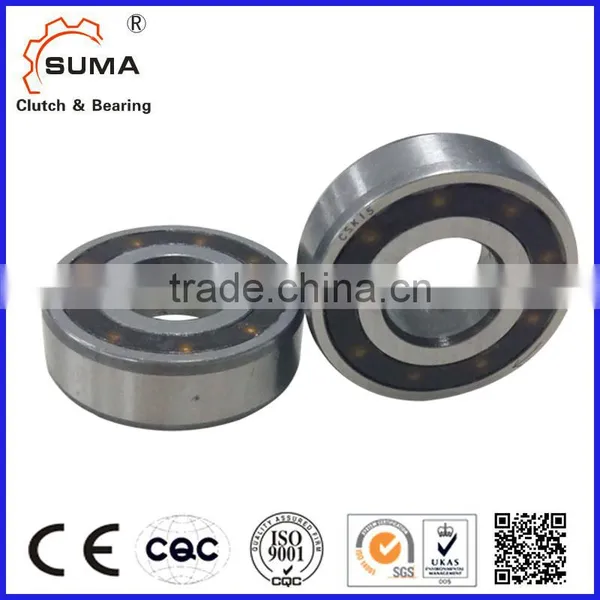

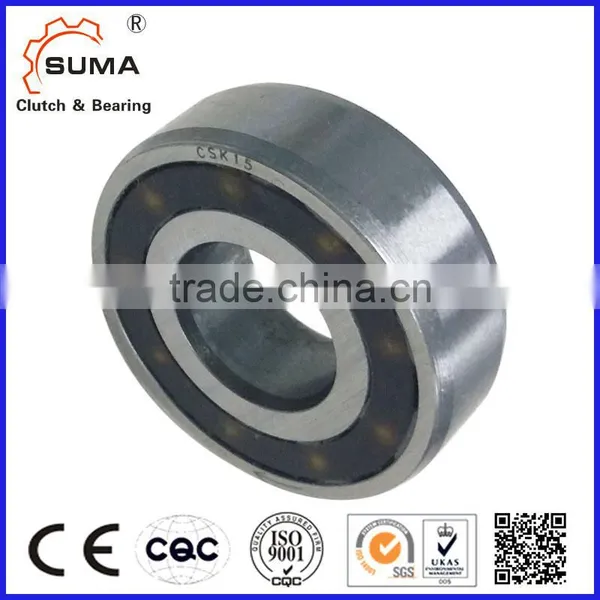

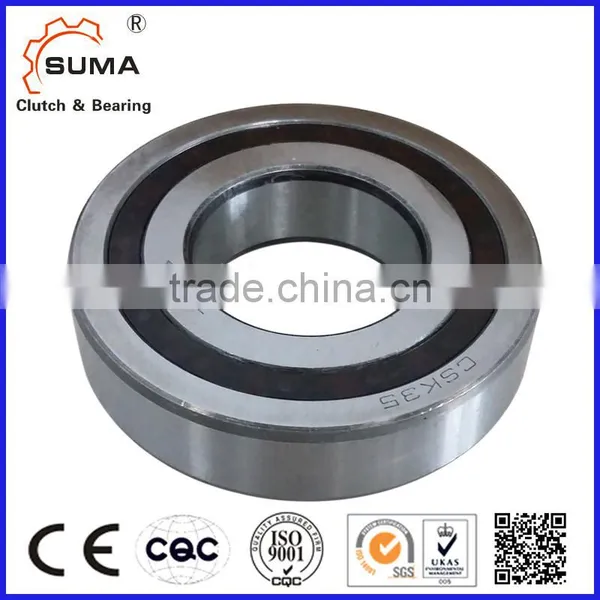

Sprag Type One Way Clutch CSK15 photo-1
Sprag Type One Way Clutch CSK15 photo-2
Sprag Type One Way Clutch CSK15 photo-3
Sprag Type One Way Clutch CSK15 photo-4

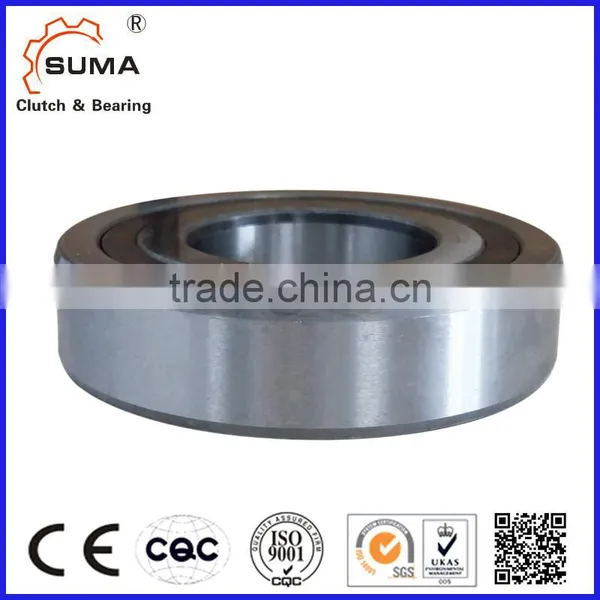

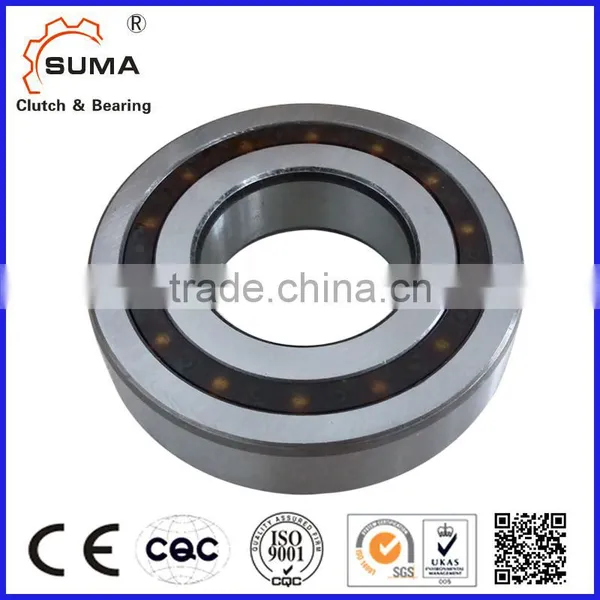

Sprag Type One Way Clutch CSK15 photo-5
Sprag Type One Way Clutch CSK15 photo-6
US$ 2 - 3 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SUMA
Bore Size:
20,
Outside Diameter:
47,
Contact Supplier Request Quote Chat Now
Changzhou Suma Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ; Ningbo for sprag type one way clutch csk15
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUMA
Bore Size 20,
Outside Diameter 47,
Model Number CSK15
Precision Rating P6
Seals Type sealed
Place of Origin Jiangsu, China

Sprag Type One Way Clutch CSK15

Product Description

CSK series are sprag type one way freewheel bearings.

MODEL  CSK / CSK...2RS / CSK...P / CSK...PP / CSK...P-2RS / CSK...PP-2RS
Structure  Sprag type
Available Size  ID 8-40MM, OD 22-80MM
Delivery time  In stock
Package  Tube / Carton - 19*14.5*7.5cm Box - 29*28*19 Box - Pallet  or Customized
Payment Terms  TT, D/P, D/A, Western Union, Paypal, Bank
 Shipping Way   By air ( TNT/ FEDEX / UPS / DHL) , By sea
 Warranty   1 Year



Sprag Type One Way Clutch CSK15

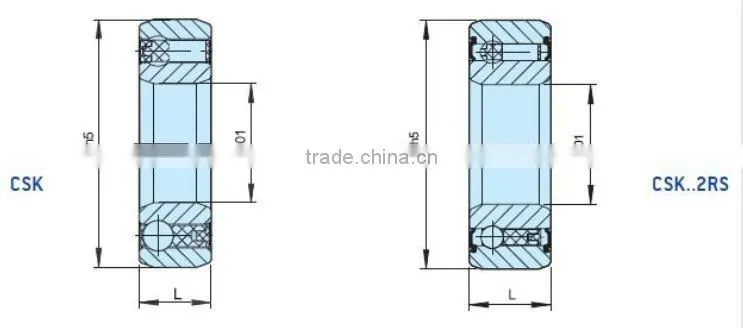

SPECIFICATIONS

Type Size Bearing series Dimension Bearing loads Weight Drag torque
dynamic static
CSK(KK) d   TKN1) N max Outer Dia. Length C C0   TR
[mm]   [Nm] [min-1] [mm] [mm] [kN] [kN] [kg] [Ncm]
8* – 2.5 15000 22 9 3.28 0.86 0.015 0.5
10 6200 6.8 13000 30 9 4.5 1.56 0.032 0.36
12 6201 9.3 10000 32 10 6.1 2.77 0.04 0.7
15 6202 17 8400 35 11 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 10.7 5.46 0.14 2
30 6206 138 4200 62 16 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 15.54 12.25 0.5 7



Type Size Bearing series   Bearing loads Weight

Drag

torque
dynamic static
CSK..P d   TKN1) nmax D L b t C C0 TR
[mm]   [Nm] [min-1] [mm] [mm] [mm] [mm] [kN] [kN] [kg] [Ncm]
12 6201 9.3 10000 32 10     6.1 2.77 0.04 0.7
15 6202 17 8400 35 11     7.4 3.42 0.06 0.9
17 6203 30 7350 40 12     7.9 3.8 0.07 1.1
20 6204 50 6000 47 14     9.4 4.46 0.11 1.3
25 6205 85 5200 52 15     10.7 5.46 0.14 2
30 6206 138 4200 62 16     11.7 6.45 0.21 4.4
35 6207 175 3600 72 17     12.6 7.28 0.3 5.8
40 – 325 3000 80 22     15.54 12.25 0.5 7
CSK..PP 15 6202 17 8400 35 11 2 0.6 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 2 1 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 3 1.5 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 6 2 10.7 5.46 0.14 2
30 6206 138 4200 62 16 6 2 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 8 2.5 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 10 3 15.54 12.25 0.5 7
45 _ 218 1600 85 19 12 2.5 18.36 15.35 0.44 9.3
50 _ 230 1500 90 20 12 2.5 19.53 17.68 0.49
CSK..P-2RS 12 – 9.3 10000 32 14     6.1 2.77 0.05 3
15 – 17 8400 35 16     7.4 3.42 0.07 4
17 – 30 7350 40 17     7.9 3.8 0.09 5.6
20 – 50 6000 47 19     9.4 4.46 0.145 6
25 – 85 5200 52 20     10.7 5.46 0.175 6
30 – 138 4200 62 21     11.7 6.45 0.27 7.5
35 – 175 3600 72 22     12.6 7.28 0.4 8.2
40 – 325 3000 80 27     15.54 12.25 0.6 10

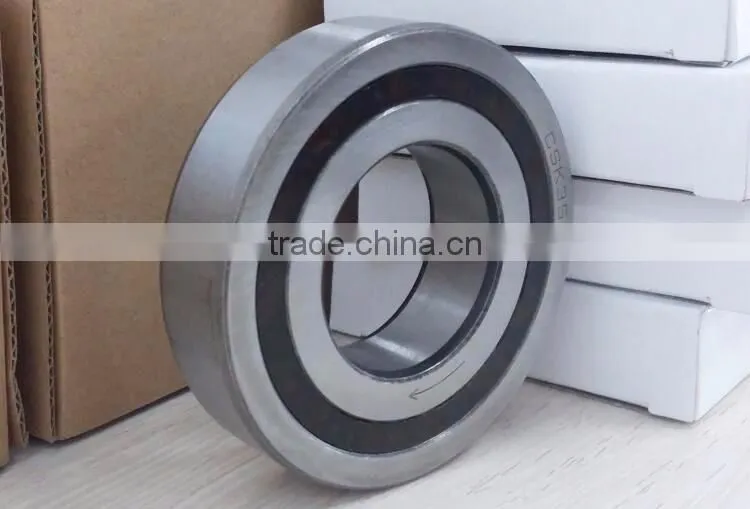

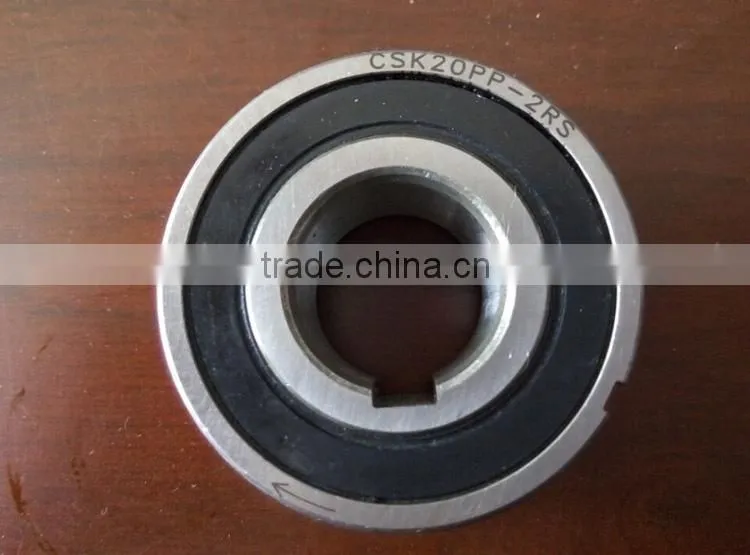

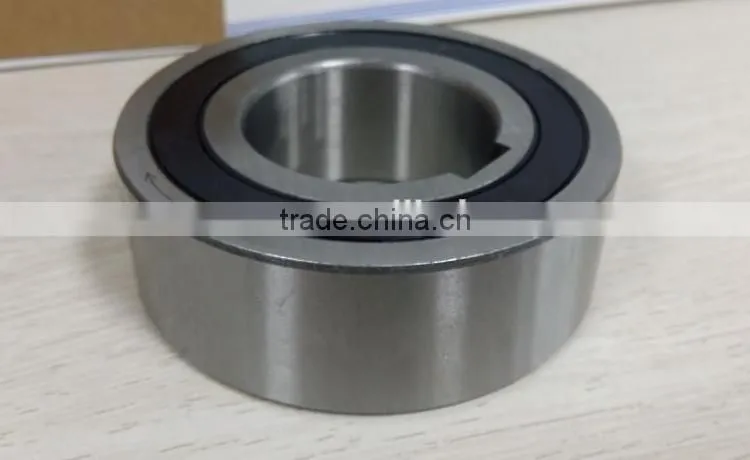

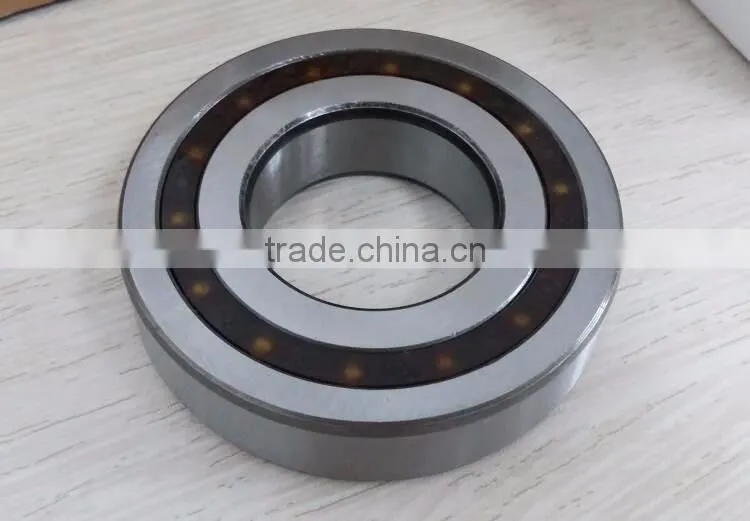

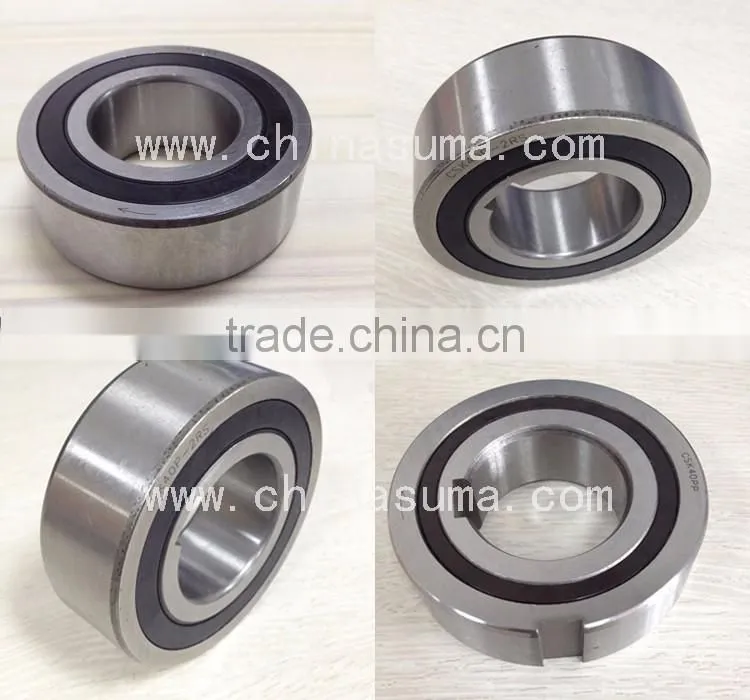

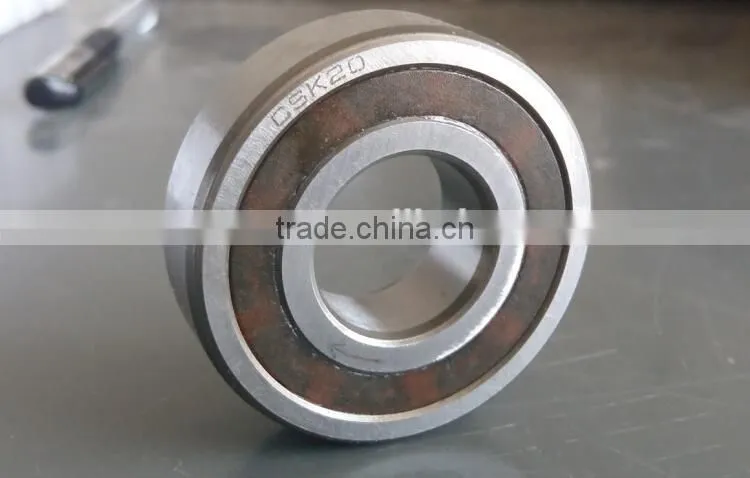

Detail Images

Sprag Type One Way Clutch CSK15

Sprag Type One Way Clutch CSK15Sprag Type One Way Clutch CSK15

Sprag Type One Way Clutch CSK15

Sprag Type One Way Clutch CSK15

Sprag Type One Way Clutch CSK15

Packaging & Shipping

Sprag Type One Way Clutch CSK15

Company Information

 Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

 Sprag Type One Way Clutch CSK15

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Clients Visit

Sprag Type One Way Clutch CSK15

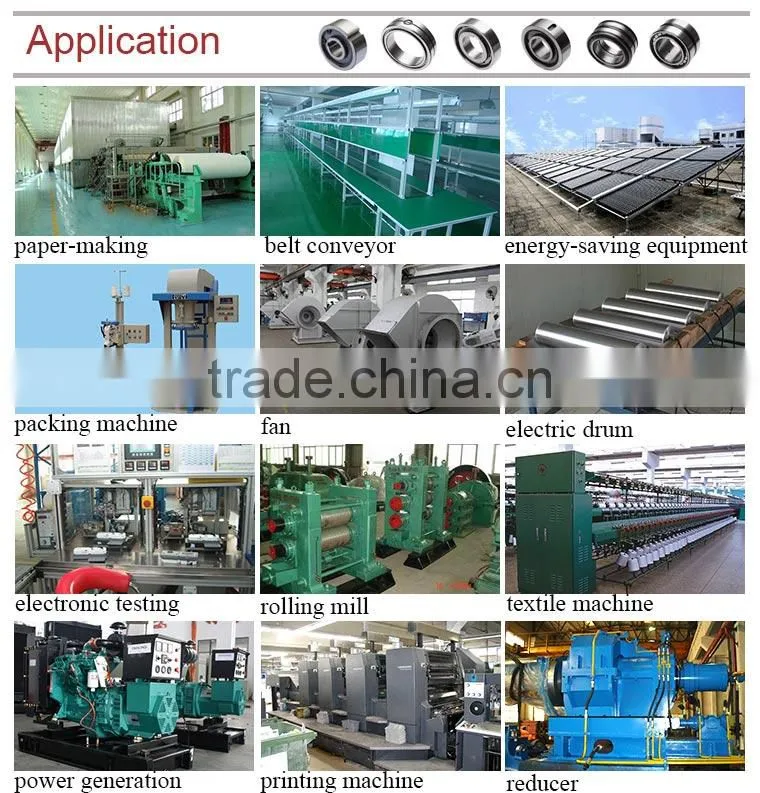

Application

Sprag Type One Way Clutch CSK15

After-Sales Service

Pre-sale service:

We will delivery the goods in 10 days after your order is confirmed.

After sale service:

Our factory provide technical assistance to support every doubt during usage and maintenance.

FAQ

Q: How do you pack the sprag type one way clutch csk15?

A: Usually csk20 sprag are packed in the wooden box. It can be done as your specfic demands.

Q: Can i get the samples of sprag type one way clutch csk15 from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the sprag type one way clutch csk15 in time?

A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.

Any needs, you are warmly welcomed to contact me at any time !
