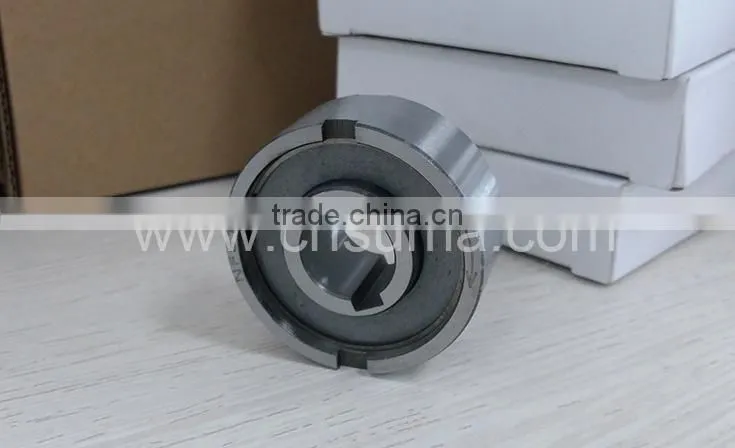

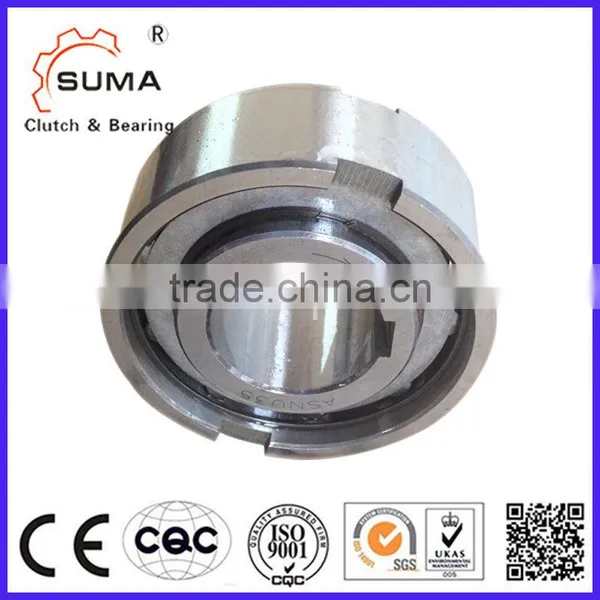

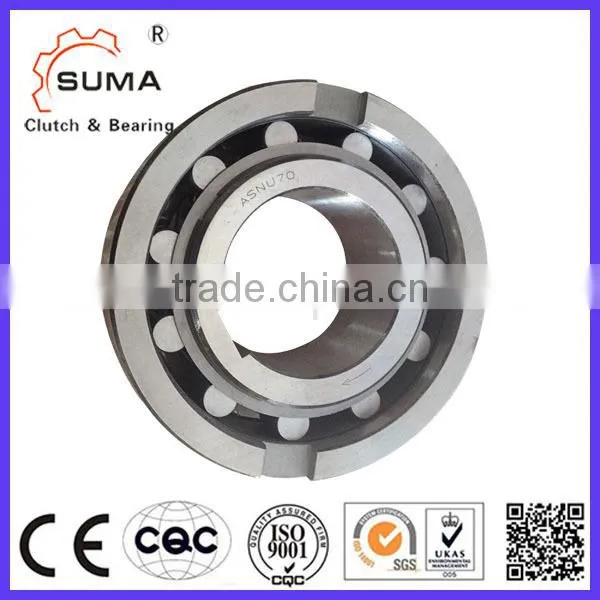

Cam Clutch One Way Clutch Roller Bearing for Fan ASNU80
Features of asnu one way clutch roller bearing :
NFS is a roller type freewheel non-bearing supported. Bearing are supporte axil and radial load. Lubrication and sealing must be also provided by installation.
Product name |
one way clutch bearing |
Model |
ASNU80 |
Material |
Chrome steel GCr15 |
Inner diameter |
80mm |
Outer diameter |
170mm |
Torque capacity |
3275Nm |
Weight |
6.09kg |
Structure |
Roller type without bearing supported |
Application |
Textile machine, fans, ventilators, printing machine |
Package |
Wooden box |
Payment terms |
TT. L/C, D/A,D/P,Western Union |
Delivery time |
2-4 days for the sample, 7 days for big order |
Catalogue of one way clutch roller bearing ASNU for your choice

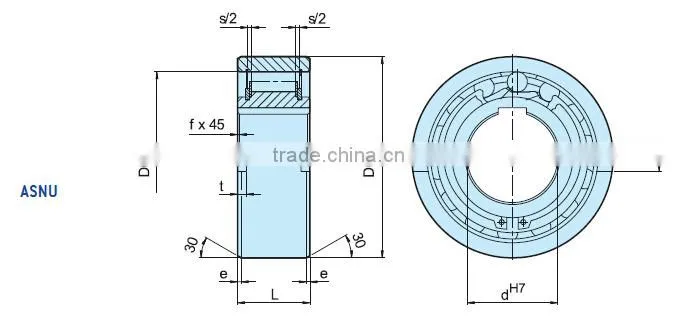

Since ASNU NFS type one way clutch is a roller type without bearing supported, bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. The inner race is keyed to the shaft. The outer race has positive n6 tolerance, to give a press fitin a H7 housing.
Type |
Size |
|
Overrunning Speeds |
|
Weight |
Drag torque |
||||||||
|
ASNU (NFS) |
dH7 |
TKN1) |
nimax2) |
namax3) |
Dn6 |
D5 |
L |
b |
t |
s |
e |
f |
|
TR |
[mm] |
[Nm] |
[min-1] |
[min-1] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[kg] |
[Ncm] |
|
8 |
12 |
3300 |
5000 |
35 |
28 |
13 |
4 |
1.4 |
2.4 |
0.6 |
0.3 |
0.07 |
1.6 |
|
12 |
12 |
3300 |
5000 |
35 |
28 |
13 |
4 |
1.4 |
2.4 |
0.6 |
0.3 |
0.06 |
1.6 |
|
15 |
30 |
2400 |
3600 |
42 |
37 |
18 |
5 |
1.8 |
2.4 |
0.8 |
0.3 |
0.11 |
1.9 |
|
17 |
49 |
2300 |
3400 |
47 |
40 |
19 |
5 |
2.3 |
2.4 |
1.2 |
0.8 |
0.15 |
1.9 |
|
20 |
78 |
2100 |
3100 |
52 |
42 |
21 |
6 |
2.3 |
2.4 |
1.2 |
0.8 |
0.19 |
1.9 |
|
25 |
125 |
1700 |
2600 |
62 |
51 |
24 |
8 |
2.8 |
2.4 |
1.2 |
0.8 |
0.38 |
5.6 |
|
30 |
255 |
1400 |
2200 |
72 |
60 |
27 |
10 |
2.5 |
2.4 |
1.8 |
1 |
0.54 |
14 |
|
35 |
383 |
1200 |
1900 |
80 |
70 |
31 |
12 |
3.5 |
2.4 |
1.8 |
1 |
0.74 |
16 |
|
40 |
538 |
1100 |
1700 |
90 |
78 |
33 |
12 |
4.1 |
2.5 |
1.8 |
1 |
0.92 |
38 |
|
45 |
780 |
1000 |
1600 |
100 |
85 |
36 |
14 |
4.6 |
2.5 |
1.8 |
1 |
1.31 |
43 |
|
50 |
1013 |
850 |
1350 |
110 |
92 |
40 |
14 |
5.6 |
2.5 |
1.8 |
1 |
1.74 |
55 |
|
60 |
1825 |
750 |
1050 |
130 |
110 |
46 |
18 |
5.5 |
3.6 |
2.6 |
1.5 |
2.77 |
110 |
|
70 |
2300 |
600 |
950 |
150 |
125 |
51 |
20 |
6.9 |
3.6 |
2.6 |
1.5 |
4.16 |
140 |
|
80 |
3275 |
550 |
850 |
170 |
140 |
58 |
20 |
7.5 |
3.6 |
2.6 |
1.5 |
6.09 |
180 |
|
90 |
5325 |
500 |
750 |
190 |
160 |
64 |
20 |
8 |
3.6 |
2.6 |
2 |
8.2 |
230 |
|
100 |
7250 |
450 |
680 |
215 |
175 |
73 |
24 |
8.5 |
3.6 |
2.6 |
2 |
12.6 |
380 |
|
120 |
13500 |
370 |
550 |
260 |
215 |
86 |
28 |
10 |
3.6 |
2.6 |
2.5 |
22 |
650 |
|
150 |
26625 |
300 |
460 |
320 |
260 |
108 |
32 |
12 |
3.6 |
3.6 |
2.5 |
42 |
1000 |
|
200 |
44500 |
230 |
350 |
420 |
350 |
138 |
45 |
16 |
7.6 |
3.6 |
3 |
93 |
2000 |
|
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Accept Payment terms are: L/C,D/A,D/P,T/T,Western Union,Money Gram
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the asnu one way clutch roller bearing ?
A: Usually asnu one way clutch roller bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of asnu one way clutch roller bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the asnu one way clutch roller bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
