SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way

SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way thumbnail-1
SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way thumbnail-2
SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way thumbnail-3
SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way thumbnail-4
SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way thumbnail-5
SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way thumbnail-6
SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way photo-1

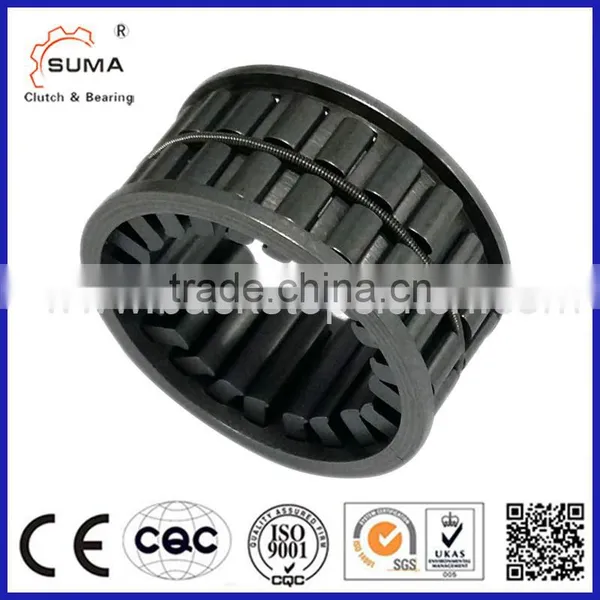

SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way photo-2
SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way photo-3

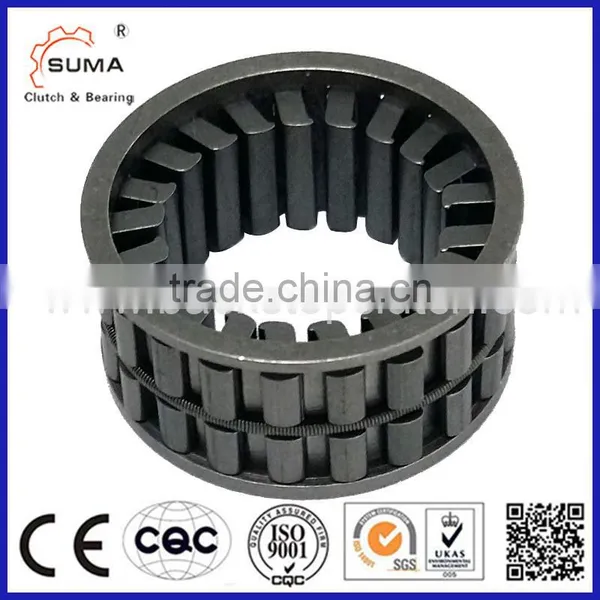

SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way photo-4

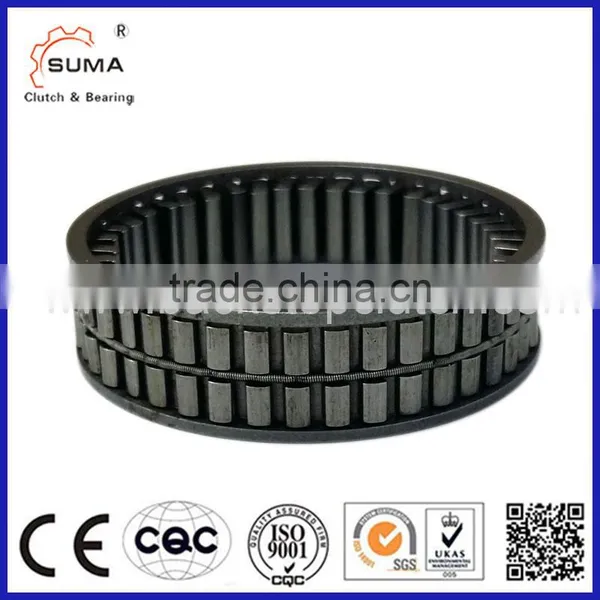

SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way photo-5
SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way photo-6
US$ 2 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SUMA of holdback bearing fe
Bore Size:
2, 80
Outside Diameter:
10, 88
Contact Supplier Request Quote Chat Now
Changzhou Suma Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo for Holdback Bearing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUMA of holdback bearing fe
Bore Size 2, 80
Outside Diameter 10, 88
Model Number FE clutch bearing
Precision Rating P6
Seals Type Non sealed
Place of Origin Jiangsu, China



SUMA Bearing FE430Z2 Backstop Clutch Holdback Bearing  1 Way



Product Description



Description: holdback bearing

Material:  Chrome Steel GCr15

Structure: FE series Freewheelclutches transmit or support torque moment by friction contact

in one direction and permit idling in the opposite direction.

Application: indexing, backstop, overrunning

 Sample:  accept

Delivery time:  5-7 days after order confirmed.

Package:  wooden box, carton or customized.

Payment terms:  TT, L/C, D/A, D/P, Western Union, Paypal



Catalogue of holdback bearing for your choice

SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way

SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way



Dimensions    [mm] FE 400 FE 400 Z  FE 400 Z2 Idling speed Clutch
dL DL Part Number Torque  M   [N.m] Part Number

Torque M

 [N.m]

 Part  Number

Torque  M

 [N.m]

 nmax [RPM]
2 10         FE 410 Z2 0.3 10,000
4 12     FE 412 Z 3 FE 412 Z2 1.8 10,000
5 13         FE 413 Z2 2.9 9,000
6 14     FE 414 Z 7 FE 414 Z2 2.6 8,500
8 16     FE 416 Z 12 FE 416 Z2 7.6 7,500
14 22 FE 422 48 FE 422 Z 44 FE 422 Z2 21 5,300
15 23 FE 423 55 FE 423 Z 48 FE 423 Z2 24 5,200
17 25 FE 425 68 FE 425 Z 58 FE 425 Z2 30 4,700
19 27 FE 427 80 FE 427 Z 66 FE 427 Z2 36 4,400
20 28 FE 428 87 FE 428 Z 75 FE 428 Z2 39 4,200
22 30 FE 430 101 FE 430 Z 87 FE 430 Z2 46 4,000
24 32 FE 432 116 FE 432 Z 97 FE 432 Z2 52 3,700
25 33 FE 433 124 FE 433 Z 107 FE 433 Z2 56 3,600
27 35 FE 435 141 FE 435 Z 121 FE 435 Z2 64 3,400
29 37 FE 437 158 FE 437 Z 137 FE 437 Z2 71 3,200
30 38 FE 438 168 FE 438 Z 144 FE 438 Z2 76 3,100
34 42 FE 442 207 FE 442 Z 178 FE 442 Z2 93 2,800
35 43 FE 443 217 FE 443 Z 187 FE 443 Z2 98 2,700
40 48 FE 448 272 FE 448 Z 235 FE 448 Z2 122 2,500
45 53 FE 453 333 FE 453 Z 281 FE 453 Z2 146 2,200
50 58 FE 458 400 FE 458 Z 345 FE 458 Z2 178 2,000
51 59 FE 459 414 FE 459 Z 357
55 63 FE 463 472 FE 463 Z 407 FE 463 Z2 202 1,900
60 68 FE 468 550 FE 468 Z 474 FE 468 Z2 243 1,750
62 70 FE 470 583 FE 470 Z 502     1,700
65 73 FE 473 633 FE 473 Z 545     1,600
70 78 FE 478 722 FE 478 Z 622     1,500
80 88 FE 488 914 FE 488 Z 788     1,300

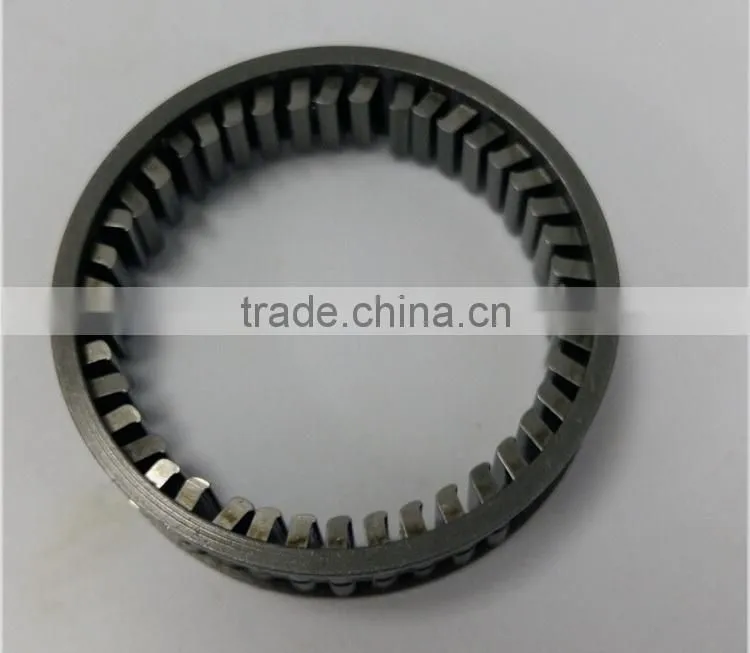

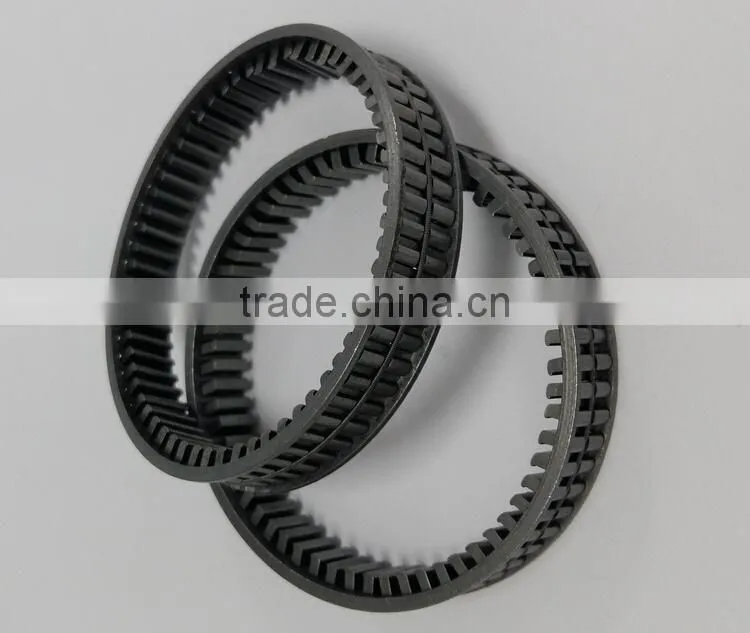

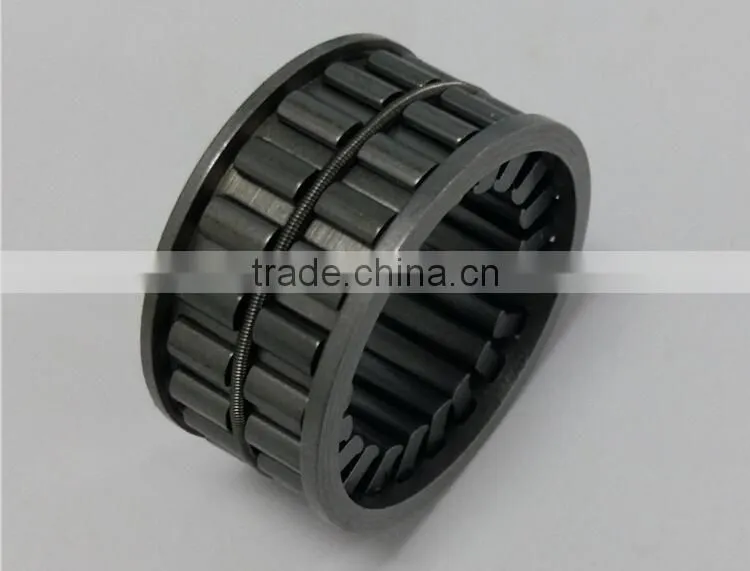

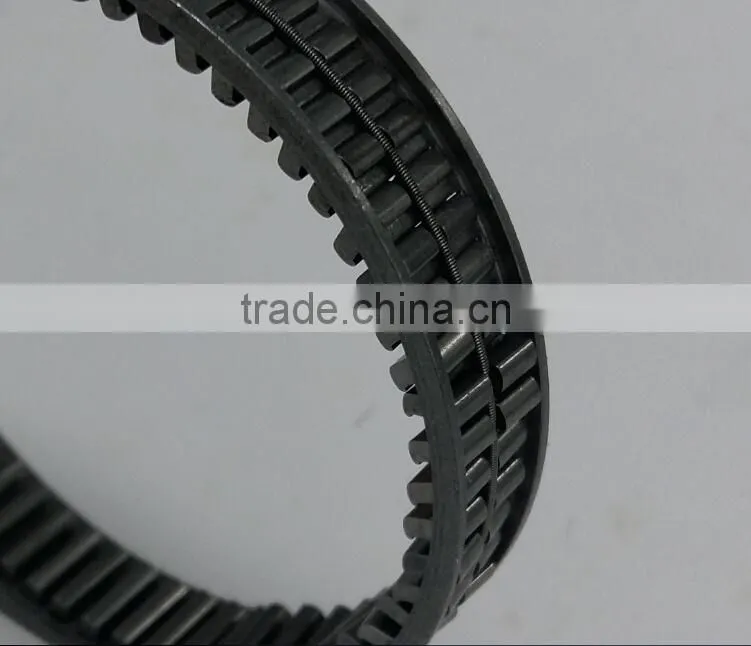

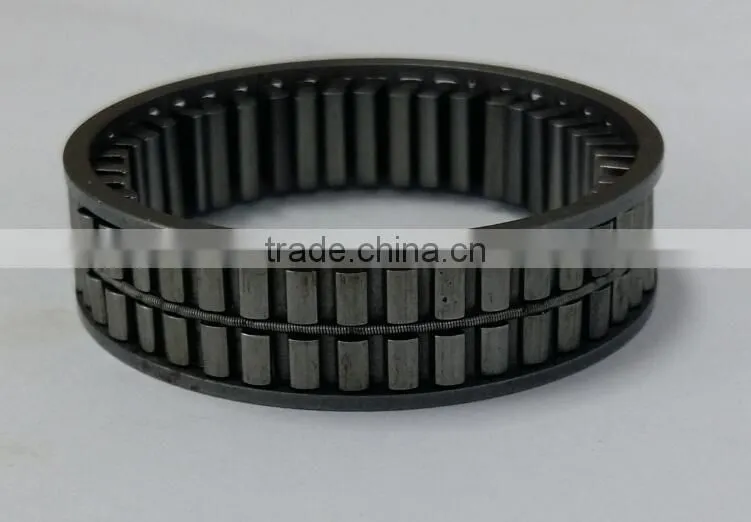

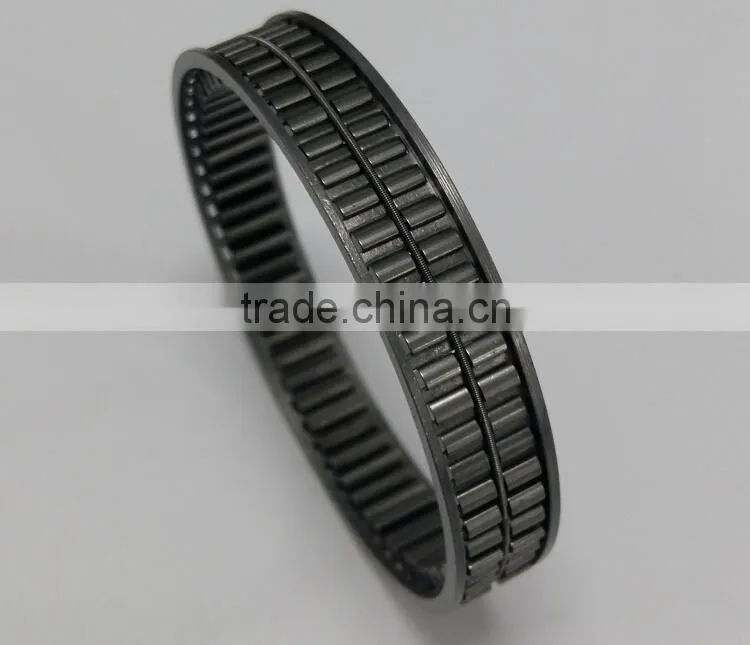

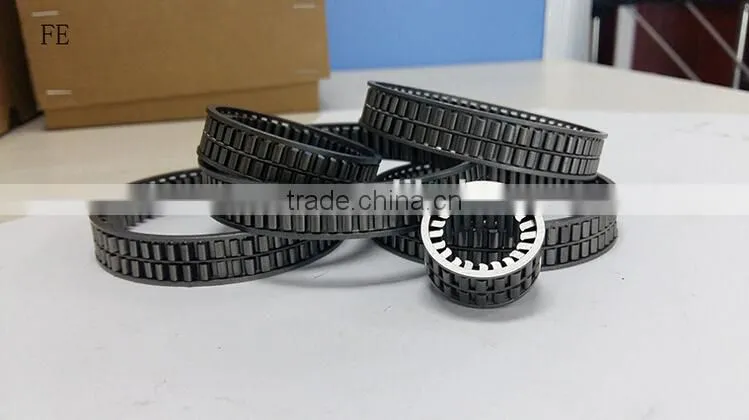

Detailed Images



 SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One WaySUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One WaySUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One WaySUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One WaySUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One WaySUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way





Company Information



Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.



Factory Production

SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way

Payment Terms



Our Accept Payment terms are:  L/C,D/A,D/P,T/T,Western Union,Money Gram



After-Sales Service



Pre-sale service:

We will delivery the goods in 10 days after your order is confirmed.

After sale service:

Our factory provide technical assistance to support every doubt during usage and maintenance.

FAQ

Q: How do you pack the holdback bearing ?

A: Usually holdback bearing are packed in the wooden box. It can be done as your specfic demands.

Q: Can i get the samples of holdback bearing from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the holdback bearing in time?

A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
