DC One Way Bearing Sprag Cage/ One Way Bearing Race/sprag Clutch With Races

DC One Way Bearing Sprag Cage/ One Way Bearing Race/sprag Clutch With Races thumbnail-1
DC One Way Bearing Sprag Cage/ One Way Bearing Race/sprag Clutch With Races thumbnail-2
DC One Way Bearing Sprag Cage/ One Way Bearing Race/sprag Clutch With Races thumbnail-3
DC One Way Bearing Sprag Cage/ One Way Bearing Race/sprag Clutch With Races photo-1

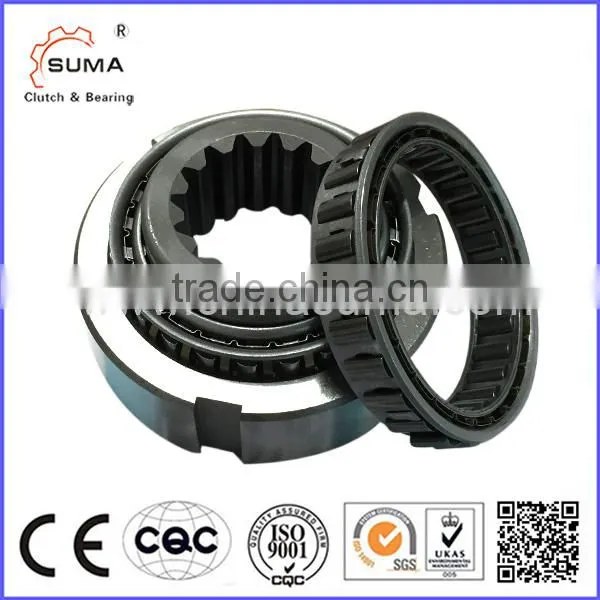

DC One Way Bearing Sprag Cage/ One Way Bearing Race/sprag Clutch With Races photo-2
DC One Way Bearing Sprag Cage/ One Way Bearing Race/sprag Clutch With Races photo-3
US$ 8 - 8 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OEM or SUMA
Bore Size:
41.275,
Outside Diameter:
88.877,
Contact Supplier Request Quote Chat Now
Changzhou Suma Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai; Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name OEM or SUMA
Bore Size 41.275,
Outside Diameter 88.877,
Model Number DC4127(3C)-N
Precision Rating P6
Seals Type No-sealed
Place of Origin Jiangsu, China

  DC one way bearing sprag cage/ one way bearing race DC one way bearing sprag cage/ one way bearing race/sprag clutch with races

Product Description





DC one way bearing sprag cage/ one way bearing race
Details
Model DC4127(3C)-N
Material GCr15
Type sprag
Inner Diameter 41.275mm
Outer Diameter 57.935mm
Weight 0.09kg
Width 13.5mm
Overrunning speed Inner race 4600r/min
Outer race 2300r/min
Application Industrial machines

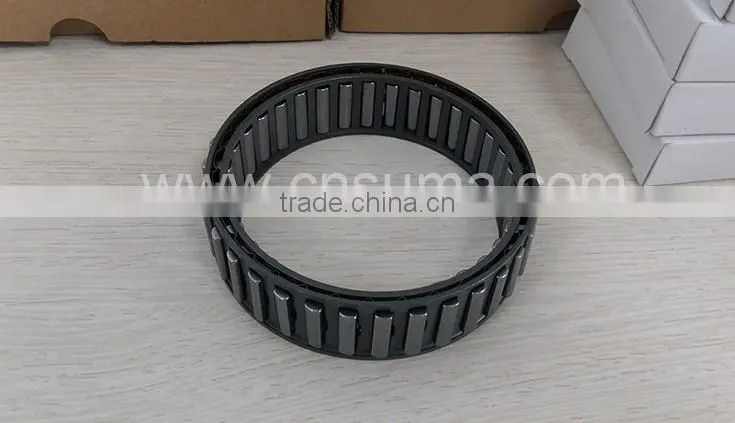

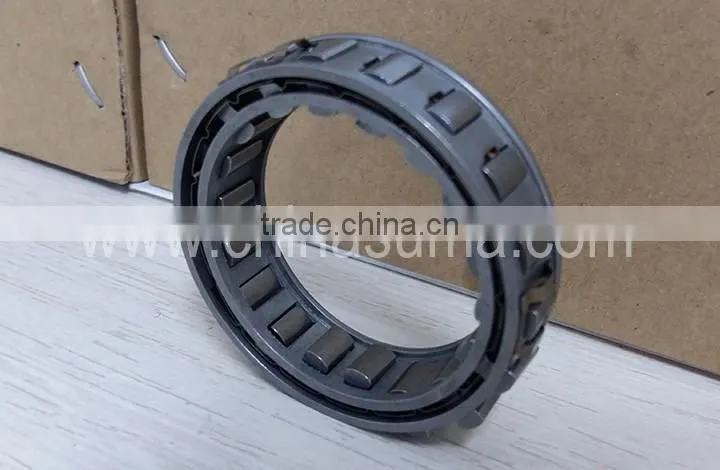

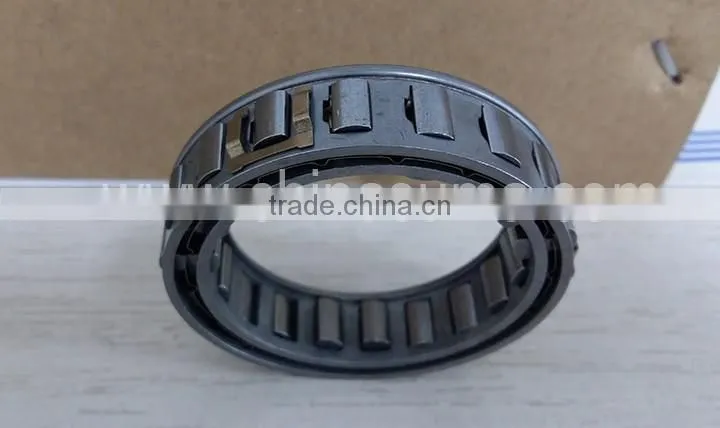

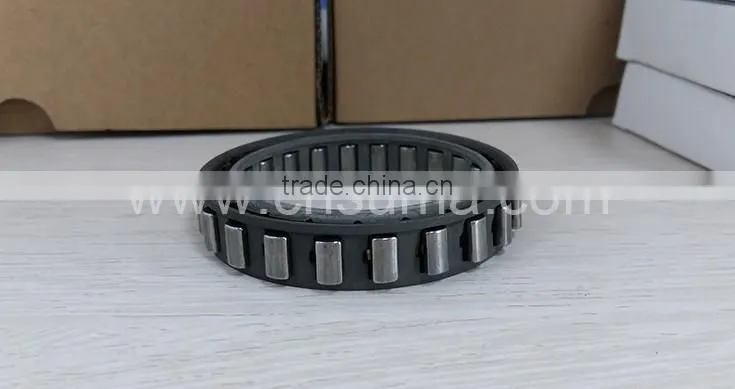

  Detail images

DC one way bearing sprag cage/ one way bearing race/sprag clutch with racesDC one way bearing sprag cage/ one way bearing race/sprag clutch with races

DC one way bearing sprag cage/ one way bearing race/sprag clutch with races

DC one way bearing sprag cage/ one way bearing race/sprag clutch with races





1.Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing.

2.The DC type version-N accepts all types of lubricants currently used in the power transmission equipement.
3.The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly .

4.Alternatively, races can be made in case hardened steel shafts, or housings,
Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0,6 mm minimum.
5.Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between races:0,007 mm for 25 mm width.

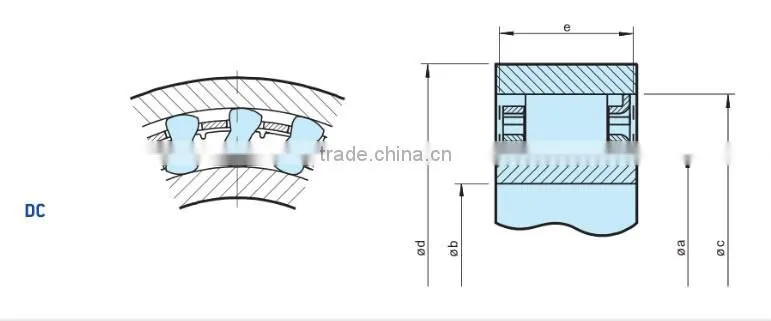

specifications

 DC one way bearing sprag cage/ one way bearing race/sprag clutch with races



Size   Overrunning speeds   Sprag space

Number



of  clips

Number



of sprags

 Weight
  TKN1) nimax2) namax3) Øa+0.008 Øc± 0.013   emin Ødmin Øbmax
  -0.005
[Nm] [min -1] [min -1] [mm] [mm] [mm] [mm] [mm] [mm]     [kg]
DC2222G-N 63  8600  4300  22.225 38.885 8.33±0.075 10 50  15  – 12  0.03
DC2776-N 119  6900  3400  27.762 44.422 8.33±0.075 13.5 58  18  – 14  0.055
DC3034-N 124  6300  3100  30.34 47 8.33±0.075 13.5 62  20  – 14  0.06
DC3175(3C)-N 159  6000  3000  31.75 48.41 8.33±0.075 13.5 63  21  3  16  0.06
DC3809A-N 275  5000  2500  38.092 54.752 8.33±0.075 16 71  25  – 18  0.085
DC4127(3C)-N 224  4600  2300  41.275 57.935 8.33±0.075 13.5 75  27  3  18  0.09
DC4445A-N 363  4300  2100  44.45 61.11 8.33±0.1 16 79  29  – 20  0.095
DC4972(4C)-N 306  3800  1900  49.721 66.381 8.33±0.1 13.5 86  33  4  22  0.1
DC5476A-N 525  3500  1700  54.765 71.425 8.33±0.1 16 92  36  – 24  0.11
DC5476A(4C)-N 525  3500  1700  54.765 71.425 8.33±0.1 16 92  36  4  24  0.13
DC5476B(4C)-N 769  3500  1700  54.765 71.425 8.33±0.1 21 92  36  4  24  0.18
DC5476C(4C)-N 990  3500  1700  54.765 71.425 8.33±0.1 25.4 92  36  4  24  0.2
DC5776A-N 604  3300  1600  57.76 74.42 8.33±0.1 16 98  38  – 26  0.11
DC6334B-N 806  3000  1500  63.34 80 8.33±0.1 21 104  42  – 26  0.175
DC7221(5C)-N 675  2600  1300  72.217 88.877 8.33±0.1 13.5 115  48  5  30  0.14
DC7221B-N 1279  2600  1300  72.217 88.877 8.33±0.1 21 115  48  – 30  0.185
DC7221B(5C)-N 1279  2600  1300  72.217 88.877 8.33±0.1 21 115  48  5  30  0.21
DC7969C(5C)-N 2038  2400  1200  79.698 96.358 8.33±0.1 25.4 124  53  5  34  0.28
DC8334C-N 2055  2300  1100  83.34 100.000  8.33±0.1 25.4 132  55  – 34  0.27
DC8729A-N 1250  2200  1100  87.29 103.96 8.33±0.1 16 134  58  – 34  0.165
DC10323A(5C)*-N 1612  1800  900  103.231** 119.891 8.33±0.1 16 155  68  5  40  0.205
DC12334C*-N 4800  1500  750  123.340** 140.000  8.33±0.1 25.4 184  80  – 50  0.4
DC12388C(11C) 4875  1500  750  123.881 142.88 9.50±0.1 25.4 186  80  11  44  0.4

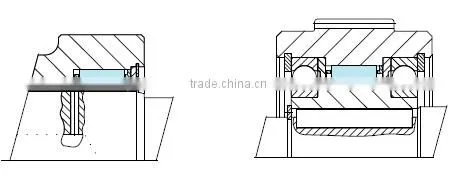

   Mounting example

DC one way bearing sprag cage/ one way bearing race/sprag clutch with races

Company Information

Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and needle roller bearing with high technology

DC one way bearing sprag cage/ one way bearing race/sprag clutch with races

DC one way bearing sprag cage/ one way bearing race/sprag clutch with races

Production and Test

DC one way bearing sprag cage/ one way bearing race/sprag clutch with races

Cooperative Relation

DC one way bearing sprag cage/ one way bearing race/sprag clutch with races

DC one way bearing sprag cage/ one way bearing race/sprag clutch with races

FAQ

Q: Why do we choose your company?

A: We always insist quality firstly. We have our bearing factory, therefore we have advantage in quality control and price.



Q:What is the delivery time?

A: Most of the bearings are in stock. For small quantity, we will arrange delivery within 3 days. Bulk quantity within 25-40 days,



Q: What is your payment term?

A: Our payment term include L/C, T/T, Western Union, Paypal etc.



Q: Can you send bearing samples first?

A: Yes, we can send bearing samples to check quality first.

Q: How do you pack the goods?

A: 1. Industrial packaging: plastic bag + kraft paper + carton or wooden ; plastic tube + carton

     2. Commercial packing: 1pc/plastic bag + color box + carton
     3. As the clients' requirement

Q: how do you delivery the goods?

A:  For small orders,we send by express UPS,DHL,FEDEX, or EMS with Thracking number. For        big quantity, we will ship by air or by sea.
