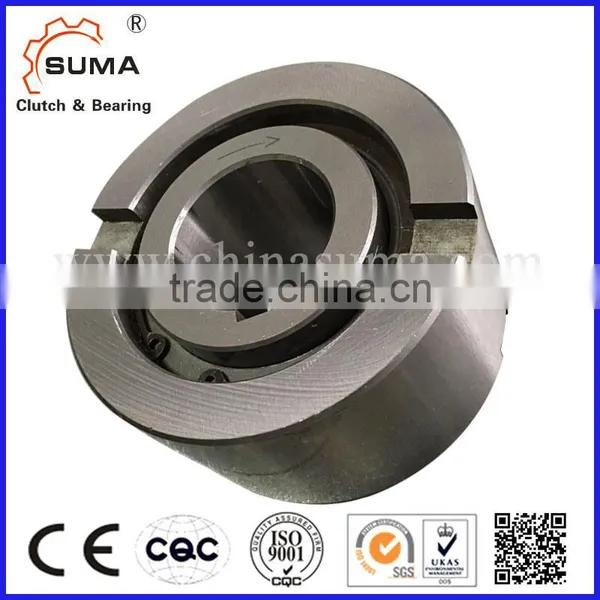

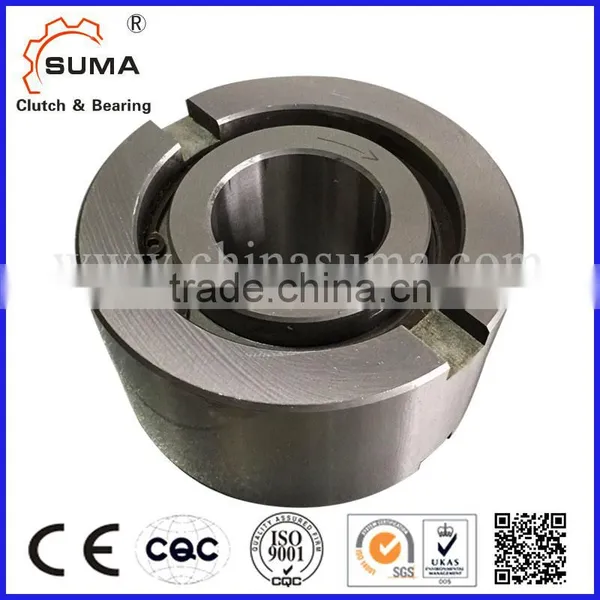

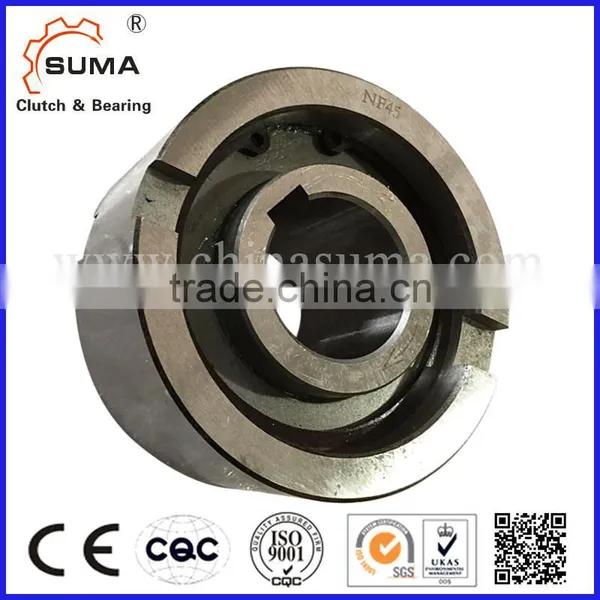

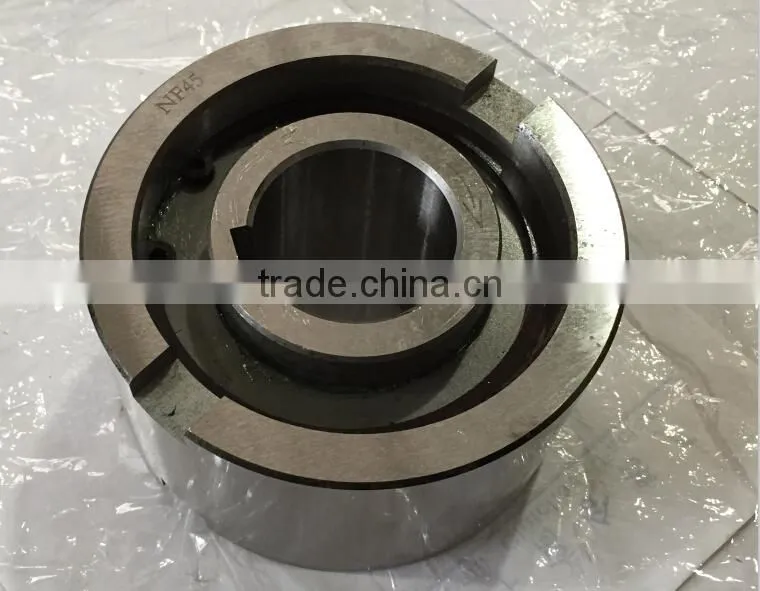

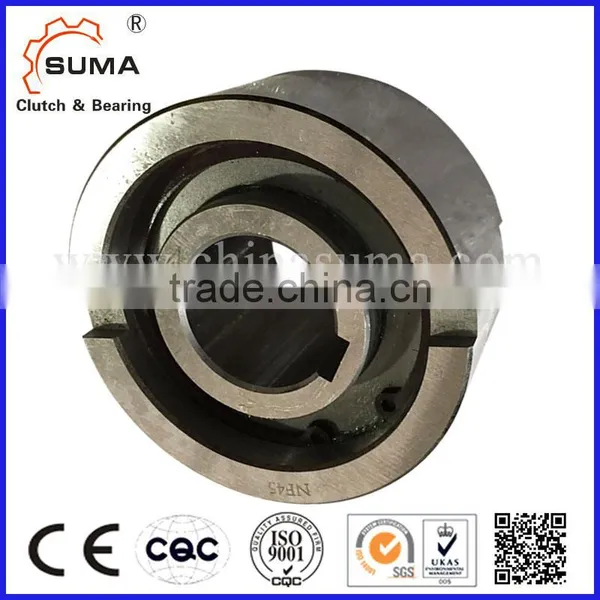

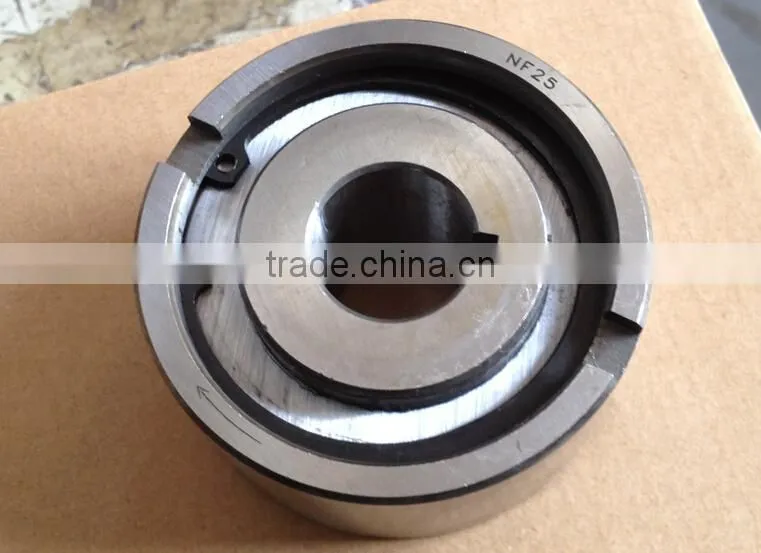

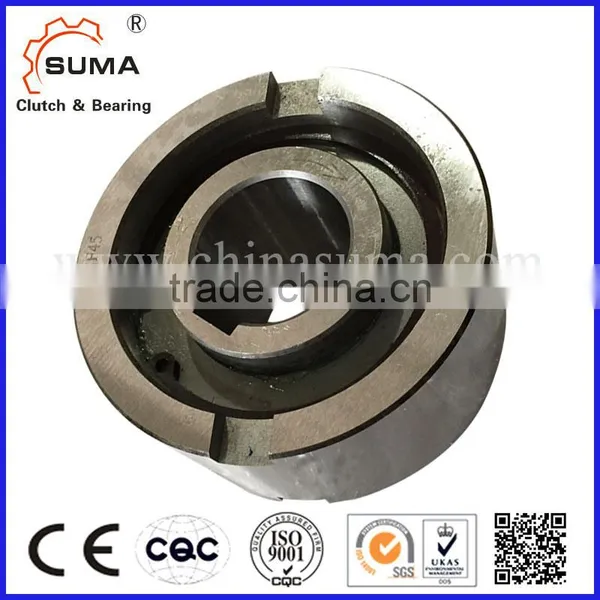

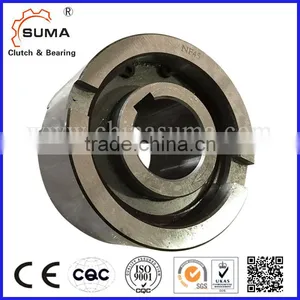

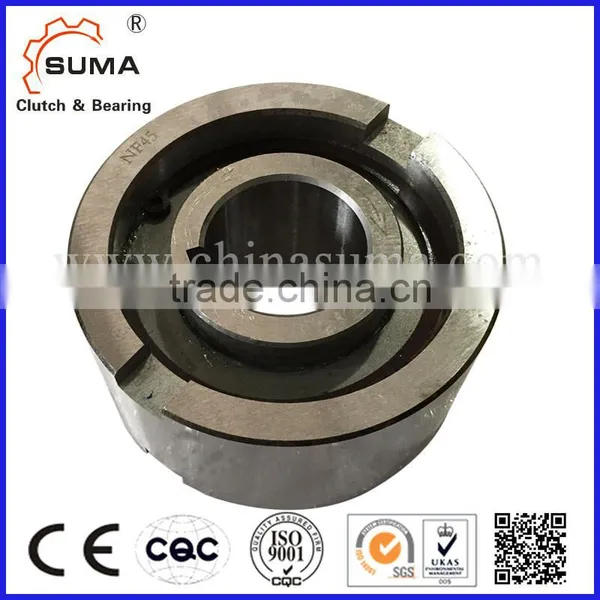

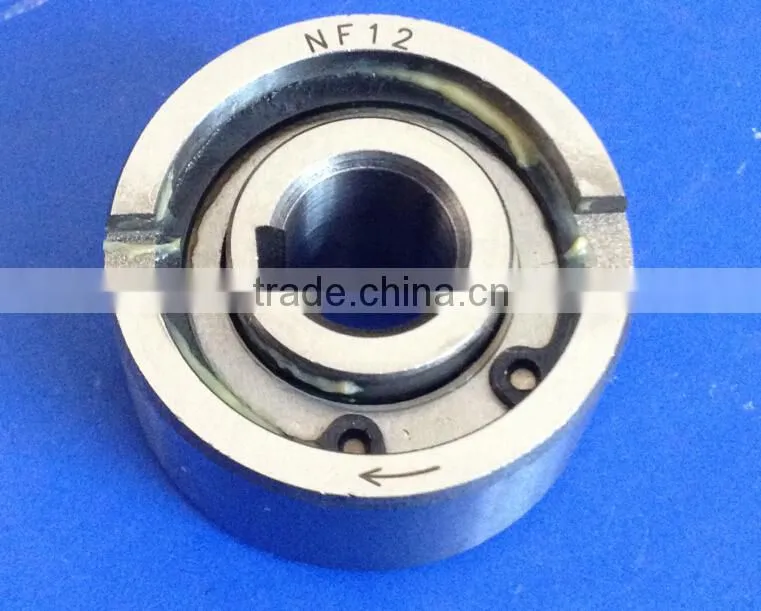

NF40 One Way Clutch Printer Machine Bearing
Features of printer machine bearing
Type NF is roller type freewheel non-bearing supported.
Standard lubrication is OIL.
Lubrication and sealing must be provided by the installation.
Available Size:
Bore diameter: 8-150mm
Outer diameter: 37-320mm
Product name |
printer machine bearing |
Model |
NF 40 |
Material |
GCr15 |
Precision |
P6 |
Inner race overrunning speed |
1250r/min |
Outer race overrunning speed |
1700r/min |
Inner diameter |
40mm |
Outer diameter |
110mm |
Weight |
3.1Kg |
Torque Capacity |
1100Nm |
Application |
Reducer, Printer machine, Texitle Machine, Belt Conveyor, Salt industry |
Package |
Wooden box, tube, pulley, etc |
Payment terms |
TT. L/C, D/A,D/P,Western Union,Paypal |
Delivery time |
2-4 days for the sample, 7 days for big order |

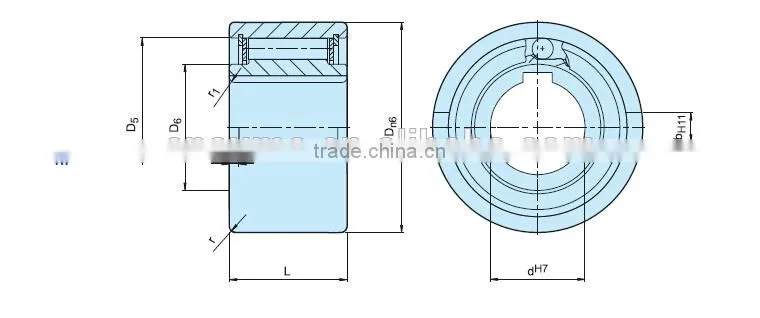

Catalogue of one way roller clutch for your choice
| Type | Size | Overrunning speeds | Weight | ||||||||||
| dH7 | TKN1) | nimax2) | namax3) | Dn6 | D5 | D6 | L | t | bH11 | r | r1 | ||
| [mm] | [Nm] | [min-1] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| 8 | 20 | 5000 | 6000 | 37 | 30 | 20 | 20 | 3 | 6 | 1 | 1.5 | 0.1 | |
| 12 | 20 | 5000 | 6000 | 37 | 30 | 20 | 20 | 3 | 6 | 1 | 1.5 | 0.1 | |
| 15 | 78 | 4500 | 5400 | 47 | 37 | 26 | 30 | 3.5 | 7 | 1.5 | 1.5 | 0.3 | |
| 20 | 188 | 3000 | 3600 | 62 | 52 | 37 | 36 | 3.5 | 8 | 2 | 2 | 0.6 | |
| 25 | 250 | 2200 | 2600 | 80 | 68 | 49 | 40 | 4 | 9 | 2.5 | 2 | 1.1 | |
| 30 | 500 | 1800 | 2100 | 90 | 75 | 52.5 | 48 | 5 | 12 | 2.5 | 2 | 1.6 | |
| 35 | 663 | 1600 | 1950 | 100 | 80 | 58 | 53 | 6 | 13 | 2.5 | 2.5 | 2.3 | |
| 40 | 1100 | 1250 | 1700 | 110 | 90 | 62 | 63 | 7 | 15 | 3 | 2.5 | 3.1 | |
| 45 | 1500 | 1100 | 1500 | 120 | 95 | 69 | 63 | 7 | 16 | 3 | 2.5 | 3.7 | |
| 50 | 2375 | 850 | 1300 | 130 | 110 | 82 | 80 | 8.5 | 17 | 3.5 | 3 | 5.4 | |
| NF | 55 | 2500 | 800 | 1200 | 140 | 115 | 83 | 80 | 9 | 18 | 3.5 | 3 | 6.1 |
| 60 | 4250 | 700 | 1100 | 150 | 125 | 93.5 | 95 | 9 | 18 | 3.5 | 3.5 | 8.5 | |
| 70 | 5875 | 620 | 900 | 170 | 140 | 106 | 110 | 9 | 20 | 3.5 | 3.5 | 13 | |
| 80 | 10000 | 550 | 800 | 190 | 160 | 122 | 125 | 9 | 20 | 4 | 3.5 | 18 | |
| 90 | 17250 | 480 | 700 | 215 | 180 | 133 | 140 | 11.5 | 24 | 4 | 4 | 25.3 | |
| 100 | 19625 | 400 | 600 | 260 | 210 | 157 | 150 | 14.5 | 28 | 4 | 4 | 42.1 | |
| 130 | 34750 | 300 | 480 | 300 | 240 | 188 | 180 | 17 | 32 | 5 | 5 | 65 | |
| 150 | 44375 | 250 | 400 | 320 | 260 | 205 | 180 | 17 | 32 | 5 | 5 | 95 | |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Accept Payment terms are: L/C,D/A,D/P,T/T,Western Union,Money Gram
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the printer machine bearing ?
A: Usually printer machine bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of printer machine bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the printer machine bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
