Bearing Supported HPI 300-700 Sprag Type Freewheel Clutch Bearing Used for Reducer

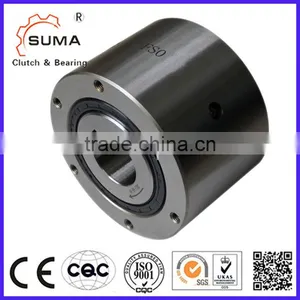

Bearing Supported HPI 300-700 Sprag Type Freewheel Clutch Bearing Used for Reducer thumbnail-1

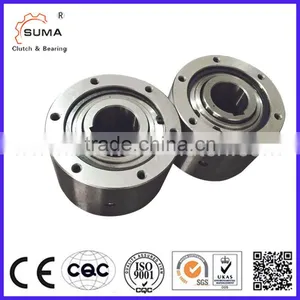

Bearing Supported HPI 300-700 Sprag Type Freewheel Clutch Bearing Used for Reducer thumbnail-2
Bearing Supported HPI 300-700 Sprag Type Freewheel Clutch Bearing Used for Reducer thumbnail-3
Bearing Supported HPI 300-700 Sprag Type Freewheel Clutch Bearing Used for Reducer thumbnail-4
Bearing Supported HPI 300-700 Sprag Type Freewheel Clutch Bearing Used for Reducer thumbnail-5
Bearing Supported HPI 300-700 Sprag Type Freewheel Clutch Bearing Used for Reducer thumbnail-6
Bearing Supported HPI 300-700 Sprag Type Freewheel Clutch Bearing Used for Reducer photo-1

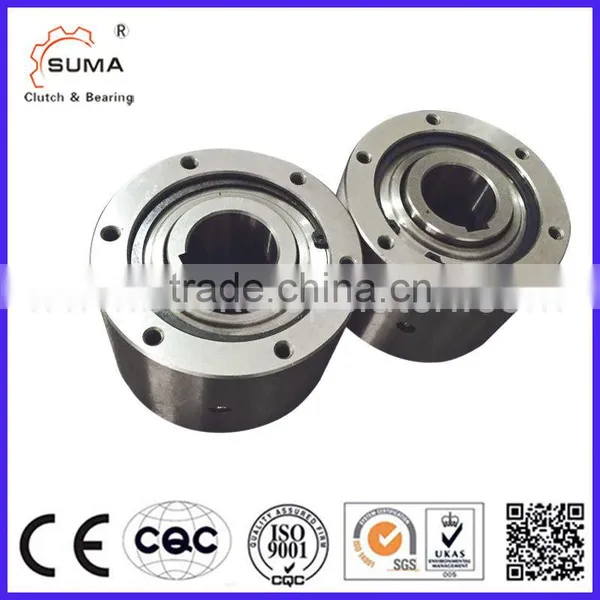

Bearing Supported HPI 300-700 Sprag Type Freewheel Clutch Bearing Used for Reducer photo-2

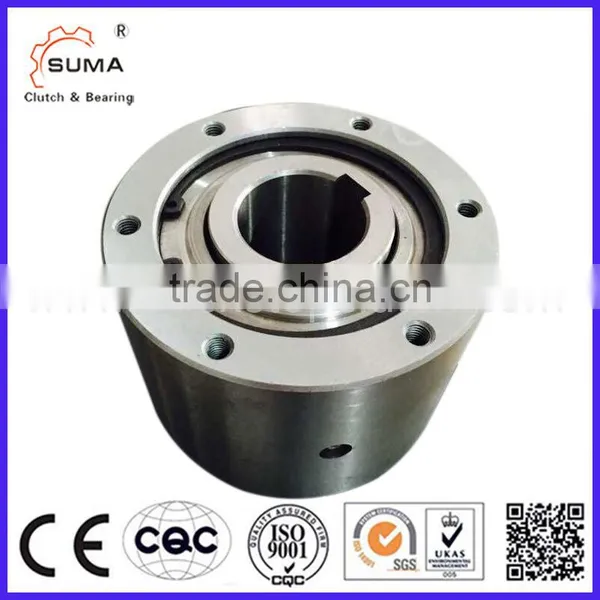

Bearing Supported HPI 300-700 Sprag Type Freewheel Clutch Bearing Used for Reducer photo-3

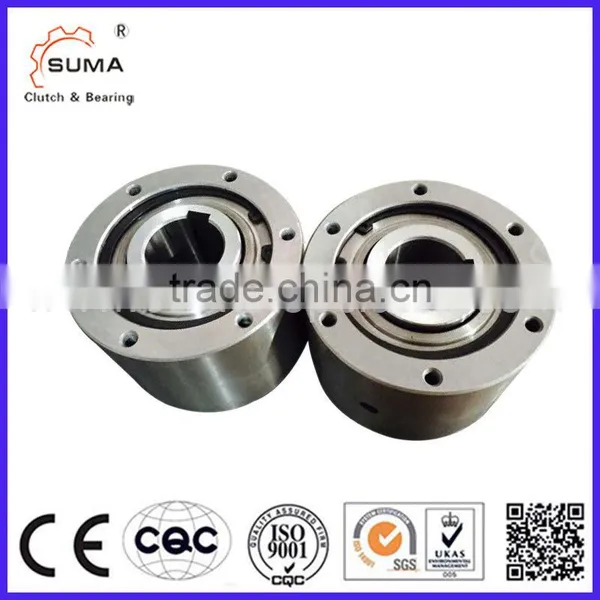

Bearing Supported HPI 300-700 Sprag Type Freewheel Clutch Bearing Used for Reducer photo-4

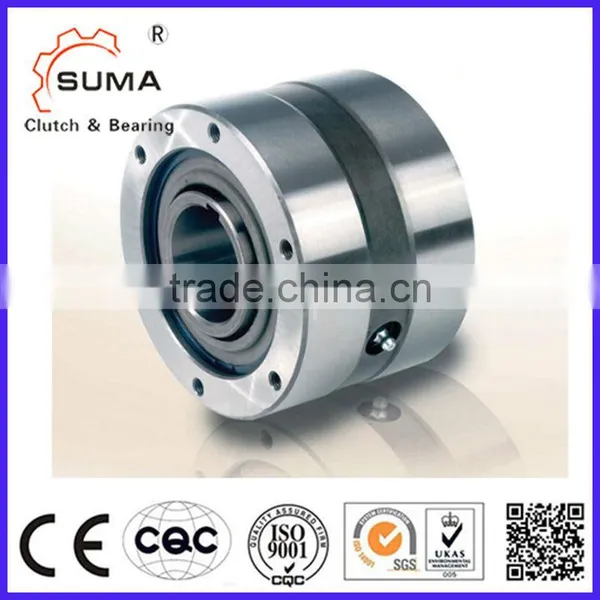

Bearing Supported HPI 300-700 Sprag Type Freewheel Clutch Bearing Used for Reducer photo-5

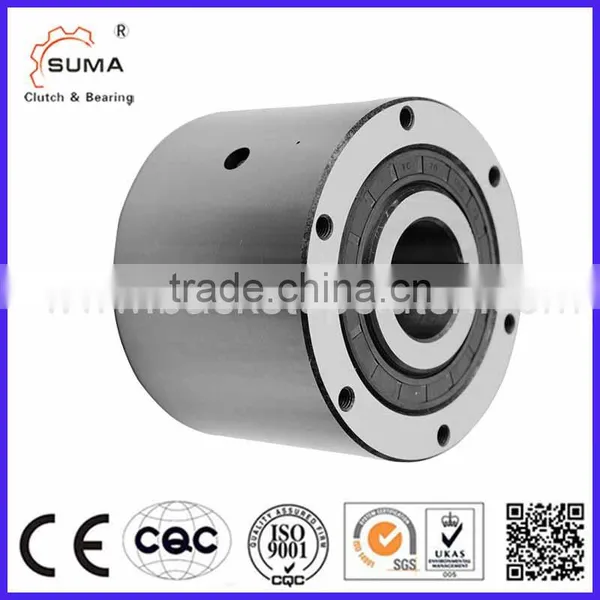

Bearing Supported HPI 300-700 Sprag Type Freewheel Clutch Bearing Used for Reducer photo-6
US$ 100 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SUMA or OEM
Bore Size:
15, 70
Outside Diameter:
76.2, 180.975
Contact Supplier Request Quote Chat Now
Changzhou Suma Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ; Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUMA or OEM
Bore Size 15, 70
Outside Diameter 76.2, 180.975
Model Number HPI300-700
Precision Rating P0
Seals Type Sealed
Place of Origin Jiangsu, China

   bearing supported HPI 300-700 sprag type freewheel clutch bearing

Product Description
Freewheel Clutch HPI 300-700
Details
Model HPI
Material GCr15
Type Sprag
Inner Diameter 15-70mm
Outer Diameter 76.2-180.975mm
Weight 1.6-19kg
Lubricant MoS2 powder lubricant
Load Ratings Dynamic 245KN
Stactic 1220KN
Application Industrial Machines

Types HPI300 to 700 are sprag type freewheels self-contained, sealed and bearing supported, using two ball bearings.
Units are delivered oil or grease lubricated according to the type.

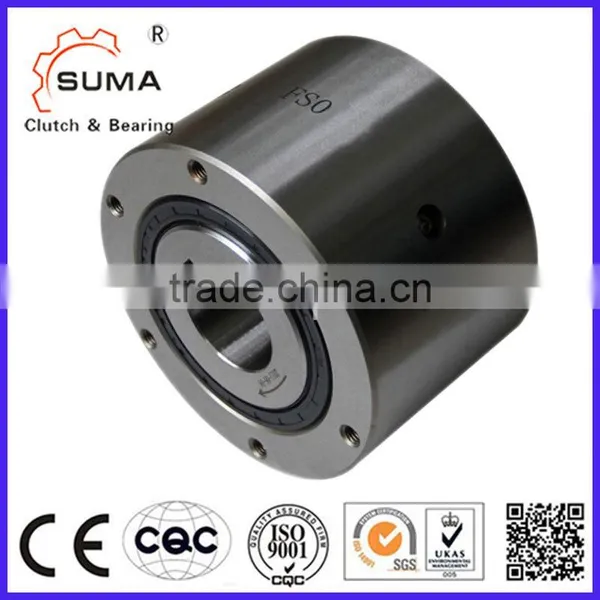

full sprag complement? that gives a very high torque for a given diameter. Any overload is resisted by a sprag to sprag abutment, avoiding a sprag tilt over. Types FSO and HPI are oil lubricated and use standard shaft lip seals. Type FSO-GR is grease lubricated and can be equipped with contact free labyrinth seals. Type HPI is specially designed for high speed indexing applicatation.

bearing supported HPI 300-700 sprag type freewheel clutch bearing used for Reducer

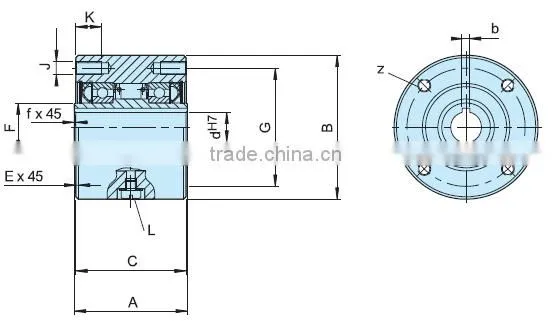

Type
 Size   Overrunning                      Weight Torque
speeds Drag
       HPI dH7-bxh d4) A B C E F G K f   TR
HPI   TKN1) nmax2)   min-max   -0.05
    [Nm] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [Ncm]
  300 379 3000/900 15-5x5 12...19 63.5 76.2 60.45 1.6 28.58 66.67 13 0.8 1.6 18
  400 407 2800/850 18-6x6 12...22 69.9 88.9 68.07 1.6 30 73 13 0.8 2.7 27
  500 1621 2500/800 30-8x7 19...33 88.9 107.95 85.73 1.6 45 92 16 1.5 4.8 31
        40-12x8
  600 3105 2200/750 45-14x9 24...57 95.3 136.53 92.2 1.6 63.5 120.6 16 1.6 8.6 62
        50-14x6
        50-14x9
  700 6900 1600/450 60-18x11 48...82 127 180.98 123.9 1.6 90 158.8 20 1.6 19 156
        65-18x11
        70-20x12           101.7

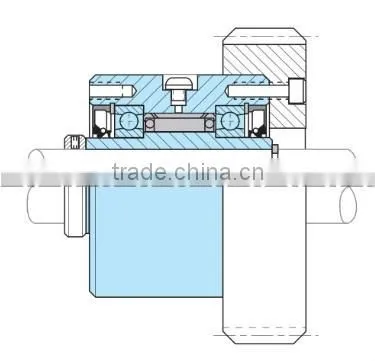

 Mounting example

bearing supported HPI 300-700 sprag type freewheel clutch bearing used for Reducer

Certifications

bearing supported HPI 300-700 sprag type freewheel clutch bearing used for Reducer

Company Information

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

 bearing supported HPI 300-700 sprag type freewheel clutch bearing used for Reducer

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

bearing supported HPI 300-700 sprag type freewheel clutch bearing used for Reducer

Packaging & Shipping

bearing supported HPI 300-700 sprag type freewheel clutch bearing used for Reducer

Application

bearing supported HPI 300-700 sprag type freewheel clutch bearing used for Reducer

Production and Test

bearing supported HPI 300-700 sprag type freewheel clutch bearing used for Reducer

Our Services

Pre-sale service:

We will delivery the goods in 10 days after your order is confirmed.

After sale service:

Our factory provide technical assistance to support every doubt during usage and maintenance.

FAQ

Q: Why do we choose your company?

A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.



Q:What is the delivery time?

A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.



Q: What is your payment term?

A: Our payment term include L/C, T/T, Western Union, Paypal etc.



Q: Can you send bearing samples first?

A: Yes, we can send bearing samples of one way clutch bearing to check quality first.



If you have any needs,pls contact me at any time!

 bearing supported HPI 300-700 sprag type freewheel clutch bearing used for Reducer
