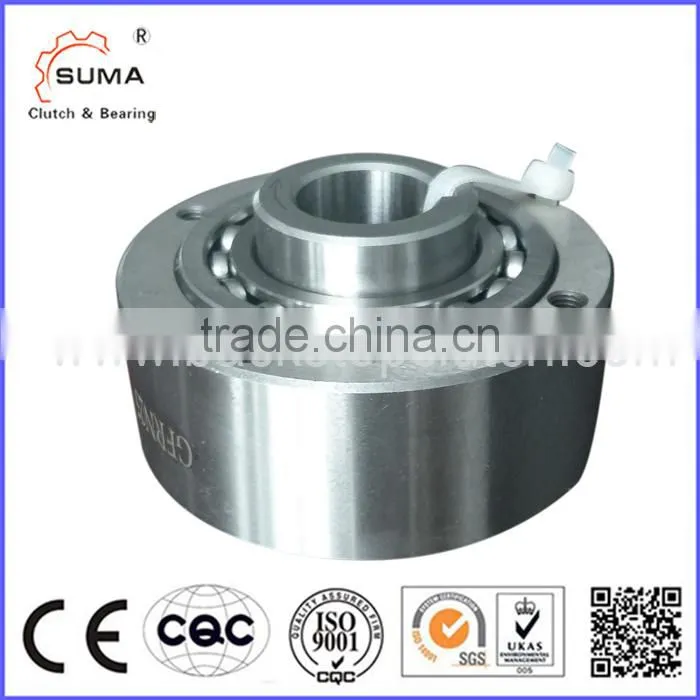

GFRN70 One-way Bearing Rowing Machine Bearing

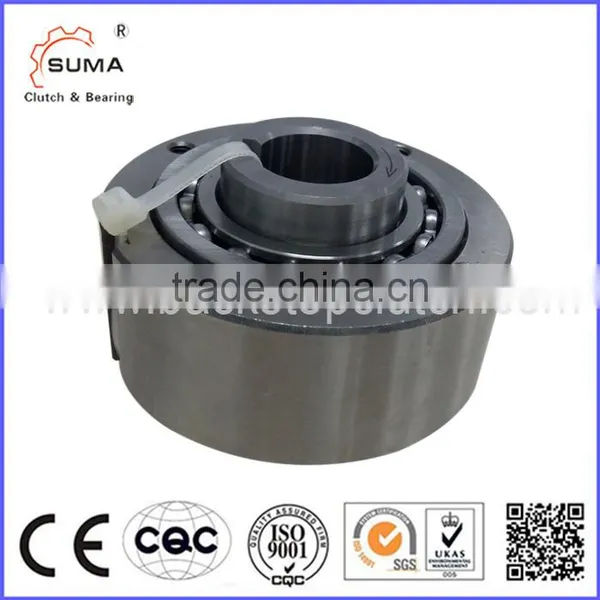

GFRN70 One-way Bearing Rowing Machine Bearing thumbnail-1
GFRN70 One-way Bearing Rowing Machine Bearing photo-1
US$ 20 - 600 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SUMA or OEM
Bore Size:
70,
Outside Diameter:
190,
Contact Supplier Request Quote Chat Now
Changzhou Suma Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ; Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUMA or OEM
Bore Size 70,
Outside Diameter 190,
Model Number GFRN70
Precision Rating P6
Seals Type non-sealed
Place of Origin Jiangsu, China



 GFRN70 one-way bearing rowing machine bearing



Product Description

 GFRN70 one-way bearing rowing machine bearing

  GFRN70 one-way bearing rowing machine bearing
Details
Model GFRN70
Material GCr15
Type sprag
Inner Diameter 70mm
Outer Diameter 190mm
Weight 13.5kg
Width 95mm
Overrunning spees Inner Ring 550r/min
Out Ring 2150r/min
Application gearboxes;reducers;electrical machine;other machine





INTRODUCTION



Types GFR,GFRN are roller type freewheels. They are bearing supported, using two 160.. series bearings, and require oil lubrication. These units may be used in designs providing oil lubrication and sealing as on the example overleaf. The bearings must not be axially stressed.



Typically, types GFR,GFRN are used with the F series covers that are designed to transmit torque, and provide oil lubrication and sealing. Usually these covers are used in pairs according to combinations shown on the following pages. The outer race of the GFR model is plain to receive and center any component bored to H7 tolerance.



Torque is transmitted by bolts through the cover plate in this case. Types GFR, GFRN are identical except that type GFRN has a keyway on the outside diameter to transmit the torque. Two paper seals are delivered with each unit to be placed between the outer race and cover plates.

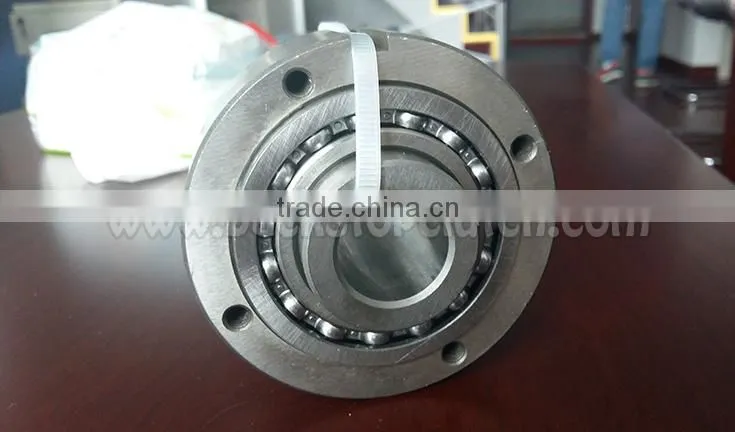

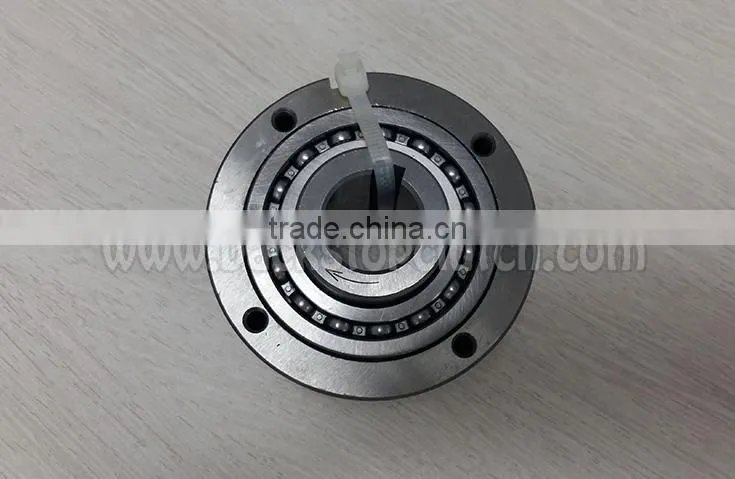

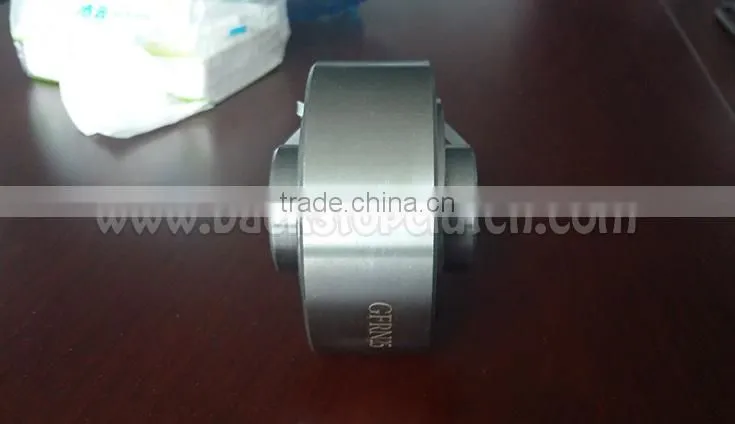

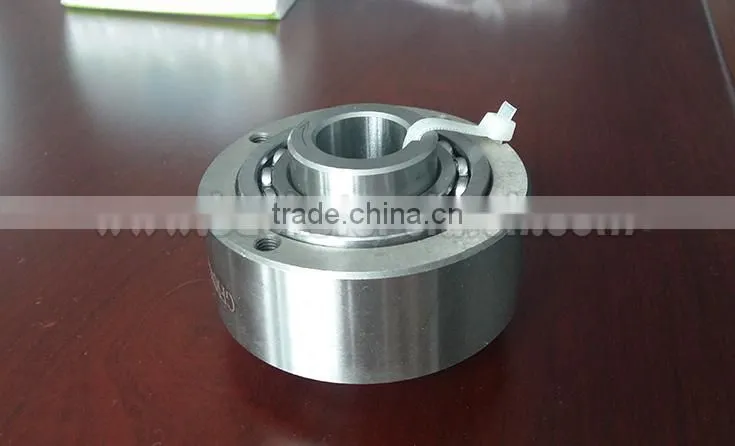

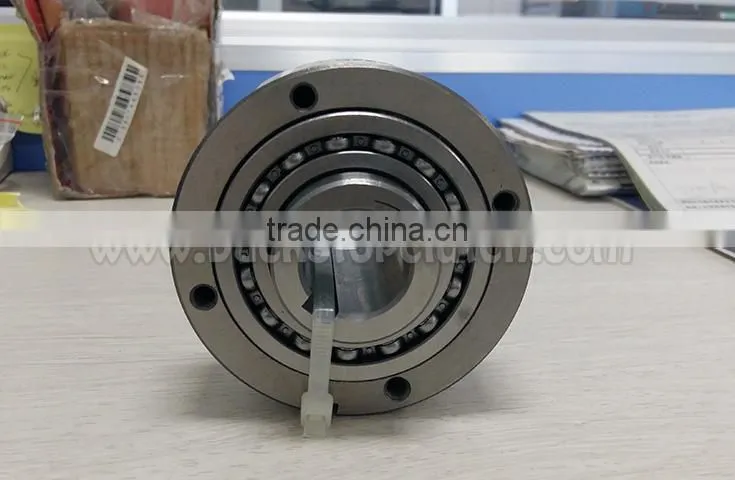

DETAIL IMAGES

GFRN70 one-way bearing rowing machine bearingGFRN70 one-way bearing rowing machine bearingGFRN70 one-way bearing rowing machine bearingGFRN70 one-way bearing rowing machine bearingGFRN70 one-way bearing rowing machine bearing

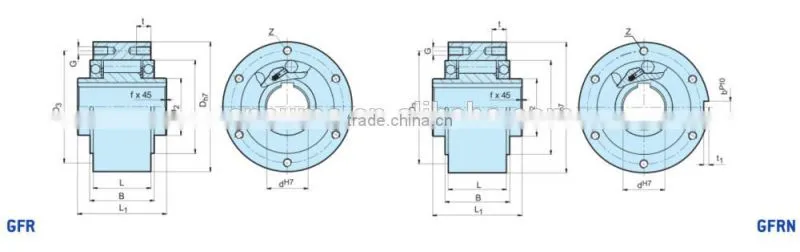

PARAMETER LIST

GFRN70 one-way bearing rowing machine bearing

Type Size Overrunning speeds Number Weight
dH7 TKN1) nimax2) namax3) Dh7 D2 D4 D3 G t z L 1 L B t1 bP10 f
GFR
GFRN		 [mm] [Nm] [min-1] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
12* 55  4000  7200  62  20  42  51  ø5.5 – 3  42  20  27  2.5 4  0.5 0.5
15  125  3600  6500  68  25  47  56  M5 8  3  52  28  32  3  5  0.8 0.8
20  181  2700  5600  75  30  55  64  M5 8  4  57  34  39  3.5 6  0.8 1
25  288  2100  4500  90  40  68  78  M6 10  4  60  35  40  4  8  1 1.5
30  500  1700  4100  100  45  75  87  M6 10  6  68  43  48  4  8  1 2.2
35  725  1550  3800  110  50  80  96  M6 12  6  74  45  51  5  10  1 3
40  1025  1150  3400  125  55  90  108  M8 14  6  86  53  59  5  12  1.5 4.6
45  1125  1000  3200  130  60  95  112  M8 14  8  86  53  59  5.5 14  1.5 4.7
50  2125  800  2800  150  70  110  132  M8 14  8  94  64  72  5.5 14  1.5 7.2
55  2625  750  2650  160  75  115  138  M10 16  8  104  66  72  6  16  2 8.6
60  3500  650  2450  170  80  125  150  M10 16  10  114  78  89  7  18  2 10.5
70  5750  550  2150  190  90  140  165  M10 16  10  134  95  108  7.5 20  2.5 13.5
80  8500  500  1900  210  105  160  185  M10 16  10  144  100  108  9  22  2.5 18.2
90  14500  450  1700  230  120  180  206  M12 20  10  158  115  125  9  25  3 28.5
100  20000  350  1450  270  140  210  240  M16 24  10  182  120  131  10  28  3 42.5
130  31250  250  1250  310  160  240  278  M16 24  12  212  152  168  11  32  3 65
150  70000  200  980  400  200  310  360  M20 32  12  246  180  194  12  36  4 138





NOTES

1) T max = 2 × T KN

2) Inner race overruns. Values without radial lip seals

3) Outer race overruns. Values without radial lip seals

Keyway to DIN 6885.1

*) GFR12 has through holes in outer race

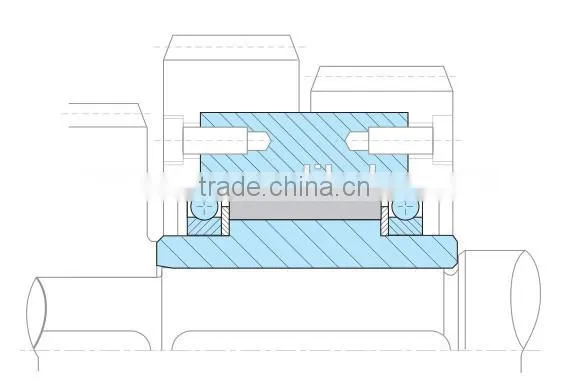

MOUNTING EXAMPLE



GFRN70 one-way bearing rowing machine bearing
