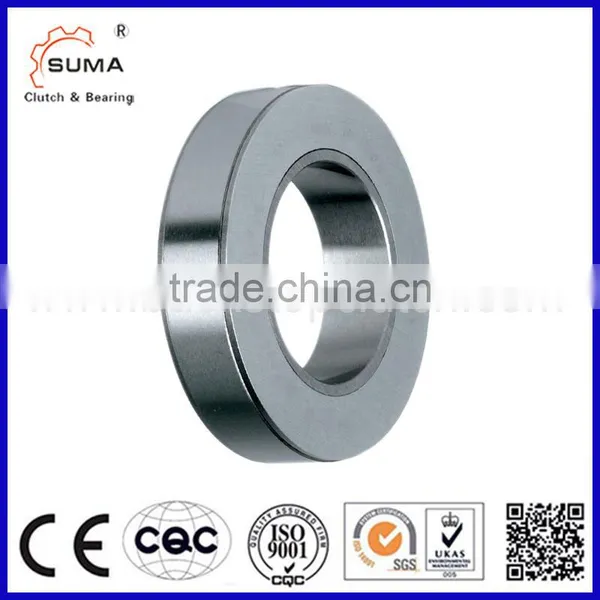

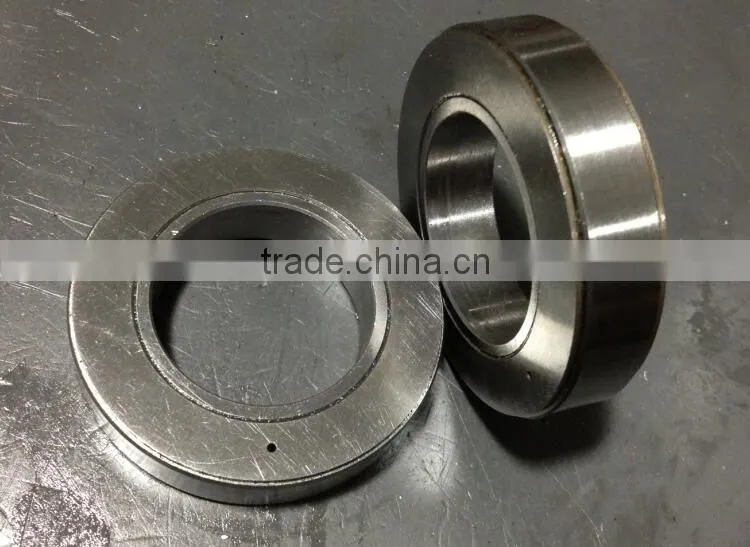

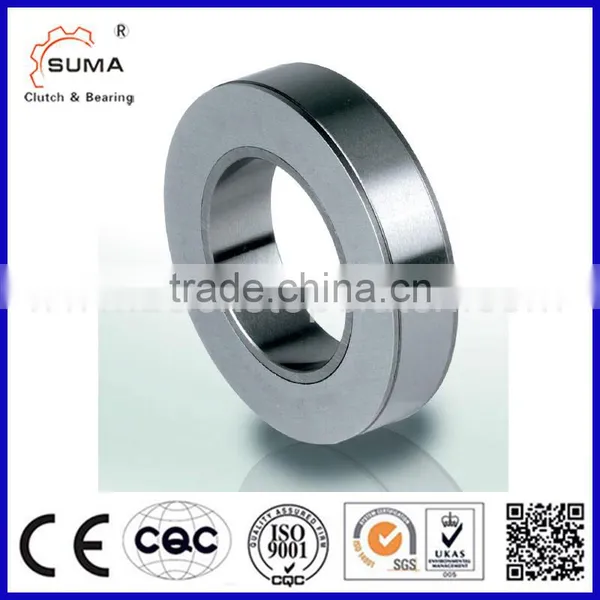

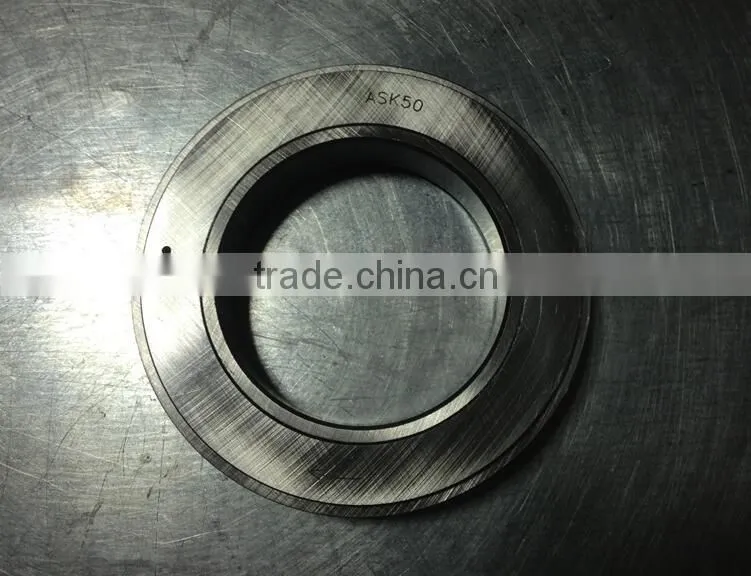

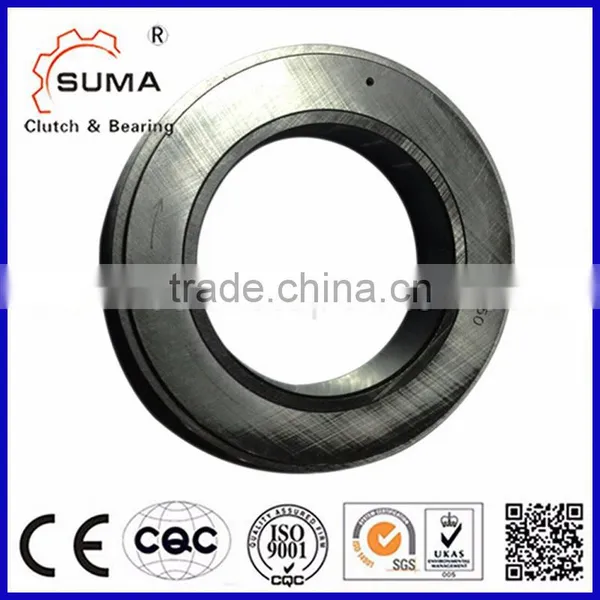

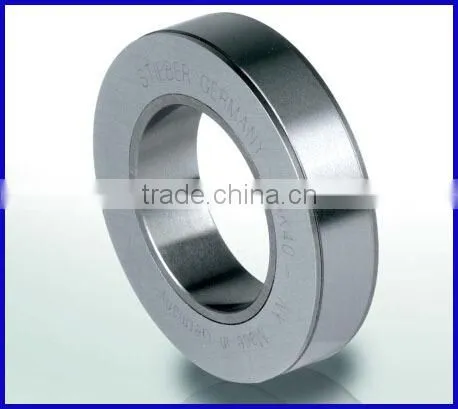

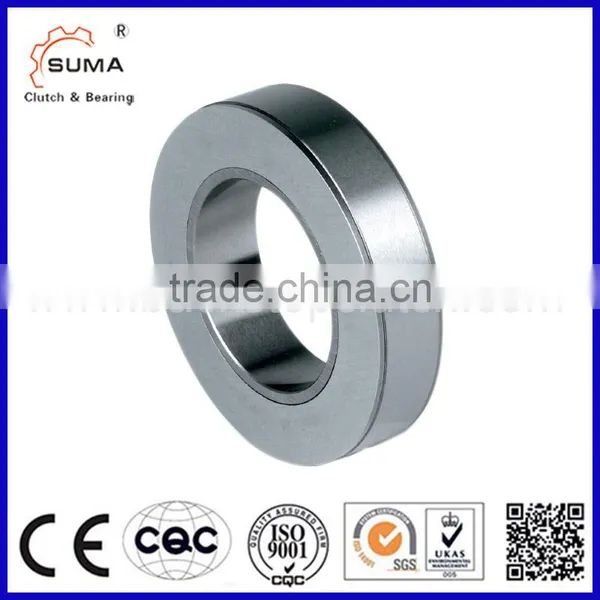

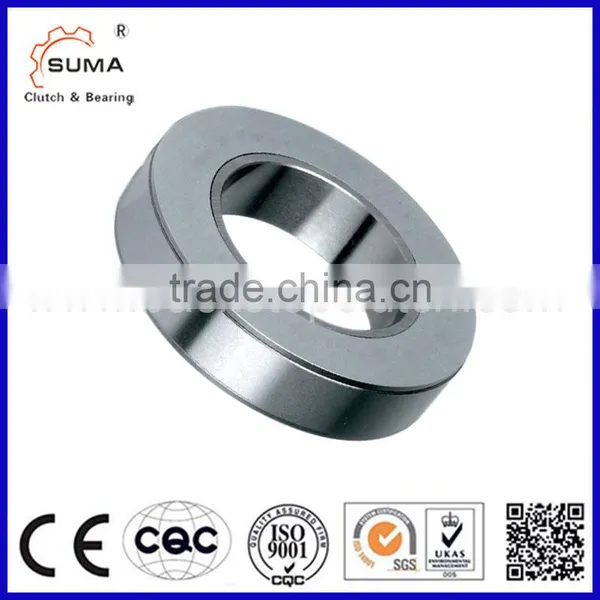

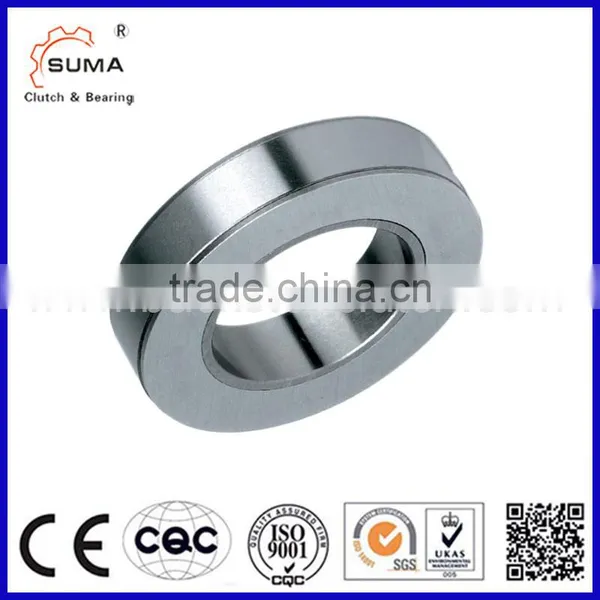

Roller Type Freewheels One Way Clutch Bearing ASK50
Features of ask one way clutch bearing
1. Type ASK is a roller type freewheel bearing supported by two rows of roller bearings.
2. The standard radial clearance is C4
3. Shaft tolerance should be h6 or j6
4. Type ASK freewheels can not accept axial loading. In cases of such loads, thrust bearings must be provided
| Specification |
|
| Model | ASK50 |
| Materail |
GCr15 |
| Inner Diameter |
50mm |
| Outer diameter |
80mm |
| Thickness |
16mm |
| Torque capacity |
125Nm |
| Drag Torque |
20Ncm |
| Max overrunning speed | 2200r/min |
| Application | Backstop, Overrunning |
| Package | carton package / Wooden package |
| Delivery time | 5-7 days |
| Payment terms | TT, L/C, D/P, D/A, Western Union, Paypal |

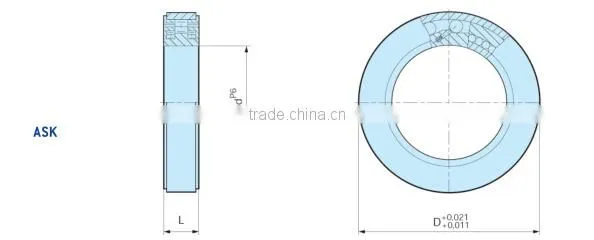

Catalogue of ASK one way clutch bearing for your choice
| Type | Size | Bearing Series | Outside Diameter | Height | Bearing loads | Weight | Drag torque | |||
| Dynamic | static | |||||||||
| ASK | Dp6 (mm) |
TKN1) (Nm) |
nmax (min-1) |
D (mm) |
L (mm) |
C (kN) |
C0 (kN) |
(kg) | TR (Ncm) |
|
| 40 | 6008 | 72 | 3500 | 68 | 15 | 16 | 20.6 | 0.25 | 15 | |
| 50 | 6010 | 125 | 2200 | 80 | 16 | 19.6 | 23.5 | 0.34 | 20 | |
| 60 | 6012 | 250 | 1800 | 95 | 18 | 25.3 | 35.1 | 0.5 | 25 | |

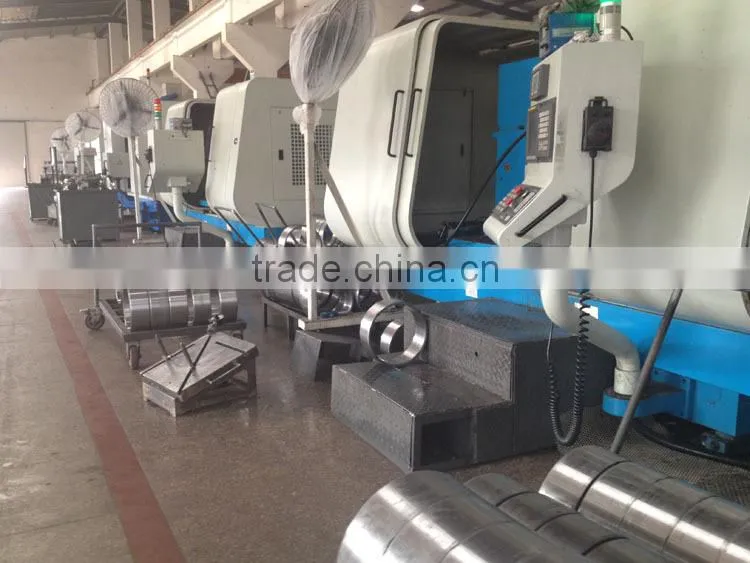

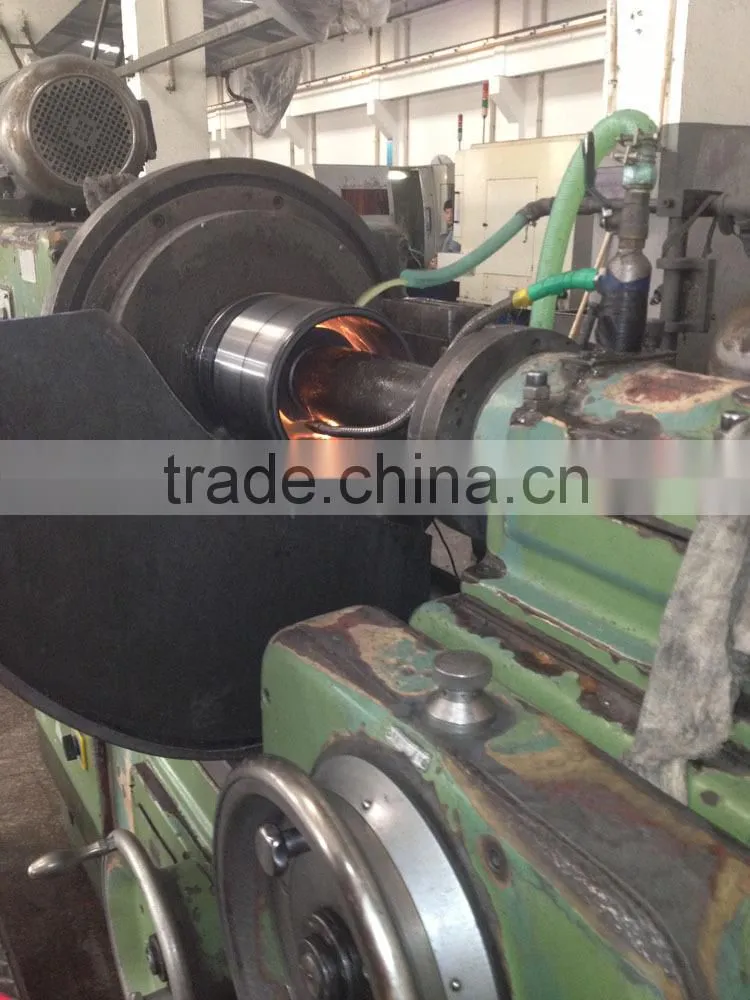

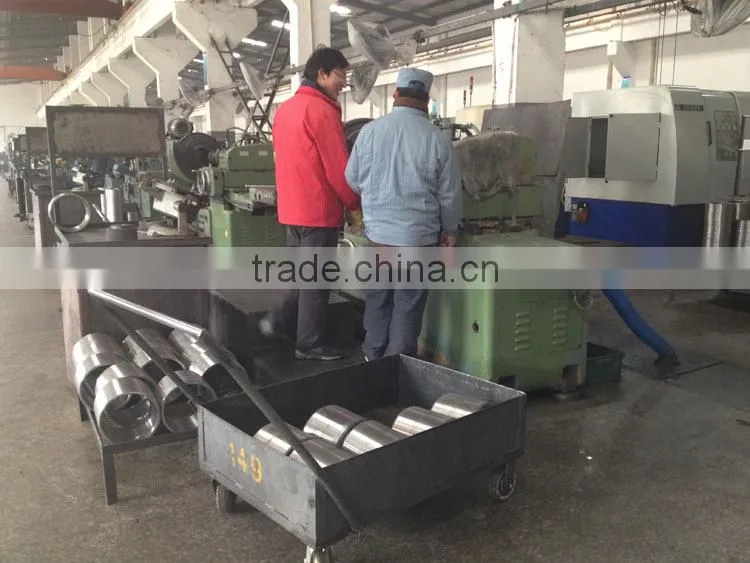

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Accept Payment terms are: L/C,D/A,D/P,T/T,Western Union,Money Gram
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the ask one way clutch bearing ?
A: Usually ask one way clutch bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of ask one way clutch bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the ask one way clutch bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
