AL150KEED2 High Performance Coupling One Way Bearing

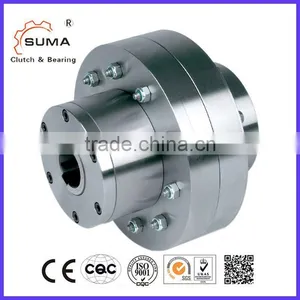

AL150KEED2 High Performance Coupling One Way Bearing thumbnail-1
AL150KEED2 High Performance Coupling One Way Bearing thumbnail-2
AL150KEED2 High Performance Coupling One Way Bearing thumbnail-3
AL150KEED2 High Performance Coupling One Way Bearing thumbnail-4
AL150KEED2 High Performance Coupling One Way Bearing thumbnail-5
AL150KEED2 High Performance Coupling One Way Bearing thumbnail-6
AL150KEED2 High Performance Coupling One Way Bearing photo-1

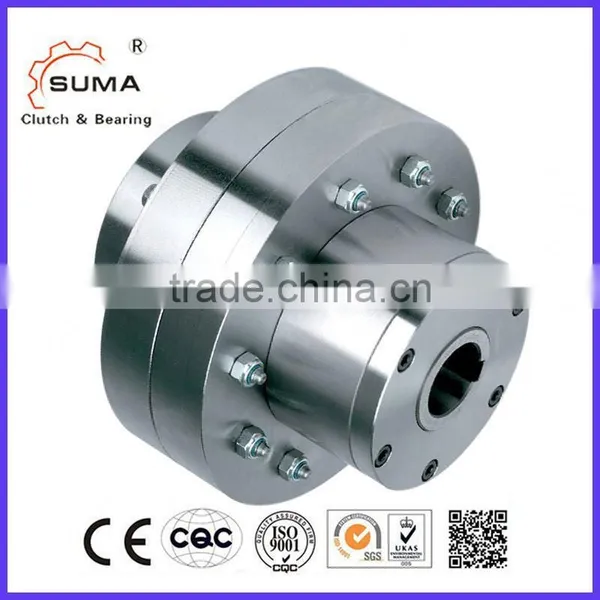

AL150KEED2 High Performance Coupling One Way Bearing photo-2

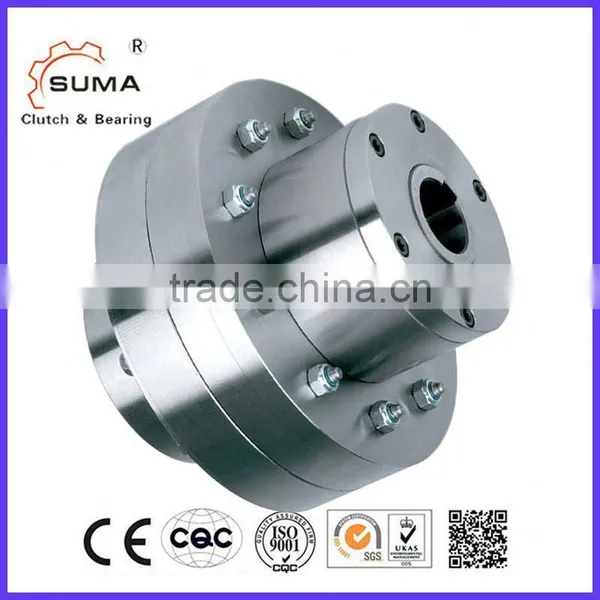

AL150KEED2 High Performance Coupling One Way Bearing photo-3

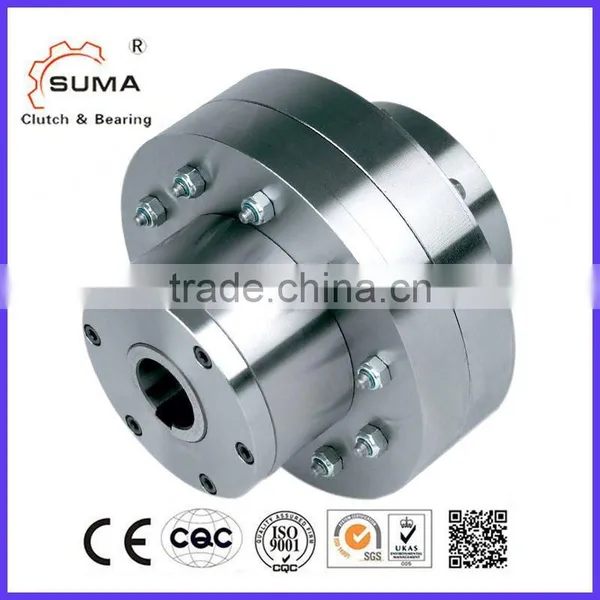

AL150KEED2 High Performance Coupling One Way Bearing photo-4

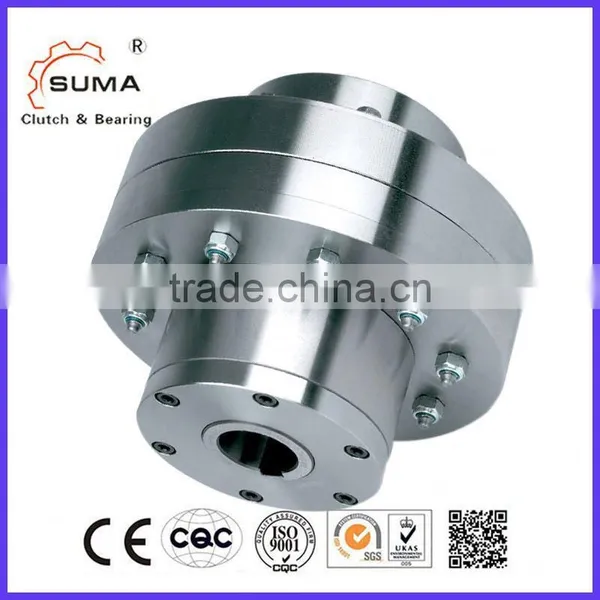

AL150KEED2 High Performance Coupling One Way Bearing photo-5

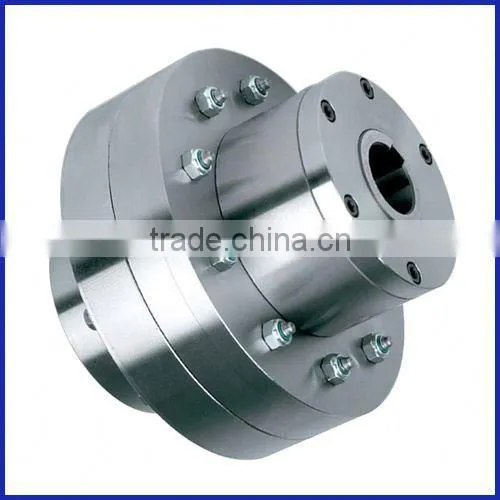

AL150KEED2 High Performance Coupling One Way Bearing photo-6
US$ 10 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SUMA of one way roller clutch bearing
Bore Size:
12, 250
Outside Diameter:
62, 610
Contact Supplier Request Quote Chat Now
Changzhou Suma Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo for one way roller clutch bearing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUMA of one way roller clutch bearing
Bore Size 12, 250
Outside Diameter 62, 610
Model Number AL150KEED2
Precision Rating P6
Seals Type Open
Place of Origin Jiangsu, China



 AL150KEED2 High Performance Coupling One Way Bearing

Product Description

AL150KEED2 High Performance Coupling One Way Bearing

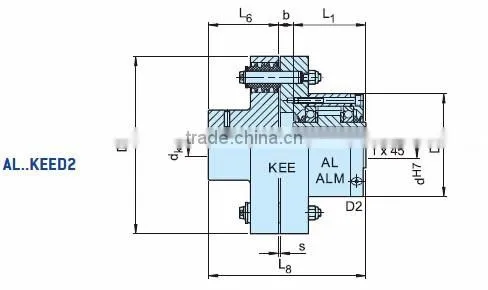

Structure of AL... KEED2 clutch bearing

Types AL, ALP, AL... KEED2 are roller type freewheels. These units are part of the Stieber modular system. They are bearing supported, using two 160.. series bearings, and require oil lubrication.

Types AL, ALP are identical except that type ALP has a keyway on the outside diameter to transmit the torque.

Available Shaft Diameter: 12-250mm

Specification

Model AL...KEED2
Materail
 GCr15
Inner Diameter
 12-250mm
Outer diameter
 62-610mm
Height
 90-868mm
Torque capacity
 55-287500Nm
Inner race overrunning speed 2500-100r/min
Outer race overrunning speed 6000-620r/min
Application                    Backstop / Overrunning
Package Carton package / Wooden package
Delivery time  5-7 days
Payment terms TT, L/C, D/P, D/A, Western Union, Paypal

Catalogue of AL...KEED2 Clutch bearing for your choice

AL150KEED2 High Performance Coupling One Way Bearing



Type Size     Overrunning speed   Weight
  dH7 KEE TKN nimax1) namax2) dKH7 D L1 D6 L6 L8 b s f
  [mm] [Nm] [min-1] [min-1] [mm] [mm] [mm] [mm] [mm] [mm]  [mm] [mm]  [mm]  [kg]
  12 2 55 2500 6000 12…25 62 42 97 35 90 13 3 0.5 3
  15 3 122 1900 6000 16…30 68 52 112 40 110 18 3 0.8 4.4
  20 3 122 1600 5600 16…30 75 57 112 40 114.5 17.5 3 0.8 4.6
  25 4 288 1400 4500 20…40 90 60 130 50 137.5 17.5 3 1 6.4
  30 5 500 1300 4100 20…50 100 68 160 60 148 20 2 1 11
  35 6 725 1100 3800 25…65 110 74 190 75 168 19 2 1 17
AL..KEED2 40 6 1025 950 3400 25…65 125 86 190 75 178 17 2 1.5 19
  45 6 1050 900 3200 25…65 130 86 190 75 178 17 2 1.5 19
  50 7 1750 850 2800 30…75 150 92 225 90 207 25 2.5 1.5 31
  55 8 2625 720 2650 35…90 160 104 270 100 233.5 29.5 3 2 47
  60 8 2750 680 2450 35…90 170 114 270 100 244 30 3 2 49
  70 10 5750 580 2150 45…110 190 134 340 140 312.5 38.5 3 2.5 90
  80 11 8500 480 1900 55…125 210 144 380 160 340 36 3 2.5 107
  90 12 13750 380 1700 65…140 230 158 440 180 388 50 3.5 3 170
  100 14 20000 350 1450 75…160 270 182 500 200 422.5 40.5 3.5 3 230
  120 16 30000 250 1250 85….180 310 202 560 220 471 49 4 3 330
  150 18 43750 180 980 95…200 400 246 640 250 543 47 4 4 500
  200 22 97500 120 750 125…250 520 326 880 320 700.5 54.5 4.5 5 965
  250 28 250000 100 620 160…320 610 396 1160 400 868 72 5 5 1725
ALM..KEED2 25 4 288 1100 2800 20…40 90 60 130 50 127.5 17.5 3 1 6.4
30 5 588 1000 2500 20…50 100 68 160 60 148 20 2 1 11
35 6 838 900 2400 25…65 110 74 190 75 168 19 2 1 17
Detailed Images

AL150KEED2 High Performance Coupling One Way BearingAL150KEED2 High Performance Coupling One Way BearingAL150KEED2 High Performance Coupling One Way Bearing

AL150KEED2 High Performance Coupling One Way BearingAL150KEED2 High Performance Coupling One Way Bearing

Company Information

 Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

AL150KEED2 High Performance Coupling One Way Bearing

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Factory Production

AL150KEED2 High Performance Coupling One Way Bearing

AL150KEED2 High Performance Coupling One Way Bearing

After-Sales Service

Pre-sale service:

We will delivery the goods in 10 days after your order is confirmed.

After sale service:

Our factory provide technical assistance to support every doubt during usage and maintenance.

FAQ

Q: How do you pack the al...keed2 clutch bearing?

A: Usually al...keed2 clutch bearing are packed in the wooden box. It can be done as your specfic demands.

Q: Can i get the samples of al...keed2 clutch bearing from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the al...keed2 clutch bearing in time?

A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.

Any needs, pls feel free to contact me at any time !
