MODEL : Cage Freewheel BWX 136324

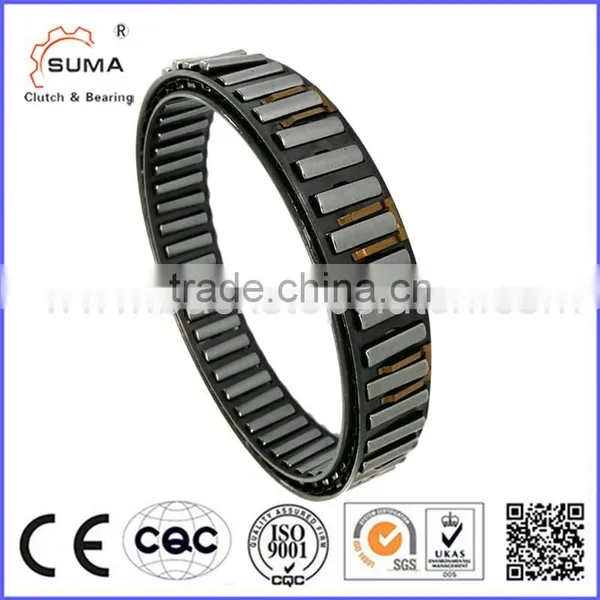

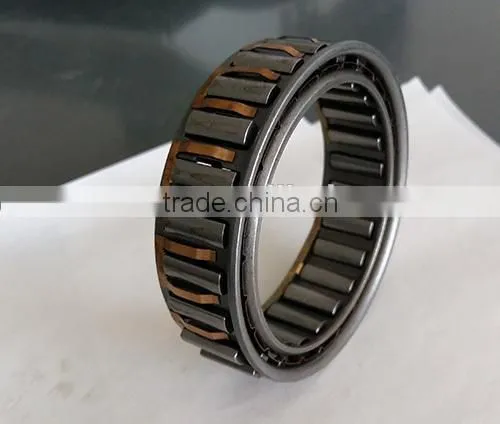

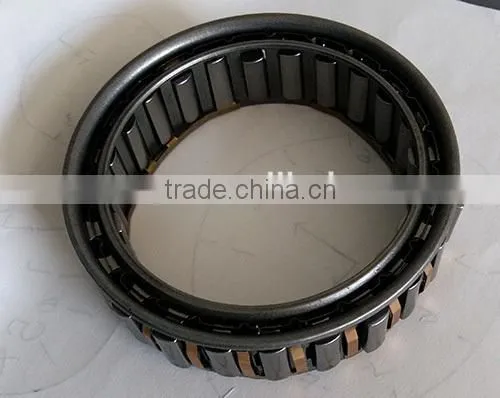

Type BWX is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing
support for axial and radial loads, lubrication and sealing. The BWX type version-N accepts all types of lubricants currently
used in the power transmis-sion equipement. The sprag space tolerance must not be exceeded. Inner and outer races must
both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly. Alternatively, races can be
made in case hardened steel shafts, or housings, to the specification below. Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0, 6 mm minimum. Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between races: 0, 007 mm for 25 mm width.
The Parameters of the Sprag Freewheel Cage BWX
Type |
Inside Diameter +0.008-0.005 (mm) |
Outside Diameter ±0.013 (mm) |
Width (mm) |
Height
(mm) |
Sprags Quantity |
Drag Strips Quantity |
Brake Clips Quantity |
Weight
(g) |
Nominal Torque (Nm) |
BWX 133590A |
22.225 |
38.887 |
10.0 |
44.0 |
12 |
|
|
30 |
63 |
BWX 13143A |
27.0767 |
44.425 |
13.5 |
51.0 |
14 |
|
|
60 |
120 |
BWX 133392 |
38.092 |
54.750 |
16.0 |
71.0 |
18 |
|
|
90 |
280 |
BWX 1310145 |
41.275 |
57.937 |
13.5 |
74.2 |
14 |
|
3 |
70 |
180 |
BWX 132909A |
44.450 |
61.112 |
16.0 |
78.5 |
20 |
2 |
3 |
10 |
360 |
BWX 133339 |
49.721 |
66.383 |
13.5 |
85.0 |
22 |
2 |
4 |
90 |
310 |
BWX 1310003 |
49.721 |
66.383 |
13.5 |
85.0 |
22 |
|
4 |
90 |
310 |
BWX 137222 |
49.721 |
66.383 |
19.0 |
85.0 |
22 |
|
|
120 |
570 |
BWX 1310445 |
54.765 |
71.427 |
13.5 |
91.7 |
24 |
|
|
90 |
400 |
BWX 1310172 |
54.765 |
71.427 |
16.0 |
91.7 |
24 |
|
|
120 |
540 |
BWX 1310226 |
54.765 |
71.427 |
16.0 |
91.7 |
24 |
2 |
4 |
120 |
520 |
BWX 136709 |
54.765 |
71.427 |
21.0 |
91.7 |
24 |
3 |
10 |
160 |
770 |
BWX 1310147 |
54.765 |
71.427 |
25.4 |
91.7 |
24 |
2 |
8 |
200 |
1000 |
BWX 136324 |
57.760 |
74.427 |
19.0 |
95.0 |
26 |
|
|
140 |
600 |
BWX 1310080 |
72.217 |
88.882 |
13.5 |
115.0 |
30 |
|
4 |
120 |
670 |
BWX 13168 |
72.217 |
88.882 |
21.0 |
115.0 |
30 |
|
|
20 |
1300 |
BWX 134012 |
72.217 |
88.882 |
21.0 |
115.0 |
30 |
4 |
10 |
20 |
1300 |
BWX 137322 |
79.6982 |
96.363 |
25.4 |
124.0 |
34 |
5 |
12 |
280 |
2000 |
BWX 138316 |
83.5972 |
102.596 |
25.4 |
131.6 |
34 |
5 |
12 |
300 |
2960 |
BWX 13261A1 |
103.2312 |
119.893 |
16.0 |
154.0 |
40 |
6 |
10 |
190 |
1600 |
BWX 13236 |
117.3912 |
136.391 |
16.0 |
175.3 |
30 |
5 |
6 |
250 |
1700 |
BWX 133403B |
123.8812 |
142.880 |
25.4 |
188.0 |
44 |
|
11 |
460 |
4900 |
