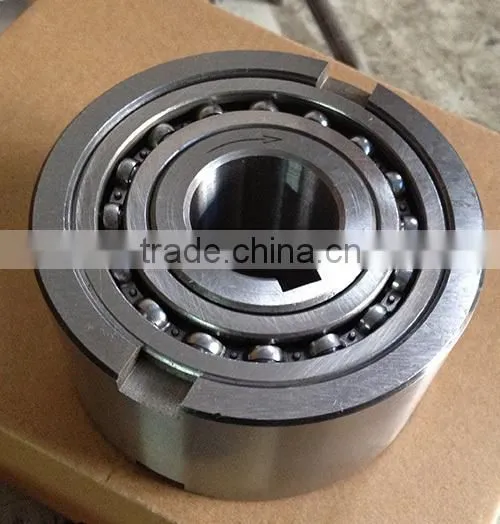

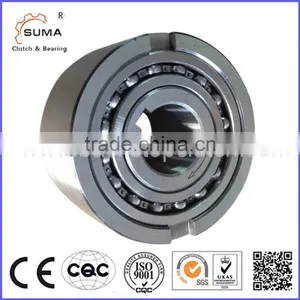

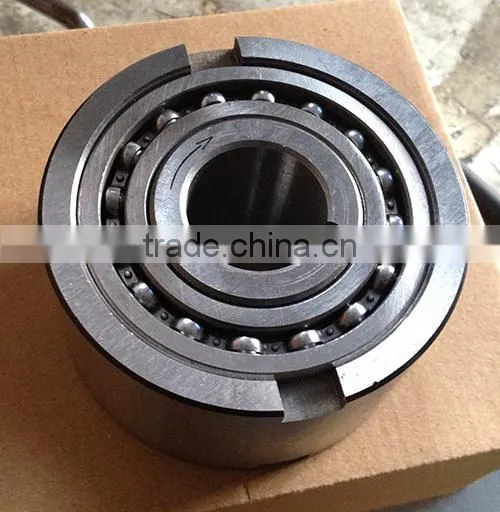

MODEL: CL 55 Good Quality Sprag Clutch
Product Model: CL

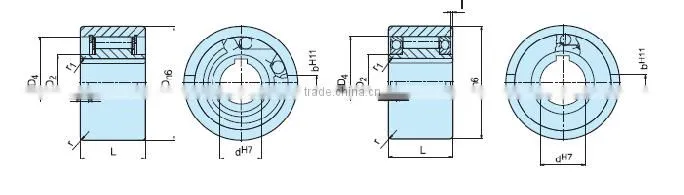

Type CL is a bearing supported roller type freewheel without any sealing. Lubrication and sealing must be provided by the installation. Standard lubrication is oil. Size 8 to 20 units use steel on steel bearing support ROM the inner race. Above size 20, two 160...Series ball bearings are used, giving a higher overrunning speed capacity. A typical arrangement is shown overleaf.
The inner race is keyed to the shaft. The outer race has a positive n6 tolerance to give a press fit in a housing to H7. Additional side notches provide for positive torque transmission. The housing must be strong enough to not expand after assembly.
Type |
Size |
|
Overrunning speeds |
Bearing |
|
Weight |
|||||||||
|
CL |
dH7 (mm) |
TKN1 (Nm ) |
Nimax2) (min-1) |
Namax3) (min-1) |
|
Dn6 (mm) |
D2 (mm) |
D4 (mm) |
L (mm) |
I (mm) |
t (mm) |
bH11 (mm) |
r (mm) |
r1 (mm) |
(kg) |
8 |
20 |
1000 |
1000 |
* |
37 |
20 |
30 |
20 |
|
3 |
6 |
1 |
1.5 |
0.1 |
|
12 |
20 |
1000 |
1000 |
* |
37 |
20 |
30 |
20 |
|
3 |
6 |
1 |
1.5 |
0.1 |
|
15 |
78 |
850 |
850 |
* |
47 |
26 |
37 |
30 |
|
3.5 |
7 |
1.5 |
1.5 |
0.3 |
|
20 |
188 |
650 |
650 |
* |
62 |
37 |
52 |
36 |
|
3.5 |
8 |
2 |
2 |
0.6 |
|
25 |
250 |
2100 |
3600 |
16008** |
80 |
40 |
68 |
40 |
0.2 |
4 |
9 |
2.5 |
2 |
1.2 |
|
30 |
500 |
1700 |
3200 |
16009** |
90 |
45 |
75 |
48 |
0.2 |
5 |
12 |
2..5 |
2 |
1.8 |
|
35 |
663 |
1550 |
3000 |
16010** |
100 |
50 |
80 |
53 |
1.2 |
6 |
13 |
2.5 |
2.5 |
2.4 |
|
40 |
1100 |
1150 |
2600 |
16011** |
110 |
55 |
90 |
63 |
2.2 |
7 |
15 |
3 |
2.5 |
3.3 |
|
45 |
1500 |
1000 |
2400 |
16012** |
120 |
60 |
95 |
63 |
2.2 |
7 |
16 |
3 |
2.5 |
4.0 |
|
50 |
2375 |
800 |
2150 |
16014** |
130 |
70 |
110 |
80 |
2.7 |
8.5 |
17 |
3.5 |
3 |
5.7 |
|
55 |
2550 |
750 |
2000 |
16015** |
140 |
75 |
115 |
80 |
4.2 |
9 |
18 |
3.5 |
3 |
6.5 |
|
60 |
4250 |
650 |
1900 |
16016** |
150 |
80 |
125 |
95 |
3.2 |
9 |
18 |
3.5 |
3.5 |
8.9 |
|
70 |
5875 |
550 |
1750 |
16018** |
170 |
90 |
140 |
110 |
1.1 |
9 |
20 |
3.5 |
3.5 |
13.5 |
|
80 |
10000 |
500 |
1600 |
16021** |
190 |
105 |
160 |
125 |
0 |
9 |
20 |
4 |
3.5 |
19.0 |
|
90 |
17250 |
450 |
1450 |
16024** |
215 |
120 |
180 |
140 |
0.6 |
11.5 |
24 |
4 |
4 |
27.2 |
|
100 |
79625 |
350 |
1250 |
16028** |
260 |
140 |
210 |
150 |
2.6 |
14.5 |
28 |
4 |
4 |
44.5 |
|
130 |
34750 |
250 |
1000 |
16032** |
300 |
160 |
240 |
180 |
2 |
17.5 |
32 |
5 |
5 |
68.0 |
|
1) Tmax = 2 × TKN
2) Inner race overruns
3) Outer race overruns
