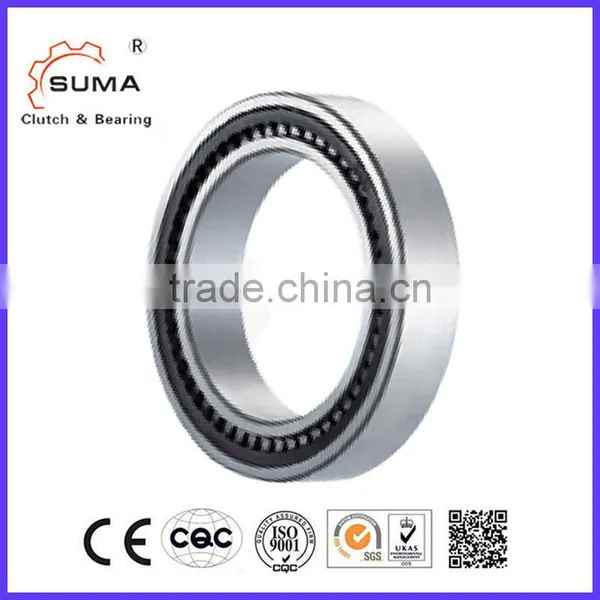

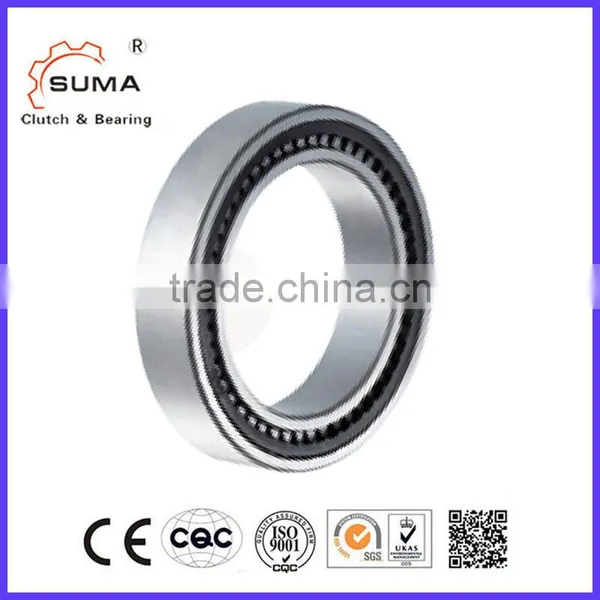

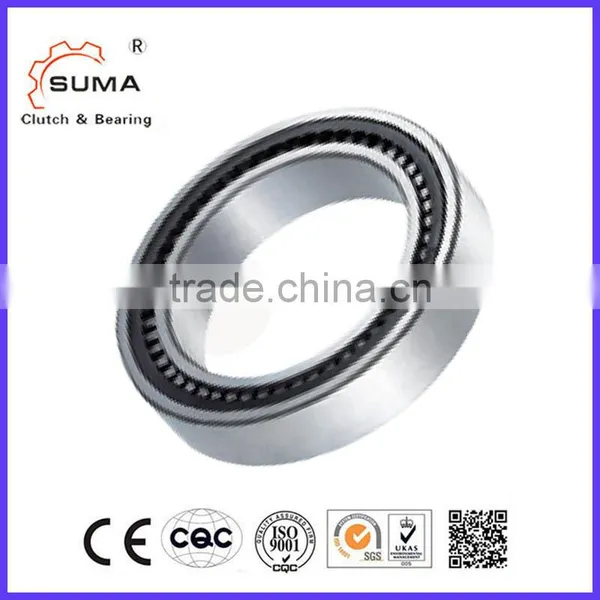

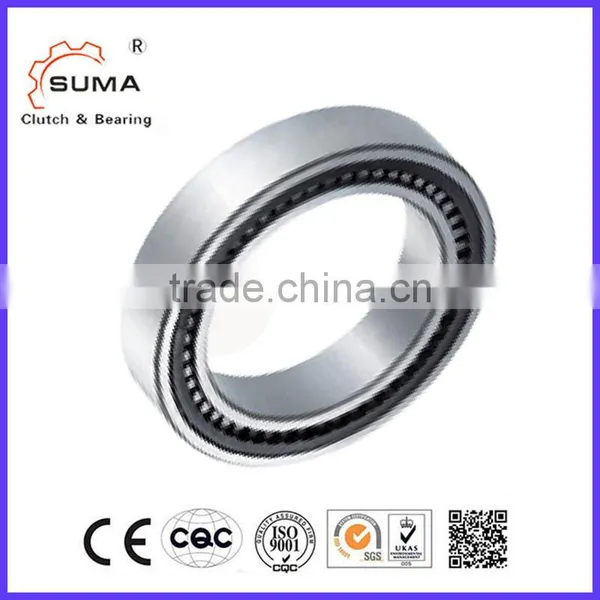

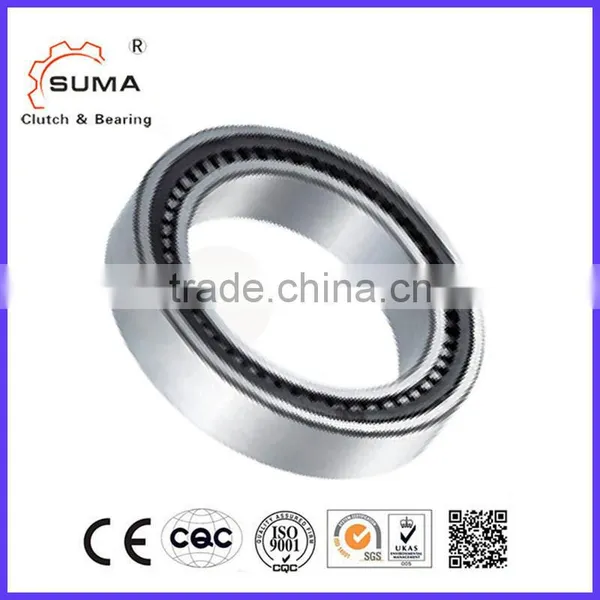

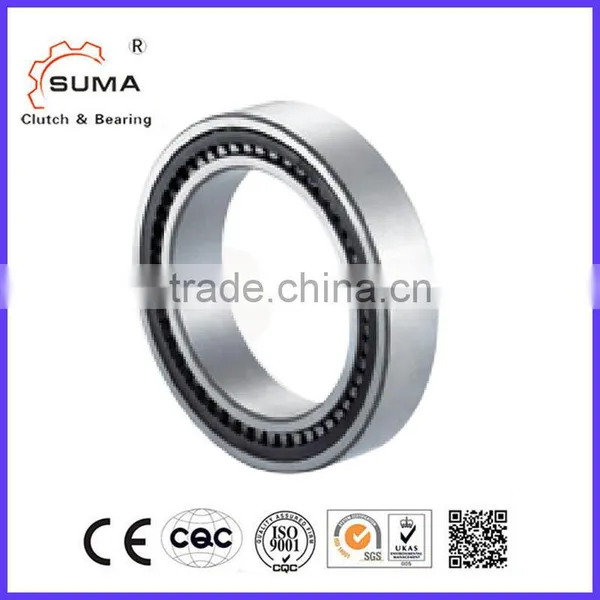

FR Sprag Freewheel Clutch One-Way Clutch Bearing
Features of FR Freewheel clutch bearing
Characteristics
Width:12 mm
Operating temperature
max. 140°C
Higher temperatures on request
Lubrication
Oil or grease lubrication
Delivered with corrosion protection.
Operative grease filling on request.
Installation

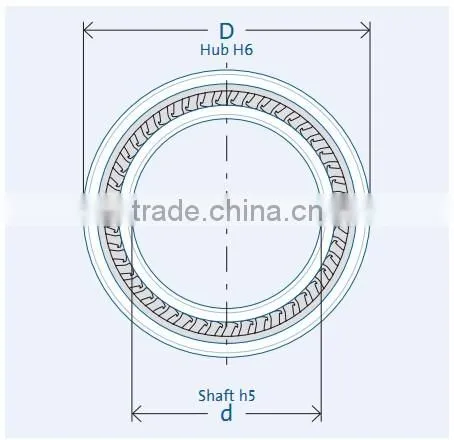

Installation tolerances
Shaft h5; hub H6
Catalogue of FR Freewheel Clutch Bearing for your choice
d = inner diameter, D = outer diameter, W = width, T = torque, n = rotation speed
| Designation | d | D | W | Tnom | nmax | Weight | Item no. |
| [mm] | [mm] | [mm] | [Nm] | [rpm] | [kg] | ||
| FR 422 M | 10 | 26 | 12 | 60 | 10,100 | 0.03 | 300587 |
| FR 422 Z | 10 | 26 | 12 | 53 | 10,100 | 0.03 | 300588 |
| FR 427 M | 15 | 31 | 12 | 92 | 7,400 | 0.04 | 300591 |
| FR 427 Z | 15 | 31 | 12 | 83 | 7,400 | 0.04 | 300592 |
| FR 432 M | 20 | 36 | 12 | 128 | 5,900 | 0.05 | 300593 |
| FR 432 Z | 20 | 36 | 12 | 117 | 5,900 | 0.05 | 300594 |
| FR 437 M | 25 | 41 | 12 | 169 | 4,800 | 0.06 | 300595 |
| FR 437 Z | 25 | 41 | 12 | 154 | 4,800 | 0.06 | 300598 |
| FR 442 M | 30 | 46 | 12 | 212 | 4,200 | 0.07 | 300599 |
| FR 442 Z | 30 | 46 | 12 | 198 | 4,200 | 0.07 | 300600 |
| FR448M | 35 | 53 | 12 | 272 | 4,300 | 0.09 | 300602 |
| FR448Z | 35 | 53 | 12 | 248 | 4,300 | 0.09 | 300603 |
| FR 453 M | 40 | 58 | 12 | 321 | 3,400 | 0.1 | 300605 |
| FR 453 Z | 40 | 58 | 12 | 294 | 3,400 | 0.1 | 300606 |
| FR 463 M | 50 | 68 | 12 | 427 | 2,900 | 0.12 | 300608 |
| FR 463 Z | 50 | 68 | 12 | 394 | 2,900 | 0.12 | 300610 |
| FR 473 M | 60 | 78 | 12 | 539 | 2,500 | 0.14 | 300611 |
| FR 473 Z | 60 | 78 | 12 | 496 | 2,500 | 0.14 | 300613 |
Components
Components | |
Freewheel clutch | |
insert element* |
FE 400 M (meander spring) |
|
FE 400 Z (tension spring) | |
+ Raceways |
Bearing steel, hardened and ground |
inner ring |
- |
|
outer ring |
- |
+ Ball bearing |
- |
|
+ Roller bearing |
- |
+ Lubrication |
- |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the fr freewheel clutch bearing ?
A: Usually fr freewheel clutch bearing are packed in carton box, wooden box or customized. It can be done as your specfic demands.
Q: Can i get the samples of fr freewheel clutch bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the fr freewheel clutch bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
