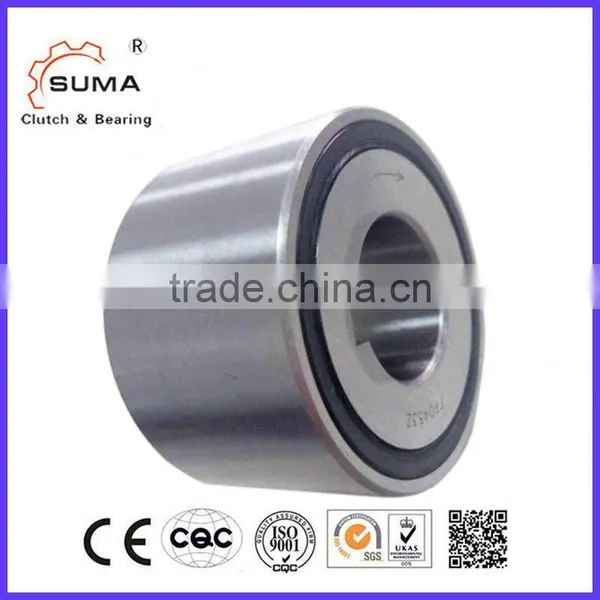

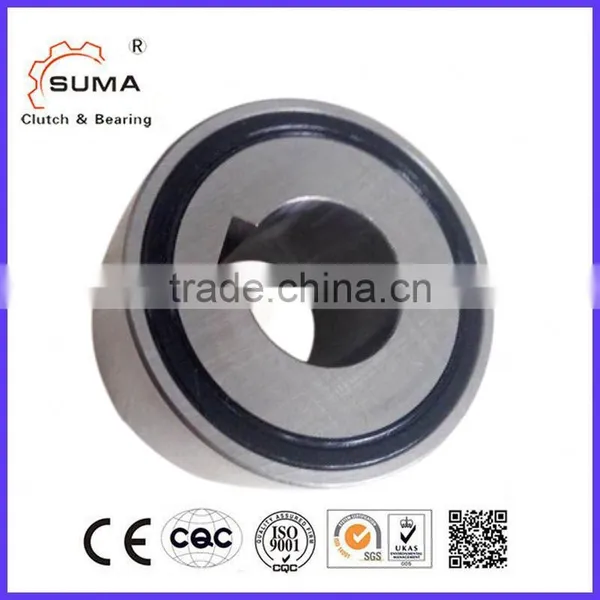

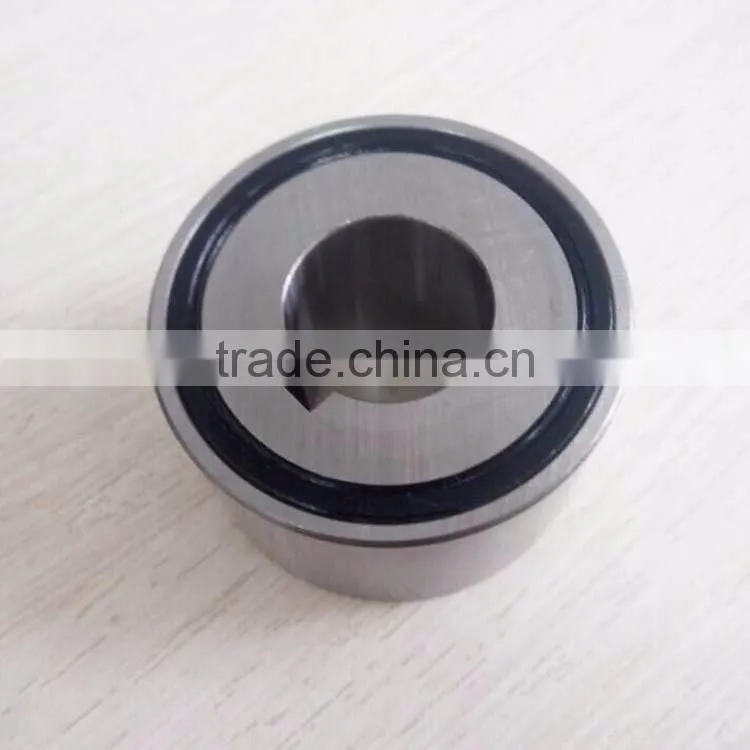

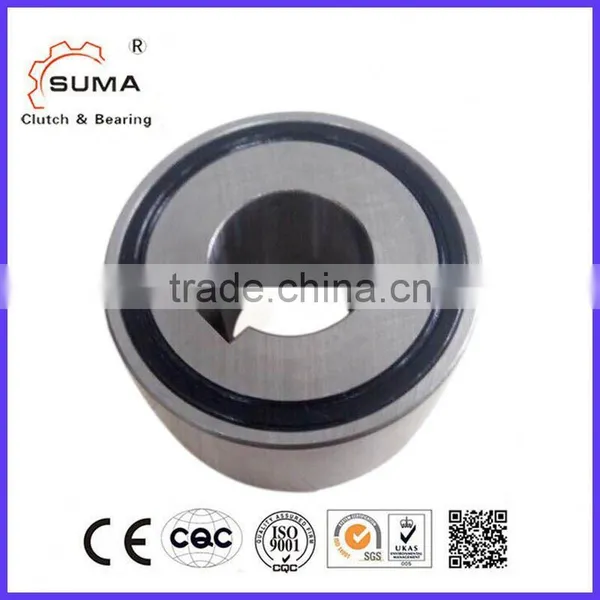

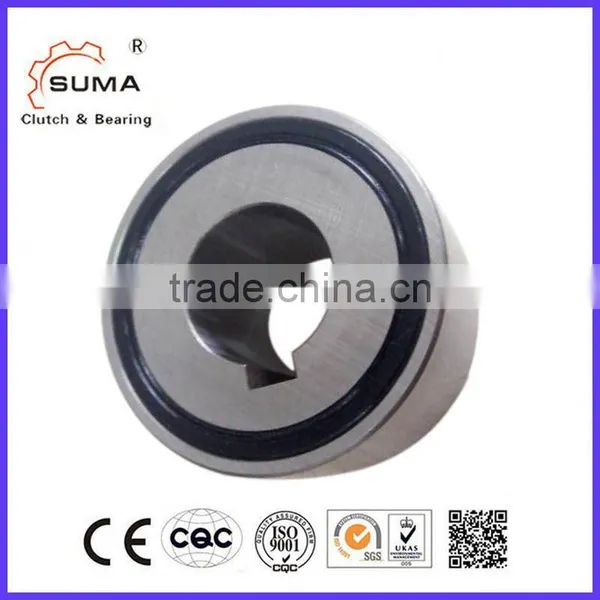

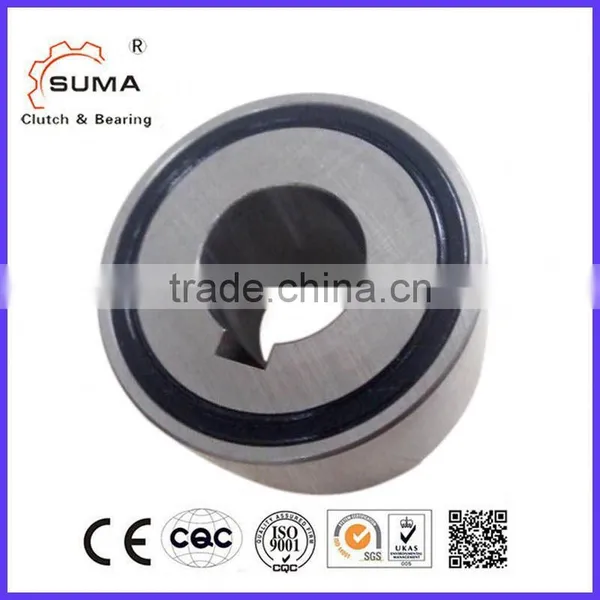

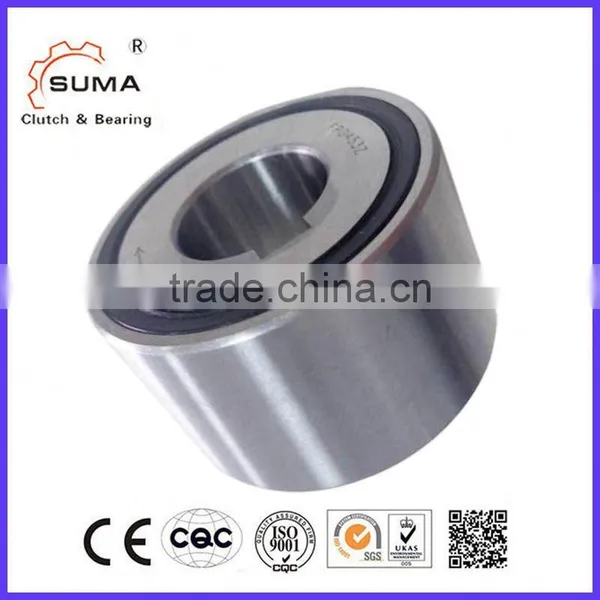

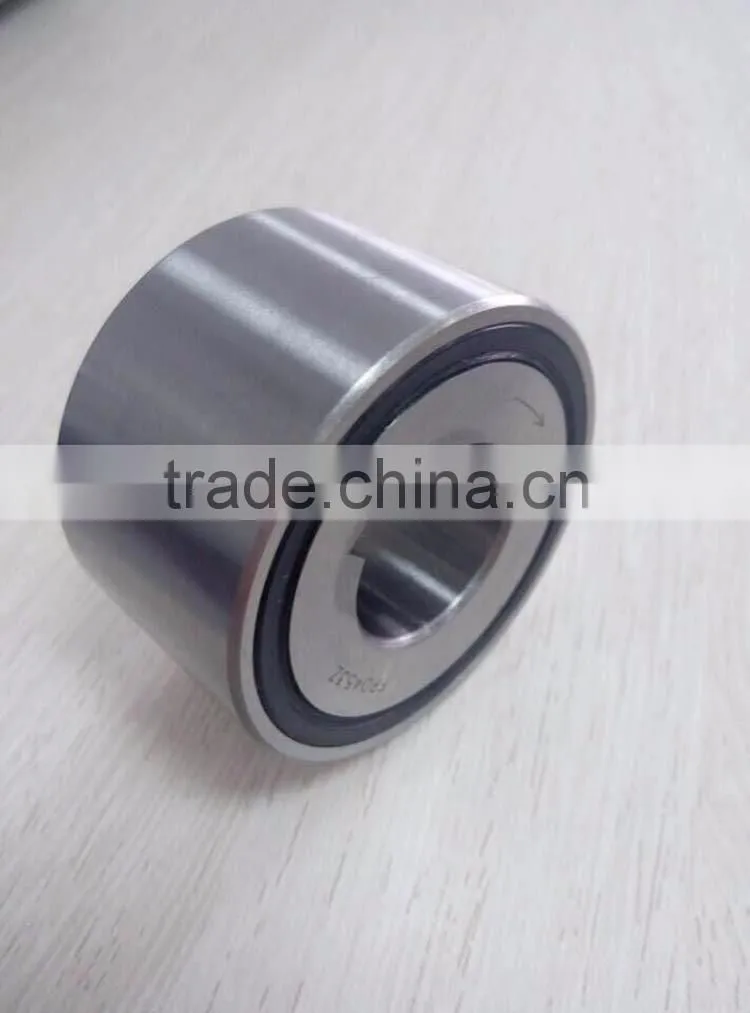

FND437M One Way Clutch Bearing Complete Freewheel Clutch Unit FND 437 M
Features of FND Complete Freewheel Clutch Unit
Characteristics
Width:34 mm
Operating temperature:max. 100° C
Lubrication
Operative lifetime oil lubrication
Installation
Installation tolerances
Shaft h5; hub H6

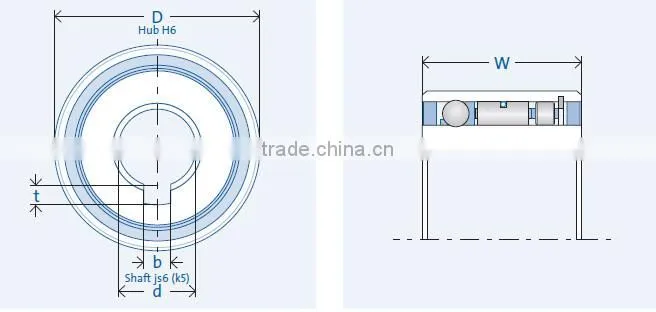

Catalogue of FND Complete Freewheel Clutch Unit for your choice
| Designation | d | D | W | Tnom | nmax | Cdyn. | Cstat. | Weight | b | t | Item no. |
| [mm] | [mm] | [mm] | [Nm] | [rpm] | [N] | [N] | [kg] | [mm] | [mm] | ||
| FND 437 M | 15 | 41 | 34 | 176 | 1,700 | 8,962 | 8,661 | 0.24 | 5 | 2.3 | 300737 |
| FND 437 Z | 15 | 41 | 34 | 161 | 1,700 | 8,962 | 8,661 | 0.24 | 5 | 2.3 | 300738 |
| FND 442 M | 20 | 46 | 34 | 223 | 1,500 | 10,247 | 10,708 | 0.28 | 6 | 2.8 | 300743 |
| FND 442 Z | 20 | 46 | 34 | 208 | 1,500 | 10,247 | 10,708 | 0.28 | 6 | 2.8 | 300744 |
| FND 453 M | 25 | 58 | 34 | 343 | 1,200 | 11,417 | 13,577 | 0.46 | 8 | 3.3 | 300751 |
| FND 453 Z | 25 | 58 | 34 | 314 | 1,200 | 11,417 | 13,577 | 0.46 | 8 | 3.3 | 300752 |
| FND 459 M | 30 | 64 | 34 | 411 | 1,100 | 12,691 | 16,320 | 0.55 | 8 | 3.3 | 300758 |
| FND 459 Z | 30 | 64 | 34 | 381 | 1,100 | 12,691 | 16,320 | 0.55 | 8 | 3.3 | 300760 |
| FND 463 M | 35 | 68 | 34 | 462 | 1,100 | 13,070 | 17,063 | 0.6 | 10 | 3.3 | 306528 |
| FND 463 Z | 35 | 68 | 34 | 428 | 1,100 | 13,070 | 17,063 | 0.6 | 10 | 3.3 | 306529 |
| FND 470 M | 40 | 75 | 34 | 550 | 1,000 | 14,050 | 19,840 | 0.69 | 12 | 3.3 | 300765 |
| FND 470 Z | 40 | 75 | 34 | 509 | 1,000 | 14,050 | 19,840 | 0.69 | 12 | 3.3 | 300766 |
| FND 473 M | 45 | 78 | 34 | 588 | 1,000 | 14,128 | 19,896 | 0.73 | 14 | 3.8 | 306532 |
| FND 473 Z | 45 | 78 | 34 | 543 | 1,000 | 14,128 | 19,896 | 0.73 | 14 | 3.8 | 306533 |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the FND complete freewheel clutch unit ?
A: Usually fnd complete freewheel clutch unit are packed in carton box, wooden box or customized. It can be done as your specfic demands.
Q: Can i get the samples of fnd complete freewheel clutch unit from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the fnd complete freewheel clutch unit in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
