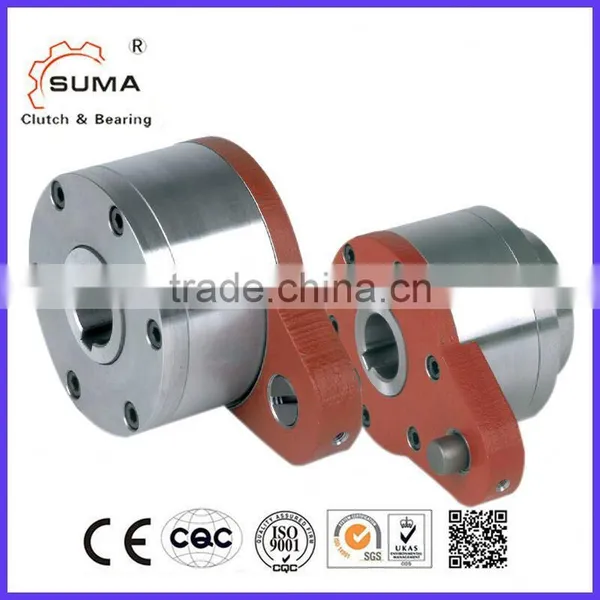

One Direction Clutch /Freewheel Bearing One Way GFR90F2F3

One Direction Clutch /Freewheel Bearing One Way GFR90F2F3 thumbnail-1
One Direction Clutch /Freewheel Bearing One Way GFR90F2F3 thumbnail-2
One Direction Clutch /Freewheel Bearing One Way GFR90F2F3 thumbnail-3
One Direction Clutch /Freewheel Bearing One Way GFR90F2F3 thumbnail-4
One Direction Clutch /Freewheel Bearing One Way GFR90F2F3 thumbnail-5
One Direction Clutch /Freewheel Bearing One Way GFR90F2F3 thumbnail-6
One Direction Clutch /Freewheel Bearing One Way GFR90F2F3 photo-1
One Direction Clutch /Freewheel Bearing One Way GFR90F2F3 photo-2
One Direction Clutch /Freewheel Bearing One Way GFR90F2F3 photo-3
One Direction Clutch /Freewheel Bearing One Way GFR90F2F3 photo-4
One Direction Clutch /Freewheel Bearing One Way GFR90F2F3 photo-5
One Direction Clutch /Freewheel Bearing One Way GFR90F2F3 photo-6
US$ 100 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SUMA
Bore Size:
12, 150
Outside Diameter:
62, 400
Contact Supplier Request Quote Chat Now
Changzhou Suma Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ; Ningbo for one-way bearing GFR
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUMA
Bore Size 12, 150
Outside Diameter 62, 400
Model Number GFR90F2F3
Precision Rating p6
Seals Type sealed
Place of Origin Jiangsu, China


One Direction Clutch /Freewheel Bearing One Way GFR90F2F3

Product Description

 One Direction Clutch /Freewheel Bearing One Way GFR90F2F3

MODEL :  GFR.. F3F4 ROLLER FREEWHEEL



Item GFR.. F3F4
Precision P6
Type Roller
Type of Support Bearing Support
Bore size (mm) 12-150
Outer race (mm) 62-400
Torque (KN) 55-70000
Overrunning speed (min-1) 200-3100
Weight (kg) 1.4-214
Application Elevator , industrial machine and so on



INTRODUCTION

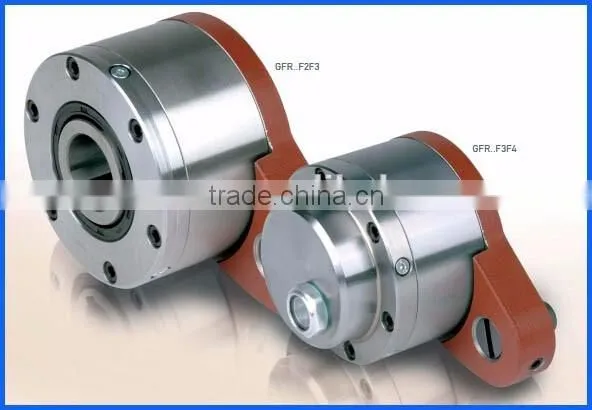

Types GFR..F2F3/F3F4 are roller type freewheels, self-contained, sealed and bearing supported, using two 160.. series bearings.They use the GFR base module. Units must be oil lubricated before use if they are delivered disassembled and in any case for the F3F4 combination.

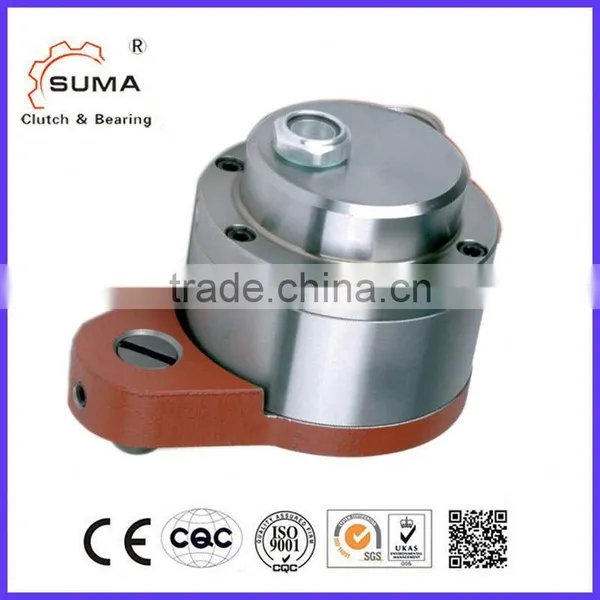

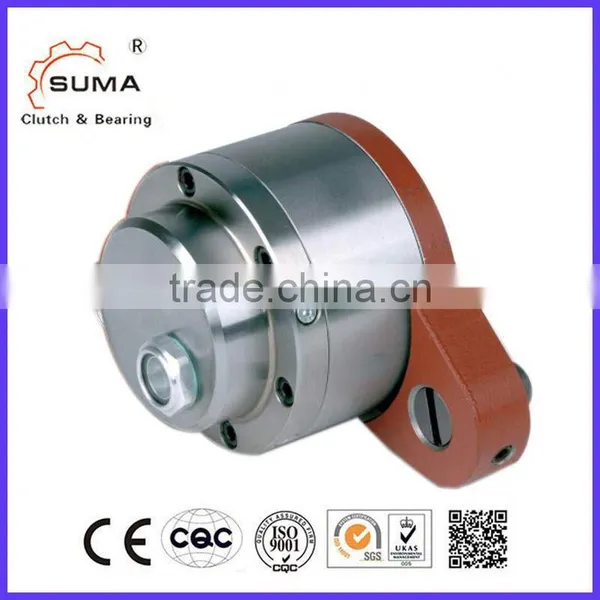

These cover combinations are primarily used as backstops. The F3 cover acts as a torque arm and has an integrated stop bolt. The stop bolt should go into a slot in a fixed part of the machine. The stop bolt must have a radial clearance of 13 % of the bolt's diameter. The torque arm and bearings must not be prestressed in any way. F2 and F4 covers are used to close the unit. They are equipped with 3 screws for oil filling, drain and level.
If using cover type F4, shaft end plate and its screw must be sealed to avoid oil leakage through the keyway.

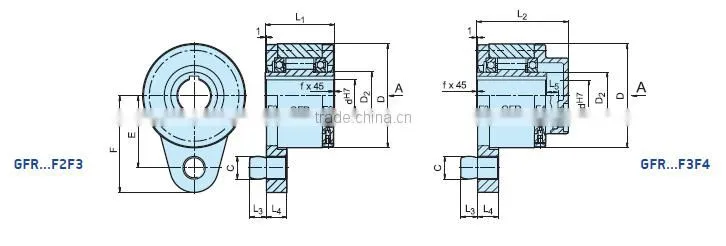

PARAMETERS LIST

Type Size   Overrunning speed   Weight
  dH7 TKN1) nimax2) D D2 C L 1 L2 L3 L4 F E L5 f
  [mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
  12  55  3100  62  20  10  42  64  10  13  59  44  6  0.5 1.4
  15  125  2800  68  25  10  52  78  10  13  62  47  10  0.8 1.8
  20  181  2400  75  30  12  57  82  11  15  72  54  10  0.8 2.3
  25  288  1600  90  40  16  60  85  14  18  84  62  10  1 3.4
  30  500  1300  100  45  16  68  95  14  18  92  68  10  1 4.5
  35  725  1200  110  50  20  74  102  18  25  102  76  12  1 5.6
  40  1025  850  125  55  20  86  115  18  25  112  85  12  1.5 8.5

GFR..

F2-F3

 45  1125  740  130  60  25  86  115  22  25  120  90  12  1.5 8.9

GFR..

F3-F4

 50  2125  580  150  70  25  94  123  22  25  135  102  12  1.5 12.8
  55  2625  550  160  75  32  104  138  25  30  142  108  15  2 16.2
  60  3500  530  170  80  32  114  147  25  30  145  112  15  2 19.3
  70  5750  500  190  90  38  134  168  30  35  175  135  16  2.5 23.5
  80  8500  480  210  105  38  144  178  30  35  185  145  16  2.5 32
  90  14500  450  230  120  50  158  192  40  45  205  155  16  3 47.2
  100  20000  350  270  140  50  182  217  40  45  230  180  16  3 76
  130  31250  250  310  160  68  212  250  55  60  268  205  18  3 110
  150  70000  200  400  200  68  246  286  55  60  325  255  20  4 214



NOTES

1) T max = 2 × T KN

2) Inner race overruns. Values without radial lip seals

3) Outer race overruns. Values without radial lip seals

Keyway to DIN 6885.1

*) GFR12 has through holes in outer race



MOUNTING EXAMPLE

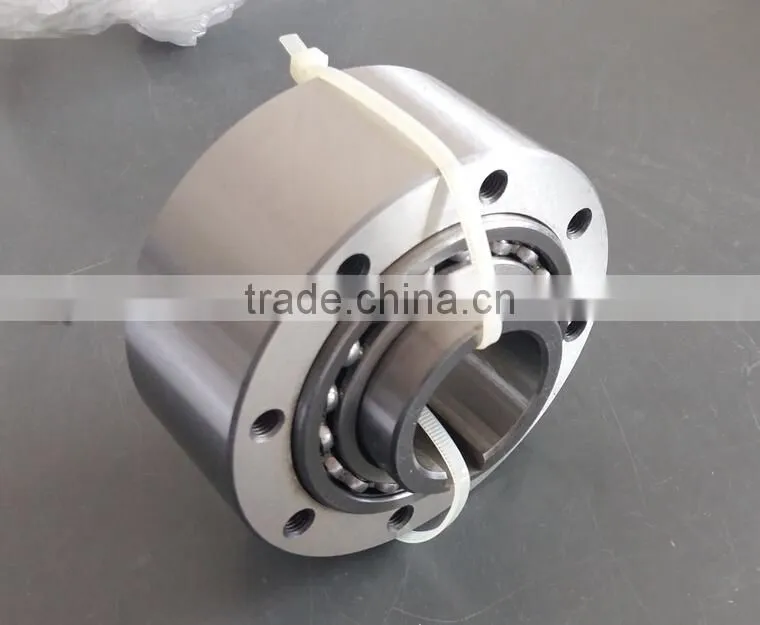

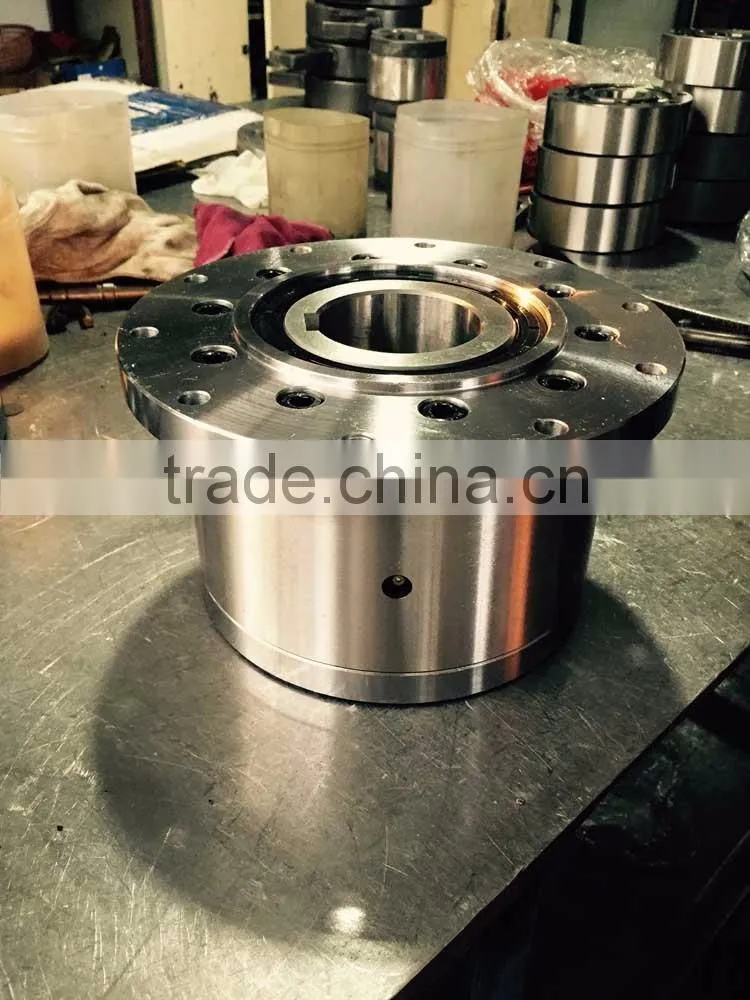

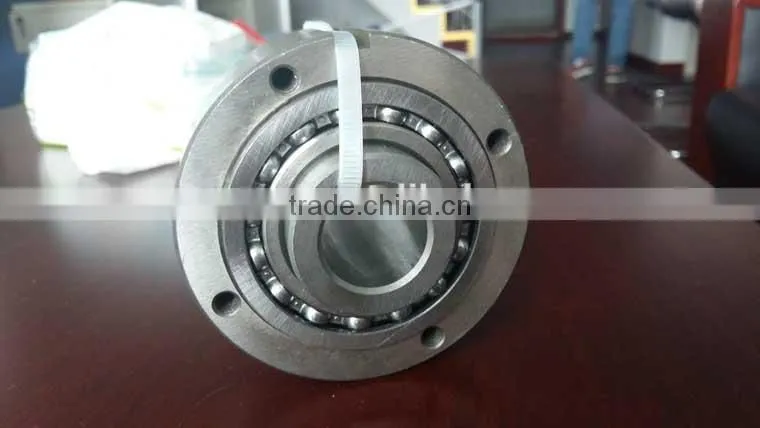

Detailed Images

One Direction Clutch /Freewheel Bearing One Way GFR90F2F3

GFR

One Direction Clutch /Freewheel Bearing One Way GFR90F2F3One Direction Clutch /Freewheel Bearing One Way GFR90F2F3

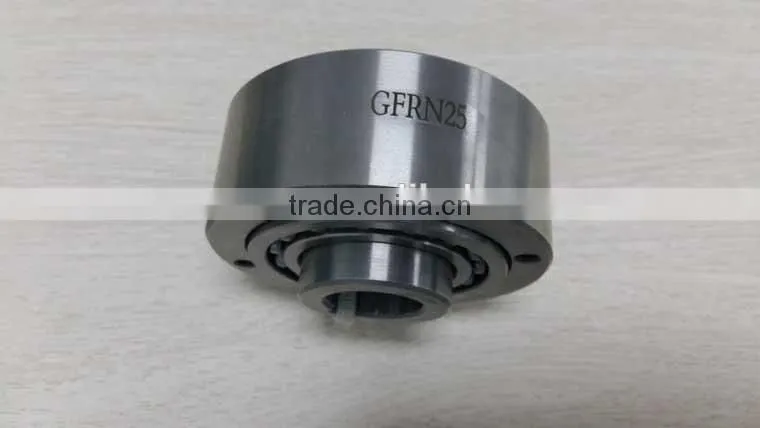

GFRNOne Direction Clutch /Freewheel Bearing One Way GFR90F2F3

One Direction Clutch /Freewheel Bearing One Way GFR90F2F3

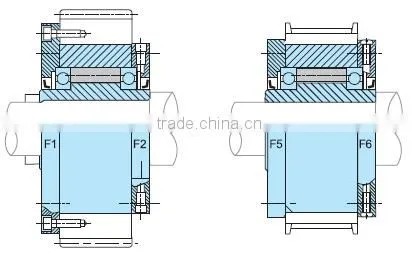

GFRN...F5F6

One Direction Clutch /Freewheel Bearing One Way GFR90F2F3

GFR...F2F7/ GFR...F1F2One Direction Clutch /Freewheel Bearing One Way GFR90F2F3

Company Information

One Direction Clutch /Freewheel Bearing One Way GFR90F2F3

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

One Direction Clutch /Freewheel Bearing One Way GFR90F2F3

 We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Factory Production

One Direction Clutch /Freewheel Bearing One Way GFR90F2F3

One Direction Clutch /Freewheel Bearing One Way GFR90F2F3

FAQ

Q: How do you pack the goods?

A: Usually they are packed in the wooden box. It can be done as your specfic demands.

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
