DM One-Way Bearing Backstop Clutch With Sprags DM175

DM One-Way Bearing Backstop Clutch With Sprags DM175 thumbnail-1
DM One-Way Bearing Backstop Clutch With Sprags DM175 thumbnail-2
DM One-Way Bearing Backstop Clutch With Sprags DM175 thumbnail-3
DM One-Way Bearing Backstop Clutch With Sprags DM175 thumbnail-4
DM One-Way Bearing Backstop Clutch With Sprags DM175 thumbnail-5
DM One-Way Bearing Backstop Clutch With Sprags DM175 thumbnail-6
DM One-Way Bearing Backstop Clutch With Sprags DM175 photo-1

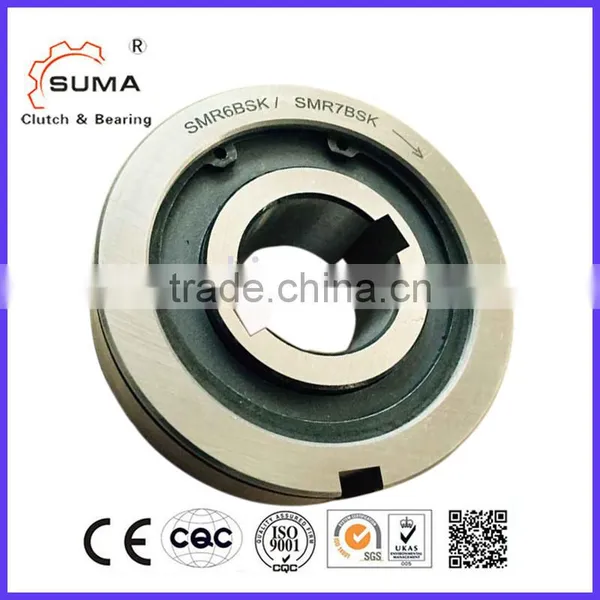

DM One-Way Bearing Backstop Clutch With Sprags DM175 photo-2

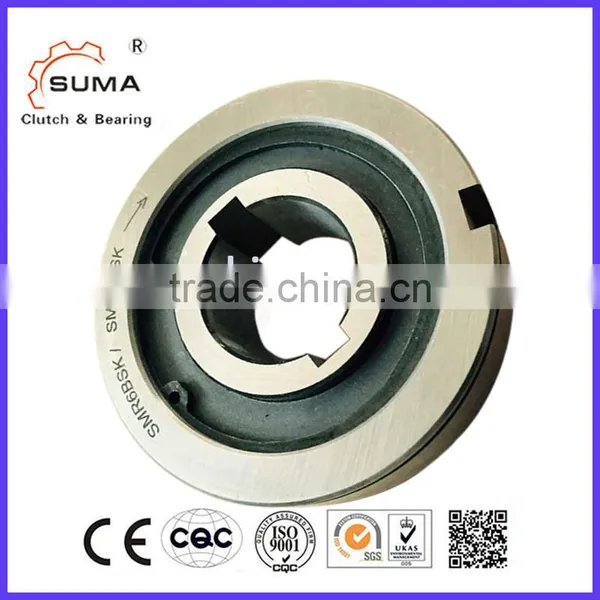

DM One-Way Bearing Backstop Clutch With Sprags DM175 photo-3

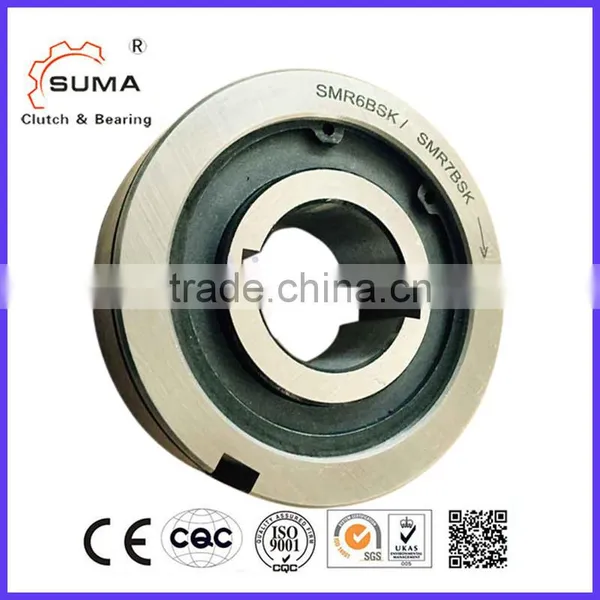

DM One-Way Bearing Backstop Clutch With Sprags DM175 photo-4

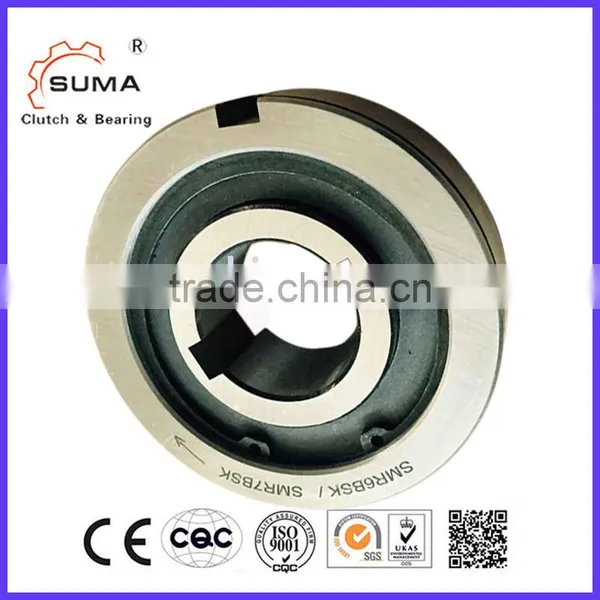

DM One-Way Bearing Backstop Clutch With Sprags DM175 photo-5

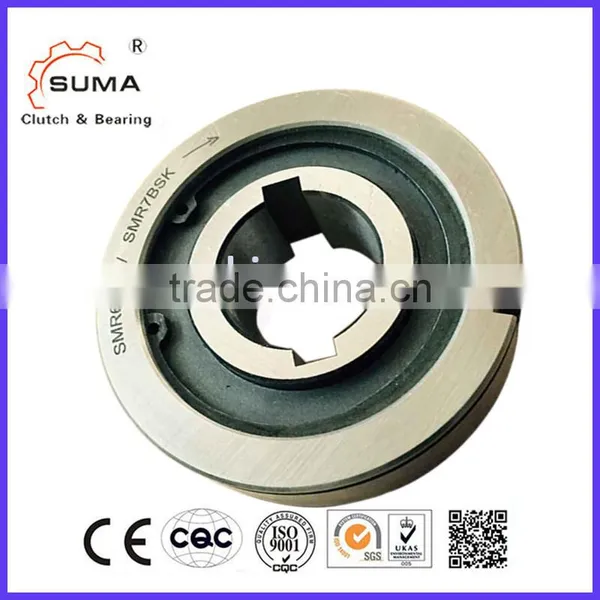

DM One-Way Bearing Backstop Clutch With Sprags DM175 photo-6
US$ 10 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SUMA of backstop clutch
Bore Size:
31.75, 51.961
Outside Diameter:
67.132, 120.65
Contact Supplier Request Quote Chat Now
Changzhou Suma Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo for dm backstop clutch
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUMA of backstop clutch
Bore Size 31.75, 51.961
Outside Diameter 67.132, 120.65
Model Number DM of backstop clutch
Precision Rating P6
Seals Type Non sealed
Place of Origin Jiangsu, China



DM One-Way Bearing Backstop Clutch with Sprags DM175



Product Description



DM One-Way Bearing Backstop Clutch with Sprags DM175

 Features of DM backstop clutch

♦High torque capacity yet compact direct mounting design.
♦Suitable for backstopping applications.
♦DM clutches drive directly onto the shaft, without an inner race, resulting in compact design.
♦The clutch is suitable for use in gear units where the oil provides lubrication.

SPECIFICATIONS
Model  DM175
Material Chrome Steel GCr15
Inner diameter 93.218mm
Outer diameter 93.243mm
Thickness 28.194mm
Shaft Overrunning speed 1500rpm
Torque capacity  427Nm
Weight  1.05kg
Package  carton box, wooden box
Delivery time  5-7 days
Payment Terms TT, L/C, D/P, D/A, Western Union, Paypal

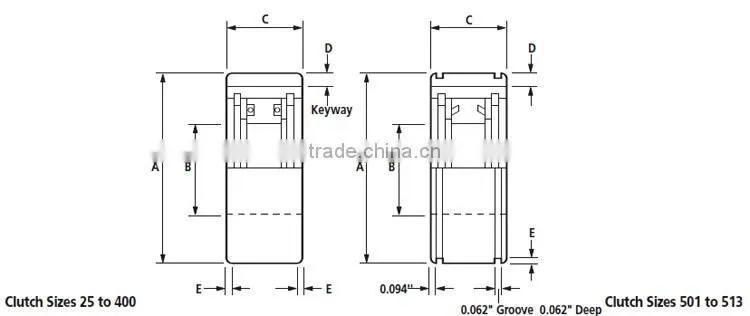

Catalogue of dm backstop clutch for your choice

DM One-Way Bearing Backstop Clutch with Sprags DM175

Part No. DM Sprag clutch reference Torque capacity Shaft overrunning speed Shaft Diameter Weight
kg
A(max) A(min) B(max) B(min) C(max) C(min)
Nm Rpm(max) mm mm mm mm mm mm
649033 125 143 1800 67.132 67.107 31.75 31.725 28.194 27.686 0.43
649034 150 314 1800 84.099 84.074 38.1 38.075 32.004 31.496 0.85
649035 175 427 1500 93.243 93.218 44.45 44.425 32.004 31.496 1.05
649056 200 601 1400 112.547 112.522 50.8 50.775 35.179 34.671 1.87
649057 225 739 1200 122.453 122.428 57.15 57.125 35.179 34.671 2.18
649036 250 832 1000 111.15 111.13 63.5 63.47 44.7 44.2 1.87
649039 275 966 1000 124.74 124.71 69.85 69.82 46.23 45.72 1.9
649040 300 1092 900 132.105 132.08 76.2 76.175 46.228 45.72 2.55
649037 325 1677 850 146.71 146.685 82.55 82.525 51.054 50.546 3.8
649042 350 2262 800 166.675 166.649 88.9 88.875 51.054 50.546 5.3
649203 375 3086 750 172.237 172.212 95.25 95.225 60.579 60.071 6.52
649038 400 3417 750 181.889 181.864 101.6 101.575 60.579 60.071 7.26
648250 501 51 2400 39.992 39.967 16.51 16.485 25.654 25.146 0.18
648251 502 68 2400 46.965 46.939 18.753 18.74 22.479 21.971 0.23
648252 506 158 1800 61.963 61.938 28.791 28.766 25.654 25.146 0.37
648253 507 203 1800 61.963 61.938 24.653 24.628 28.829 28.321 0.48
648254 509 339 1800 71.963 71.938 28.791 28.766 32.004 31.496 0.73
648255 510 452 1800 79.972 79.934 32.931 32.906 35.179 34.671 0.92
648256 511 678 1800 79.985 79.959 35.001 34.976 41.529 41.021 1.18
648257 512 904 1800 89.967 89.941 39.141 39.116 41.529 41.021 1.37
648258 513 1582 1200 120.65 120.625 51.961 51.935 44.7 44.2 2.81

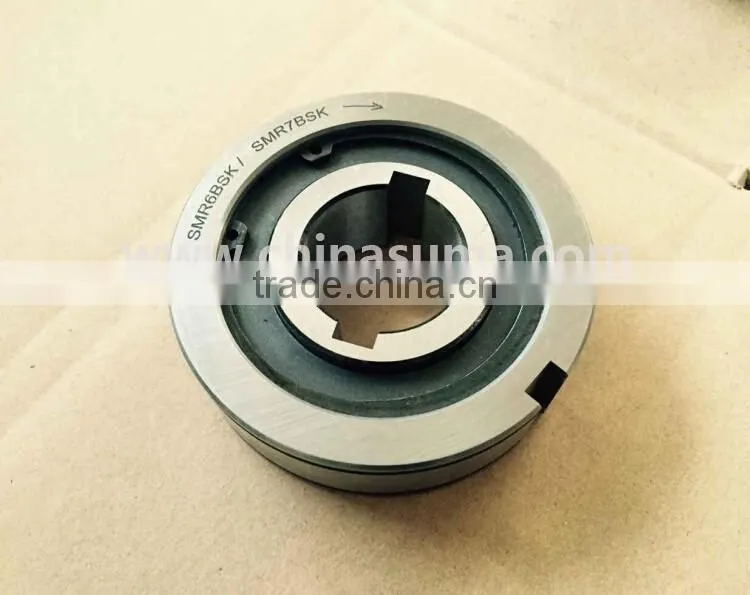

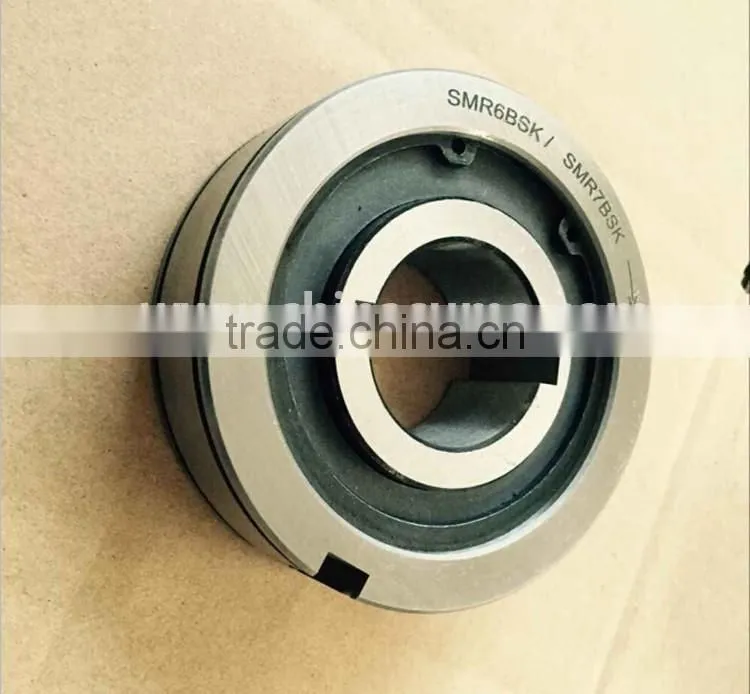

Detailed Images



DM One-Way Bearing Backstop Clutch with Sprags DM175

DM One-Way Bearing Backstop Clutch with Sprags DM175DM One-Way Bearing Backstop Clutch with Sprags DM175



Company Information



DM One-Way Bearing Backstop Clutch with Sprags DM175

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

DM One-Way Bearing Backstop Clutch with Sprags DM175

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.



Factory Production



DM One-Way Bearing Backstop Clutch with Sprags DM175

DM One-Way Bearing Backstop Clutch with Sprags DM175



After-Sales Service



Pre-sale service:

We will delivery the goods in 10 days after your order is confirmed.

After sale service:

Our factory provide technical assistance to support every doubt during usage and maintenance.

FAQ

Q: How do you pack the dm backstop clutch?

A: Usually dm backstop clutch are packed in the wooden box. It can be done as your specfic demands.

Q: Can i get the samples of dm backstop clutch from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the dm backstop clutch in time?

A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
