3 in 1 pet bottle automatic juice bottling plant
This automatic machine is used for juice or tea beverage hot filling.
1. It integrates rinsing, filling and sealing into one unit.
2. It can complete 95 centigrade juice hot filling.
3. It is made of stainless steel 304 and takes elements with famous brand.
Fruit Juice Bottling Plant's Technical Parameter
| Model | RCGF16-12-6 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 |
| Washing Heads | 16 | 18 | 24 | 32 | 40 |
| Filling Heads | 12 | 18 | 24 | 32 | 40 |
| Caping Heads | 6 | 6 | 8 | 10 | 12 |
| Capacity(b/h) | 3000 | 6000 | 1000 | 14000 | 18000 |
| Filling Precision | ≤+5mm | ≤+5mm | ≤+5mm | ≤+5mm | ≤+5mm |
| Power(Kw) | 2.2 | 3.75 | 4.8 | 5.5 | 6.3 |
| Weight(Kg) | 2500 | 3000 | 4000 | 5000 | 6500 |
| Size(mm) | 2100*1500*2200 | 2450*1800*2200 | 2750 *2180*2200 | 3600*2800*3150 | 4200*3000*3150 |
Fruit Juice Bottling Plant's Washing Part

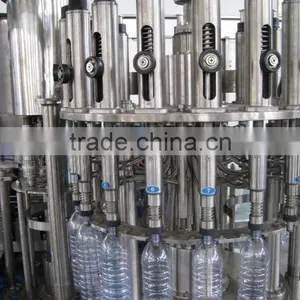

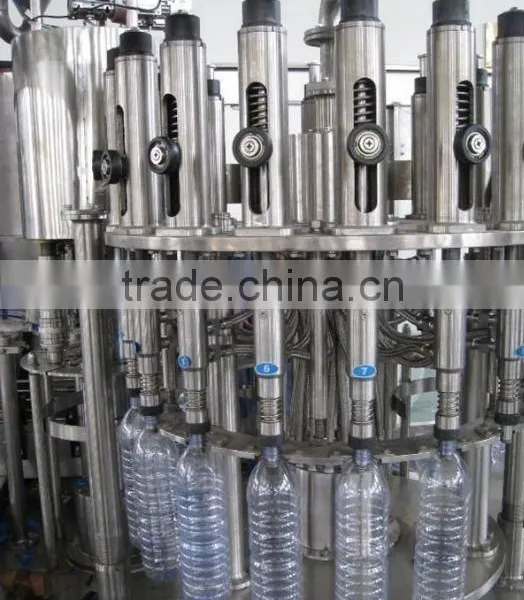

Fruit Juice Bottling Plant's Filling Part
Fruit Juice Bottling Plant's capping Part
Process Flow:
The bottles are first picked up using an automatic robot arm, which tilts the bottle on top of a rinsing spray, which rinses the bottles in three stages. The bottles are cleaned with clean water. After rinsing the bottles are transferred by neck to the filling station. Here the bottles are filled accurately by filling valves. The filling valves are very accurate and give equal filling to every bottle. The special feature in the system is that no bottle no wash and no bottle no fill. After filling, bottles automatically move for the capping stage where the caps are released from the vibrator on the bottle. The caps are sealed automatically using special capping heads. A number of germicidal lamps are provided to disinfect the water and air borne contamination. CC 1000 is an unique bottling machine with in built High-Tech features. The entire system is enclosed in a stainless steel / Glass outer casing. After the capping stage, the bottles are automatically ejected out of the output conveyor to the feed area.
