Automatic Juice Filling Machine

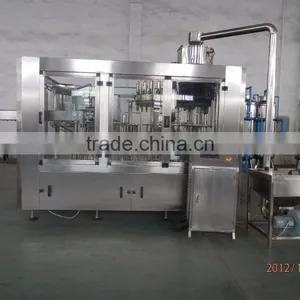

Automatic Juice Filling Machine thumbnail-1
Automatic Juice Filling Machine thumbnail-2
Automatic Juice Filling Machine thumbnail-3

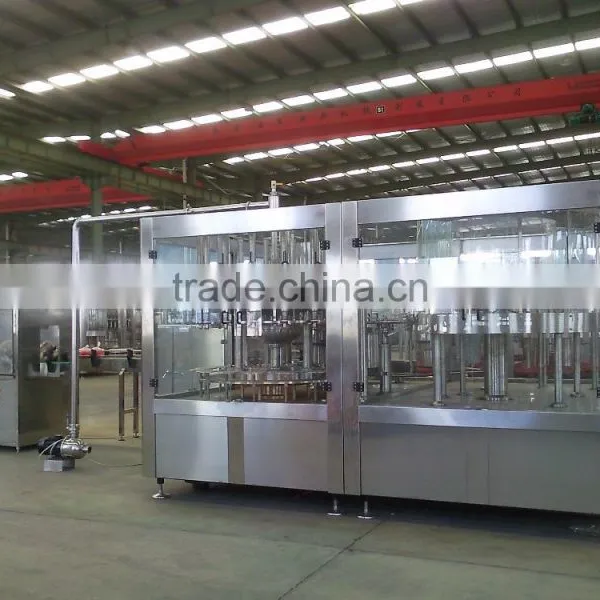

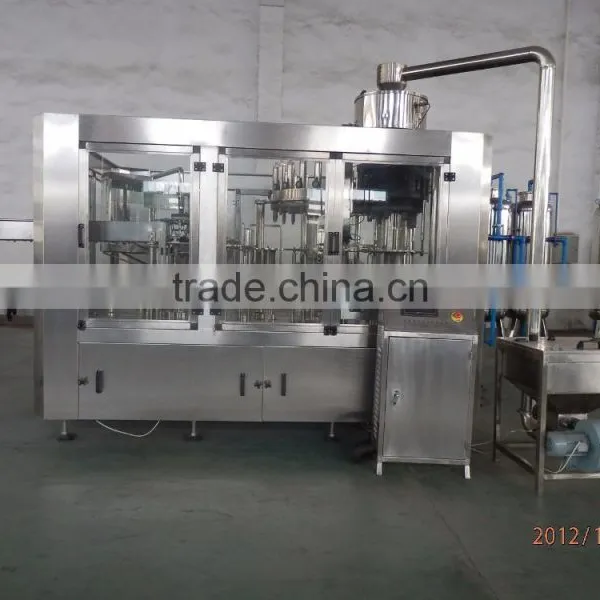

Automatic Juice Filling Machine photo-1
Automatic Juice Filling Machine photo-2
Automatic Juice Filling Machine photo-3
US$ 6,000 - 150,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Concentrate
Model Number:
500ml
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiazhou Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai Automatic Juice Filling Machine
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Concentrate
Model Number 500ml
Place of Origin Jiangsu, China
Primary Ingredient Apple, Banana, Barley, Grape, Pear, Pineapple, Water Melon
Feature Low-Fat
Certification ISO
Packaging Bottle
 Automatic Juice Filling Machine
P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description Automatic Juice Filling Machine

carrot juice filling machine
1.MITSUBISHI PLC
2.no drop,no waste
3.capacity:5000-20000b/h
4.material:SUS304

3in1 automatic pet bottle carrot juice filling machine:



Machine introduction:

SJF juice fill machine, Integrating with washing, filling and capping, it has temperature control device for heat fillingand realizes full automation in the whole process, suitable for polyester bottle and plastic bottle filling of juice and tea.



The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new micro-negative pressure filling, stable and reliable. Compared with the machines of the same specification, the benefit of the machine is larger.



Machine adopts advanced Mitsubishi programmable logic controller (PLC) to control. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable.

Product display Automatic Juice Filling Machine

Automatic Juice Filling Machine



Automatic Juice Filling Machine

Product Parameters Automatic Juice Filling Machine

Machine Parameter:



Model SJF12124 SJF18186 SJF24248 SJF323210 SJF404012 SJF505012 SJF606015
Number of washing, filling and capping heads 12-12-4 18-18-6 24-24-8 32-32-10 40-40-12 50-50-12 60-60-15
Production capacity(500ml) b/h 2000-4000 5000-7000 8000-12000 12000-15000 16000-20000 20000-24000 25000-30000
suitable bottle specification(mm) φ=50-110=170   330-2250ml
Washing   pressure(kg/cm 2 ) about 2-3
Motor power(kw)(Main motor) 2.2kw 2.2kw 3kw 5.5kw 7.5kw 11kw 15kw
Overall dimensions (mm) 2400*1650*2500 2600*1920*2550 3100*2300*2800  3800*2800*2900 4600*2800*2900 5450*3300*2900 6500*4500*2900
Weight (kg) 2500 3500 4500 6500 8500
