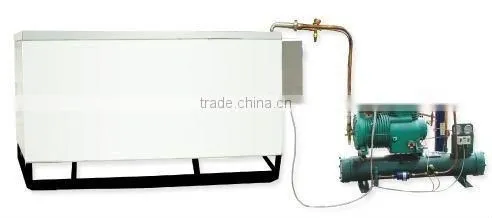

LY Series Beverage Cooling Tank,chiller
US$ 2,000 - 68,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
JZ
Model Number:
LY
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3-in-1 Automatic Hot Fruit Juice (tea) Filling Machine (hot Sale)US$ 15,000 - 50,000MOQ: 1 Unit -
Auto Orange Juice Filling Production Line PriceUS$ 1,000 - 20,000MOQ: 1 Unit
-
Fresh Fruit Juice Filling Machine/Favorites Compare 3 in 1 Washing Filling Capping Fruit Juice Filling MachineUS$ 10,000 - 30,000MOQ: 1 Unit
-
Peach Juice Drinks Production LineNegotiableMOQ: 1 Set
-
Orange Juice Manufacturing MachineNegotiableMOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
JZ
Model Number
LY
Usage and Characteristic
The cooling tank contains compressor using freon F-12 as refrigerant, and pressure sensor, and temperature regulator for automatic controlling. It is necessary equipment for aerated water and sparking wine production industry.
| items | LY-1600 | LY-2000 | LY-3000 |
| compressor model | 2F6.3-S | JZS-2F-10 | JZS-4F-10 |
| tank volume(m3) | 1.6 | 2 | 3 |
| vapouring area(m²) | 7.2 | 11 | 20 |
| refrigeranting capacity(kj/h) | 33440(dual) | 58520 | 117040 |
| water output(kg/h) | 100-1000 | 1000-1500 | 1500-2000 |
| out put water temperature(°c) | 0-5 | 0-5 | 0-5 |
| power(kw) | 6(dual) | 11 | 22 |
| overall dimensions(mm) | 2200*1200*2100 | 2200*1200*1700 | 2280*1400*1800 |
| weight(kg) | 1050 | 1230 | 1250 |
