Home > Packaging & Printing > Packing Machinery > Filling Machine > Good Quality Fruit Juice Production Line Price

Good Quality Fruit Juice Production Line Price

Good Quality Fruit Juice Production Line Price photo-1
Good Quality Fruit Juice Production Line Price photo-2
Good Quality Fruit Juice Production Line Price photo-3
Good Quality Fruit Juice Production Line Price photo-4
US$ 6,000 - 10,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai for fruit juice plants price
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name JIAZHOU
Model Number RCGF
Dimension(L*W*H) 2900*2800*3050mm
Weight 2.5T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description Good quality fruit juice production line price

1.Direct connection technology between air conveyor and in-feeding starwheel,replace in-feeding screw and conveying chain.New designed bottle separating grippers are assembled to starwheel.



2.Neck hanging technology applied in bottle transportation.Instead of using traditional starwheel,we adopt neck hanging gripper,wihch makes it easier to change different bottle size.



3.Specially designed rinser gripper made of stainless steel is firm and endurable,no direct contact to screw part of the bottle,preventing secondary pollution.



4.Splint of starwheel using twist descending way to simplify the process of bottle size changing.It only requires change of board and starwheel,just take few minutes.

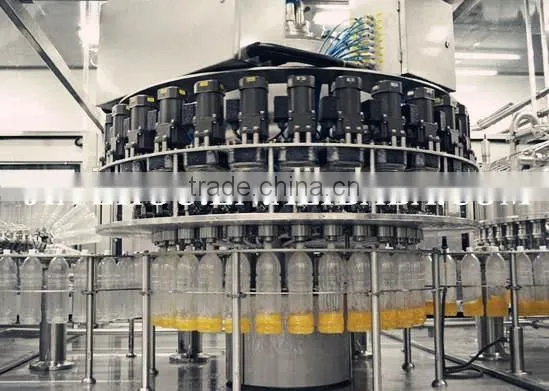

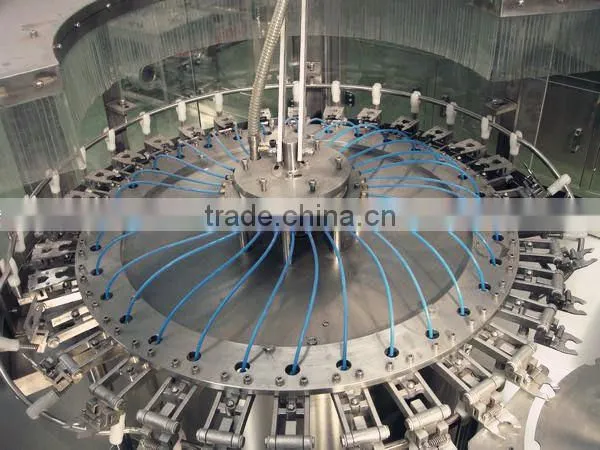

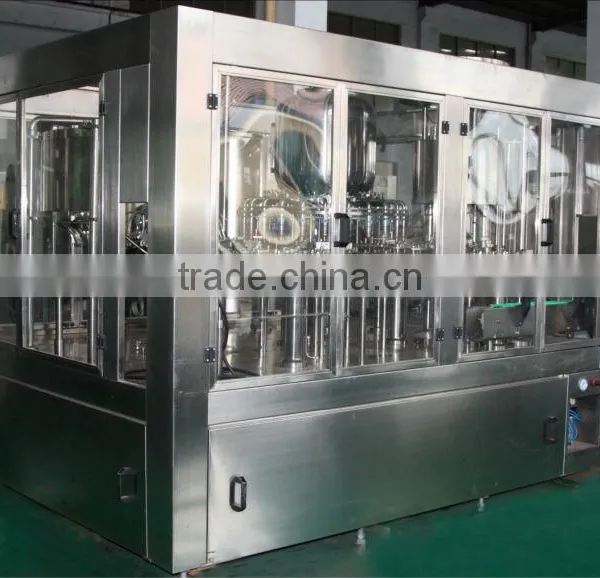

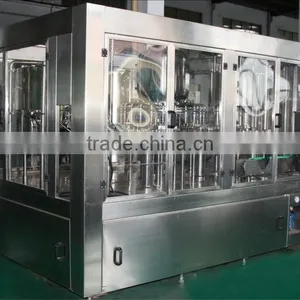

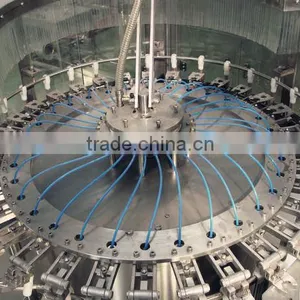

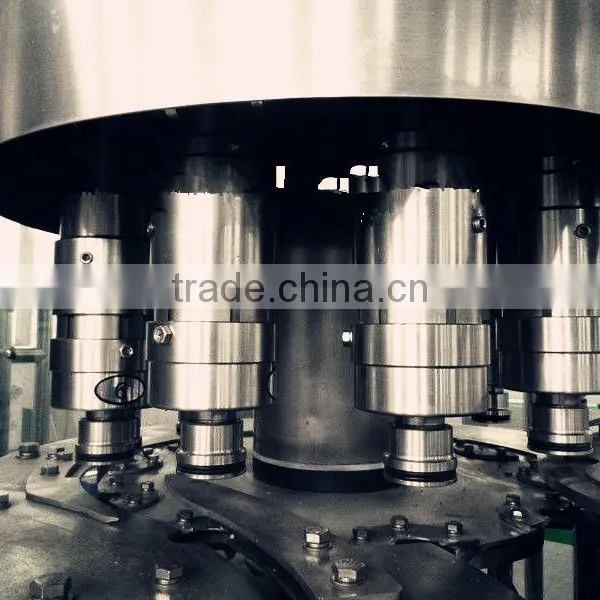

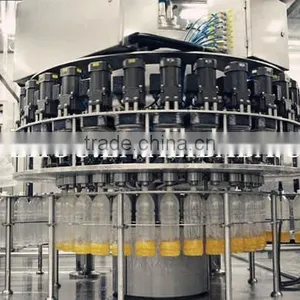

Product display Good quality fruit juice production line price

Good quality fruit juice production line price



Good quality fruit juice production line price



Good quality fruit juice production line price

Product Parameters Good quality fruit juice production line price
Model RCGF
18186
RCGF
24248
RCGF
323212
RCGF
404015
RCGF
505018
RCGF
606020
Head of washing, filling, sealing 18-18-6 24-24-8 32-32-8 40-40-10 50-50-18 60-60-20
Production capacity (bottle/hour)   3000-4000 5000-6000 7000-8000 9000-10000 11000-12000 15000
Suitable bottle diameter(mm) φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100  H=150-310  330-1500ml
Filling precision ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm
Motor power 3.84kw 4.1kw 5.6kw 7.5kw 9kw 11kw
Filling pressure ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
Overall dimension     (mm) 2400×1900
×2300
2800×2100
×2300
4200×2300
×2300
5000×2800
×2400
5900×3100
×2400
6500×3500
×2400
Weight(Kg) 3000 4000 5000 7500 9000 11000
Good quality fruit juice production line price
C/ompany information Zhangjiagang Jiazhou Machinery Co., Ltd.
Good quality fruit juice production line price
O/ur advantage Zhangjiagang Jiazhou Machinery Co., Ltd.
Good quality fruit juice production line price
O/ur certificate Zhangjiagang Jiazhou Machinery Co., Ltd.
Good quality fruit juice production line price
N/etwork Marketing Zhangjiagang Jiazhou Machinery Co., Ltd.
Good quality fruit juice production line price
P/ackaging & shipping Zhangjiagang Jiazhou Machinery Co., Ltd.
Good quality fruit juice production line price
C/ontact us Zhangjiagang Jiazhou Machinery Co., Ltd.
Good quality fruit juice production line price
