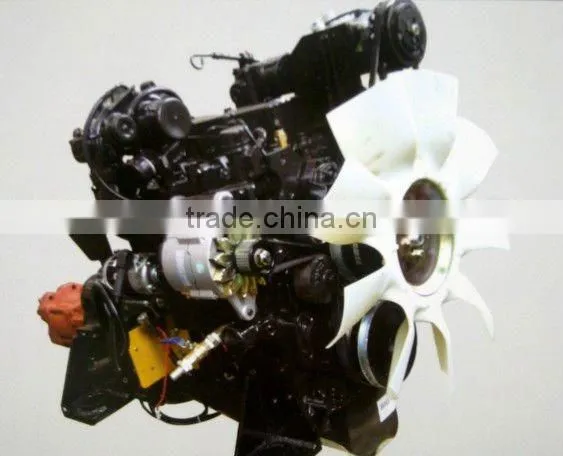

Cummins turbocharged engine(original)
*Top class technology of the world with powerful drive and low noise
*The total fuel consumption of the machine is evidently lower than other machines of its kind, compliant with tier 2 emission standards, energy saving and environmental friendly
*Imported cyclone air cleaner prolongs lifetime, reduces the maintencance cost.

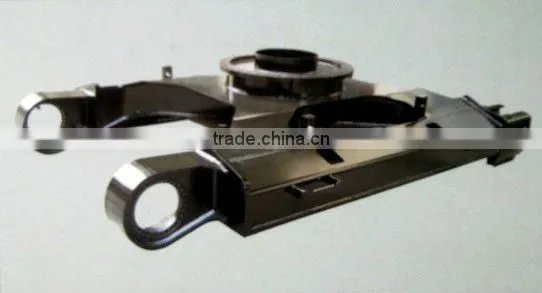

High strengthene undercarriage
* The strengthened X-shape box structure frame is wholly welded and connected by the low stress, high strength steel plate to ensure the strength and reliability
* High strengthened structure for rough terrain and lengthened type for swampy place

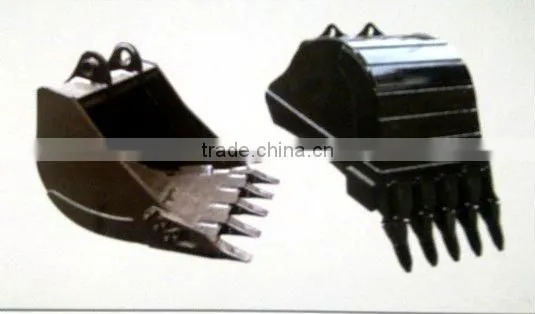

Quality bucket
The cutting blade adopts high-strength wear-resistance steel plate, bucket teeth and side teeth are made of special material by professional refined foundry, which greatly improves bucket wearibility.

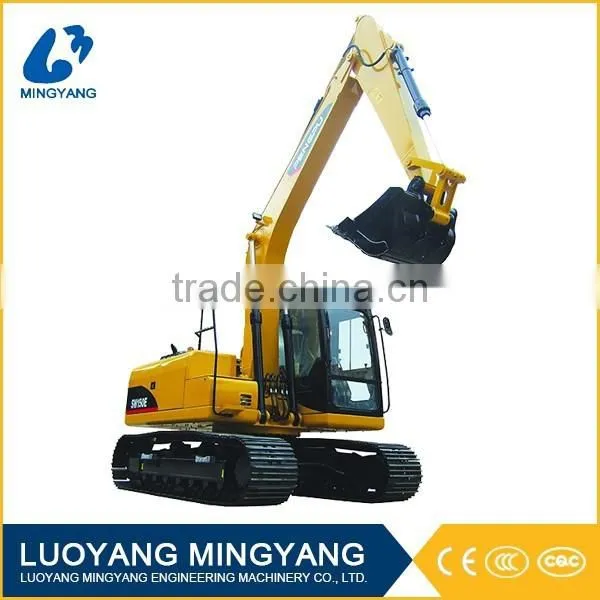

SW150E excavator specification
NO. |
DESCRIPTION |
SPECIFICATON |
||
|
1 |
Main machine |
|
||
(1) |
Working weight |
15200kg |
||
(2) |
Bucket capacity |
0.5M3 |
||
(3) |
Track width |
600mm |
||
(4) |
Transport dimension |
7908*2600*2868mm |
||
(5) |
Overall dimension |
Length of track on ground |
3000mm |
|
Length of track |
3751mm |
|||
Ground clearance of counter weight |
919mm |
|||
Tail swing radius |
2314mm |
|||
Track gauge |
2000mm |
|||
Min. ground clearance |
452mm |
|||
Track height |
817mm |
|||
Top width |
2500mm |
|||
(6) |
Working range |
Max. working radius |
8325mm |
|
Max. digging depth |
5533mm |
|||
Max. vertical digging depth |
5308mm |
|||
Max. dump height |
6428mm |
|||
Max digging height |
8632mm |
|||
Min. swing radius |
2440mm |
|||
(7) |
Performance |
Ground pressure |
40.8Kpa |
|
Swing speed |
12.9r/min |
|||
