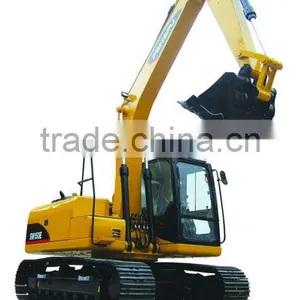

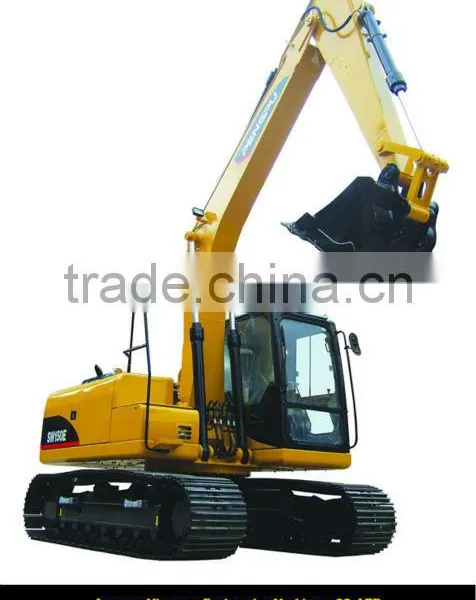

Best Best Price of 15t Hydraulic Crawler Excavator SW150E on Sale

Name: Best Best Price of 15t Hydraulic Crawler Excavator SW150E on Sale
Brand: luoyang
SKU: 140742712

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Henan, China

Brand Name:

luoyang

Model Number:

SW150E

Luoyang Mingyang Engineering Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai Tianjin Qingdao Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name luoyang

Model Number SW150E

Condition New

Moving Type Crawler Excavator

Operating Weight 15200kg

Bucket capacity 0.59m3

Maximum Digging Height 8632mm

Maximum Digging Depth 5523mm

Machine Weight 15200kg

Max Digging Radius 8325mm

After-sales Service Provided Engineers available to service machinery overseas

Specifications

total weight:147000kg
engine: Cummins B3.9-C(4BTAA3.9-C)
rater power: 85.4kw(116hp)/2200rpm
forced bucket is optional

SW150E HYDRAULIC EXCAVATOR

ITEM		PARAMETERS
MAIN TECHNICAL DATAS
SPECIFICATION	Operating weight of total machine	15200kg
	Bucket capacity Note: forced bucket is for option (optional forced arm)	0.5M³
	Width of track shoes	600mm
OVERALL DIMENSIONS	Length of track on ground	3000mm
	Length of track	3751mm
	Ground clearance of countrer weight	919mm
	Tail swing radius	2314mm
	Rear length	2350mm
	Total length	7908mm
	Total height(boom)	2868mm
	Total width	2600mm
	Track gauge	2380mm
	Min ground clearance	490mm
	Width of track shoes	600mm
	Height of track shoes	817mm
	Total height (cab)	2843
	Top width	2500mm
WORKING RANGE	Max. working radius	8325mm
	Max. digging depth	5533mm
	Max. vertical digging depth	5308mm
	Max. digging height	8632mm
	Max. dump height	6428mm
	Min. swing radius	2440mm
PERFORMANCE	Ground pressure	40.8Kpa
	Swing speed	12.9r/min
	Travel speed high/low	5.4/3.5km/h
	gradeability	70%
	Bucket digging force	89KN
	Arm digging force	70.2KN
ENGINE	Model	Cummins B3.9-C(4BTAA3.9-C)
	Type	4 cylinders, 4-stroke, turbocharger and aftercooler
	Rated power	85.4kw/2200rpm
HYDRAULIC	Type of hydraulic pump	Variable flow axial piston pump2+gear pump1
	Method of power adjustment	Gross power adjustment + variable power + negative flow control
	Max flow	2*210L/min
	Main safety valve adjusted power	31.4/34.3Mpa
	Travel axial piston motor	2*variable flow axial piston motor
	Motor for swing	1*fixed flow axial piston motor
